Isuzu WW
▶
TRUCKS
▶
GTR
▶
10936 - GTR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-42 - FUEL PUMP AND PIPE
▶

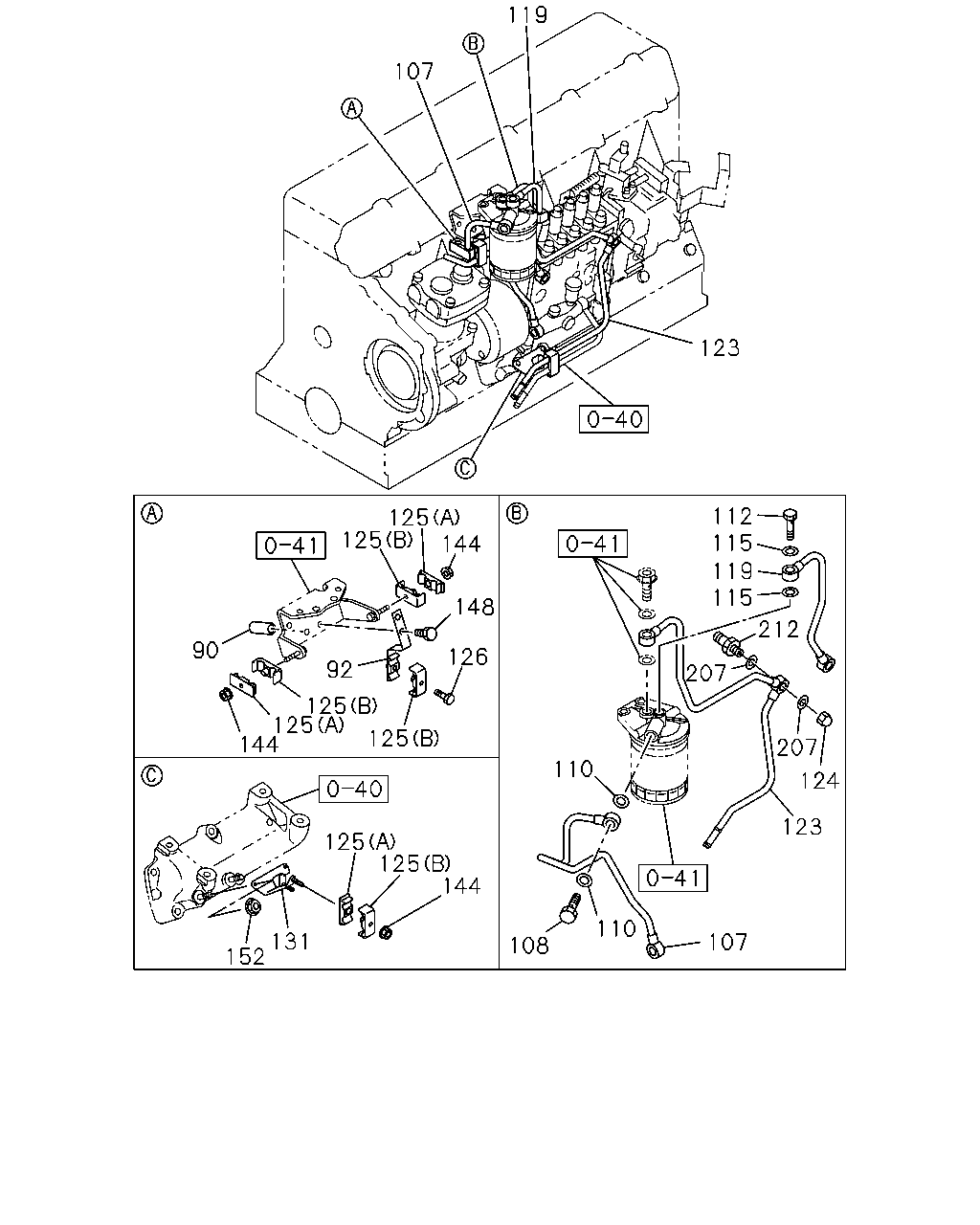

0-42 — FUEL PUMP AND PIPE
(#29008) — 26 parça
119
107
123
112
115
119
115
125
125
144
148
212
90
126
92
207
125
125
144
125
207
110
124
123
125
125
144
110
131
152
107
108
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
90
TUBE; DIST
L=43
1-14149-048-1
01
1
0311-
92
BRACKET; FUEL PIPE
1-15419-433-0
01
1
0311-
107
PIPE; FUEL,FEED PUMP TO FUEL FILTER
1-15415-784-0
01
1
0311-
108
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0311-
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0311-1312
110
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
112
BOLT; JOINT,FUEL FILTER
M14X27 FLANGE
1-09675-086-0
01
1
0311-
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
02
1
0311-1312
115
GASKET; JOINT BOLT,FUEL PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
02
1
1401-
119
PIPE; FUEL,FUEL FILTER TO INJ PUMP
1-15415-780-0
01
1
0311-
123
PIPE; FUEL,FUEL FILTER LEAK OFF
1-15415-781-1
01
1
0311-
124
NUT; CAP,FUEL PIPE
M14
1-09468-002-1
01
1
0311-
125
CLIP; FUEL PIPE
(A)
1-09701-180-0
03
1
0311-
125
CLIP; FUEL PIPE
(B) ID=10 & 10 L=25
8-94393-280-3
04
1
0311-
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28080-635-0
01
1
0311-0512
126
BOLT; CLIP,FUEL PIPE
M6X35 FLANGE
0-28050-635-0
01
1
0601-
131
BRACKET; FUEL PIPE CLIP
1-15419-436-0
01
1
0311-
144
NUT; CLIP
M6 FLANGE
0-91150-106-0
03
1
0311-0602
144
NUT; CLIP
M6 FLANGE
0-91180-106-0
03
1
0603-
148
BOLT; BRKT
M8X25 FLANGE
0-28080-825-0
02
1
0311-0512
148
BOLT; BRKT
M8X25 FLANGE
0-28050-825-0
02
1
0601-
152
NUT; BRKT
M6 FLANGE
0-91150-106-0
02
1
0311-0602
152
NUT; BRKT
M6 FLANGE
0-91180-106-0
02
1
0603-
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
1-09630-085-0
03
1
0311-1312
207
GASKET; EYE BOLT
ID=14.2 OD=19.2
8-98251-345-0
03
1
1401-
212
VALVE; OVERFLOW
1-13260-001-1
01
1
0311-
