Isuzu WW
▶
TRUCKS
▶
GTR
▶
10936 - GTR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-40 - FUEL INJECTION SYSTEM
▶
0-40 — FUEL INJECTION SYSTEM
(#29006) — 62 parça
◀

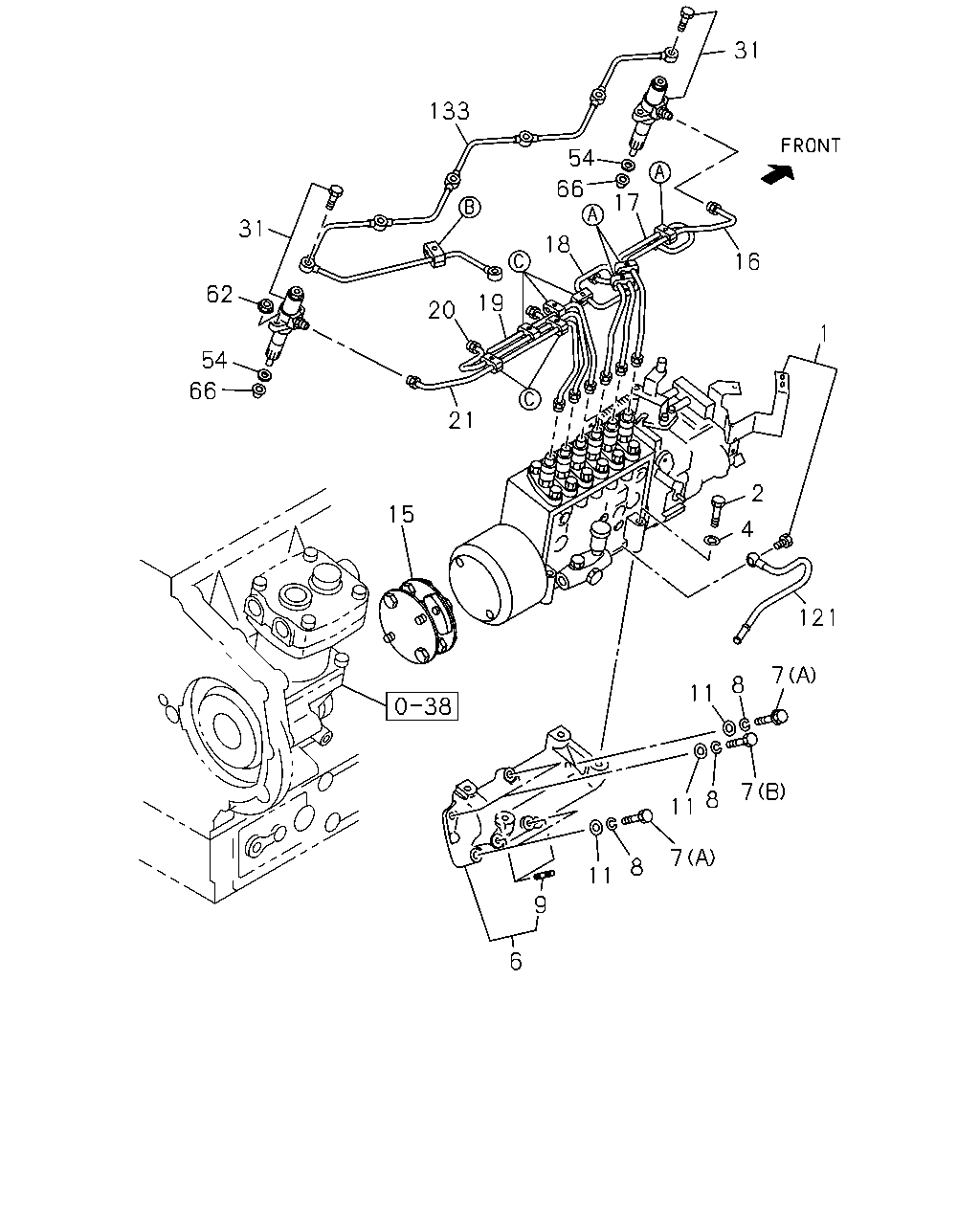

[040A] PUMP,PIPE AND CLIP (24 parça)
[040A] NOZZLE ASM (14 parça)

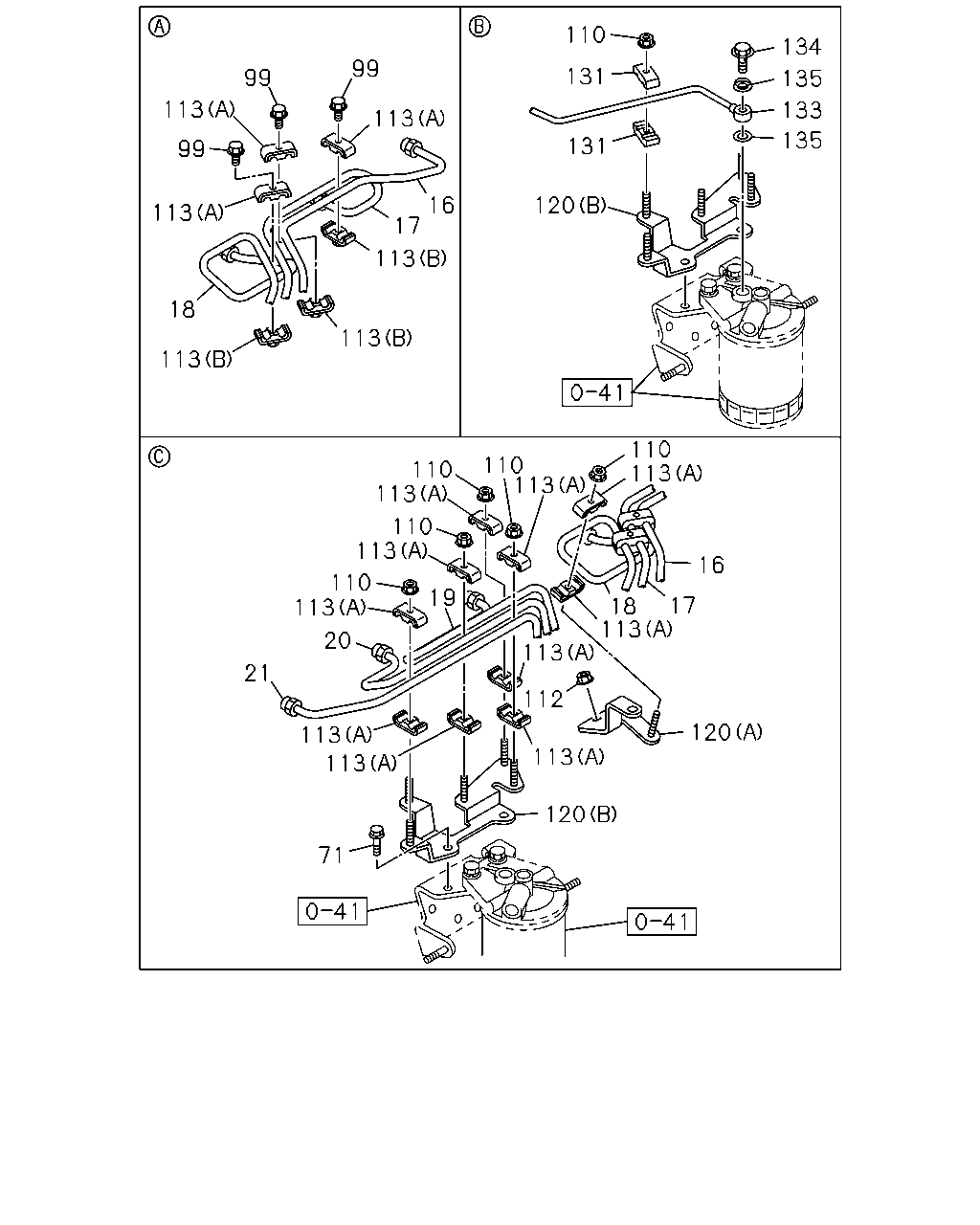

[040A] PIPE,BRACKET AND CLIP (24 parça)
▶
133
31
62
54
66
21
20
19
18
66
54
17
16
1
31
121
2
4
11
8
7
11
8
7
7
8
11
9
6
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.
1-15603-236-0
01
1
0311-
2
BOLT; INJ PUMP
M8X75
0-10810-875-0
04
1
0311-
4
WASHER; INJ PUMP
ID=8.5 MITSUBISHI
9-09851-934-0
04
1
0311-
6
BRACKET; INJ PUMP TO C/BL
1-19751-087-0
01
1
0311-
7
BOLT; INJ PUMP BRKT
(A) M10X50
0-16806-050-0
03
1
0311-0512
7
BOLT; INJ PUMP BRKT
(A) M10X50
0-16856-050-0
03
1
0601-
7
BOLT; INJ PUMP BRKT
(B) M10X65
0-16806-065-0
02
1
0311-
8
WASHER; LK,INJ PUMP BRKT
ID=10.2
0-91510-510-0
05
1
1211-
9
STUD; CLIP
9-04010-612-0
02
1
0311-
11
WASHER; INJ PUMP BRKT
ID=10.5
0-91610-510-0
05
1
1211-
15
COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT.
1-15780-167-0
01
1
0311-
16
PIPE; INJ NO.1
1-15416-112-0
01
1
0311-
17
PIPE; INJ NO.2
1-15414-243-0
01
1
0311-
18
PIPE; INJ NO.3
1-15416-133-0
01
1
0311-
19
PIPE; INJ NO.4
1-15415-772-0
01
1
0311-
20
PIPE; INJ NO.5
1-15415-773-0
01
1
0311-
21
PIPE; INJ NO.6
1-15415-774-0
01
1
0311-
31
NOZZLE ASM; INJ
1-15300-263-1
06
1
0311-
54
COVER; DUST,NOZZLE HOLDER
9-15339-051-0
06
1
0311-
62
NUT; NOZZLE HOLDER
M8 FLANGE
0-91150-108-0
12
1
0311-0602
62
NUT; NOZZLE HOLDER
M8 FLANGE
0-91180-108-0
12
1
0603-
66
GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-15315-013-1
06
1
0311-
121
PIPE; FUEL,FEED PUMP,SUCTION
1-15415-783-0
01
1
0311-
133
PIPE; INJ NOZZLE LEAK OFF
1-15415-782-0
01
1
0311-
34
36
37
38
31
39
32
44
45
42
41
46
33
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
31
NOZZLE ASM; INJ
1-15300-263-1
06
1
0311-
32
HOLDER ASM; NOZZLE
1-15330-088-1
06
1
0311-
33
NOZZLE; INJ
1-15311-216-0
06
1
0311-
34
BOLT; EYE,NOZZLE HOLDER
1-15339-009-0
06
1
0311-
35
NUT; NOZZLE RET,NOZZLE HOLDER
1-15332-014-0
06
1
0311-
36
GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-15339-010-0
06
1
0311-
37
NUT; CAP,NOZZLE HOLDER
5-15332-006-0
06
1
0311-
38
GASKET; CAP NUT,NOZZLE HOLDER
5-15339-060-0
06
1
0311-
39
SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER
8-94169-503-0
06
1
0311-
41
CONNECTOR; FUEL INL,NOZZLE HOLDER
5-15351-001-0
06
1
0311-
42
GASKET; INL CONNECTOR,NOZZLE HOLDER
5-15339-003-0
06
1
0311-
44
SPRING; NOZZLE,NOZZLE HOLDER
5-15343-005-0
06
1
0311-
45
ROD; PUSH,NOZZLE HOLDER
8-94169-502-0
06
1
0311-
46
PIN; NOZZLE SET,NOZZLE HOLDER
9-15347-003-0
12
1
0311-
110
134
99
131
99
135
113
133
113
135
131
99
16
120
113
17
113
18
113
113
110
113
110
113
110
113
110
113
16
110
113
19
17
18
113
113
20
21
112
120
113
113
113
120
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
PIPE; INJ NO.1
1-15416-112-0
01
1
0311-
17
PIPE; INJ NO.2
1-15414-243-0
01
1
0311-
18
PIPE; INJ NO.3
1-15416-133-0
01
1
0311-
19
PIPE; INJ NO.4
1-15415-772-0
01
1
0311-
20
PIPE; INJ NO.5
1-15415-773-0
01
1
0311-
21
PIPE; INJ NO.6
1-15415-774-0
01
1
0311-
71
BOLT; BRKT
M8X25 FLANGE
0-28080-825-0
02
1
0311-0512
71
BOLT; BRKT
M8X25 FLANGE
0-28050-825-0
02
1
0601-
99
BOLT; CLIP,INJ,PIPE
M6X30 FLANGE
0-28080-630-0
03
1
0311-0512
99
BOLT; CLIP,INJ,PIPE
M6X30 FLANGE
0-28050-630-0
03
1
0601-
110
NUT; CLIP
M6 FLANGE
0-91150-106-0
06
1
0311-0602
110
NUT; CLIP
M6 FLANGE
0-91180-106-0
06
1
0603-
112
NUT; BRKT,INJ PIPE CLIP
M8 FLANGE
0-91150-108-0
01
1
0311-0602
112
NUT; BRKT,INJ PIPE CLIP
M8 FLANGE
0-91180-108-0
01
1
0603-
113
CLIP; INJ PIPE
(A)
1-09701-132-1
13
1
0311-1210
113
CLIP; INJ PIPE
(A)
1-09701-240-0
13
1
1211-
113
CLIP; INJ PIPE
(B)
1-09701-213-1
03
1
0311-
120
BRACKET; INJ PIPE
(B)
1-15419-431-0
01
1
0311-
120
BRACKET; INJ PIPE
(A)
1-15419-435-1
01
1
0311-
131
CLIP; OVERFLOW LEAK OFF
1-09701-132-1
02
1
0311-1210
131
CLIP; OVERFLOW LEAK OFF
1-09701-240-0
02
1
1211-
133
PIPE; INJ NOZZLE LEAK OFF
1-15415-782-0
01
1
0311-
134
BOLT; JOINT,LEAK OFF PIPE
M8X18 EYE-BOLT
1-09675-037-1
01
1
0311-
135
GASKET; JOINT BOLT,LEAK OFF PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2
1-09630-082-0
02
1
0311-
