◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#2900) — 84 parça

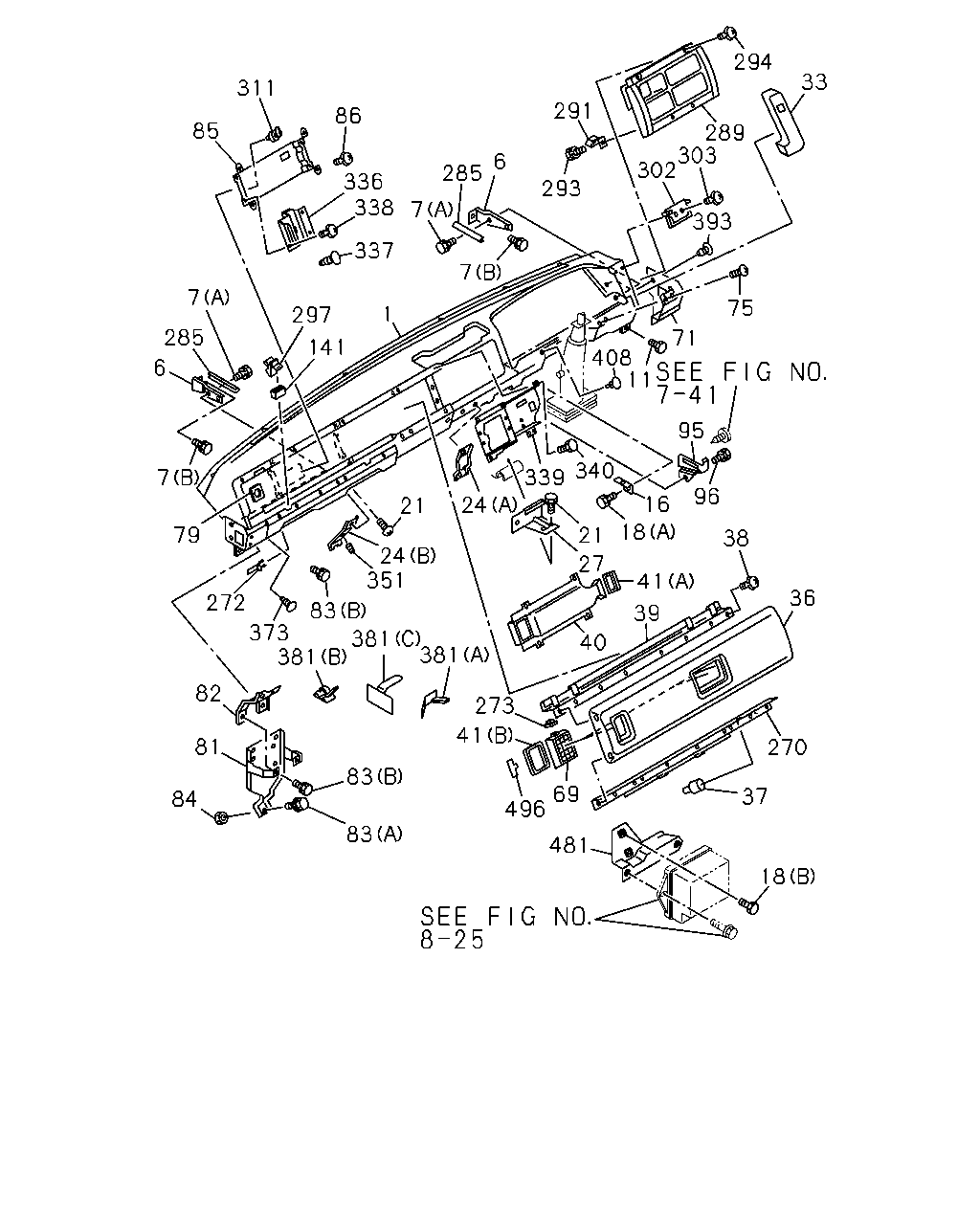

çizim 29052
18 37 270 36 38 96 95 16 18 21 340 339 41 27 39 40 273 41 69 496 481 83 83 84 82 81 381 373 272 83 351 381 381 24 21 24 79 7 6 285 7 297 1 141 7 11 408 71 75 393 302 303 289 294 33 291 293 6 285 7 337 338 336 86 311 85
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; INST
EXC. CAB SUSPENSION RIGID(W71) 		1-65671-334-1 01 1 9002-9306 ● ●
1 PANEL; INST
EXC. CAB SUSPENSION RIGID(W71) 		1-65671-542-0 01 1 9307- ● ●
1 PANEL; INST
CAB SUSPENSION RIGID(W71) 		1-65671-335-1 01 1 9002-9306 ●
1 PANEL; INST
CAB SUSPENSION RIGID(W71) 		1-65671-543-0 01 1 9307- ●
6 SUPPORT; INST PANEL 1-65670-592-2 01 1 9002- ● ●
6 SUPPORT; INST PANEL 1-65670-591-2 01 1 9002- ● ●
7 BOLT; SUPPORT,INST PNL
(A) M6X16 W/LK&PL WASHER 		1-09980-440-0 04 1 9002- ● ●
7 BOLT; SUPPORT,INST PNL
(B) 		1-09980-497-0 02 1 9002- ● ●
11 BOLT; INST PNL
M8X20 W/PL WASHER 		1-09981-479-0 09 1 9002- ● ●
16 BRACKET; INST PNL 1-65670-595-1 01 1 9002- ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-497-0 02 1 9002-9002 ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-527-0 02 1 9003-9008 ● ●
18 BOLT; BRKT
(A) M6X16 W/LK&PL WASHER 		1-09980-586-0 02 1 9009- ● ●
18 BOLT; BRKT
POWER WINDOW<A30> (B) M6X14 W/LK&PL WASHER 		8-94279-142-0 02 1 9307- ● ●
21 SCREW; STAY,INST
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ●
24 STAY; INST CLUSTER
(A) 		1-65670-609-3 01 1 9002- ● ●
24 STAY; INST CLUSTER
(B) 		1-65670-695-2 01 1 9002- ● ●
27 SUPPORT ASM; STAY "B" 1-65670-653-2 01 1 9002- ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-067-0 01 1 9002-9306 ● ●
33 LID; CHECK HOLE,CLU FLUID 1-73927-072-0 01 1 9307- ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-094-0 01 1 9002-9306 ● ●
36 BEZEL; INST SIDE CLUSTER 1-72547-110-0 01 1 9307- ● ●
37 FASTENER; MALE,SIDE CLUSTER BEZEL 1-72557-051-1 02 1 9002- ● ●
38 SCREW; BEZEL,INST CLUSTER SIDE
M6X16 W/LK&PL WASHER 		1-09981-141-0 04 1 9002- ● ●
39 HINGE; BEZEL,INST SIDE CLUSTER 1-72557-047-3 01 1 9002- ● ●
40 DUCT; VENT,SIDE CLUSTER BEZEL 1-76377-089-1 01 1 9002- ● ●
41 SEAL; SIDE CLUSTER BEZEL
(A) 		1-76377-090-0 01 1 9002- ● ●
41 SEAL; SIDE CLUSTER BEZEL
(B) 		1-76377-091-0 01 1 9002- ● ●
69 GRILLE; SIDE,AIR OUTLET 1-76367-050-1 03 1 9002- ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-038-0 01 1 9002-9306 ● ●
71 GARNISH; INST CLUSTER SIDE 1-72437-078-0 01 1 9307- ● ●
75 SCREW; GARNISH,INST CLUSTER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
79 SEAL; SIDE DEFROSTER 1-76377-092-0 01 1 9002- ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73997-839-7 01 1 9002-9103 ● ●
81 BRACKET; ELEC CONT UNIT
INTAKE HEATER<SL2> 		1-73907-235-0 01 1 9104- ● ●
82 BRACKET; CONT UNIT,ELEC
INTAKE HEATER<SL2> 		1-73998-409-7 01 1 9002- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> (A) M6X16 W/LK&PL WASHER 		1-09980-458-0 01 1 9002-9304 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> (A) M6X16 W/LK&PL WASHER 		1-09980-586-0 01 1 9305- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> (B) M6X16 W/LK&PL WASHER 		9-01960-616-0 01 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> (B) M6X16 W/LK&PL WASHER 		0-50140-616-0 01 1 9205- ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> (B) M6X20 W/LK&PL WASHER 		9-01960-620-0 03 1 9002-9204 ● ●
83 BOLT; BRKT,CONT UNIT
INTAKE HEATER<SL2> (B) M6X20 W/LK&PL WASHER 		0-50140-620-0 03 1 9205- ● ●
84 NUT; CONT UNIT BRKT
INTAKE HEATER<SL2> M6 FLANGE 		5-09440-004-0 01 1 9002- ● ●
85 PANEL; ELEC 1-73997-523-7 01 1 9002- ● ●
86 BOLT; ELEC PNL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ●
95 PANEL; BLIND,SIDE 1-65671-338-0 01 1 9002-9306 ● ●
95 PANEL; BLIND,SIDE 1-65671-562-0 01 1 9307- ● ●
96 SCREW; BLIND PNL
M6X16 W/LK&PL WASHER 		1-09981-141-0 01 1 9002- ● ●
141 PROTECTOR; EDGE
L=35 		1-73997-910-0 02 1 9002- ● ●
270 REINFORCEMENT; SIDE CLUSTER BEZEL 1-72557-053-2 01 1 9002- ● ●
272 CUSHION; SIDE CLUSTER BEZEL 1-72547-054-0 02 1 9002- ● ●
273 BUSHING; SIDE CLUSTER BEZEL 1-72547-048-1 03 1 9002- ● ●
285 FINISHER; INST PANEL 8-94270-196-0 02 1 9002-9306 ● ●
285 FINISHER; INST PANEL
L=175 SERVICED BY L=2040 		1-71997-513-1 02 1 9307- ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-036-0 01 1 9002-9306 ● ●
289 BEZEL; CENTER,INST CLUSTER 1-72437-084-0 01 1 9307- ● ●
291 FASTENER; INST CLUSTER 1-72437-005-3 02 1 9002- ● ●
293 SCREW; FASTENER,BEZEL
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
294 SCREW; BEZEL
M6X16 W/PL WASHER 		1-09981-176-0 02 1 9002- ● ●
297 FASTENER; FEMALE,SIDE CLUSTER BEZEL 1-72557-052-3 02 1 9002- ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73927-069-0 01 1 9002-9306 ● ●
302 CATCH; CHECK HOLE LID,CLU FLUID 1-73928-356-0 01 1 9307- ● ●
303 SCREW; CATCH,CHECK HOLE LID,CLU FLUID
M5X14 W/PL WASHER 		5-09981-050-0 02 1 9002- ● ●
311 CLIP; DASH HARNESS,ELEC PANEL
MIXER TRUCK<RA2> ID=6.5 		8-94206-730-0 01 1 9002- ●
336 COVER; INST PANEL SIDE 1-73997-623-0 01 1 9002- ● ●
337 FASTENER; COVER
BLACK 		8-94104-935-0 02 1 9407- ● ●
338 SCREW; COVER
M5X14 W/PL WASHER 		5-09981-050-0 01 1 9002- ● ●
339 PANEL; FUSE BOX 1-73997-838-3 01 1 9002- ● ●
340 BOLT; FUSE BOX PANEL
M6X14 W/LK&PL WASHER 		1-09980-549-0 04 1 9002- ● ●
351 STOPPER; CTR CONSOLE 1-09983-052-0 01 1 9002- ● ●
373 PLUG; BRKT HOLE,CONT UNIT
EXC. INTAKE HEATER<SL2> D4.7X11 		1-76378-154-0 01 1 9002- ● ●
381 CLIP; HARNESS
(A) 		5-09700-088-0 02 1 9002- ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 		1-09987-214-0 03 1 9205-9306 ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (B) 		1-09987-214-0 02 1 9307- ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 02 1 9208-9306 ● ●
381 CLIP; HARNESS
POWER WINDOW<A30> (C) 		8-94138-987-0 01 1 9307- ● ●
381 CLIP; HARNESS
EXC. POWER WINDOW<A30> (B) 		1-09987-214-0 01 1 9307- ● ●
393 FASTENER; GARNISH PANEL 1-09987-195-0 02 1 9002-9306 ● ●
393 FASTENER; GARNISH PANEL 1-09987-213-0 02 1 9307- ● ●
408 PLUG; DUMMY HOLE,INST PANEL 1-09987-112-0 01 1 9002-9111 ●
408 PLUG; DUMMY HOLE,INST PANEL
EXC. FULL TRACTOR TRUCK<RD6> 		1-09987-112-0 01 1 9002-9111 ●
408 PLUG; DUMMY HOLE,INST PANEL 1-09987-112-0 01 1 9112- ● ●
481 BRACKET; POWER WINDOW,COMPARTMENT PANE
POWER WINDOW<A30> 		1-65671-397-1 01 1 9307- ● ●
496 PANEL; SHUTTER,SIDE SLUSTER BEZEL 1-72547-049-0 01 1 9002- ● ●
