8-80 — WINDSHIELD WIPER AND WASHER (#290) — 108 parça

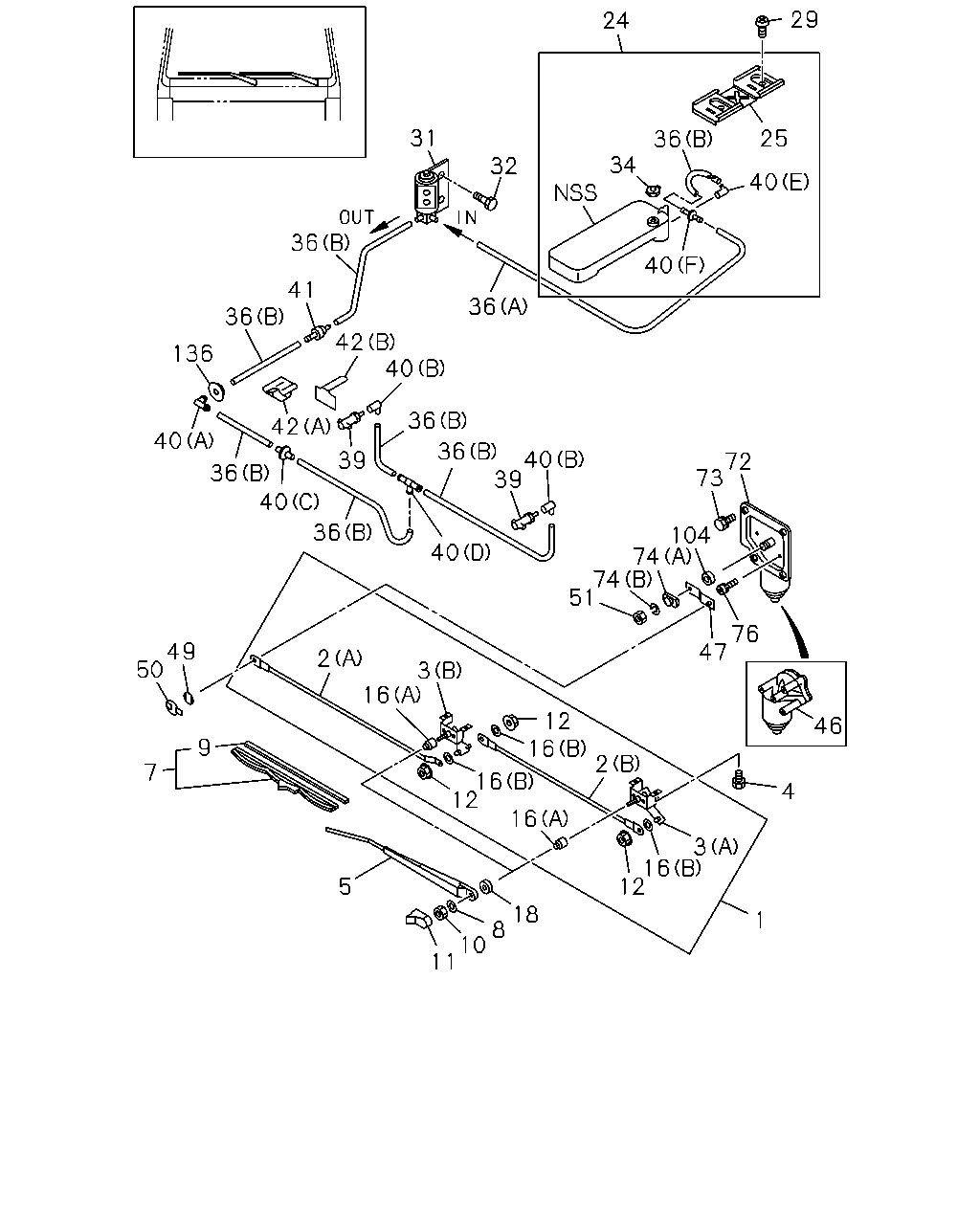

çizim 28078
24 29 25 36 40 34 40 36 32 31 36 41 36 136 42 40 36 36 40 39 39 42 40 40 36 36 40 51 74 74 104 73 72 76 47 46 4 3 16 12 1 2 16 12 16 12 16 18 8 10 11 5 3 16 2 49 50 9 7
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-054-3 01 1 9212-
2 LINK; FRT WIPER
(B) 		1-83312-055-0 01 1 9212-
2 LINK; FRT WIPER
(A) 		1-83312-056-1 01 1 9212-
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-071-0 01 1 9212-
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-072-0 01 1 9212-
4 BOLT; WIPER LINK TO BODY
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9212-
5 ARM; WIPER 1-83314-088-0 02 1 9212-
7 BLADE; WIPER 1-83315-028-0 02 1 9212-
8 WASHER; LK,PIVOT
ID=10.2 		9-09150-510-0 02 1 9212-
9 RUBBER; FRT WIPER BLADE 1-83355-003-0 02 1 9212-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		9-09111-410-0 02 1 9212-
11 COVER; WIPER ARM 1-83319-015-0 02 1 9212-
12 RETAINER; BALL JOINT,FRT WIPER LINK 1-83318-026-0 03 1 9212-
16 SEAL; BALL JOINT
(A) 		1-83318-022-0 02 1 9212-
16 SEAL; BALL JOINT
(B) 		8-94235-628-0 03 1 9212-
18 GROMMET; WIPER PIVOT HOLE 1-09983-060-1 02 1 9212-
24 TANK ASM; WASHER 1-83332-023-4 01 1 9212-
25 BRACKET; WASHER TANK 1-83338-011-1 01 1 9212-
29 SCREW; WASHER TANK TO BODY
M6X14 W/LK&PL WASHER 		9-03920-614-0 02 1 9212-
31 PUMP ASM; WINDSHIELD WASHER 1-83335-012-1 01 1 9212-
32 BOLT; WASHER PUMP
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9212-
34 CAP; WASHER TANK 1-83362-013-0 01 1 9212-
36 HOSE; WASHER
(A) L=10000 		8-94153-780-0 01 1 9212-
36 HOSE; WASHER
(B) L=10000 		9-09914-906-0 AR 1 9212-
39 NOZZLE; WINDSHIELD WASHER 1-83334-028-0 02 1 9212-
40 JOINT; WASHER HOSE
(B) 		1-83338-003-0 02 1 9212-
40 JOINT; WASHER HOSE
(C) 		1-83338-004-0 01 1 9212-
40 JOINT; WASHER HOSE
(D) 3WAY 		1-83338-005-0 01 1 9212-
40 JOINT; WASHER HOSE
(A) 		1-83338-006-0 01 1 9212-
40 JOINT; WASHER HOSE
(F) 		1-83339-006-0 01 1 9212-
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 02 1 9212-
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 01 1 9212-
41 VALVE; CHECK,WASHER TANK 1-83338-007-1 01 1 9212-
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9212-
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 01 1 9303-9303
42 CLIP; WASHER HOSE
(B) 		8-94138-987-0 01 1 9304-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-046-0 01 1 9212-9307
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-076-0 01 1 9308-
47 ARM; CRANK,WIPER MOTOR 1-83314-127-0 01 1 9212-
49 SEAL; BALL JOINT,CRANK ARM,FRT WIPER 1-83319-035-0 01 1 9212-
50 RETAINER; BALL JOINT,CRANK ARM,FRT WIP 1-83318-026-0 01 1 9212-
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 9212-
72 BRACKET; WIPER MOTOR 1-83318-027-0 01 1 9212-
73 BOLT
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9212-
74 WASHER; ARM TO MOTOR
(A) 		1-83319-005-1 01 1 9212-9307
74 WASHER; ARM TO MOTOR
(B) 		9-09150-508-0 01 1 9212-
76 SCREW; BRKT TO WIPER MOTOR 8-94232-910-0 03 1 9212-9307
104 SEAL; ARM,FRT WIPER MOTOR 1-83318-020-0 01 1 9212-9307
136 GROMMET; HOSE,WASHER TANK 1-83338-009-0 01 1 9212-9307

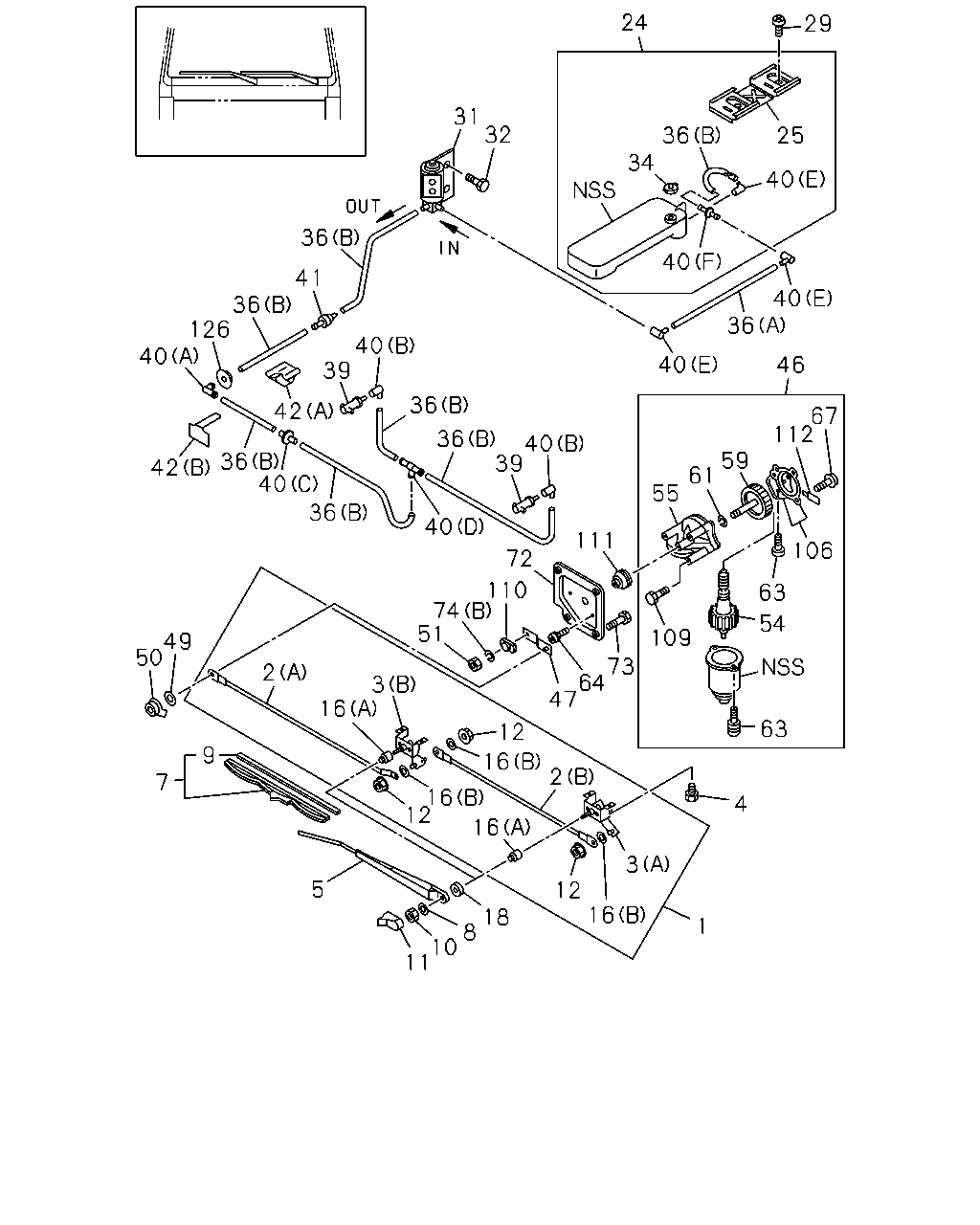

çizim 28456
24 29 25 36 40 34 40 40 46 36 40 67 55 61 59 112 106 54 63 63 109 73 64 47 111 72 110 74 51 40 39 36 36 40 39 42 40 36 40 36 42 32 31 36 41 36 126 40 49 50 2 3 16 12 16 2 16 12 16 4 3 1 16 12 18 8 10 11 5 9 7
BalonParca AdiParca NoAdetTipApplied Date
1 LINK ASM; FRT WIPER 1-83312-054-3 01 1 9212-
2 LINK; FRT WIPER
(B) 		1-83312-055-0 01 1 9212-
2 LINK; FRT WIPER
(A) 		1-83312-056-1 01 1 9212-
3 PIVOT ASM; FRT WIPER
(A) 		1-83313-071-0 01 1 9212-
3 PIVOT ASM; FRT WIPER
(B) 		1-83313-072-0 01 1 9212-
4 BOLT; WIPER LINK TO BODY
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9212-
5 ARM; WIPER 1-83314-088-0 02 1 9212-
7 BLADE; WIPER 1-83315-028-0 02 1 9212-
8 WASHER; LK,PIVOT
ID=10.2 		9-09150-510-0 02 1 9212-
9 RUBBER; FRT WIPER BLADE 1-83355-003-0 02 1 9212-
10 NUT; WIPER ARM TO WIPER PIVOT
M10 		9-09111-410-0 02 1 9212-
11 COVER; WIPER ARM 1-83319-015-0 02 1 9212-
12 RETAINER; BALL JOINT,FRT WIPER LINK 1-83318-026-0 03 1 9212-
16 SEAL; BALL JOINT
(A) 		1-83318-022-0 02 1 9212-
16 SEAL; BALL JOINT
(B) 		8-94235-628-0 03 1 9212-
18 GROMMET; WIPER PIVOT HOLE 1-09983-060-1 02 1 9212-
24 TANK ASM; WASHER 1-83332-023-4 01 1 9212-
25 BRACKET; WASHER TANK 1-83338-011-1 01 1 9212-
29 SCREW; WASHER TANK TO BODY
M6X14 W/LK&PL WASHER 		9-03920-614-0 02 1 9212-
31 PUMP ASM; WINDSHIELD WASHER 1-83335-012-1 01 1 9212-
32 BOLT; WASHER PUMP
M6X20 W/LK&PL WASHER 		1-09980-493-0 02 1 9212-
34 CAP; WASHER TANK 1-83362-013-0 01 1 9212-
36 HOSE; WASHER
(A) L=10000 		8-94153-780-0 01 1 9212-
36 HOSE; WASHER
(B) L=10000 		9-09914-906-0 AR 1 9212-
39 NOZZLE; WINDSHIELD WASHER 1-83334-028-0 02 1 9212-
40 JOINT; WASHER HOSE
(B) 		1-83338-003-0 02 1 9212-
40 JOINT; WASHER HOSE
(C) 		1-83338-004-0 01 1 9212-
40 JOINT; WASHER HOSE
(D) 3WAY 		1-83338-005-0 01 1 9212-
40 JOINT; WASHER HOSE
(A) 		1-83338-006-0 01 1 9212-
40 JOINT; WASHER HOSE
(F) 		1-83339-006-0 01 1 9212-
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 02 1 9212-
40 JOINT; WASHER HOSE
(E) 		5-83363-006-0 01 1 9212-
41 VALVE; CHECK,WASHER TANK 1-83338-007-1 01 1 9212-
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 09 1 9212-
42 CLIP; WASHER HOSE
(A) 1 SET=5 PIECE 		1-09987-214-0 01 1 9303-9303
42 CLIP; WASHER HOSE
(B) 		8-94138-987-0 01 1 9304-
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-046-0 01 1 9212-9307
46 MOTOR ASM; FRT WINDSHIELD WIPER 1-83311-076-0 01 1 9308-
47 ARM; CRANK,WIPER MOTOR 1-83314-127-0 01 1 9212-
49 SEAL; BALL JOINT,CRANK ARM,FRT WIPER 1-83319-035-0 01 1 9212-
50 RETAINER; BALL JOINT,CRANK ARM,FRT WIP 1-83318-026-0 01 1 9212-
51 NUT; WIPER MOTOR LINK
M8 		9-09111-408-0 01 1 9212-
54 ARMATURE ASM; WIPER MOTOR 1-83351-013-0 01 1 9308-
55 HOUSING ASM; WIPER MOTOR 1-83351-019-0 01 1 9308-
59 GEAR; DRIVE,WIPER MOTOR 1-83351-018-0 01 1 9308-
61 WASHER; LK,WIPER MOTOR 1-83351-017-0 02 1 9308-
63 SCREW; HSG TO YOKE,WIPER MOTOR 8-94232-880-0 02 1 9308-
64 SCREW; PLATE TO HSG,WIPER MOTOR
M4X10 TAPPING 		9-07076-410-0 03 1 9308-
67 SCREW; HOLDER TO HSG,WIPER MOTOR
M4X8 		5-09140-007-0 02 1 9308-
72 BRACKET; WIPER MOTOR 1-83318-027-0 01 1 9212-
73 BOLT
M6X20 W/LK&PL WASHER 		1-09980-490-0 04 1 9212-
74 WASHER; ARM TO MOTOR
(A) 		1-83319-005-1 01 1 9212-9307
74 WASHER; ARM TO MOTOR
(B) 		9-09150-508-0 01 1 9212-
106 HOLDER; FRT WIPER MOTOR 1-83351-015-0 01 1 9308-
109 SCREW; ADJ,HSG,FRT WIPER MOTOR 8-94232-910-0 03 1 9308-
110 WASHER; ADJ SCREW,ARMATURE,WIPER MOTOR 1-83319-005-1 01 1 9308-
111 SEAL; FRT WIPER MOTOR TO BRKT 1-83318-020-0 01 1 9308-
112 CLIP; HARNESS,WIPER MOTOR 1-83318-034-0 02 1 9308-
126 GROMMET; FRT WASHER TANK HOSE 1-83338-009-0 01 1 9308-
