Isuzu WW
▶
TRUCKS
▶
GTR
▶
10936 - GTR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-14 - CAMSHAFT AND VALVE
▶

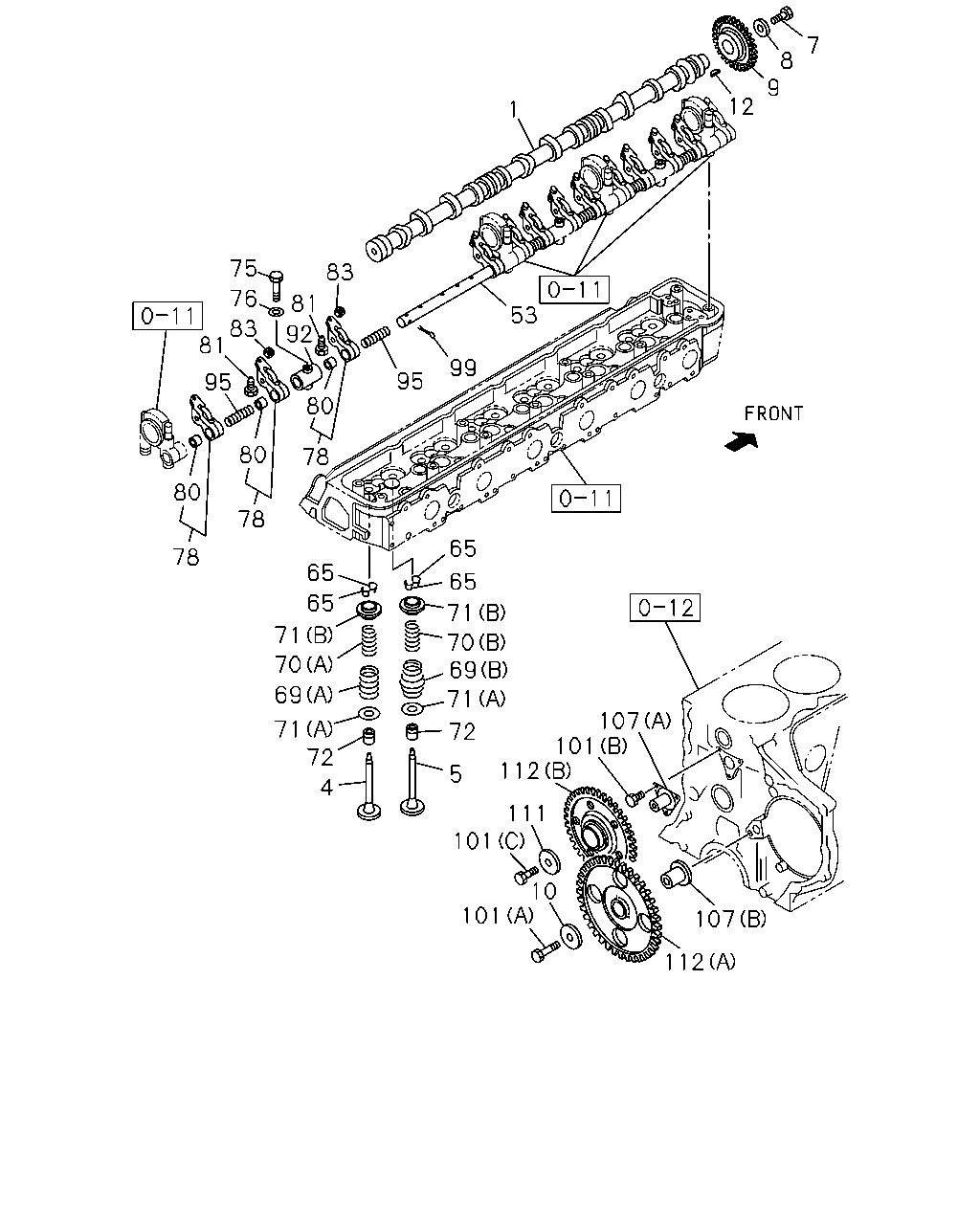

0-14 — CAMSHAFT AND VALVE
(#28992) — 36 parça
7
8
9
12
1
75
83
76
81
92
53
83
81
99
80
95
95
80
78
80
78
65
78
65
65
65
71
71
70
69
70
69
71
107
101
112
71
72
72
5
4
111
101
10
101
107
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAMSHAFT
1-12511-254-1
01
1
0311-
4
VALVE; INL
1-12551-158-3
06
1
0311-
5
VALVE; EXH
1-12552-108-2
06
1
0311-
7
BOLT; CM/SHF GEAR
M14X28
9-92061-428-0
01
1
0311-
8
WASHER; CM/SHF GEAR
ID=14.5
9-09851-850-3
01
1
0311-
9
GEAR; CM/SHF
Z=36
1-12522-037-2
01
1
0311-
10
PLATE; THRUST
1-12535-021-1
01
1
0311-
12
KEY; CAM GEAR SET
9-08055-516-0
01
1
0311-
53
SHAFT; ROCKER ARM
1-12621-084-1
01
1
0311-
65
COLLAR; SPLIT
1-12565-007-0
24
1
0311-
69
SPRING; VLV,OUTER
(A) INLET
1-12561-051-0
06
1
0311-
69
SPRING; VLV,OUTER
(B) EXHAUST
1-12561-052-0
06
1
0311-
70
SPRING; VLV,INNER
(A) INLET
1-12562-032-0
06
1
0311-
70
SPRING; VLV,INNER
(B) EXHAUST
1-12562-033-0
06
1
0311-
71
SEAT; SPR
(B)
1-12563-059-1
12
1
0311-0401
71
SEAT; SPR
(B)
8-97603-239-0
12
1
0402-
71
SEAT; SPR
(A)
9-12563-231-1
12
1
0311-
72
SEAL; VLV GUIDE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-12569-017-0
12
1
0311-
75
BOLT; BRKT
M8X55
9-01065-855-0
03
1
0311-
76
WASHER; PL,BRKT
9-09851-430-0
03
1
0311-
78
ARM; ROCKER
1-12610-045-3
12
1
0311-
80
BUSHING; ROCKER ARM
1-12615-013-1
12
1
0311-
81
SCREW; ADJ,ROCKER ARM
1-12616-038-0
12
1
0311-
83
NUT; ADJ SCREW,LK
M8 FLANGE
9-09844-574-0
12
1
0311-
92
BRACKET; ROCKER ARM
1-12628-045-0
03
1
0311-
95
SPRING; ROCKER SHAFT
1-09580-335-0
06
1
0311-
99
PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25
9-08112-025-0
02
1
0311-0606
99
PIN; SPLIT,ROCKER ARM SHAFT
OD=1.8 L=25
0-81122-025-0
02
1
0607-
101
BOLT; THRUST COLLAR
(B) M8X14 FLANGE
0-28080-814-0
03
1
0311-
101
BOLT; THRUST COLLAR
(C) M14X16
1-09000-284-0
01
1
0311-
101
BOLT; THRUST COLLAR
(A) M12X57
1-09070-127-0
01
1
0311-
107
SHAFT; IDLE GEAR
(A)
1-12531-097-2
01
1
0311-
107
SHAFT; IDLE GEAR
(B)
1-12531-099-0
01
1
0311-
111
COLLAR; THRUST,IDLE GEAR
ID=14.5 OD=46
8-97209-728-2
01
1
0311-
112
GEAR; IDLE
(A) Z=69-27
1-12523-346-0
01
1
0311-
112
GEAR; IDLE
(B) Z=62
1-12523-347-0
01
1
0311-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
