◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-28 - CHASSIS ELECTRICAL ▶
8-28 — CHASSIS ELECTRICAL (#28979) — 176 parça

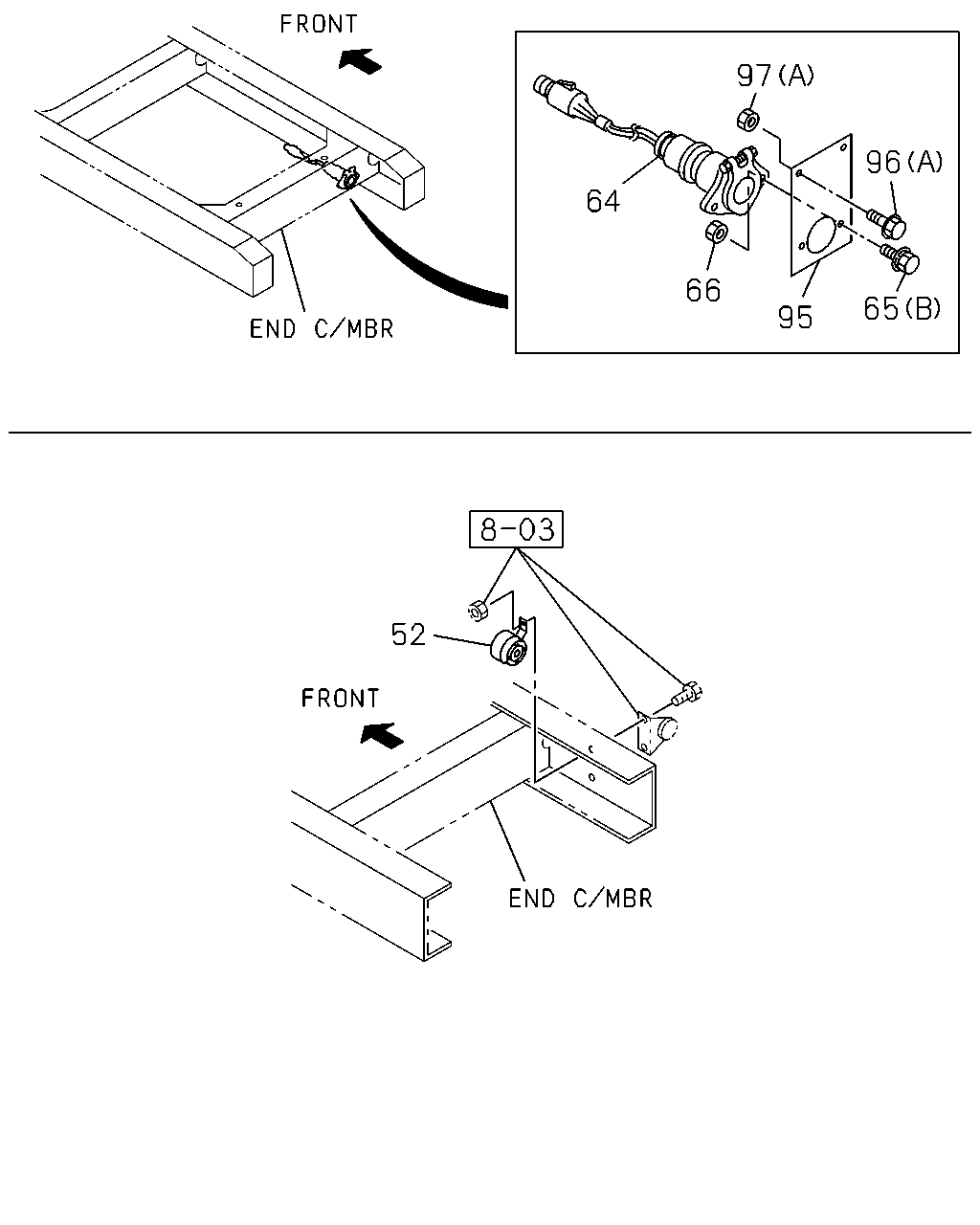

çizim 24787
97 96 64 66 65 95 52
BalonParca AdiParca NoAdetTipApplied Date
52 BUZZER; BACK
REVERSING WARNING BUZZER<YM9> METRO DENSO 		1-83460-083-0 01 1 0309-
64 SOCKET; TRAILER
FULL TRACTOR TRUCK<RD6> 7P 		1-82523-014-0 01 1 0309-
65 BOLT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE 		0-28680-830-0 02 1 0309-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0309-
66 NUT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> M8 FLANGE 		0-91150-108-0 02 1 0309-
95 BRACKET; SOCKET,TRAILER
FULL TRACTOR TRUCK<RD6> 		1-82699-387-0 01 1 0309-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (B) M8X20 FLANGE 		0-28680-820-0 04 1 0309-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0309-
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
96 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0309-0311
96 BOLT; BRKT FIX
EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE 		0-28680-820-0 05 1 0312-
96 BOLT; BRKT FIX
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0309-
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE 		0-91150-108-0 02 1 0309-
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 05 1 0309-
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91150-210-0 01 1 0309-0311
çizim 25486
449 499 94
BalonParca AdiParca NoAdetTipApplied Date
94 SCREW; CONSENT TO BLIND PNL
M5X10 TAPPING W/PL WASHER 		0-74110-510-0 02 1 0309-
449 SWITCH; OIL PRESS,CLUTCH
MJX M/T<Y9N> BRAKE SYSTEM HSA<SLD> 		1-82410-180-0 01 1 0311-
449 SWITCH; OIL PRESS,CLUTCH
BRAKE SYSTEM HSA<SLD> 		1-82410-143-1 01 1 0309-0310
449 SWITCH; OIL PRESS,CLUTCH
BRAKE SYSTEM HSA<SLD> EXC. MJX M/T<Y9N> 		1-82410-143-1 01 1 0311-
499 CLIP; SWITCH
BRAKE SYSTEM HSA<SLD> OD=9 H=6 		1-09709-178-0 01 1 0309-
çizim 25487
91 284 34 282 89 34 261
BalonParca AdiParca NoAdetTipApplied Date
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0309-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0309-
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0309-
89 VALVE; MAG,DIFF LOCK 1-82563-871-2 01 1 0309-
91 NUT; MAG VLV
M8 FLANGE 		0-91150-108-0 02 1 0309-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0309-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4 		9-99204-513-0 01 1 0309-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) 		1-47479-364-1 01 1 0309-
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0309-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0309-
282 BRACKET; MAG VLV
(A) 		1-82569-358-0 01 1 0309-
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (D) 		1-82569-290-0 01 1 0309-
284 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28080-650-0 01 1 0309-

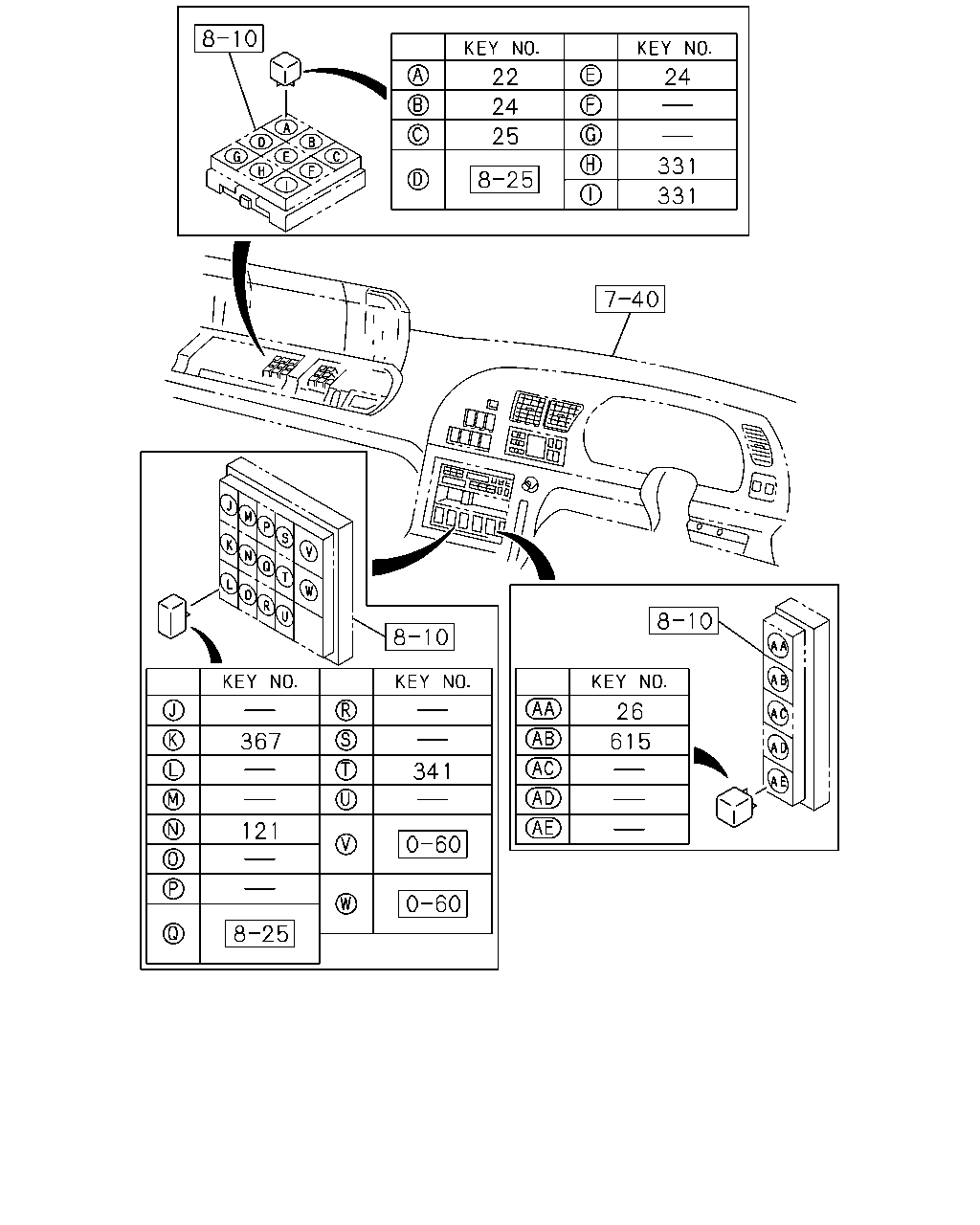

çizim 79650
22 24 24 25 26 367 615 341 121 331 331
BalonParca AdiParca NoAdetTipApplied Date
22 RELAY; STOP LAMP
FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0309-
22 RELAY; STOP LAMP
EXC. FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-
24 RELAY; LIGHTING
24V 12.5A PANASONIC 		8-97262-933-0 02 1 0309-
25 RELAY; TAIL LAMP
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-
26 RELAY; CONSENT
24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-
121 RELAY; PARKING BRK
24V 10A PANASONIC 		8-97173-035-1 01 1 0309-
331 RELAY; A/C
AIR CONDITIONER MANUAL CONTROL(C60) 24V 12.5A PANASONIC 		8-97262-933-0 02 1 0309-
341 RELAY
24V 10A PANASONIC 		8-97173-035-1 01 1 0309-
367 RELAY; NEUTRAL
24V 10A PANASONIC 		8-97173-035-1 01 1 0309-
615 RELAY; TRAILER
FULL TRACTOR TRUCK<RD6> 24V 12.5A PANASONIC 		8-97262-933-0 01 1 0309-

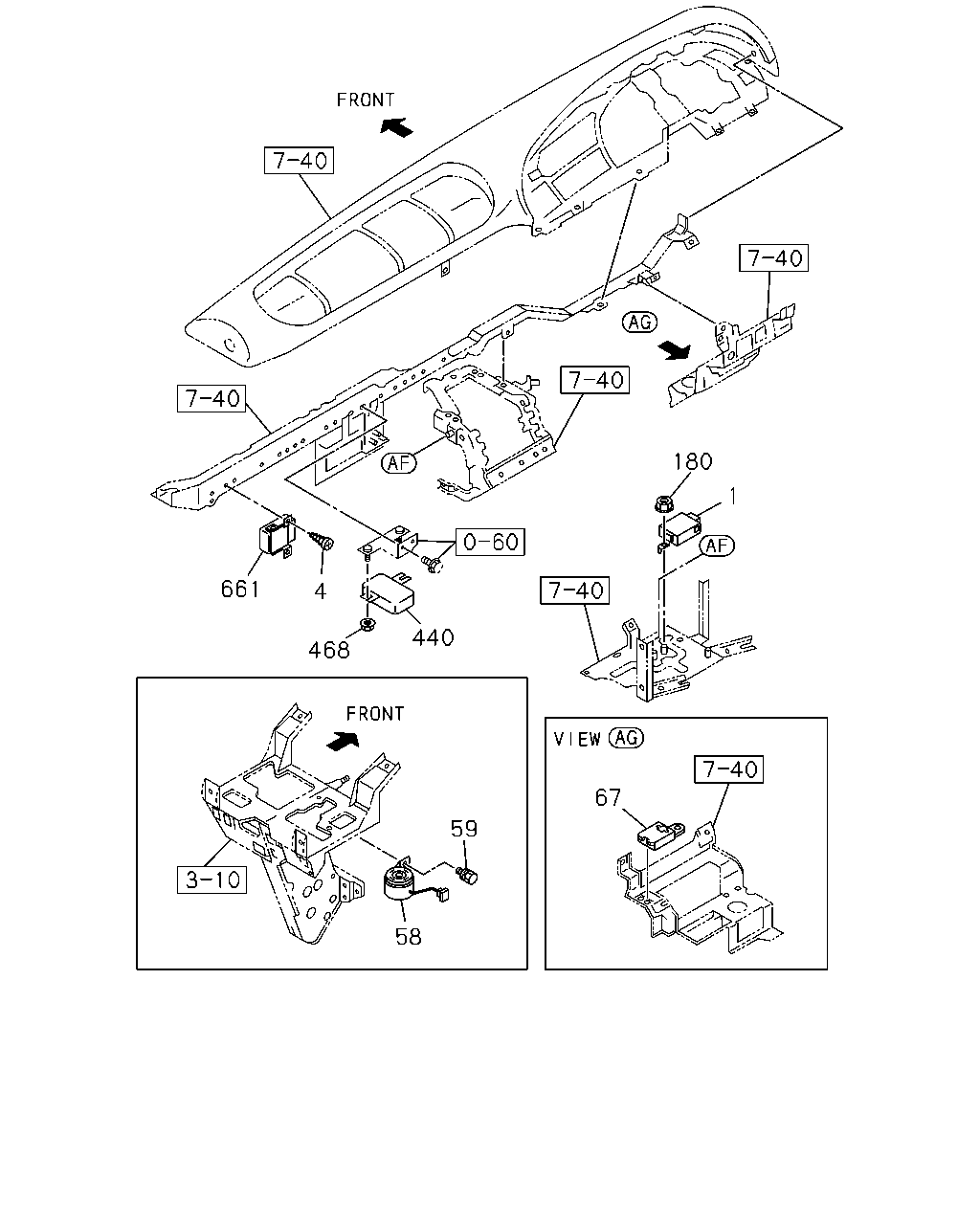

çizim 79756
180 1 661 4 440 468 67 59 58
BalonParca AdiParca NoAdetTipApplied Date
1 UNIT; FLASHER
FULL TRACTOR TRUCK<RD6> 		1-83470-062-1 01 1 0309-
1 UNIT; FLASHER
EXC. FULL TRACTOR TRUCK<RD6> 		1-83470-060-1 01 1 0309-
4 SCREW; FLASHER UNIT
FULL TRACTOR TRUCK<RD6> M5X14 		8-94279-325-0 01 1 0309-
58 BUZZER; AIR PRESSURE WARNING
METRO DENSO 		1-83460-075-0 01 1 0309-
59 SCREW; BUZZER
M5X14 		8-94279-325-0 01 1 0309-
67 BUZZER; ENG OVERRUN 1-83460-051-1 01 1 0309-
180 NUT; FLASHER UNIT
M6 FLANGE 		0-91150-106-0 01 1 0309-
440 MODULE; INFORMATION,ABS
FULL TRACTOR TRUCK<RD6> 		1-81510-701-0 01 1 0309-
468 NUT; MODULE
FULL TRACTOR TRUCK<RD6> M6 FLANGE 		0-91150-106-0 02 1 0309-
661 CONTROL UNIT; FLASHER
FULL TRACTOR TRUCK<RD6> 		1-83470-066-1 01 1 0309-

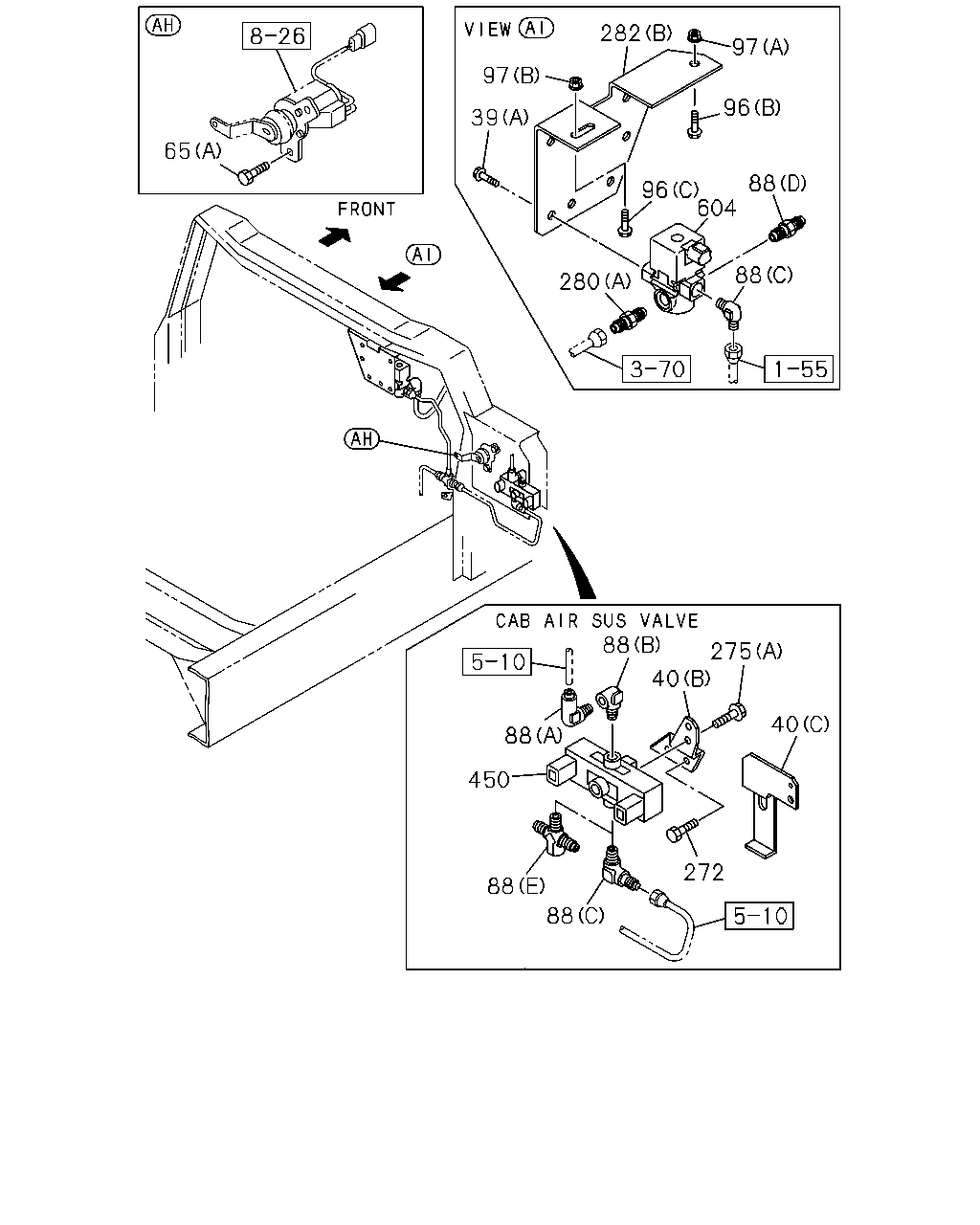

çizim 79787
282 97 97 96 39 65 88 96 604 88 280 88 275 40 40 88 450 272 88 88
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
40 BRACKET; MAG VLV
MIXER TRUCK<RA2> (C) 		1-53457-128-0 01 1 0309-0311
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0309-
40 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (B) 		1-53458-380-0 01 1 0309-0311
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0312-
65 BOLT; SOCKET FIX
FULL TRACTOR TRUCK<RD6> (B) M8X30 FLANGE 		0-28680-830-0 02 1 0309-
65 BOLT; SOCKET FIX
(A) M6X16 FLANGE 		0-28080-616-0 02 1 0309-
88 CONNECTOR; MAG VLV
MIXER TRUCK<RA2> (E) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0309-0311
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0309-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0309-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0309-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0309-0311
88 CONNECTOR; MAG VLV
EXC. MIXER TRUCK<RA2> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0309-0311
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0312-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0312-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (B) M8X20 FLANGE 		0-28680-820-0 04 1 0309-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0309-
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
96 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0309-0311
96 BOLT; BRKT FIX
EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE 		0-28680-820-0 05 1 0312-
96 BOLT; BRKT FIX
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0309-
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE 		0-91150-108-0 02 1 0309-
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 05 1 0309-
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91150-210-0 01 1 0309-0311
272 BOLT; MAG VLV
M10X20 FLANGE 		0-28681-020-0 02 1 0309-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0309-
275 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0309-0309
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0309-0309
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0309-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0309-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) 		1-47479-364-1 01 1 0309-
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0309-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0309-
282 BRACKET; MAG VLV
(A) 		1-82569-358-0 01 1 0309-
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (D) 		1-82569-290-0 01 1 0309-
450 VALVE; MAG 1-53458-378-2 01 1 0309-
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 0309-
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0309-
çizim 83977
282 284 41 34 34 39 261 33
BalonParca AdiParca NoAdetTipApplied Date
33 VALVE; MAG,PTO CONT
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> 		1-82563-871-2 01 1 0309-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (A) DIN6 & R1/4 ELBOW 		1-09661-067-0 01 1 0309-
34 CONNECTOR; MAG VLV,INL PORT
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) DIN6 & R1/4 STRAIGHT 		1-09661-069-0 01 1 0309-
34 CONNECTOR; MAG VLV,INL PORT
(B) DIN8 & R1/4 ELBOW 		1-09660-956-0 02 1 0309-
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
41 NUT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> M8 FLANGE 		0-91150-108-0 02 1 0309-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0309-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4 		9-99204-513-0 01 1 0309-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) 		1-47479-364-1 01 1 0309-
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0309-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0309-
282 BRACKET; MAG VLV
(A) 		1-82569-358-0 01 1 0309-
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (D) 		1-82569-290-0 01 1 0309-
284 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28080-650-0 01 1 0309-

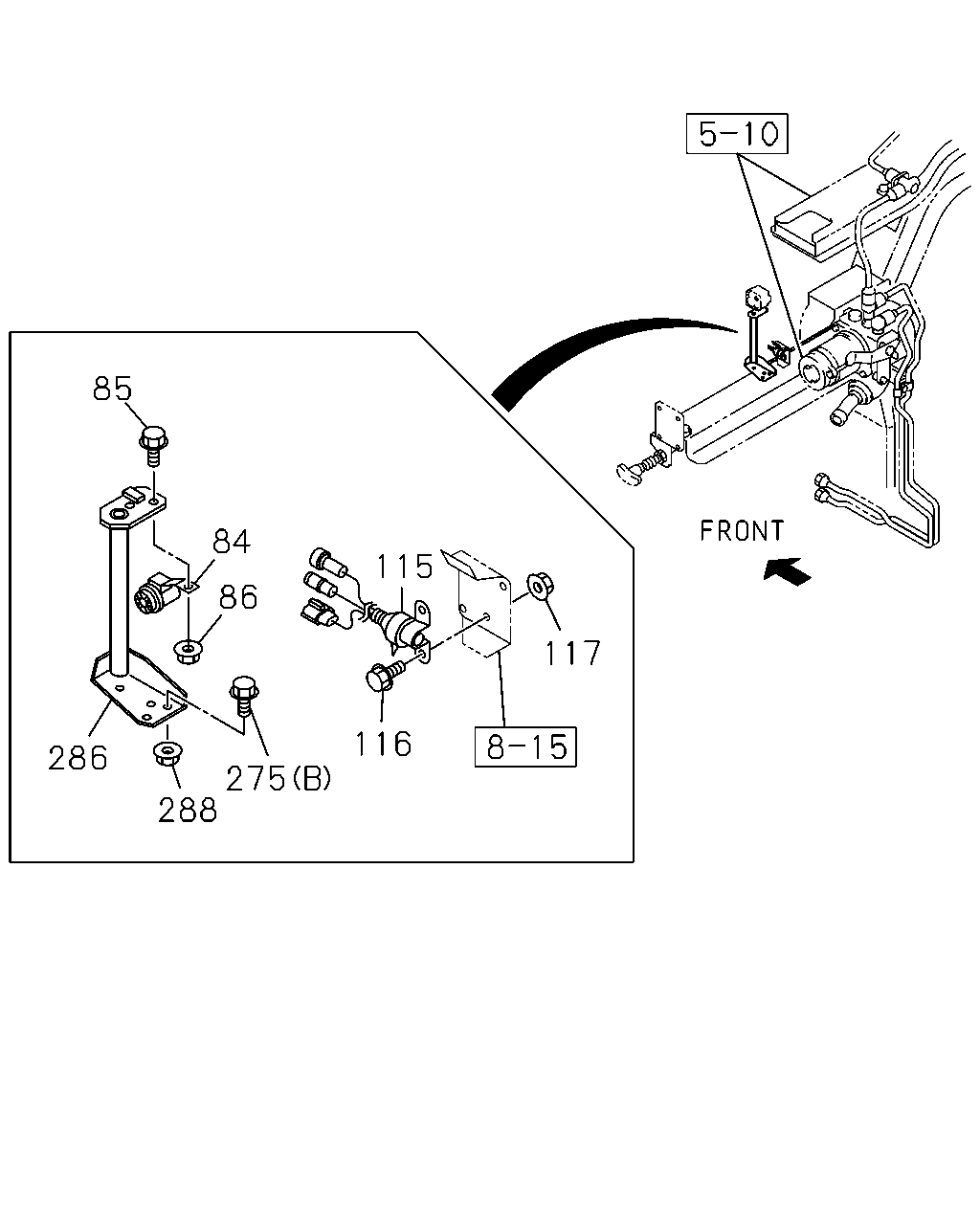

çizim 83980
85 84 115 86 117 116 286 275 288
BalonParca AdiParca NoAdetTipApplied Date
84 BUZZER; POWER CAB TILT
METRO DENSO 		1-83460-097-0 01 1 0309-
85 BOLT; BUZZER,POWER CAB TILT
M8X20 FLANGE 		0-28680-820-0 01 1 0309-
86 NUT; BUZZER
M8 FLANGE 		0-91150-108-0 01 1 0309-
115 RELAY; POWER CAB TILT UNIT
NIKKO 		1-81171-075-1 01 1 0309-
116 BOLT; RELAY FIX
M8X16 FLANGE 		0-28080-816-0 02 1 0309-
117 NUT; RELAY FIX
M8 FLANGE 		0-91150-108-0 02 1 0309-
275 BOLT; BRKT
(A) M8X14 FLANGE 		0-28080-814-0 01 1 0309-
275 BOLT; BRKT
(B) M8X20 FLANGE 		0-28680-820-0 03 1 0309-0309
275 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 02 1 0309-0309
286 BRACKET 1-53457-113-0 01 1 0309-0309
288 NUT; BRKT FIX
M8 FLANGE 		0-91150-108-0 05 1 0309-0309

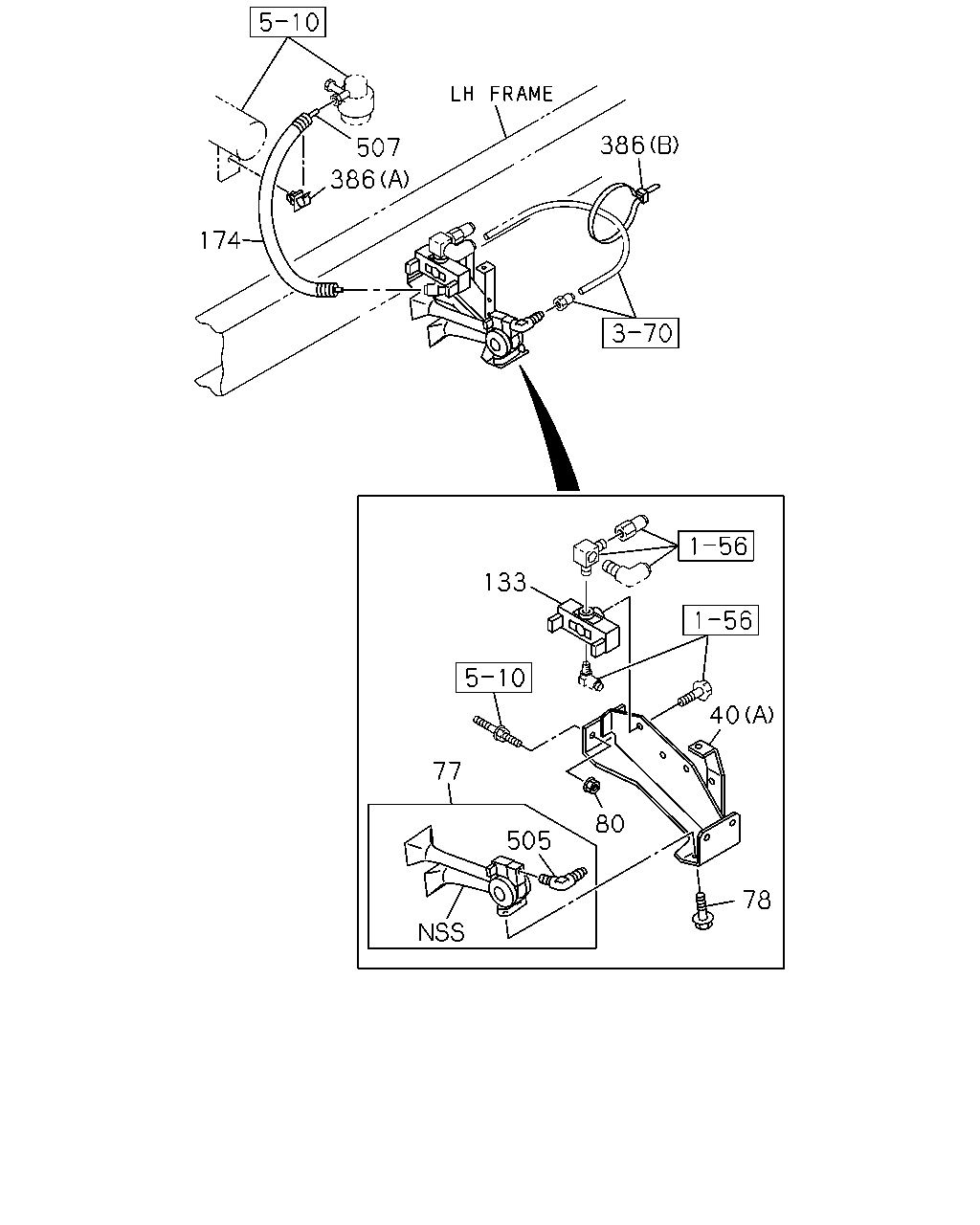

çizim 84006
507 386 386 174 133 40 77 80 505 78
BalonParca AdiParca NoAdetTipApplied Date
40 BRACKET; MAG VLV
MIXER TRUCK<RA2> (C) 		1-53457-128-0 01 1 0309-0311
40 BRACKET; MAG VLV
(A) 		1-53457-117-0 01 1 0309-
40 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (B) 		1-53458-380-0 01 1 0309-0311
40 BRACKET; MAG VLV
(B) 		1-53458-380-0 01 1 0312-
77 HORN ASM 1-83430-041-2 01 1 0309-
78 BOLT; AIR HORN
M8X20 FLANGE 		0-28680-820-0 02 1 0309-
80 NUT; MAG VLV
M12 FLANGE 		0-91150-212-0 02 1 0309-
133 VALVE; MAG,AIR HORN 1-53458-378-2 01 1 0309-
174 COVER
CAB UP +110MM<TGG> L=800 		1-83129-031-1 01 1 0309-
386 CLIP; HARNESS
(A) ID=9.5 		5-09709-020-0 01 1 0309-
386 CLIP; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (B) L=350 		1-09707-183-0 01 1 0309-
505 JOINT; AIR HORN 1-83439-006-0 01 1 0309-
507 TUBE; NYLON
CAB UP +110MM<TGG> SERVICED BY L=2000 OD=6 		1-87410-081-0 01 1 0309-

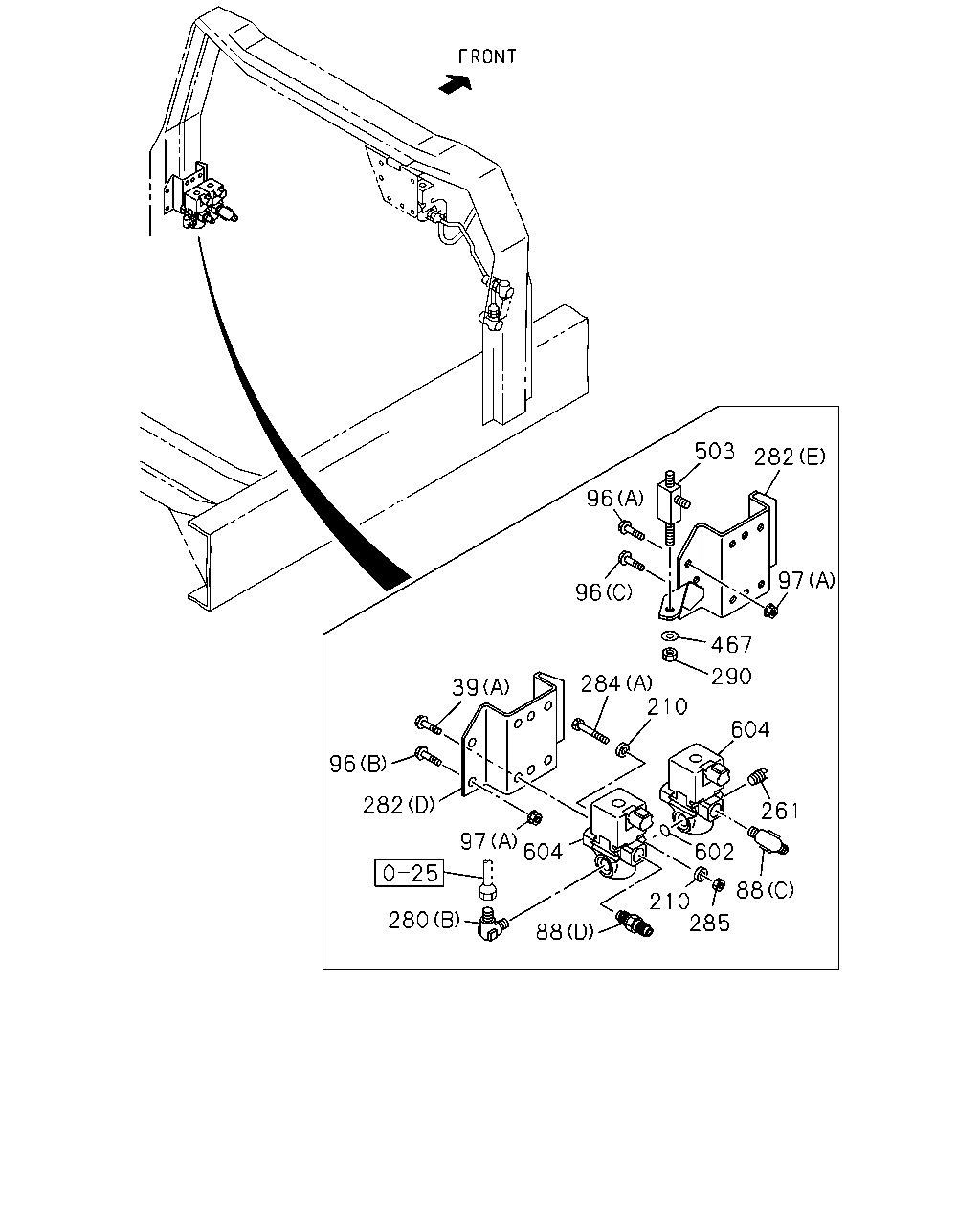

çizim 85242
503 282 96 97 96 467 290 284 210 39 604 96 282 261 97 604 602 88 210 285 280 88
BalonParca AdiParca NoAdetTipApplied Date
39 BOLT; BRKT,MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
39 BOLT; BRKT,MAG VLV
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
88 CONNECTOR; MAG VLV
MIXER TRUCK<RA2> (E) M12X2 & PT1/4 3WAY 		1-09656-229-1 01 1 0309-0311
88 CONNECTOR; MAG VLV
(A) DIN6 & R1/8 ELBOW 		1-09661-066-0 01 1 0309-
88 CONNECTOR; MAG VLV
(B) PT1/8 ELBOW 		8-94338-418-1 01 1 0309-
88 CONNECTOR; MAG VLV
(D) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0309-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0309-0311
88 CONNECTOR; MAG VLV
EXC. MIXER TRUCK<RA2> (C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0309-0311
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0312-
88 CONNECTOR; MAG VLV
(C) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0312-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (B) M8X20 FLANGE 		0-28680-820-0 04 1 0309-
96 BOLT; BRKT FIX
MIXER TRUCK<RA2> (A) M8X25 FLANGE 		0-28680-825-0 01 1 0309-
96 BOLT; BRKT FIX
FULL TRACTOR TRUCK<RD6> (A) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
96 BOLT; BRKT FIX
(B) M8X20 FLANGE 		0-28680-820-0 05 1 0309-0311
96 BOLT; BRKT FIX
EXC. MIXER TRUCK<RA2> (B) M8X20 FLANGE 		0-28680-820-0 05 1 0312-
96 BOLT; BRKT FIX
(C) M10X25 FLANGE 		0-28681-025-0 01 1 0309-
97 NUT; BRKT FIX
FULL TRACTOR TRUCK<RD6> (A) M8 FLANGE 		0-91150-108-0 02 1 0309-
97 NUT; BRKT FIX
(A) M8 FLANGE 		0-91150-108-0 05 1 0309-
97 NUT; BRKT FIX
(B) M10 FLANGE 		0-91150-210-0 01 1 0309-0311
210 WASHER; PL,BRKT 1-82569-266-0 02 1 0309-
261 PLUG; MAG VLV
PT1/4 		9-99204-513-0 01 1 0309-
261 PLUG; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> PT1/4 		9-99204-513-0 01 1 0309-
280 CONNECTOR; IN,MAG VLV
(A) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0309-
280 CONNECTOR; IN,MAG VLV
(B) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0309-
282 BRACKET; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (C) 		1-47479-364-1 01 1 0309-
282 BRACKET; MAG VLV
MIXER TRUCK<RA2> (E) 		1-82569-367-1 01 1 0309-
282 BRACKET; MAG VLV
(B) 		1-82569-277-2 01 1 0309-
282 BRACKET; MAG VLV
(A) 		1-82569-358-0 01 1 0309-
282 BRACKET; MAG VLV
EXC. MIXER TRUCK<RA2> (D) 		1-82569-290-0 01 1 0309-
284 BOLT; MAG VLV
(B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
284 BOLT; MAG VLV
TRANSMISSION SIDE PTO HIGH CAPACITY<BBC>, TRANSMISSION SIDE PTO WO/LEVER<SH5> (B) M8X20 FLANGE 		0-28680-820-0 02 1 0309-
284 BOLT; MAG VLV
(A) M6X50 FLANGE 		0-28080-650-0 01 1 0309-
285 NUT; MAG VLV
M6 FLANGE 		0-91150-106-0 01 1 0309-
290 NUT
MIXER TRUCK<RA2> M12 		9-09840-280-0 01 1 0309-0309
290 NUT
MIXER TRUCK<RA2> M12 		9-99111-512-0 01 1 0310-0310
290 NUT
MIXER TRUCK<RA2> M12 		9-99111-412-0 01 1 0311-
467 WASHER; LK,MAG VLV
MIXER TRUCK<RA2> ID=12.2 		9-09150-512-0 01 1 0309-
503 UNION
MIXER TRUCK<RA2> M12 2WAY 		1-09654-059-2 01 1 0309-
602 GASKET; MAG VLV
ID=16.8 		9-09565-117-0 01 1 0309-
604 VALVE; MAG,ENG CONT 1-82563-871-2 01 1 0309-
604 VALVE; MAG,ENG CONT 1-82563-871-2 02 1 0309-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
