Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-26 - ELECTRICAL CONTROL AND OTHER PARTS
▶
8-26 — ELECTRICAL CONTROL AND OTHER PARTS
(#28978) — 45 parça
◀

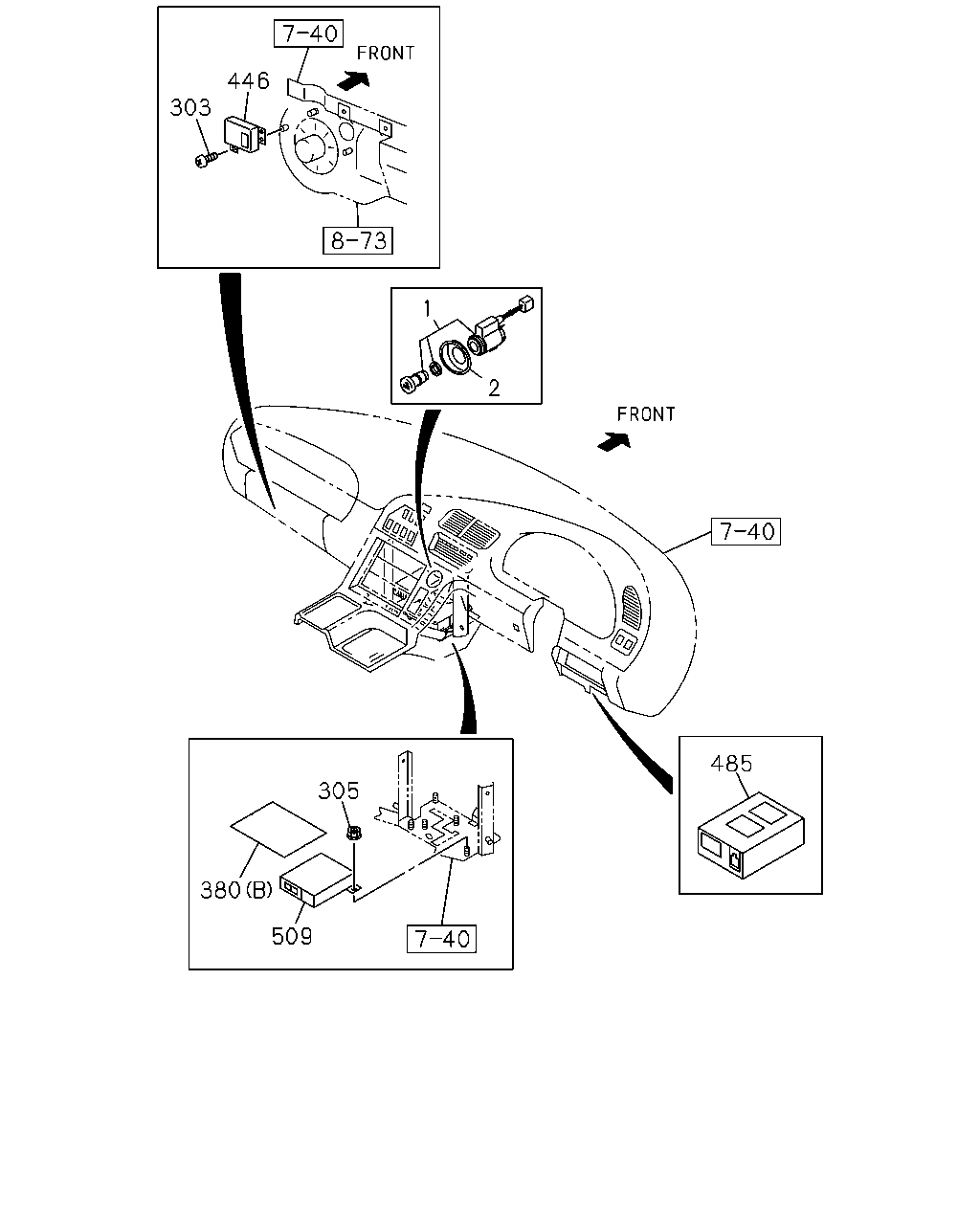

[826A] INST PANEL SIDE (13 parça)

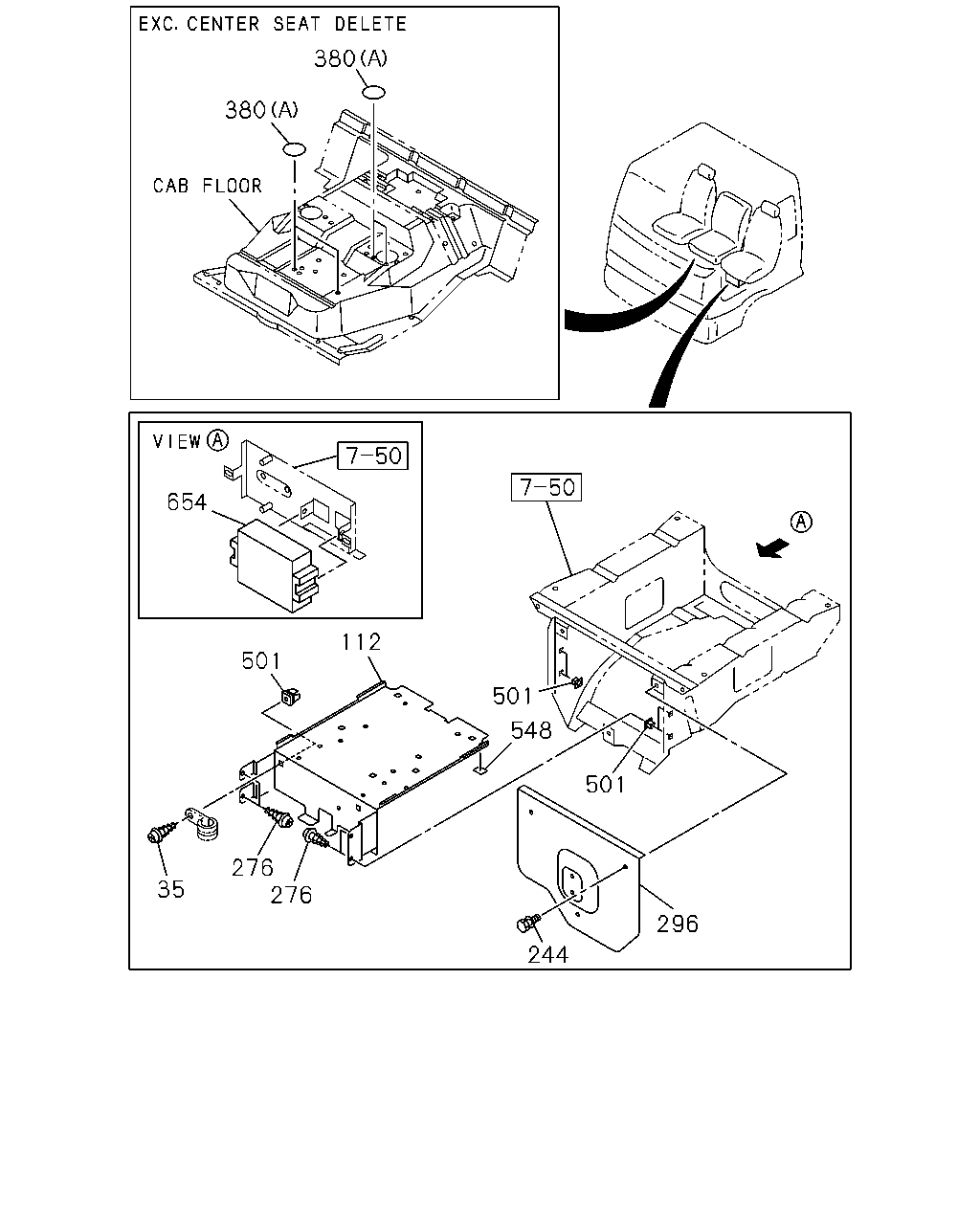

[826A] SEAT SIDE (13 parça)

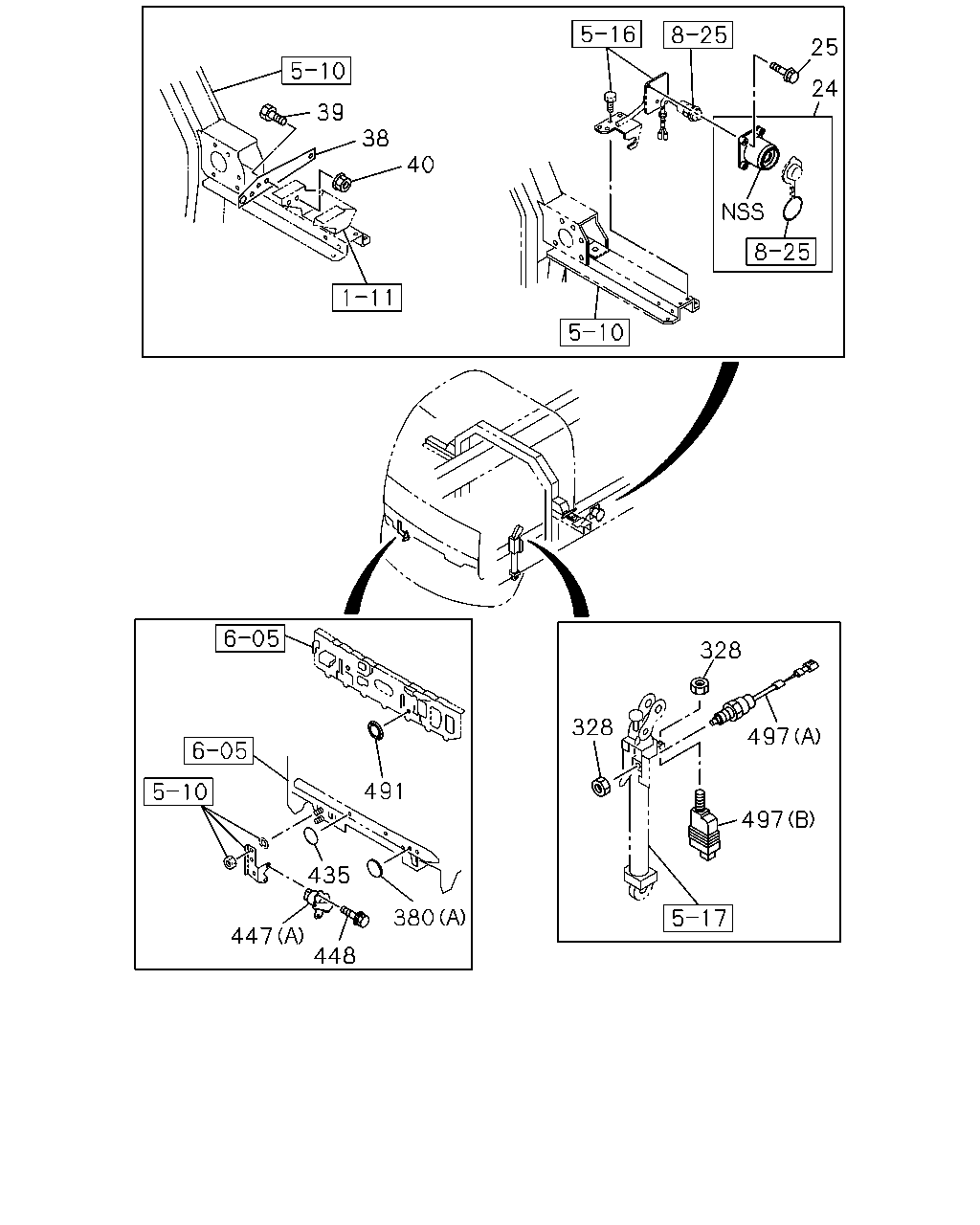

[826A] FRAME SIDE (16 parça)

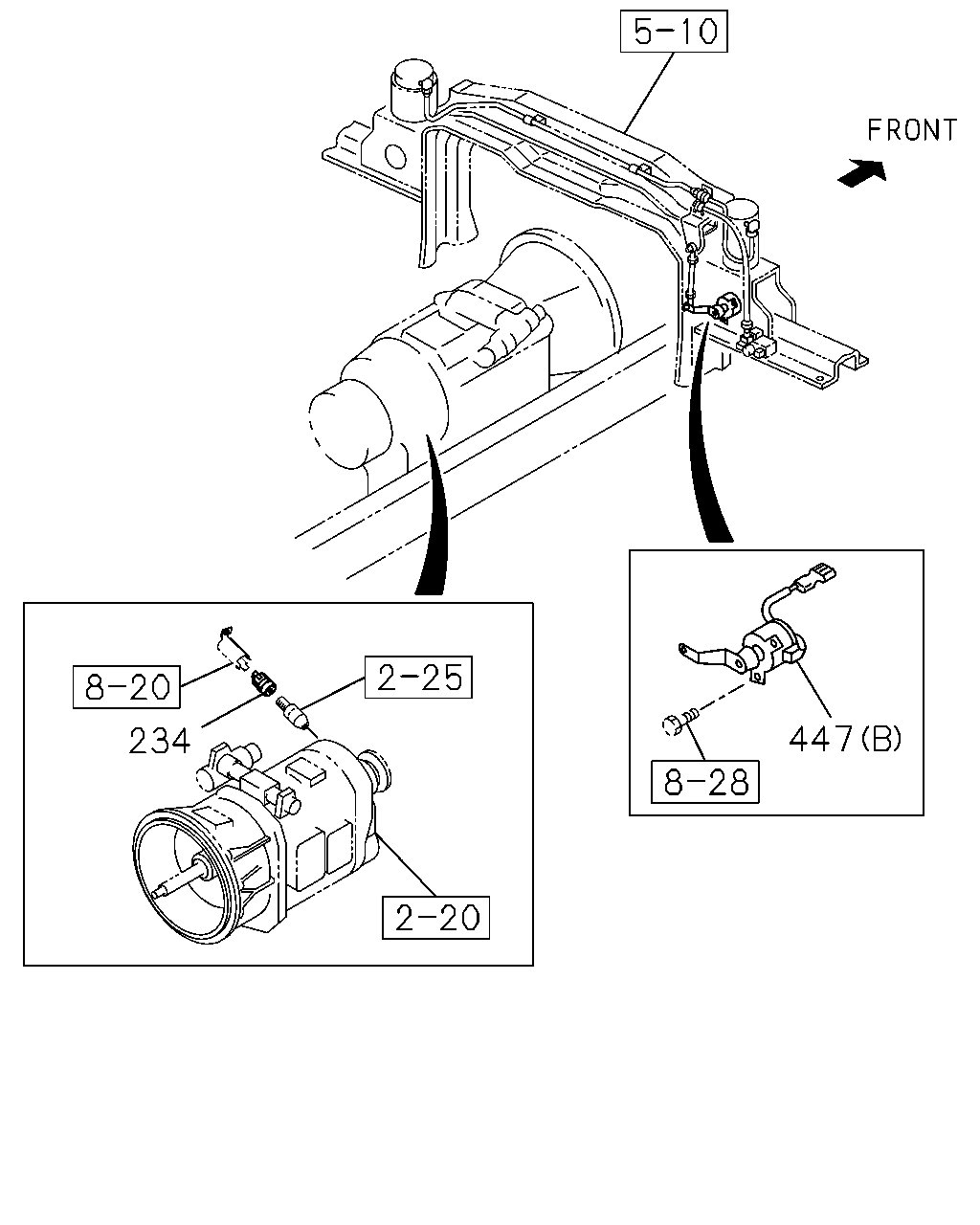

[826A] SENSOR;VEHICLE SPD & CAB SUS POSITION (3 parça)
▶
446
303
1
2
485
305
380
509
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LIGHTER; CIGAR
8-97320-325-0
01
1
0309-
2
BEZEL; CIGAR LIGHTER
1-73998-883-2
01
1
0309-
303
SCREW; CONT UNIT
BRAKE SYSTEM HSA<SLD> M5X14
8-94279-325-0
03
1
0309-
305
NUT; CONT UNIT
M6 FLANGE
0-91150-106-0
02
1
0309-
305
NUT; CONT UNIT
M6 FLANGE
0-91150-106-0
04
1
0309-
380
SEAL
(B) 450X350
1-76770-008-0
01
1
0309-
380
SEAL
(A) OD=25 BLACK
1-76798-019-0
01
1
0309-
380
SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK
1-76798-019-0
04
1
0309-
446
CONTROL UNIT; HSA
MJX M/T<Y9N> BRAKE SYSTEM HSA<SLD>
1-80111-116-1
01
1
0311-
446
CONTROL UNIT; HSA
BRAKE SYSTEM HSA<SLD>
1-80110-289-2
01
1
0309-0310
446
CONTROL UNIT; HSA
BRAKE SYSTEM HSA<SLD> EXC. MJX M/T<Y9N>
1-80110-289-2
01
1
0311-
485
CONTROL UNIT; SPEED SENSOR
1-80190-059-1
01
1
0309-
509
CONTROL UNIT; CAB SUS
1-80150-042-1
01
1
0309-
380
380
654
112
501
501
548
501
276
276
35
296
244
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
SCREW; CLIP
M6X12 TAPPING W/PL WASHER
0-74100-612-0
02
1
0309-
112
BRACKET; CONT UNIT
1-75558-598-3
01
1
0309-
244
BOLT; COVER
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0309-
276
SCREW; BRKT
M6X12 TAPPING W/PL WASHER
0-74100-612-0
04
1
0309-
296
COVER; CONT UNIT
1-75558-556-1
01
1
0309-
380
SEAL
(B) 450X350
1-76770-008-0
01
1
0309-
380
SEAL
(A) OD=25 BLACK
1-76798-019-0
01
1
0309-
380
SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK
1-76798-019-0
04
1
0309-
501
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
02
1
0309-
501
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0309-
548
SEAL; NOISE
30X30
8-97866-626-0
03
1
0309-0309
548
SEAL; NOISE
30X30
1-74998-128-0
03
1
0310-
654
CONTROL UNIT; EXH & RETARDER
1-80150-118-0
01
1
0309-
25
24
39
38
40
328
328
497
491
497
435
380
447
448
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
24
BOX; SW,CAB TILT
1-82389-007-1
01
1
0309-
25
BOLT; SW BOX
M6X16 FLANGE
0-28080-616-0
02
1
0309-
38
BRACKET; SW,STARTER SUB
1-82699-741-0
01
1
0309-
39
BOLT; BRKT,STARTER SUB SW
M8X20 FLANGE
0-28680-820-0
02
1
0309-
40
NUT; BRKT,STARTER SUB SWITCH
M8 FLANGE
0-91150-108-0
02
1
0309-
328
NUT
M16
9-99111-416-0
02
1
0309-
380
SEAL
(B) 450X350
1-76770-008-0
01
1
0309-
380
SEAL
(A) OD=25 BLACK
1-76798-019-0
01
1
0309-
380
SEAL
EXC. CENTER SEAT DELETE(SP9) (A) OD=25 BLACK
1-76798-019-0
04
1
0309-
435
GROMMET
OD=25 BLACK
1-76798-019-0
03
1
0309-
447
SENSOR; HEIGHT
(A)
1-80250-010-1
01
1
0309-
447
SENSOR; HEIGHT
(B)
1-80250-011-1
01
1
0309-
448
BOLT; SENSOR
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0309-
491
PLUG; HOLE,CONT UNIT
OD=54.5
1-73907-309-0
01
1
0309-
497
SWITCH; CAB TILT
(A) STAMP NC
1-82380-125-1
01
1
0309-
497
SWITCH; CAB TILT
(B)
1-82380-128-1
01
1
0309-
447
234
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
234
SENSOR; VEHICLE SPD
25 PULSE
1-80240-029-0
01
1
0309-
447
SENSOR; HEIGHT
(A)
1-80250-010-1
01
1
0309-
447
SENSOR; HEIGHT
(B)
1-80250-011-1
01
1
0309-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
