◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-15 - FIXING PARTS; WIRING HARNESS ▶
8-15 — FIXING PARTS; WIRING HARNESS (#28974) — 302 parça
çizim 25234
53 53 312 53 53 334 312
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
CAB UP +110MM<TGG> (G) 		1-82698-469-0 01 1 0309-
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0309-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 04 1 0309-
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0309-
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 04 1 0309-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0309-
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0309-
312 BRACKET; CLIP HARNESS
MJX M/T<Y9N> (G) L=120 H=35 		1-82698-088-0 01 1 0310-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0309-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-479-0 01 1 0309-0309
312 BRACKET; CLIP HARNESS
MJT7 M/T<Y9E> (D) 		1-82698-479-0 01 1 0310-
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (E) L=195.5 		1-82698-502-0 01 1 0309-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-284-0 01 1 0309-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-285-0 01 1 0309-
312 BRACKET; CLIP HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (F) 		1-82698-443-0 01 1 0309-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0309-
334 BRACKET
(B) 		1-53457-106-0 01 1 0309-0309
334 BRACKET
(D) 		1-53458-362-0 01 1 0310-
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0309-

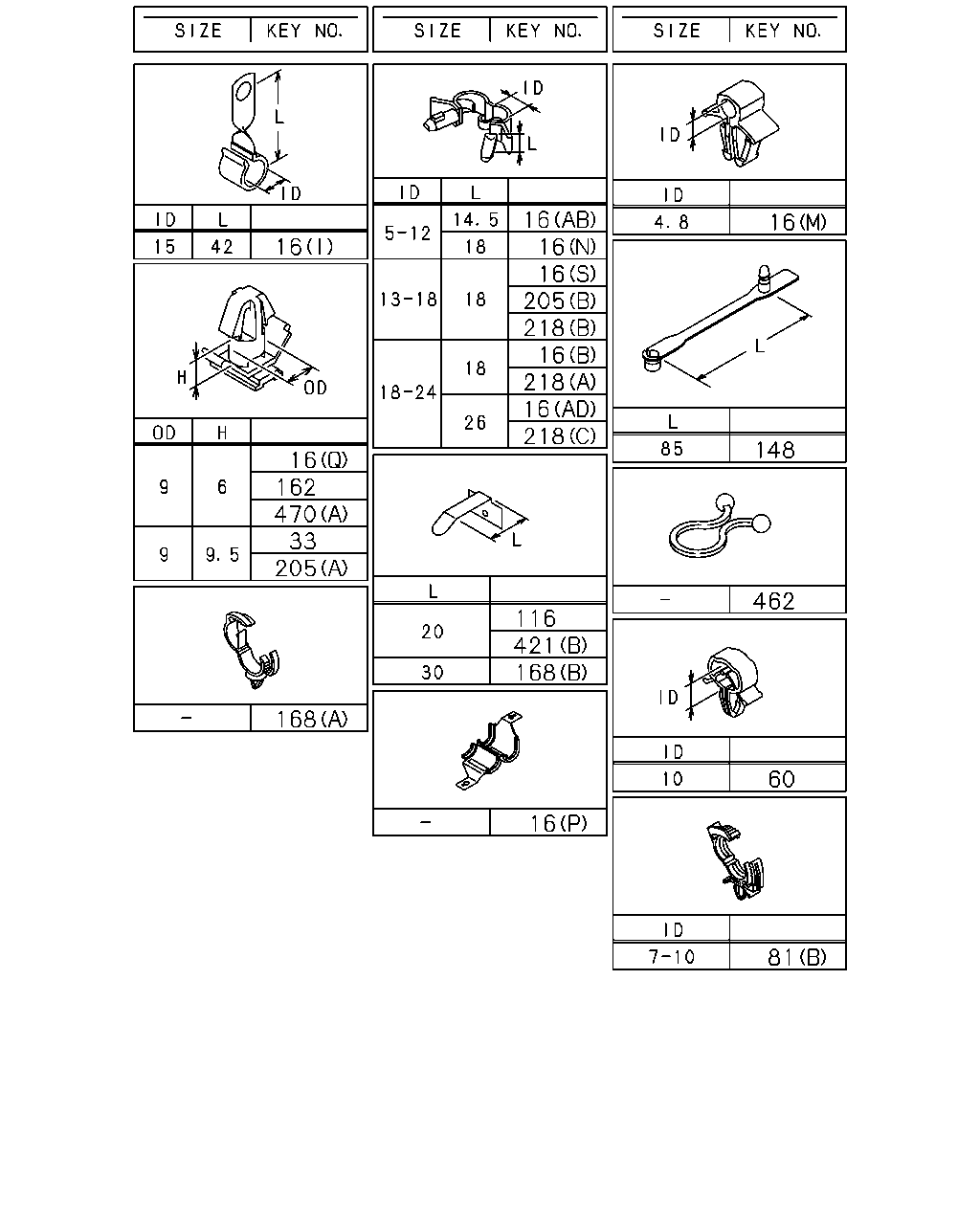

çizim 80090
16 16 16 205 218 16 218 16 218 16 16 148 16 162 470 33 205 462 116 421 168 168 60 16 81
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0309-
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 02 1 0309-0309
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AD) ID=18-24 L=26 		1-09709-296-0 02 1 0310-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0309-0309
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 0310-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0309-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0309-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (U) L=250 		5-09707-030-1 01 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Y) ID=26 L=26 		1-09701-236-0 01 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (T) L=350 		1-09707-183-0 06 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Q) OD=9 H=6 		1-09709-178-0 02 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (Q) OD=9 H=6 		1-09709-178-0 03 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (D) ID=11 L=20 		9-09525-035-0 02 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (AC) ID=11 L=40 		9-09525-075-0 01 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (W) ID=16 L=40 		9-09525-576-0 01 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0309-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0309-
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0309-
16 CLIP; HARNESS
(J) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0309-0402
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0309-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0309-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0309-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0309-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0309-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0309-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0309-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0309-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0309-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0309-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0309-
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0309-
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 03 1 0309-0309
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AD) ID=18-24 L=26 		1-09709-296-0 06 1 0310-
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0309-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 02 1 0309-
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 02 1 0309-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0309-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 08 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0309-
33 CLIP; HARNESS,VLV
MJX M/T<Y9N> OD=9 H=9.5 		1-09709-179-0 01 1 0309-
60 CLIP; CONSOLE HARNESS,SW PTO
DUMP CONTROL LEVER<RC4> ID=10 		8-94450-392-0 01 1 0309-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0309-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0309-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 05 1 0309-
148 CLIP; BAND,HEADLAMP HARNESS
L=85 		8-94232-611-0 04 1 0309-
162 CLIP; SW HARNESS
OD=9 H=6 		1-09709-178-0 01 1 0309-
168 CLIP; DASH HARNESS
(A) ID=6 & 10-13 		8-97069-515-0 06 1 0309-
168 CLIP; DASH HARNESS
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) L=30 SET=10 PIECE 		1-09987-265-0 01 1 0309-
205 CLIP; BACK LAMP HARNESS
(A) OD=9 H=9.5 		1-09709-179-0 01 1 0309-
205 CLIP; BACK LAMP HARNESS
(B) ID=13-18 L=18 		1-09709-291-0 01 1 0309-0309
218 CLIP; BAND,RR COMB
WHEEL BASE 6300MM(63W) (C) ID=18-24 L=26 		1-09709-296-0 01 1 0310-
218 CLIP; BAND,RR COMB
WHEEL BASE 6600MM(66W) (B) ID=13-18 L=18 		1-09709-291-0 02 1 0310-
218 CLIP; BAND,RR COMB
WHEEL BASE 6600MM(66W) (A) ID=18-24 L=18 		1-09709-294-0 04 1 0310-
218 CLIP; BAND,RR COMB
(A) ID=18-24 L=18 		1-09709-294-0 04 1 0309-0309
218 CLIP; BAND,RR COMB
WHEEL BASE 6300MM(63W) (A) ID=18-24 L=18 		1-09709-294-0 02 1 0310-0312
218 CLIP; BAND,RR COMB
WHEEL BASE 6300MM(63W) (A) ID=18-24 L=18 		1-09709-294-0 03 1 0401-
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0309-
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0309-
462 CLIP; HARNESS,HTR
EXC. AIR CONDITIONER MANUAL CONTROL(C60) ID=20 		1-09709-068-0 02 1 0309-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0309-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0309-

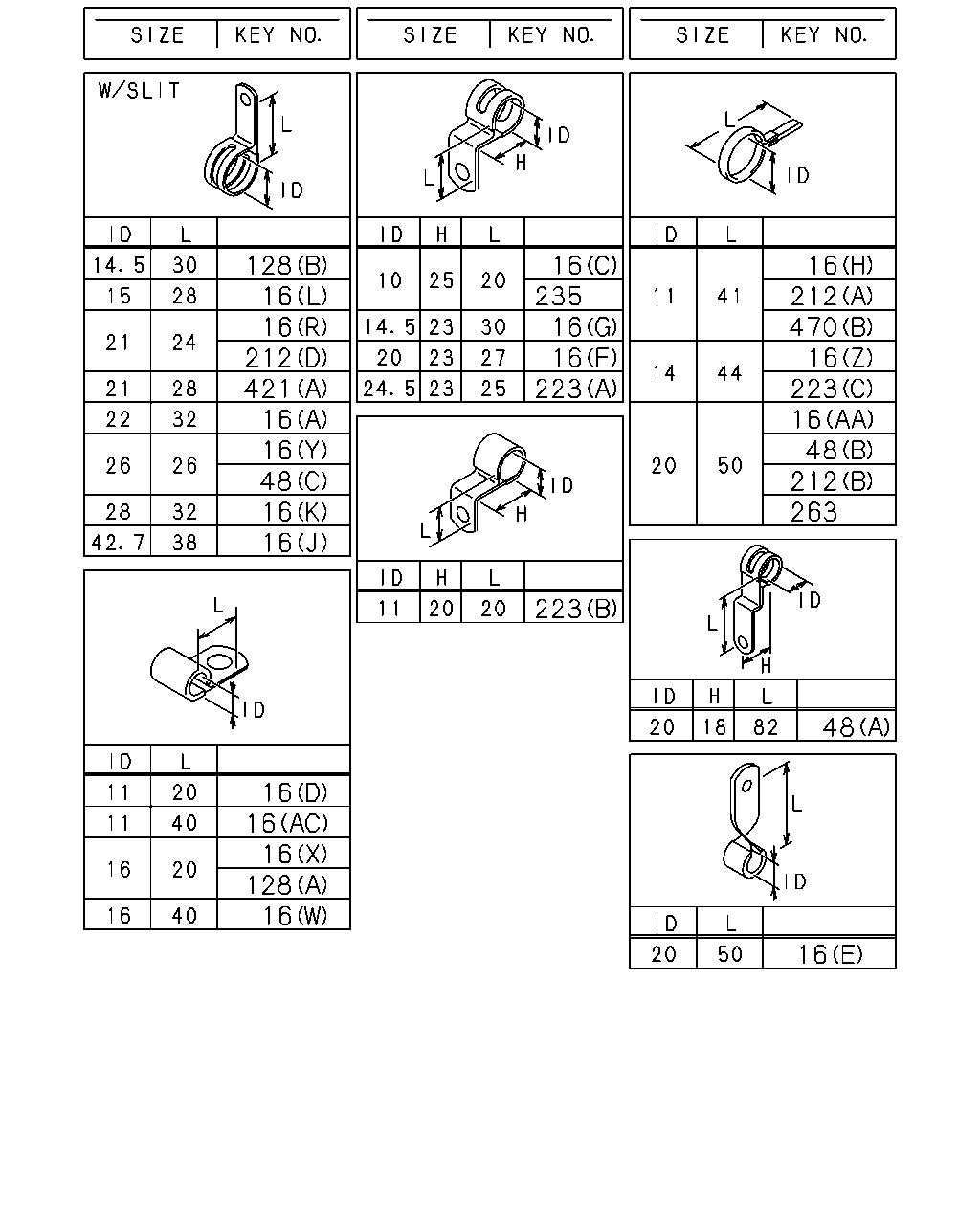

çizim 80586
128 16 16 212 421 16 16 48 16 16 16 235 16 16 223 16 212 470 16 223 16 48 212 263 223 48 16 16 16 128 16 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0309-
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 02 1 0309-0309
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AD) ID=18-24 L=26 		1-09709-296-0 02 1 0310-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0309-0309
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 0310-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0309-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0309-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (U) L=250 		5-09707-030-1 01 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Y) ID=26 L=26 		1-09701-236-0 01 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (T) L=350 		1-09707-183-0 06 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Q) OD=9 H=6 		1-09709-178-0 02 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (Q) OD=9 H=6 		1-09709-178-0 03 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (D) ID=11 L=20 		9-09525-035-0 02 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (AC) ID=11 L=40 		9-09525-075-0 01 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (W) ID=16 L=40 		9-09525-576-0 01 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0309-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0309-
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0309-
16 CLIP; HARNESS
(J) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0309-0402
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0309-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0309-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0309-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0309-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0309-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0309-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0309-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0309-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0309-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0309-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0309-
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0309-
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 03 1 0309-0309
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AD) ID=18-24 L=26 		1-09709-296-0 06 1 0310-
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0309-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 02 1 0309-
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 02 1 0309-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0309-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 08 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0309-
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0309-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0309-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 18 1 0309-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0309-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0309-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0309-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0309-
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 02 1 0309-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0309-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0309-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0309-
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0309-
212 CLIP; HORN HARNESS
(D) ID=21 L=24 		8-94176-807-1 01 1 0309-
223 CLIP; AIR TANK HARNESS
(A) ID=24.5 H=23 L=25 		1-09700-862-0 02 1 0309-
223 CLIP; AIR TANK HARNESS
(B) ID=11 H=20 L=20 		5-09700-351-0 03 1 0309-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0309-
235 CLIP; HARNESS,SPD SENSOR,SSPS
MJX M/T<Y9N> ID=10 H=25 L=20 		1-09700-519-0 01 1 0309-
263 CLIP; HARNESS,CLIP TO BATTERY RELAY
ID=20 L=50 		9-09917-430-0 02 1 0309-
421 CLIP; FLOOR HARNESS
(A) ID=21 L=28 		1-09700-673-1 02 1 0309-
421 CLIP; FLOOR HARNESS
(B) L=20 SET=10 PIECE 		1-09987-246-2 05 1 0309-
470 CLIP; HARNESS,LICENSE LAMP
(B) ID=11 L=41 		1-09700-403-0 01 1 0309-
470 CLIP; HARNESS,LICENSE LAMP
(A) OD=9 H=6 		1-09709-178-0 01 1 0309-
çizim 80590
16 51 81 171 206 212 305 16 48 111 171 212 194 212 16 48 194 16 51 142 194 208
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(A) ID=22 L=32 		1-09700-126-1 01 1 0309-
16 CLIP; HARNESS
(S) ID=13-18 L=18 		1-09709-291-0 02 1 0309-0309
16 CLIP; HARNESS
WHEEL BASE 6300MM(63W) (AD) ID=18-24 L=26 		1-09709-296-0 02 1 0310-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 08 1 0309-0309
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 06 1 0310-
16 CLIP; HARNESS
(D) ID=11 L=20 		9-09525-032-0 01 1 0309-
16 CLIP; HARNESS
(U) L=250 		5-09707-030-1 01 1 0309-
16 CLIP; HARNESS
TRANSMISSION SIDE PTO WO/LEVER<SH5> (U) L=250 		5-09707-030-1 01 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (G) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Y) ID=26 L=26 		1-09701-236-0 01 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (T) L=350 		1-09707-183-0 06 1 0309-
16 CLIP; HARNESS
MJT7 M/T<Y9E> (Q) OD=9 H=6 		1-09709-178-0 02 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (Q) OD=9 H=6 		1-09709-178-0 03 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (D) ID=11 L=20 		9-09525-035-0 02 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (AC) ID=11 L=40 		9-09525-075-0 01 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (W) ID=16 L=40 		9-09525-576-0 01 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 01 1 0309-
16 CLIP; HARNESS
MJX M/T<Y9N> (H) ID=11 L=41 		1-09700-403-0 01 1 0309-
16 CLIP; HARNESS
(I) ID=15 L=42 		1-09700-479-0 02 1 0309-
16 CLIP; HARNESS
(C) ID=10 H=25 L=20 		1-09700-519-0 01 1 0309-
16 CLIP; HARNESS
(J) W/RUBBER ID=42.7 L=38 		1-09700-583-1 01 1 0309-0402
16 CLIP; HARNESS
(J) WO/RUBBER ID=42.7 L=38 		1-09701-313-0 01 1 0403-
16 CLIP; HARNESS
(E) ID=20 L=50 		1-09700-679-1 01 1 0309-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 01 1 0309-
16 CLIP; HARNESS
(F) ID=20 H=23 L=27 		1-09700-861-0 02 1 0309-
16 CLIP; HARNESS
(K) ID=28 L=32 		1-09701-107-1 02 1 0309-
16 CLIP; HARNESS
(L) ID=15 L=28 		1-09701-216-0 01 1 0309-
16 CLIP; HARNESS
(M) ID=4.8 		1-09701-218-0 01 1 0309-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 01 1 0309-
16 CLIP; HARNESS
(O) L=180 		1-09707-162-1 08 1 0309-
16 CLIP; HARNESS
(T) L=350 		1-09707-183-0 04 1 0309-
16 CLIP; HARNESS
(P) WO/SPONGE RUBBER 		1-09709-103-1 02 1 0309-
16 CLIP; HARNESS
(Q) OD=9 H=6 		1-09709-178-0 06 1 0309-
16 CLIP; HARNESS
(N) ID=5-12 L=18 		1-09709-287-0 01 1 0309-
16 CLIP; HARNESS
(B) ID=18-24 L=18 		1-09709-294-0 03 1 0309-0309
16 CLIP; HARNESS
WHEEL BASE 6600MM(66W) (AD) ID=18-24 L=26 		1-09709-296-0 06 1 0310-
16 CLIP; HARNESS
(AB) ID=5-12 L=14.5 		1-09987-221-0 01 1 0309-
16 CLIP; HARNESS
(V) L=140 		5-09707-031-1 02 1 0309-
16 CLIP; HARNESS
(R) ID=21 L=24 		8-94176-807-1 02 1 0309-
16 CLIP; HARNESS
(X) ID=16 L=20 		9-09525-535-0 01 1 0309-
16 CLIP; HARNESS
(Z) ID=14 L=44 		9-09917-427-0 02 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 03 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 04 1 0309-
16 CLIP; HARNESS
(AA) ID=20 L=50 		9-09917-430-0 08 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0309-
16 CLIP; HARNESS
(H) ID=11 L=41 		1-09700-403-0 06 1 0309-
48 CLIP; FRAME HARNESS
(C) ID=26 L=26 		1-09701-236-0 01 1 0309-
48 CLIP; FRAME HARNESS
(A) ID=20 H=18 L=82 		1-09701-288-0 01 1 0309-
48 CLIP; FRAME HARNESS
(D) L=350 		1-09707-183-0 18 1 0309-
48 CLIP; FRAME HARNESS
(E) L=250 		5-09707-030-1 06 1 0309-
48 CLIP; FRAME HARNESS
(B) ID=20 L=50 		9-09917-430-0 02 1 0309-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (A) L=180 		1-09707-162-1 01 1 0309-
51 CLIP; COOLER CMPR
AIR CONDITIONER MANUAL CONTROL(C60) (B) L=140 		5-09707-031-1 01 1 0309-
81 CLIP; HARNESS
(A) L=140 		5-09707-031-1 02 1 0309-
81 CLIP; HARNESS
(B) ID=7-10 		8-94472-578-0 02 1 0309-
111 CLIP; STOP LAMP SW HARNESS
L=250 		5-09707-030-1 01 1 0309-
142 CLIP; HARNESS,ENG
L=180 		1-09707-162-1 01 1 0309-
171 CLIP; STARTER HARNESS
(A) L=250 		5-09707-030-1 03 1 0309-
171 CLIP; STARTER HARNESS
(B) L=140 		5-09707-031-1 06 1 0309-
194 CLIP; BAND
(A) L=300 		1-09707-001-1 01 1 0309-
194 CLIP; BAND
(C) L=180 		1-09707-162-1 01 1 0309-
194 CLIP; BAND
(B) L=350 		1-09707-183-0 03 1 0309-
206 CLIP; FUEL TANK HARNESS
L=140 		5-09707-031-1 02 1 0309-
208 CLIP; HARNESS,MAG VLV
PTO CONTROL OPERATION CAB BACK<TBZ> L=180 		1-09707-162-1 01 1 0310-
212 CLIP; HORN HARNESS
CAB UP +110MM<TGG> (B) ID=20 L=50 		9-09917-430-0 02 1 0309-
212 CLIP; HORN HARNESS
(A) ID=11 L=41 		1-09700-403-0 01 1 0309-
212 CLIP; HORN HARNESS
(C) L=300 		1-09707-001-1 01 1 0309-
212 CLIP; HORN HARNESS
(E) L=250 		5-09707-030-1 02 1 0309-
212 CLIP; HORN HARNESS
(F) L=140 		5-09707-031-1 01 1 0309-
212 CLIP; HORN HARNESS
(D) ID=21 L=24 		8-94176-807-1 01 1 0309-
305 CLIP; ENG HARNESS
L=140 		5-09707-031-1 01 1 0309-

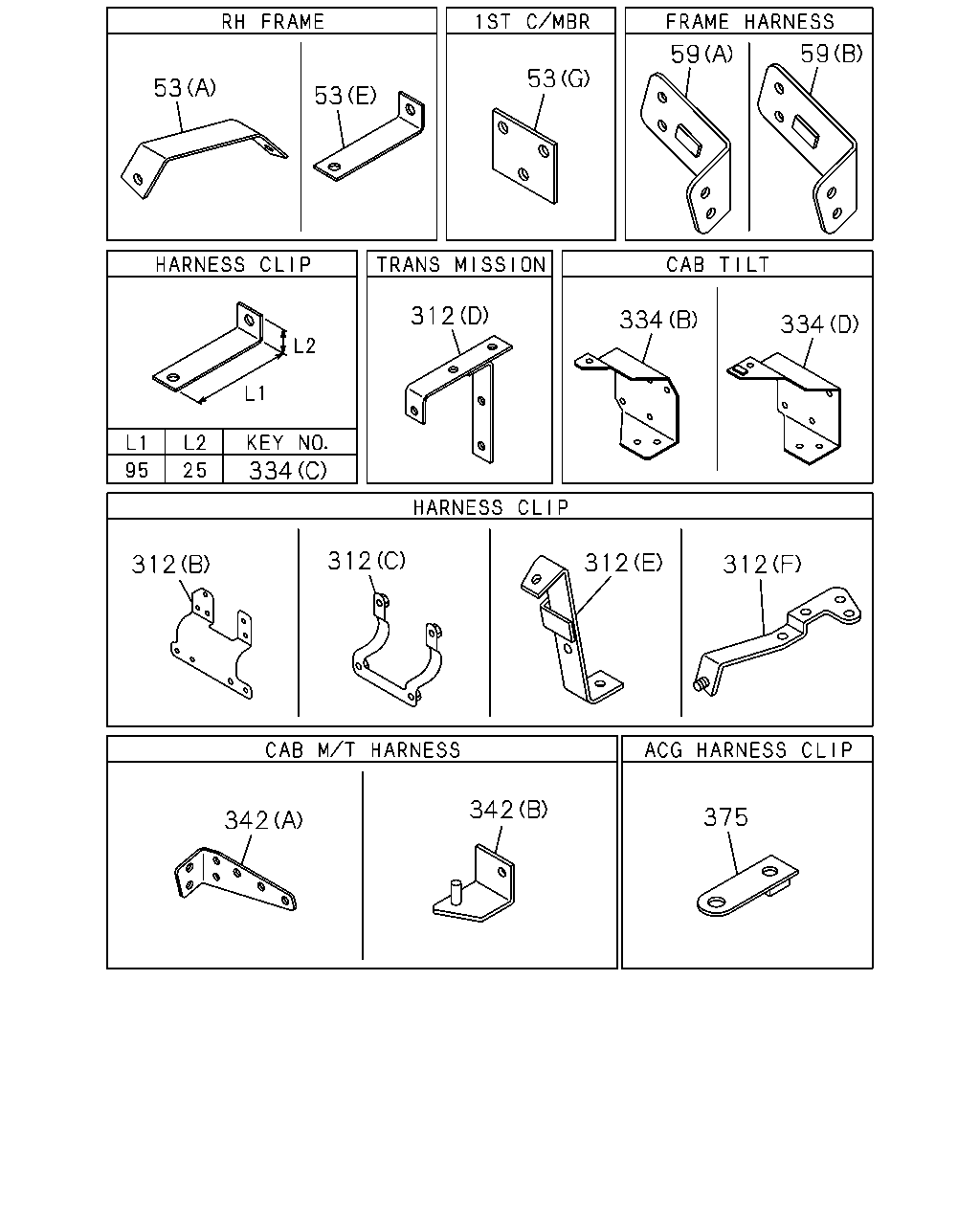

çizim 83971
59 59 53 53 53 312 334 334 334 312 312 312 312 342 375 342
BalonParca AdiParca NoAdetTipApplied Date
53 BRACKET; HARNESS
CAB UP +110MM<TGG> (G) 		1-82698-469-0 01 1 0309-
53 BRACKET; HARNESS
(B) L=50 		1-47475-663-1 01 1 0309-
53 BRACKET; HARNESS
(C) L=59 B=20 		1-47479-048-0 04 1 0309-
53 BRACKET; HARNESS
(D) 		1-47479-333-0 01 1 0309-
53 BRACKET; HARNESS
(E) L=30 		1-47479-481-0 04 1 0309-
53 BRACKET; HARNESS
(A) 		1-47479-537-0 09 1 0309-
53 BRACKET; HARNESS
(F) 		1-82698-440-0 01 1 0309-
59 BRACKET; FRAME HARNESS
(A) 		1-82698-402-1 01 1 0309-0311
59 BRACKET; FRAME HARNESS
(B) 		1-82698-531-0 01 1 0312-
312 BRACKET; CLIP HARNESS
MJX M/T<Y9N> (G) L=120 H=35 		1-82698-088-0 01 1 0310-
312 BRACKET; CLIP HARNESS
(A) 		1-82698-440-0 01 1 0309-
312 BRACKET; CLIP HARNESS
(D) 		1-82698-479-0 01 1 0309-0309
312 BRACKET; CLIP HARNESS
MJT7 M/T<Y9E> (D) 		1-82698-479-0 01 1 0310-
312 BRACKET; CLIP HARNESS
CAB UP +110MM<TGG> (E) L=195.5 		1-82698-502-0 01 1 0309-
312 BRACKET; CLIP HARNESS
(B) 		1-82698-284-0 01 1 0309-
312 BRACKET; CLIP HARNESS
(C) 		1-82698-285-0 01 1 0309-
312 BRACKET; CLIP HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (F) 		1-82698-443-0 01 1 0309-
334 BRACKET
(A) L=55 		1-47476-177-0 02 1 0309-
334 BRACKET
(B) 		1-53457-106-0 01 1 0309-0309
334 BRACKET
(D) 		1-53458-362-0 01 1 0310-
334 BRACKET
(C) L=95 		1-82699-085-0 01 1 0309-
342 BRACKET; HARNESS CAB MTG
(B) 		1-47479-643-0 01 1 0309-
342 BRACKET; HARNESS CAB MTG
(A) 		1-82699-625-0 01 1 0309-
375 BRACKET; AC GEN HARNESS CLIP 1-82699-182-0 01 1 0309-

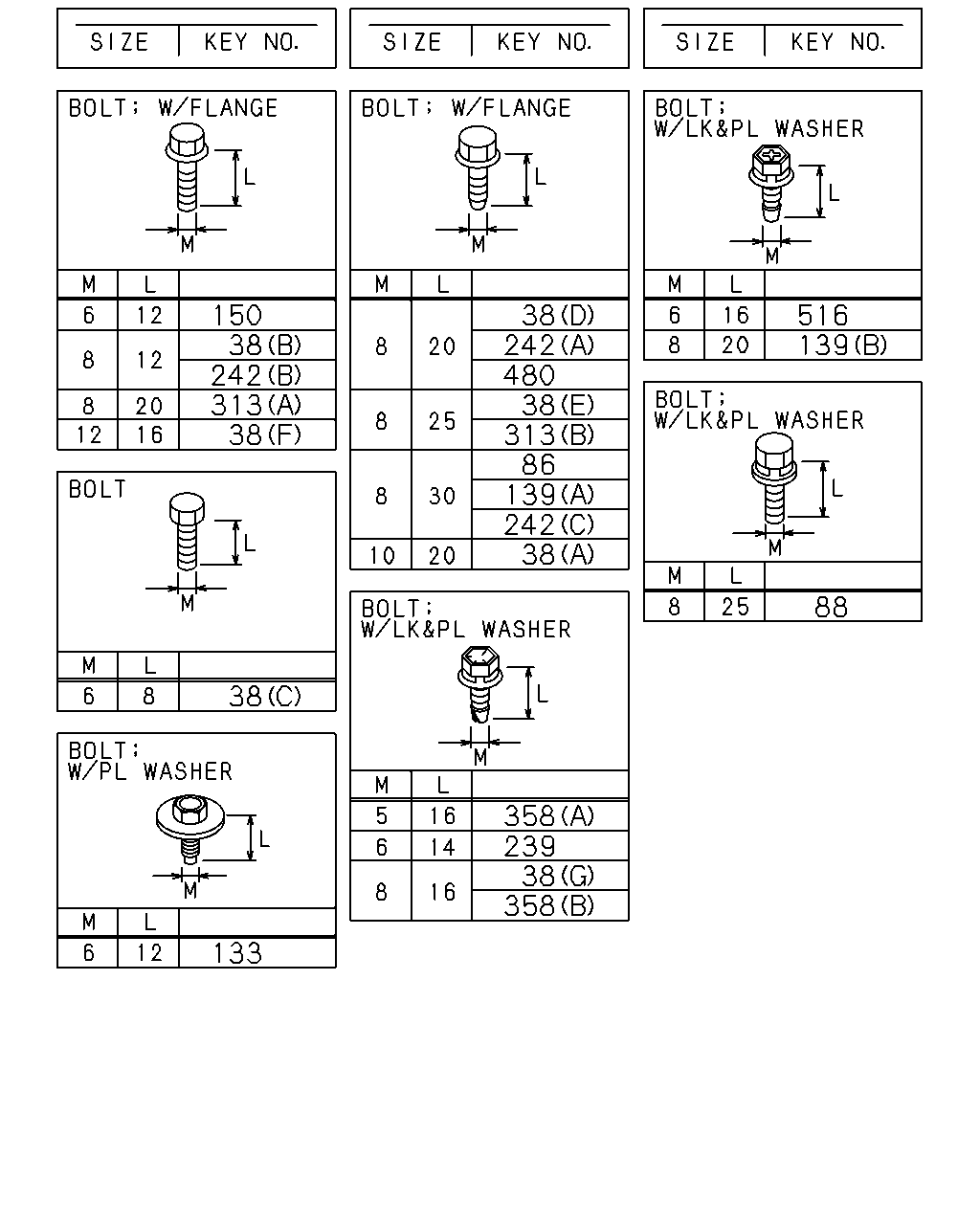

çizim 84012
150 38 242 313 38 38 242 480 38 313 86 139 242 38 516 139 88 38 358 239 38 358 133
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28680-820-0 04 1 0309-
38 BOLT; CLIP,HARNESS
(E) M8X25 FLANGE 		0-28680-825-0 02 1 0309-
38 BOLT; CLIP,HARNESS
MJT7 M/T<Y9E> (D) M8X20 FLANGE 		0-28680-820-0 03 1 0309-
38 BOLT; CLIP,HARNESS
MJX M/T<Y9N> (D) M8X20 FLANGE 		0-28680-820-0 05 1 0309-
38 BOLT; CLIP,HARNESS
(A) M10X20 FLANGE 		0-28781-020-0 01 1 0309-
38 BOLT; CLIP,HARNESS
MJX M/T<Y9N> (A) M10X20 FLANGE 		0-28781-020-0 01 1 0309-
38 BOLT; CLIP,HARNESS
(C) M6X8 		0-20800-608-0 01 1 0309-
38 BOLT; CLIP,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0309-
38 BOLT; CLIP,HARNESS
(D) M8X20 FLANGE 		0-28080-820-0 01 1 0309-
38 BOLT; CLIP,HARNESS
(F) M12X16 FLANGE 		1-09044-079-0 01 1 0309-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 04 1 0309-
86 BOLT; CLIP BRKT
M8X30 FLANGE 		0-28680-830-0 01 1 0309-
88 BOLT; DOOR HARNESS EARTH
M8X25 W/LK&PL WASHER 		8-97087-203-0 02 1 0309-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0309-
139 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 04 1 0309-
139 BOLT; BRKT
(B) M8X24.5 W/LK&PL WASHER 		8-94279-208-0 02 1 0309-
150 BOLT; CLIP
M6X12 FLANGE 		0-28080-612-0 01 1 0309-
239 BOLT; GRAND
M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0309-
242 BOLT; BRKT,HARNESS
(C) M8X30 FLANGE 		0-28680-830-0 01 1 0309-
242 BOLT; BRKT,HARNESS
(B) M8X12 FLANGE 		0-28080-812-0 01 1 0309-
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28680-820-0 05 1 0309-
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28080-820-0 01 1 0309-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 09 1 0309-
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28680-825-0 01 1 0309-
313 BOLT; BRKT
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (B) M8X25 FLANGE 		0-28680-825-0 01 1 0309-
358 BOLT; EARTH
(A) M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0309-
358 BOLT; EARTH
(B) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0309-
480 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 0309-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0309-
çizim 84013
119 524 219 294 515 255 423
BalonParca AdiParca NoAdetTipApplied Date
119 SCREW; DOOR HARNESS EARTH
M5X14 W/PL WASHER 		8-94447-551-0 02 1 0309-
219 NUT
M8 FLANGE 		0-91150-108-0 15 1 0309-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0309-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0309-
255 SCREW; TAP CLIP
M6X20 TAPPING W/PL WASHER 		0-74305-620-0 02 1 0309-
294 NUT
M8 FLANGE 		0-91150-108-0 09 1 0309-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0309-
294 NUT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8 FLANGE 		0-91150-108-0 01 1 0309-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0309-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 04 1 0309-
515 NUT; BRKT
M8 FLANGE 		0-91150-108-0 07 1 0309-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0309-
çizim 84913
5 224 1 1 530 178 178 178
BalonParca AdiParca NoAdetTipApplied Date
1 SLEEVE; RUBBER
AIR CONDITIONER MANUAL CONTROL(C60) (A) ID=38.1 L=50 		5-09360-835-0 01 1 0309-
1 SLEEVE; RUBBER
(B) ID=14 OD=18 L=60 		1-09337-030-0 01 1 0309-
5 GUIDE; HARNESS
L=360 		1-82699-476-1 01 1 0309-
178 GROMMET; HARNESS
(C) 		1-82699-891-0 01 1 0309-
178 GROMMET; HARNESS
(B) ID=24 OD=30 T=22 		1-09332-104-0 02 1 0309-
178 GROMMET; HARNESS
(A) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 0309-
224 SLEEVE; RUBBER,HARNESS
ID=6 L=30 		5-09360-352-0 01 1 0309-
530 SEAL; HARNESS
BRAKE SYSTEM HSA<SLD> 180X40 		1-72498-019-0 03 1 0309-
530 SEAL; HARNESS
180X40 		1-72498-019-0 06 1 0309-
530 SEAL; HARNESS
180X40 		1-72498-019-0 08 1 0309-
530 SEAL; HARNESS
100X40 		1-72498-022-0 01 1 0309-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
