Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶
8-01 — LAMP; FRONT AND FRONT SIDE
(#28970) — 59 parça
◀

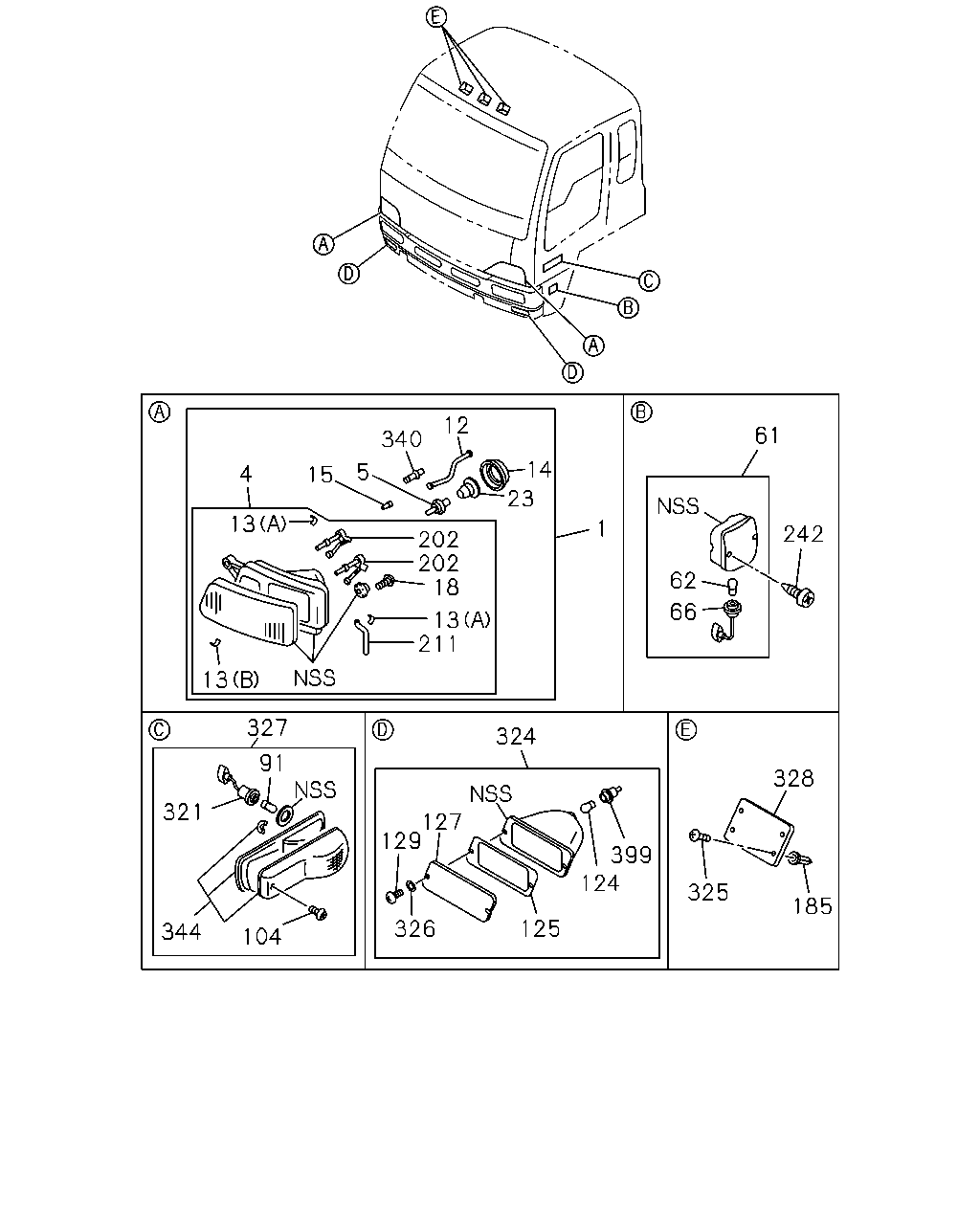

[801A] LAMP;FRONT AND SIDE (43 parça)

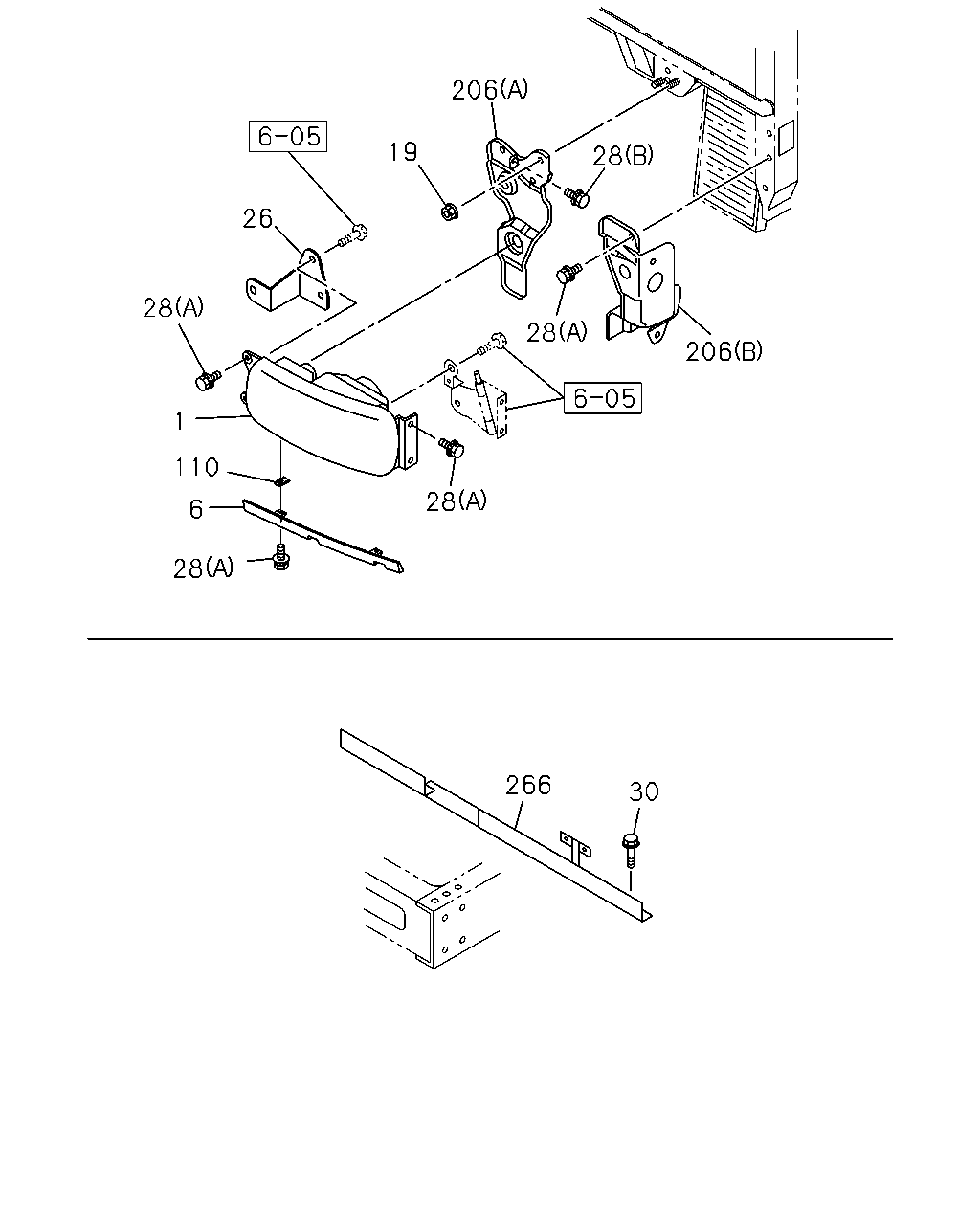

[801A] FIXING;HEADLAMPS (16 parça)
▶
12
61
340
14
5
4
15
23
13
1
242
202
202
18
62
66
13
211
13
327
324
91
328
127
129
321
399
124
325
185
125
326
344
104
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
1-82110-449-0
01
1
0309-
1
LAMP ASM; HEAD
1-82110-450-0
01
1
0309-
4
HEADLAMP UNIT
1-82119-206-0
01
1
0309-
4
HEADLAMP UNIT
1-82119-207-0
01
1
0309-
5
BULB; HEADLAMP
24V 75/70W
1-82194-063-0
02
1
0309-
12
HARNESS; HEADLAMP
1-82118-012-0
02
1
0309-
13
CLIP; HEADLAMP
(A)
1-82119-084-0
02
1
0309-
13
CLIP; HEADLAMP
(B)
8-94381-588-0
14
1
0309-
14
CAP; BULB,LAMP
1-86830-148-0
02
1
0309-
15
BULB; FOG LAMP
24V 55W
1-82194-079-0
02
1
0309-
18
SCREW; GEAR CASE
M4X16 TAPPING
1-82119-067-0
08
1
0309-
23
COVER; BULB,HEADLAMP
1-86830-147-0
02
1
0309-
61
LAMP ASM; CORNERING
24V 30W
1-86830-187-2
01
1
0309-
61
LAMP ASM; CORNERING
24V 30W
1-86830-188-2
01
1
0309-
62
BULB; CORNERING LAMP
24V 30W
8-97010-179-0
01
1
0309-
62
BULB; CORNERING LAMP
24V 30W
8-97010-179-0
01
1
0309-
66
HARNESS; CORNERING LAMP
1-86830-146-0
01
1
0309-
66
HARNESS; CORNERING LAMP
1-86830-146-0
01
1
0309-
91
BULB; SIDE TURN SIGNAL
24V 12W
1-82194-030-0
02
1
0309-
104
SCREW; SIDE TURN SIGNAL
1-86830-149-0
02
1
0309-
124
BULB; FRT TURN SIGNAL
24V 21W
1-82194-036-0
02
1
0309-
125
GASKET; FRT TURN SIGNAL
1-82216-033-0
02
1
0309-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-064-0
01
1
0309-
127
LENS; FRT TURN SIGNAL
ORANGE
1-82215-065-0
01
1
0309-
129
SCREW; FRT TURN SIGNAL
1-82219-026-0
04
1
0309-
185
GROMMET; SCREW
M5 SCREW GROMMET
1-09983-131-0
12
1
0309-
185
GROMMET; SCREW
D=9.7X9.7 L=8
8-94222-314-0
04
1
0309-
202
GEAR UNIT; HEADLAMP
1-86830-139-0
04
1
0309-
211
TUBE; HEADLAMP
1-86830-330-0
01
1
0309-
211
TUBE; HEADLAMP
1-86830-331-0
01
1
0309-
242
SCREW; CORNERING LAMP
M4X20 TAPPING STAINLESS
0-71090-420-0
04
1
0309-
321
HARNESS; SIDE FLASHER LAMP
1-86830-253-0
02
1
0309-
324
LAMP; FRT FLASHER
1-82210-202-1
01
1
0309-
324
LAMP; FRT FLASHER
1-82210-203-1
01
1
0309-
325
SCREW; SPD INDICATOR LAMP
M5X14 TAPPING
9-07066-514-0
12
1
0309-
326
WASHER; PL,FRT TURN SIGNAL
1-82216-032-0
04
1
0309-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-007-6
01
1
0309-
327
LAMP ASM; SIDE TURN SIGNAL
1-86830-011-6
01
1
0309-
328
COVER; LAMP
1-76217-122-1
03
1
0309-
340
BULB; POSITION
24V 5W
1-82194-042-0
02
1
0309-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-240-1
01
1
0309-
344
LAMP UNIT; SIDE TURN SIGNAL
1-86830-241-1
01
1
0309-
399
SOCKET; TURN SIGNAL
1-82219-034-0
02
1
0309-
206
19
28
26
28
28
206
1
110
28
6
28
266
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LAMP ASM; HEAD
1-82110-449-0
01
1
0309-
1
LAMP ASM; HEAD
1-82110-450-0
01
1
0309-
6
RIM; HEADLAMP
1-71107-023-0
01
1
0309-
6
RIM; HEADLAMP
1-71107-024-0
01
1
0309-
19
NUT; HEADLAMP
M8 CUTTING NUT W/FLANGE
1-09985-340-0
04
1
0309-
26
BRACKET ASM; HEADLAMP
1-86830-084-0
01
1
0309-
26
BRACKET ASM; HEADLAMP
1-86830-085-0
01
1
0309-
28
BOLT; HEADLAMP
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
14
1
0309-
28
BOLT; HEADLAMP
(B) M8X20.5 W/LK&PL WASHER
8-94279-207-0
02
1
0309-
30
BOLT; STAY
CAB UP +110MM<TGG> M10X25 FLANGE
0-28681-025-0
04
1
0309-
110
CLIP; RIM,HEADLAMP
1-86830-213-0
04
1
0309-
206
HOLDER; HEADLAMP
(A)
1-65671-569-5
01
1
0309-
206
HOLDER; HEADLAMP
(A)
1-65671-570-6
01
1
0309-
206
HOLDER; HEADLAMP
(B)
1-65671-573-3
01
1
0309-
206
HOLDER; HEADLAMP
(B)
1-65671-574-3
01
1
0309-
266
STAY; BRKT,HEADLAMP
CAB UP +110MM<TGG>
1-82117-154-2
01
1
0309-
