◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#2897) — 33 parça

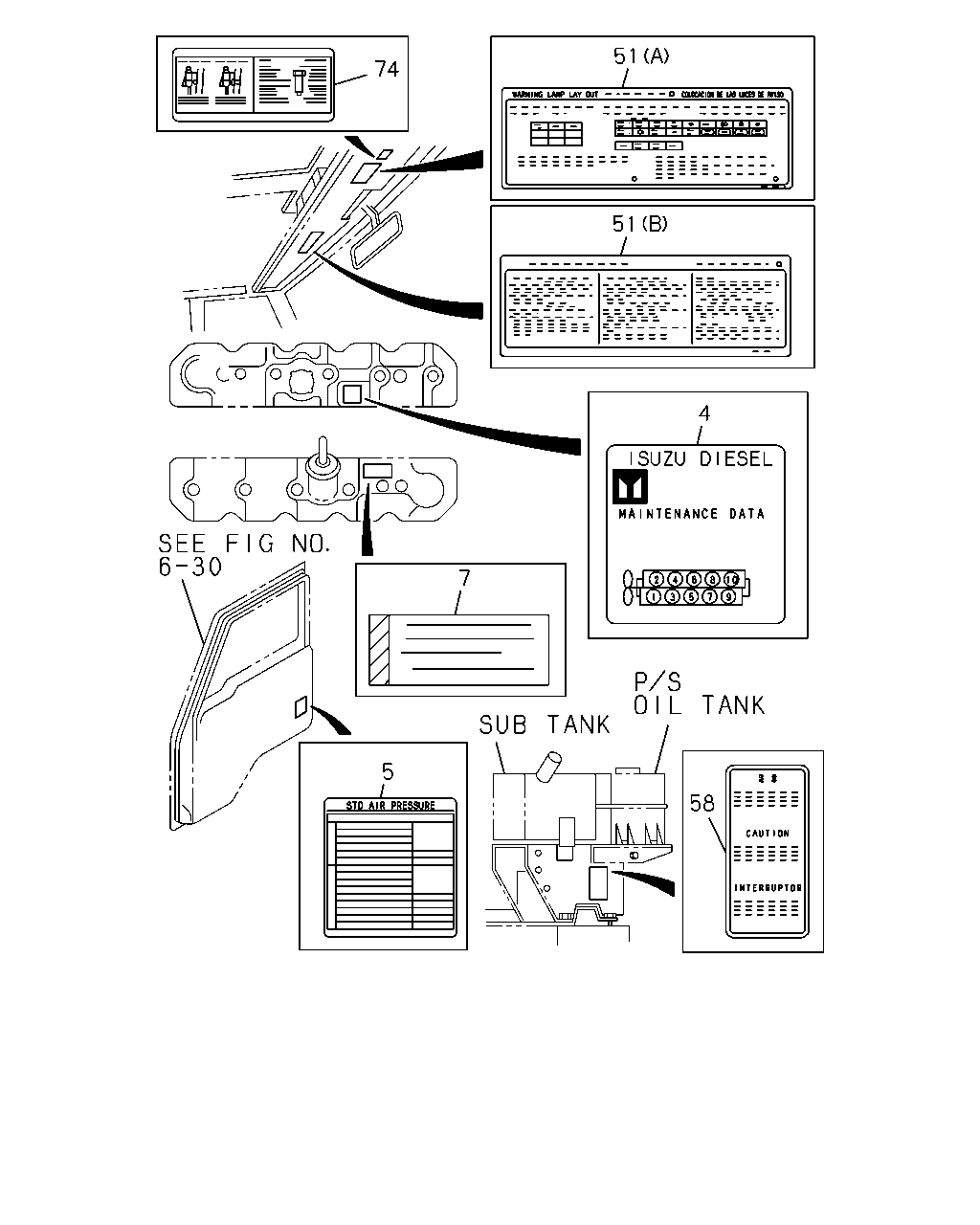

çizim 27568
5 58 7 4 51 51 74
BalonParca AdiParca NoAdetTipApplied Date A B
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) 		1-85886-634-0 01 1 9002-9501 ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EXC. EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-85886-634-0 01 1 9502- ● ●
4 LABEL; ENG MAINTENANCE
10PD1 STD ENG(40L) EMISSION SYSTEM '90US FEDERAL REQUIREMENT<TEH> 		1-85886-797-0 01 1 9502- ● ●
4 LABEL; ENG MAINTENANCE
8PD1 STD ENG(38L) 		1-85886-711-0 01 1 9307- ● ●
5 LABEL; TIRE AIR PRESSURE 1-85881-387-0 01 1 9002-9003 ● ●
5 LABEL; TIRE AIR PRESSURE 1-85881-655-0 01 1 9004- ● ●
7 LABEL; EMISSION
6RB1 STD ENG(07L) CAUTIONS ECE<WX4> 		8-97042-609-0 01 1 9102-9307 ● ●
7 LABEL; EMISSION
6RB1 STD ENG(07L),10PD1 STD ENG(40L) CAUTIONS ECE<WX4> 		8-97042-609-0 01 1 9308- ● ●
51 PLATE; CAUTION,WARNING
(B) 		1-85880-569-0 01 1 9002- ● ●
51 PLATE; CAUTION,WARNING
(A) 		1-85887-454-1 01 1 9002- ● ●
58 PLATE; CAUTION,ENG START 1-85887-457-0 01 1 9002- ● ●
74 PLATE; CAUTION,CHANGE LEV
RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6) 		1-85881-617-0 01 1 9307- ● ●
74 PLATE; CAUTION,CHANGE LEV
RTX11609B M/T FULLER(X8W) 		1-85881-614-0 01 1 9307- ● ●

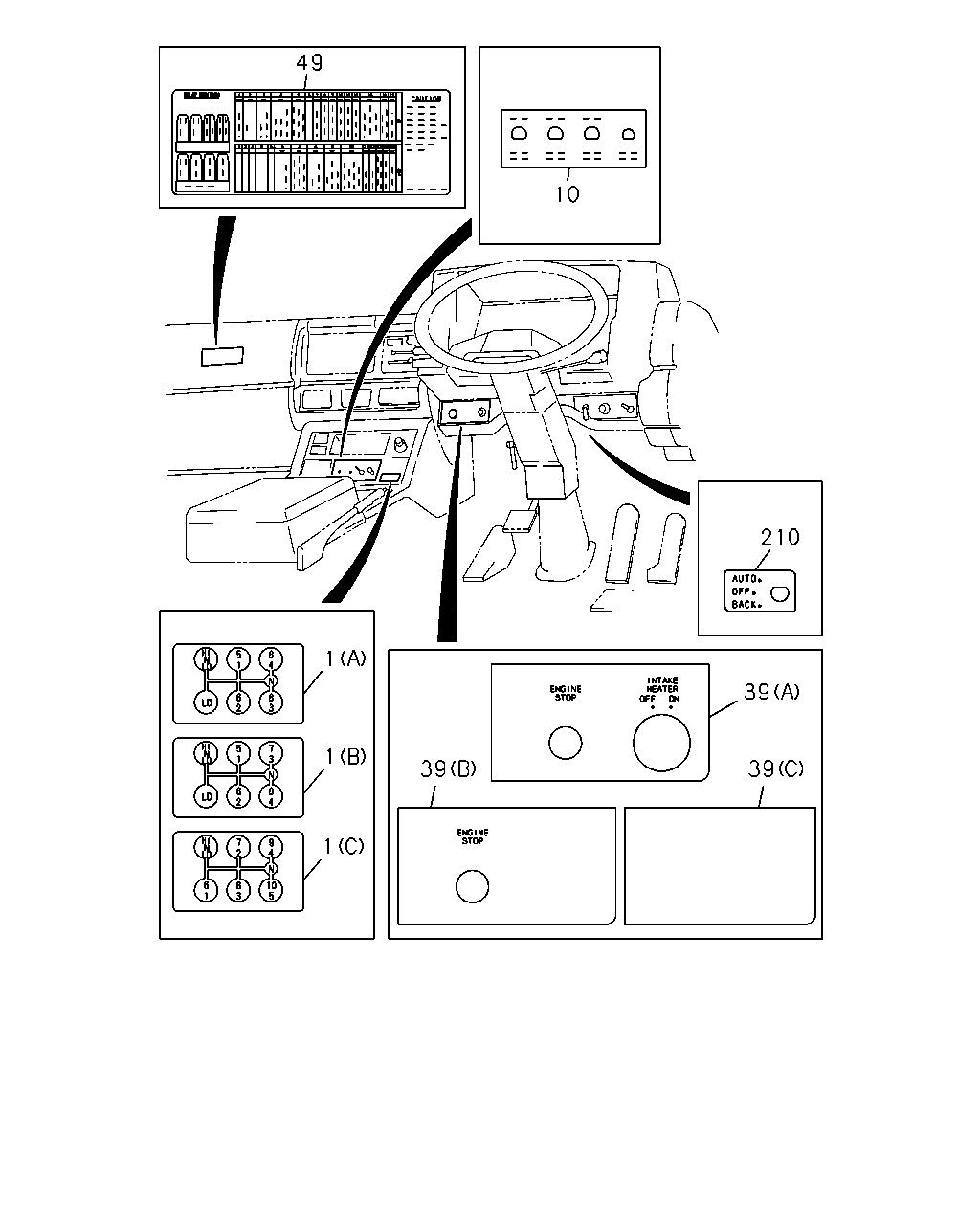

çizim 93598
39 39 210 39 1 1 1 49 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 PLATE; CAUTION,SHIFT PATTERN
RTO11609B M/T FULLER(X4Z) (A) 		1-85881-521-1 01 1 9002-9306 ● ●
1 PLATE; CAUTION,SHIFT PATTERN
RTO14613 M/T FULLER(MRU),RTO11613 M/T FULLER(MV6), RT11609A M/T FULLER(PQ4),RTX11609B M/T FULLER(X8W) (B) 		1-85881-519-0 01 1 9002- ● ●
1 PLATE; CAUTION,SHIFT PATTERN
RT14715 M/T FULLER(X8L) (C) 		1-85881-613-0 01 1 9002-9306 ● ●
10 PLATE; NAME
EXH HEAT WARNING<W50> 		1-85877-209-0 01 1 9002- ● ●
39 PLATE; CAUTION,ENG STOP
AUTO ENG SHUTOFF<KB6> (C) 		1-85877-308-0 01 1 9308- ● ●
39 PLATE; CAUTION,ENG STOP
INTAKE HEATER<SL2> (A) 		1-85877-230-0 01 1 9002-9307 ● ●
39 PLATE; CAUTION,ENG STOP
INTAKE HEATER<SL2> EXC. AUTO ENG SHUTOFF<KB6> (A) 		1-85877-230-0 01 1 9308- ● ●
39 PLATE; CAUTION,ENG STOP
EXC. INTAKE HEATER<SL2> (B) 		1-85877-199-0 01 1 9002-9307 ● ●
39 PLATE; CAUTION,ENG STOP
EXC. AUTO ENG SHUTOFF<KB6>,INTAKE HEATER<SL2> (B) 		1-85877-199-0 01 1 9308- ● ●
49 PLATE; CAUTION,FUSE BOX 1-85887-691-4 01 1 9002- ● ●
210 PLATE; NAME,ANTI JACK
FULL TRACTOR TRUCK<RD6> 		1-85877-157-0 01 1 9307- ●

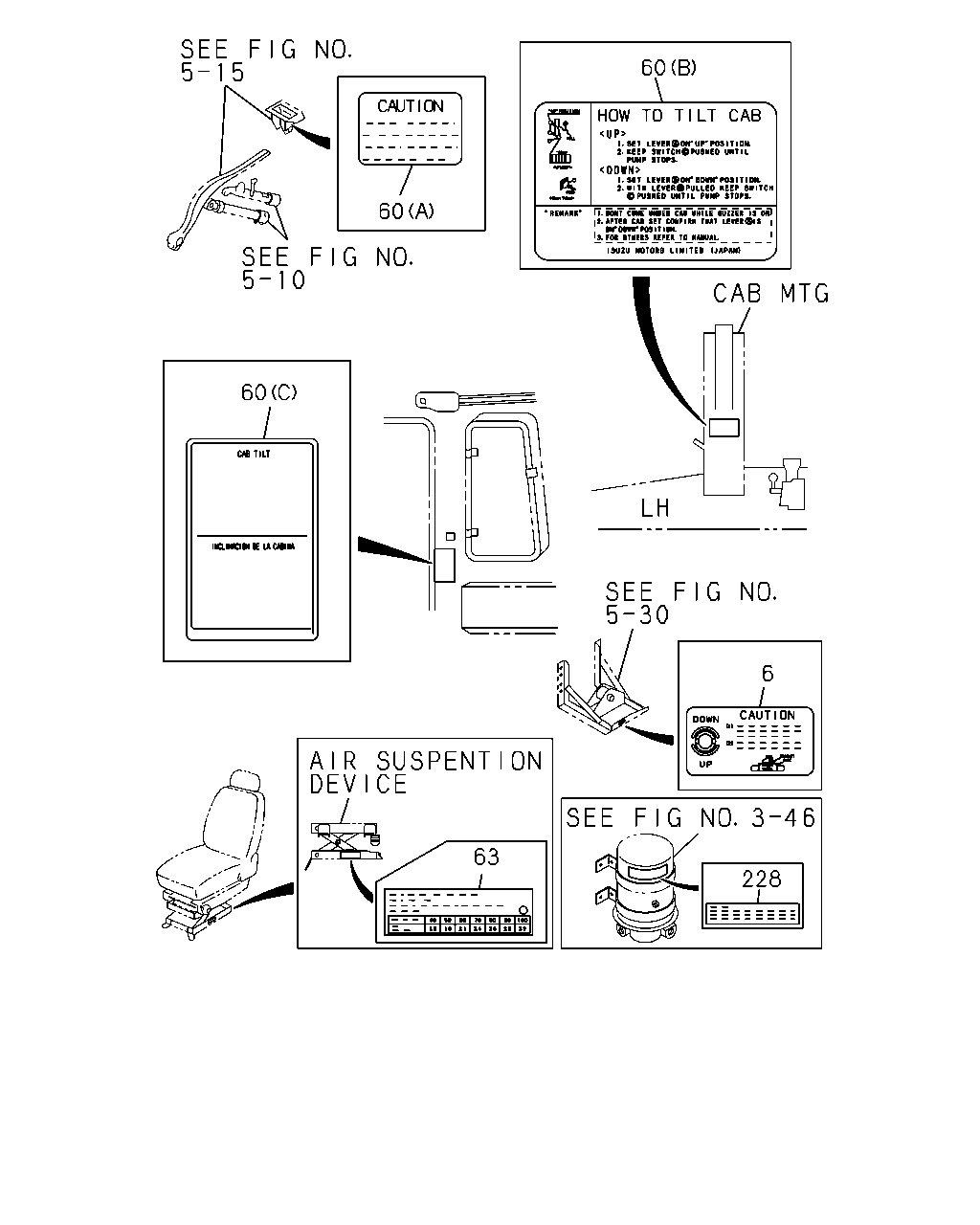

çizim 93918
228 6 63 60 60 60
BalonParca AdiParca NoAdetTipApplied Date A B
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> ENGLISH 		1-53639-004-0 01 1 9307- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> ENGLISH 		1-53639-004-0 01 1 9307- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> SPANISH 		1-53639-005-0 01 1 9307- ●
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> EXC. NYLON TUBE AIR PIPING<Z29> SPANISH 		1-53639-005-0 01 1 9307- ●
60 PLATE; CAUTION,CAB TILT
(C) 		1-85881-511-0 01 1 9002- ● ●
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (B) 		1-85883-094-2 01 1 9002- ● ●
60 PLATE; CAUTION,CAB TILT
AUTO CAB TILT<WV2> (A) 		1-85883-097-0 02 1 9002- ● ●
63 PLATE; CAUTION,SEAT AIR
SUSP SEAT W/SEAT BELT ANCHORAGE(WN5) 		1-75537-199-0 01 1 9002- ● ●
228 PLATE; CAUTION,AIR DRYER
AIR DRYER<PS7> 		1-85887-935-0 01 1 9307- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
