◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#28968) — 14 parça
çizim 21874
169 2 3 55 171
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE 1-75616-096-2 01 1 0309-
3 BELT; SEAT,BUCKLE SIDE 1-75618-914-0 01 1 0309-
55 GUIDE; SEAT BELT 1-75617-556-0 02 1 0309-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0309-
169 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 0309-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0309-

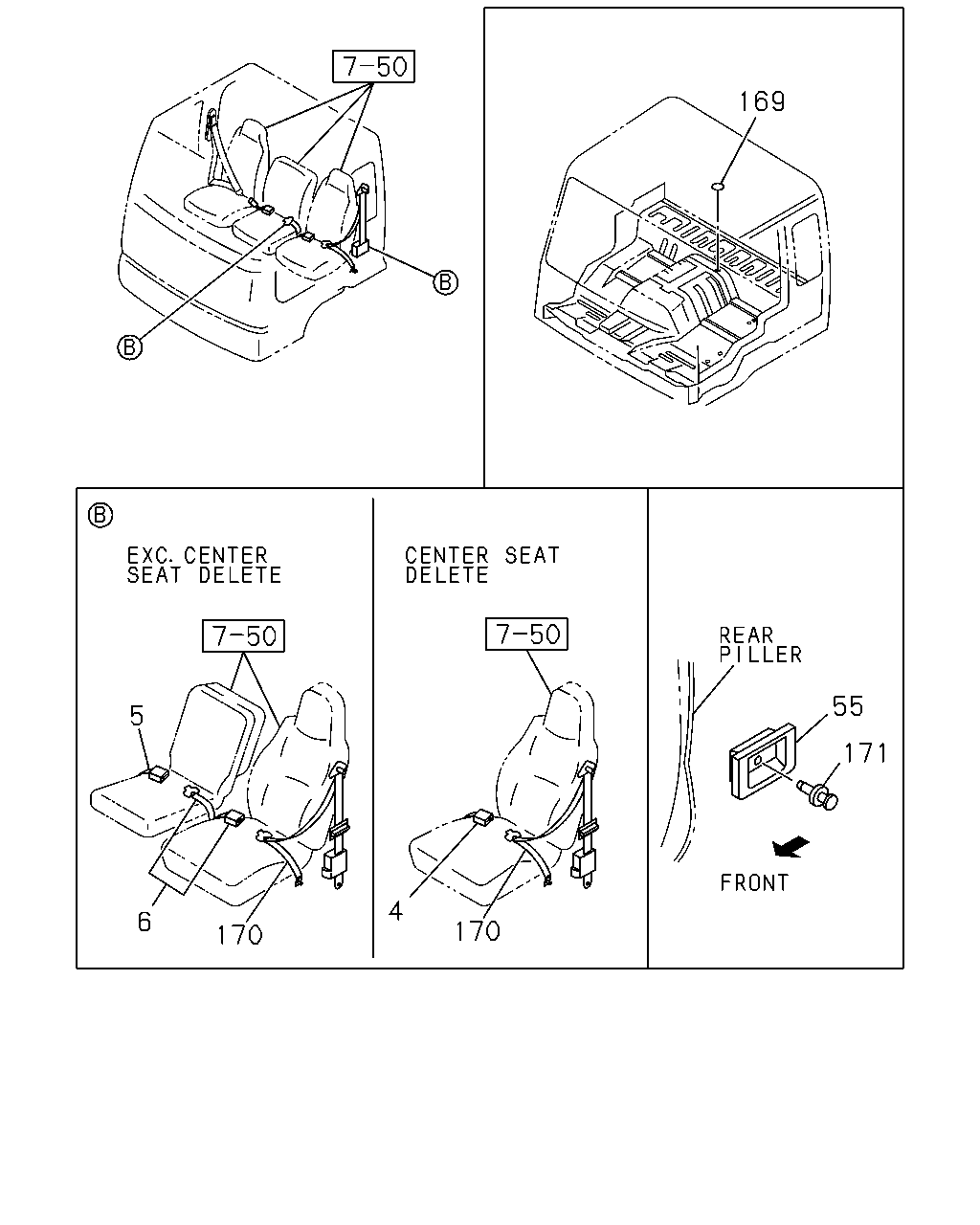

çizim 79689
169 55 5 171 4 6 170 170
BalonParca AdiParca NoAdetTipApplied Date
4 BELT; PASSENGER SEAT,BUCKLE SIDE
CENTER SEAT DELETE(SP9) 		1-75617-546-1 01 1 0309-
5 BELT; CENTER SEAT,BUCKLE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75617-553-1 01 1 0309-
6 BELT; CENTER SEAT,TONGUE SIDE
EXC. CENTER SEAT DELETE(SP9) 		1-75618-926-1 01 1 0309-
55 GUIDE; SEAT BELT 1-75617-556-0 02 1 0309-
169 SEAL
CENTER SEAT DELETE(SP9) OD=25 BLACK 		1-76798-019-0 01 1 0309-
169 SEAL
OD=25 BLACK 		1-76798-019-0 04 1 0309-
170 BELT; PASSENGER SEAT,TONGUE SIDE 1-75617-588-3 01 1 0309-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0309-
