Sayfa 7-50 - Isuzu EPC

7-50 — FRONT SEAT (#28967) — 177 parça

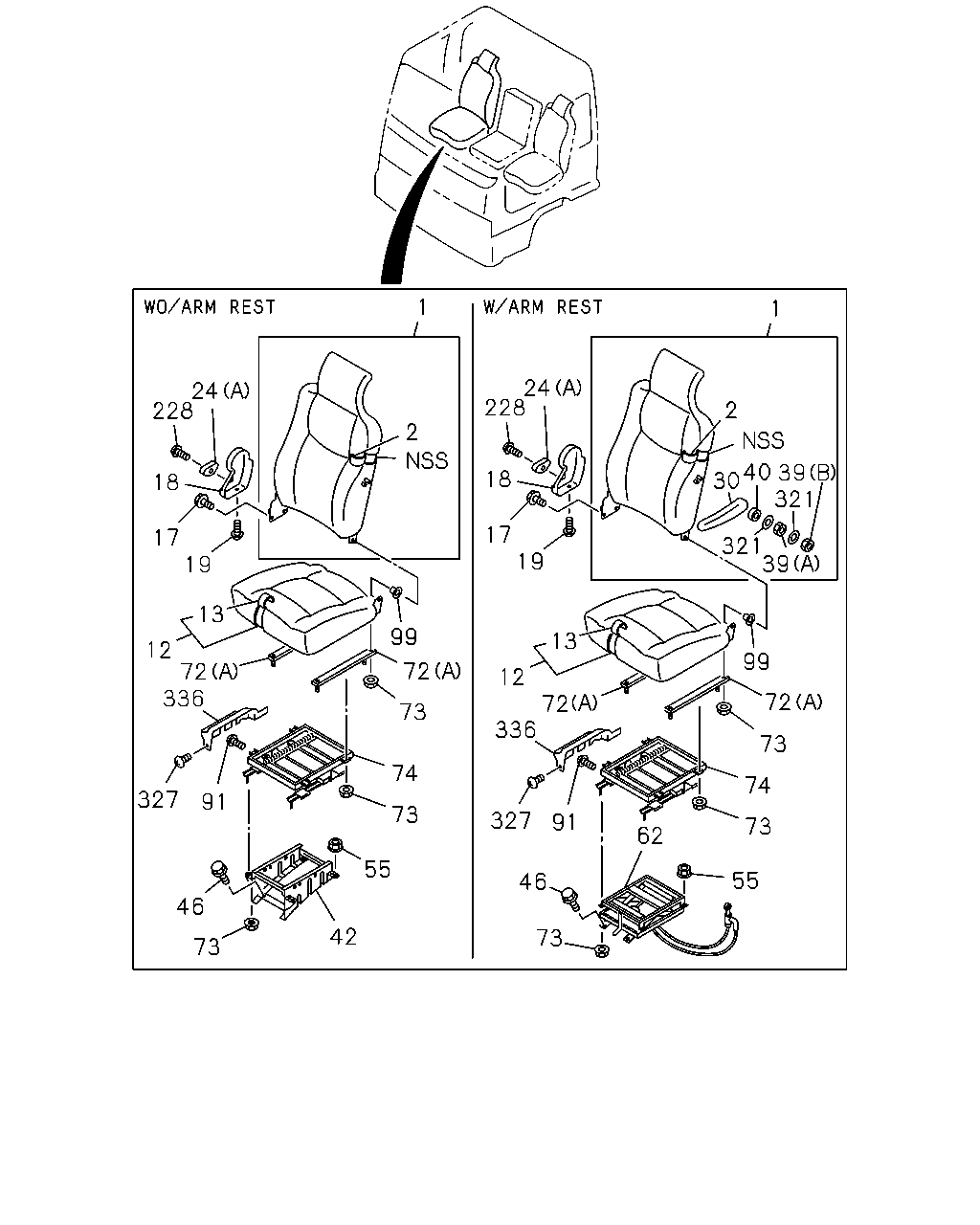

1 1 24 228 24 228 2 2 30 321 321 39 18 18 17 19 17 19 13 99 13 12 72 336 99 72 12 72 336 73 73 74 74 327 91 73 327 91 73 62 55 55 46 46 42 73 73 40 39

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-645-3	01	1	0309-
1	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75207-647-3	01	1	0309-
1	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTIUSED(WX9)	1-75207-646-2	01	1	0309-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-145-2	01	1	0309-
2	COVER; TRIM,FRT SEAT,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-166-2	01	1	0309-
2	COVER; TRIM,FRT SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTIUSED(WX9)	1-75127-165-1	01	1	0309-
12	CUSHION; SEAT,FRT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9)	1-75207-584-4	01	1	0309-
12	CUSHION; SEAT,FRT EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTIUSED(WX9)	1-75207-603-1	01	1	0309-
13	COVER; TRIM,FRT SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9)	1-75127-143-3	01	1	0309-
13	COVER; TRIM,FRT SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTIUSED(WX9)	1-75127-102-1	01	1	0309-
17	BOLT; RECLINING M8X20	8-97255-906-0	02	1	0309-
18	COVER; RECLINING DARK GRAY	8-97867-020-0	01	1	0309-
19	SCREW; COVER DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	03	1	0309-
19	SCREW; COVER SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0309-
19	SCREW; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0309-
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0309-
24	KNOB; RECLINING,FRT,SEAT EXC. PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0309-
30	REST ASM; ARM,FRT SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75127-174-1	01	1	0309-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8	1-75147-657-0	01	1	0309-
39	NUT; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M10	9-09110-410-0	01	1	0309-
40	SPACER; ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94285-921-0	02	1	0309-
42	STAND; DRIVER SEAT EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75558-604-1	01	1	0309-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0309-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0309-
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0309-
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-911-0	02	1	0309-
72	SPACER; SEAT ADJ (B)	1-75518-334-1	02	1	0309-
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0309-
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	08	1	0309-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0309-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2>	1-75517-959-1	01	1	0309-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-330-1	01	1	0309-
91	SCREW; SEAT ADJ COVER DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M5X16 TAPPING W/PL WASHER	0-74310-516-0	02	1	0309-
99	BUSHING; SEAT BACK	8-97854-087-0	01	1	0309-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTIUSED(WX9) M4X6	8-97042-273-0	01	1	0309-
228	SCREW; KNOB EXC. PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0309-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0309-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.5 OD=22	9-09160-610-0	01	1	0309-
321	WASHER; PL,ARM REST FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.4 OD=22	9-09164-708-0	01	1	0309-
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	01	1	0309-
327	CLIP; COVER	1-09987-273-0	02	1	0309-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0309-
336	COVER; DRIVER SEAT DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-316-0	01	1	0309-
336	COVER; DRIVER SEAT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-303-0	01	1	0309-

468 74 51 512 468 51 302 543 532 278 51 512 543 518 543 278 518 518 51 532 278 302 518 543 543 468 529 468 543 302 518 543 518 471 551 518 302 158 158 302 551 302 72 518 551 302 551 518 201 201 63 306 306 63 302 72 518

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER	1-75518-325-1	04	1	0309-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-199-1	01	1	0309-
63	ADJUSTER; SEAT SLIDE (B)	1-75518-323-0	01	1	0309-
72	SPACER; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> (A)	1-75517-911-0	02	1	0309-
72	SPACER; SEAT ADJ (B)	1-75518-334-1	02	1	0309-
74	ADJUSTER; FRT SEAT,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2>	1-75517-959-1	01	1	0309-
74	ADJUSTER; FRT SEAT,HEIGHT CONT EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-75518-330-1	01	1	0309-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0309-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0309-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0309-
278	COLLAR; FRT SEAT	1-75518-244-0	03	1	0309-
302	BOLT; ADJ,HEIGHT CONT (C)	1-75518-266-2	02	1	0309-
302	BOLT; ADJ,HEIGHT CONT (A)	1-75518-270-1	04	1	0309-
302	BOLT; ADJ,HEIGHT CONT (B)	1-75518-336-1	02	1	0309-
306	NUT; SEAT ADJ DRIVING POSITION WIDE LEG SPACE<PR2> EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	18	1	0309-
306	NUT; SEAT ADJ FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	06	1	0309-
306	NUT; SEAT ADJ EXC. DRIVING POSITION WIDE LEG SPACE<PR2>,SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	14	1	0309-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0309-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0309-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0309-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0309-
471	LEVER; SEAT ADJ	1-75518-291-0	01	1	0309-
512	COVER; LEVER	1-75518-243-1	02	1	0309-
518	NUT; TILT ADJ (A)	1-75518-263-0	01	1	0309-
518	NUT; TILT ADJ (C) M8	1-75518-264-0	04	1	0309-
518	NUT; TILT ADJ (D) M6 LOCK NUT	5-09984-020-0	02	1	0309-
518	NUT; TILT ADJ (B) M8 FLANGE	8-94152-886-0	04	1	0309-
529	PIN; LINK	1-75518-262-0	01	1	0309-
532	LEVER ASM; TILT (A)	1-75518-203-0	01	1	0309-
532	LEVER ASM; TILT (B)	1-75518-204-1	01	1	0309-
543	WASHER; HEIGHT ADJUSTER (C)	1-75518-335-0	02	1	0309-
543	WASHER; HEIGHT ADJUSTER (A)	1-75518-337-0	02	1	0309-
543	WASHER; HEIGHT ADJUSTER (B) ID=6.4	9-09160-506-0	04	1	0309-
551	SLIDER; HEIGHT ADJ	1-75518-265-0	04	1	0309-

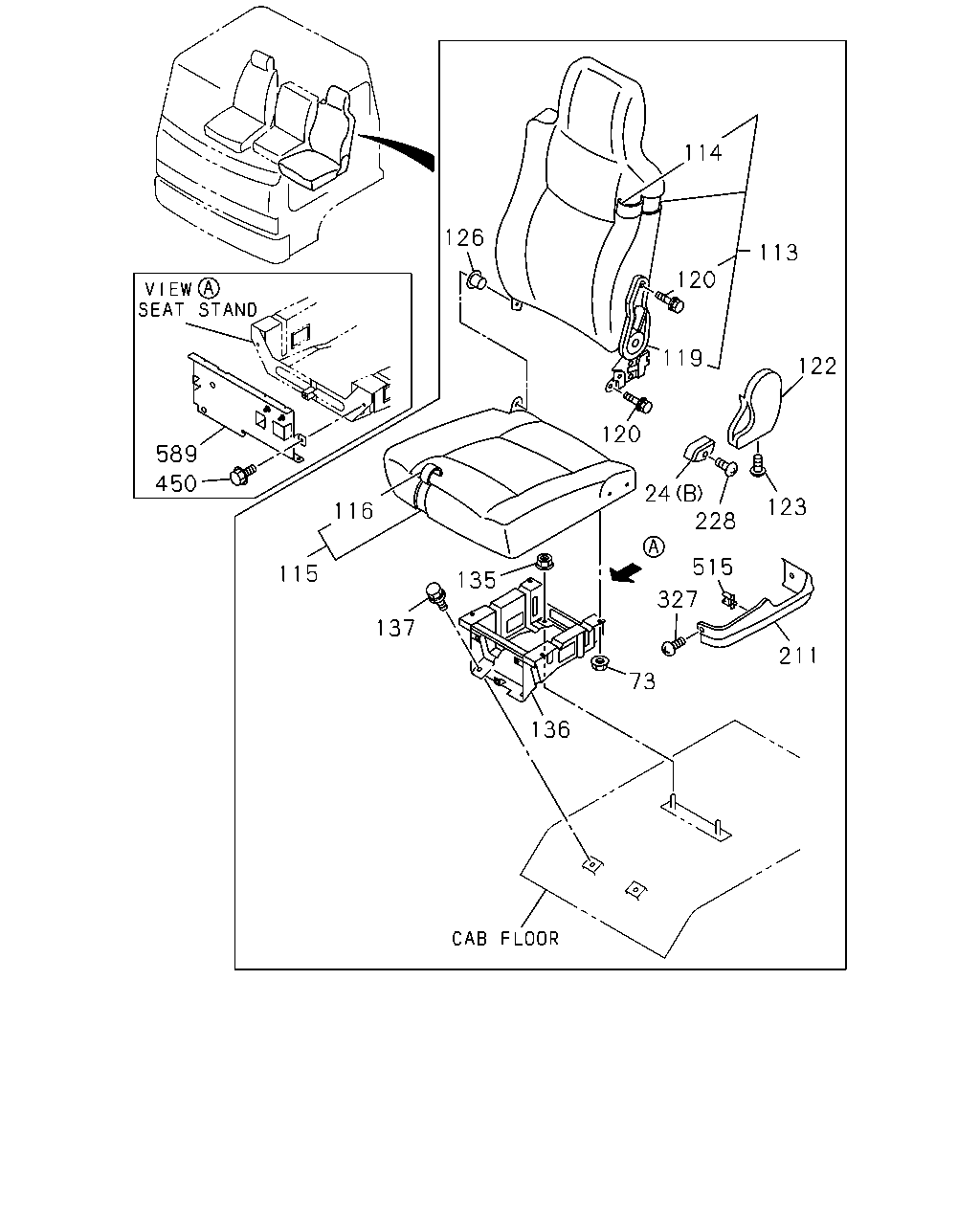

114 126 113 120 119 122 120 589 450 24 228 123 116 515 115 135 327 137 211 73 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (A) DARK GRAY	8-97867-021-0	01	1	0309-
24	KNOB; RECLINING,FRT,SEAT EXC. PASSENGER SEAT MULTI USED(WX9) (B) DARK GRAY	8-97859-019-0	01	1	0309-
73	NUT; ADJ,HEIGHT CONT DRIVING POSITION WIDE LEG SPACE<PR2> SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M8 FLANGE	1-75538-207-0	12	1	0309-
73	NUT; ADJ,HEIGHT CONT SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) EXC. DRIVING POSITION WIDE LEG SPACE<PR2> M8 FLANGE	1-75538-207-0	08	1	0309-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0309-
113	BACK ASM; SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-651-3	01	1	0309-
113	BACK ASM; SEAT PASSENGER SEAT MULTI USED(WX9)	1-75207-597-2	01	1	0309-
113	BACK ASM; SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9)	1-75207-652-2	01	1	0309-
114	COVER; TRIM,PASSENGER SEAT,BACK FABRIC SEAT W/RECLINING(SFQ)	1-75127-170-2	01	1	0309-
114	COVER; TRIM,PASSENGER SEAT,BACK PASSENGER SEAT MULTI USED(WX9)	1-75127-152-2	01	1	0309-
114	COVER; TRIM,PASSENGER SEAT,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9)	1-75127-171-1	01	1	0309-
115	CUSHION ASM; PASSENGER SEAT FABRIC SEAT W/RECLINING(SFQ)	1-75207-641-2	01	1	0309-
115	CUSHION ASM; PASSENGER SEAT PASSENGER SEAT MULTI USED(WX9)	1-75207-596-2	01	1	0309-
115	CUSHION ASM; PASSENGER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9)	1-75207-300-0	01	1	0309-
116	COVER; TRIM,PASSENGER SEAT,CUSHION FABRIC SEAT W/RECLINING(SFQ)	1-75157-161-2	01	1	0309-
116	COVER; TRIM,PASSENGER SEAT,CUSHION PASSENGER SEAT MULTI USED(WX9)	1-75127-151-2	01	1	0309-
116	COVER; TRIM,PASSENGER SEAT,CUSHION EXC. FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9)	1-75127-124-0	01	1	0309-
119	ADJ; SEAT RECLINING,ASSIST SIDE PASSENGER SEAT MULTI USED(WX9)	1-75417-597-0	01	1	0309-
120	BOLT; RECLINING ADJ PASSENGER SEAT MULTI USED(WX9) M8X20	8-97255-906-0	04	1	0309-
120	BOLT; RECLINING ADJ EXC. PASSENGER SEAT MULTI USED(WX9) M8X20	8-97255-906-0	02	1	0309-
122	COVER; ADJ,RECLINING PASSENGER SEAT MULTI USED(WX9)	1-75417-598-0	01	1	0309-
122	COVER; ADJ,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) DARK GRAY	8-97859-018-0	01	1	0309-
123	SCREW; COVER,RECLINING PASSENGER SEAT MULTI USED(WX9) M6X12	9-03490-612-0	01	1	0309-
123	SCREW; COVER,RECLINING EXC. PASSENGER SEAT MULTI USED(WX9) M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0309-
126	BUSHING; HINGE,RECLINING	8-97854-087-0	01	1	0309-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0309-
136	STAND; PASSENGER SEAT	1-75558-602-3	01	1	0309-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0309-
211	COVER; FRT SEAT	1-72538-274-0	01	1	0309-
228	SCREW; KNOB EXC. FABRIC SEAT W/RECLINING(SFQ),SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL),PASSENGER SEAT MULTIUSED(WX9) M4X6	8-97042-273-0	01	1	0309-
228	SCREW; KNOB EXC. PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0309-
228	SCREW; KNOB FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) M4X6	8-97042-273-0	01	1	0309-
327	CLIP; COVER DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	01	1	0309-
327	CLIP; COVER	1-09987-273-0	02	1	0309-
327	CLIP; COVER EXC. DRIVING POSITION WIDE LEG SPACE<PR2>	1-09987-273-0	02	1	0309-
450	BOLT; BRKT M6X19.5 W/LK&PL WASHER	8-94279-201-0	03	1	0309-
515	CLIP; PIPE BLACK	8-94227-248-1	01	1	0309-
589	BRACKET; SEAT STAND	1-75557-469-3	01	1	0309-

506 360 175 176 16 188 189 359 188 403 179 182 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING EXC. CENTER SEAT DELETE(SP9)	1-75418-062-1	01	1	0309-
175	BACK ASM; PASSENGER CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75207-602-3	01	1	0309-
175	BACK ASM; PASSENGER CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-855-0	01	1	0309-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75127-156-2	01	1	0309-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-651-0	01	1	0309-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75127-155-2	01	1	0309-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75116-696-1	01	1	0309-
182	CUSHION ASM; CENTER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9)	1-75207-601-2	01	1	0309-
182	CUSHION ASM; CENTER SEAT EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9)	1-75026-845-2	01	1	0309-
188	BOLT; BACK TO CUSHION EXC. CENTER SEAT DELETE(SP9) M10X16 FLANGE	1-75198-053-0	04	1	0309-
189	BUSHING; HINGE,CENTER SEAT BACK EXC. CENTER SEAT DELETE(SP9)	8-97854-900-0	01	1	0309-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0309-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	10	1	0309-0310
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0309-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0309-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0309-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0309-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	8-94279-518-0	04	1	0309-0312
403	NUT; CENTER SEAT EXC. CENTER SEAT DELETE(SP9) M8 FLANGE	1-75538-207-0	04	1	0401-
506	CAP; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-09983-180-2	04	1	0309-

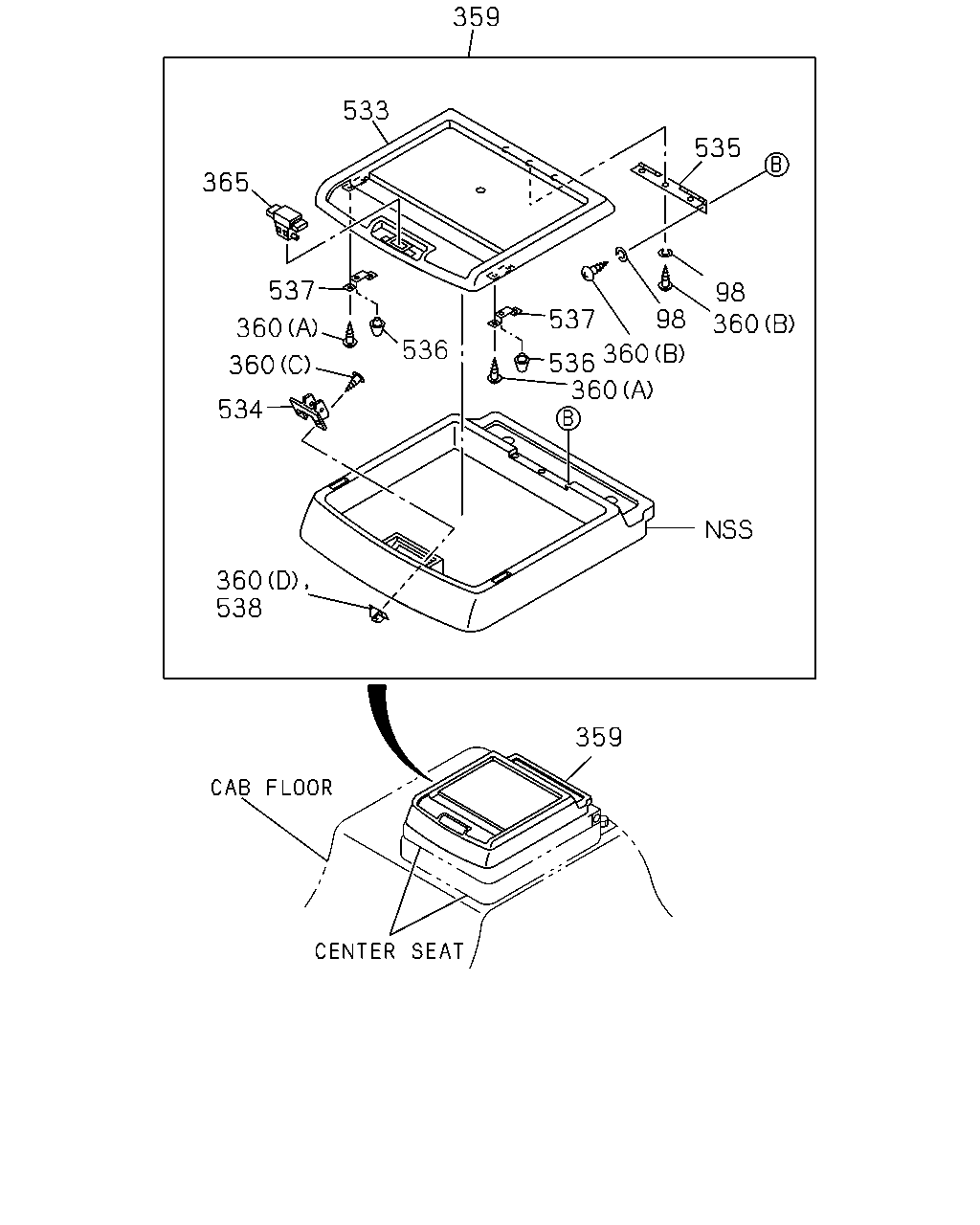

359 533 535 365 537 98 360 98 537 360 536 360 536 360 360 534 360 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
98	WASHER; HINGE EXC. CENTER SEAT DELETE(SP9) ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0309-
359	BOX; PARCEL EXC. CENTER SEAT DELETE(SP9)	1-72538-275-3	01	1	0309-
360	SCREW; PARCEL FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	10	1	0309-0310
360	SCREW; PARCEL EXC. FABRIC SEAT W/RECLINING(SFQ),CENTER SEAT DELETE(SP9),PASSENGER SEAT MULTI USED(WX9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0309-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0309-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (B) M4X16	0-70080-416-0	06	1	0309-
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (D)	1-09983-165-0	02	1	0309-0310
360	SCREW; PARCEL EXC. CENTER SEAT DELETE(SP9) (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0311-
365	LOCK ASM; SEAT EXC. CENTER SEAT DELETE(SP9)	1-72538-180-0	01	1	0309-
533	LID; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-277-0	01	1	0309-
534	STRIKER; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72538-181-0	01	1	0309-
535	HINGE; PARCEL BOX EXC. CENTER SEAT DELETE(SP9)	1-72447-391-1	01	1	0309-
536	RUBBER; CUSHION EXC. CENTER SEAT DELETE(SP9)	5-09983-002-1	02	1	0309-
537	BRACKET; RUBBER EXC. CENTER SEAT DELETE(SP9)	1-72548-057-1	02	1	0309-
538	GROMMET; SCREW EXC. CENTER SEAT DELETE(SP9)	1-09983-165-0	02	1	0311-

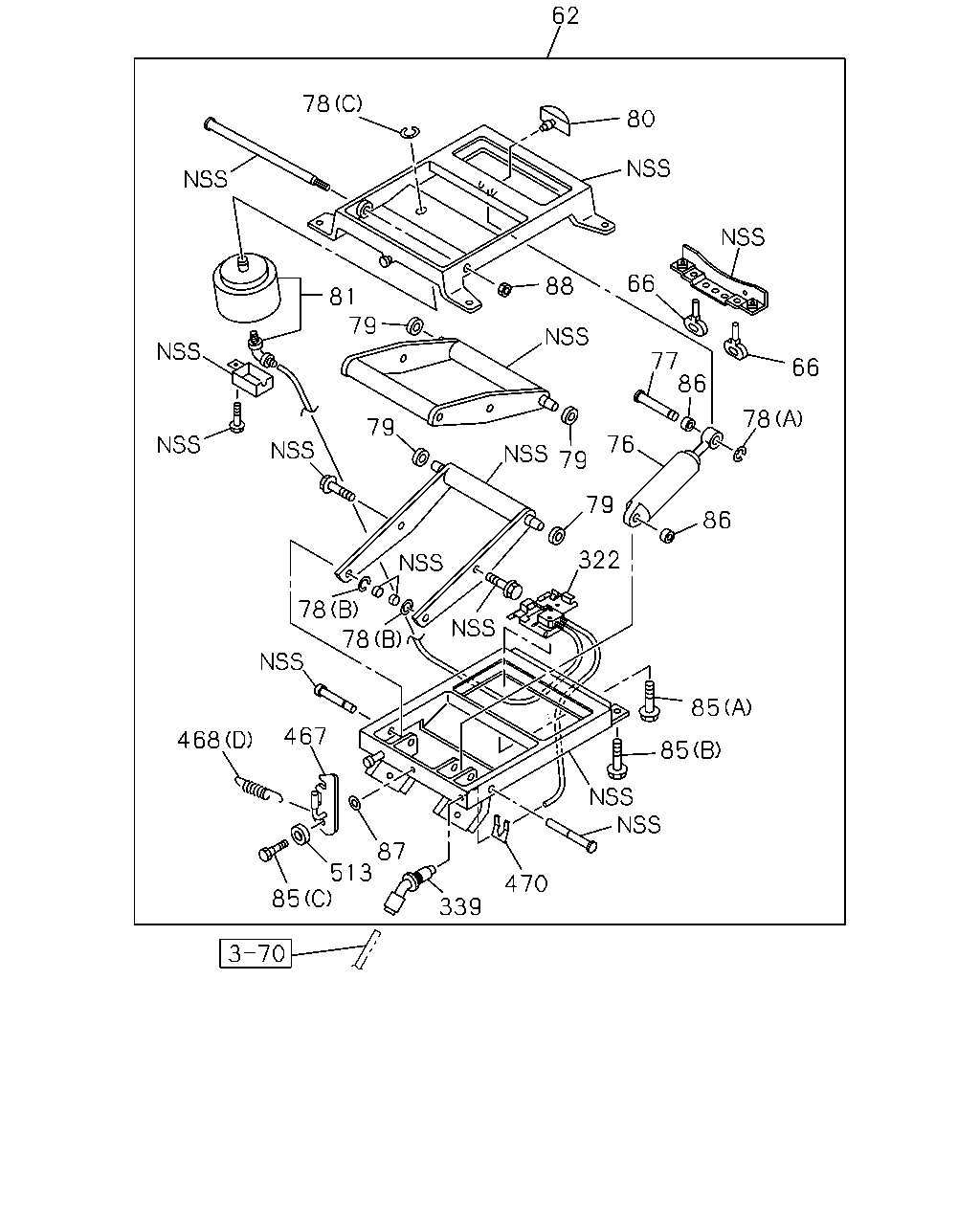

62 78 80 66 88 81 79 77 86 66 78 79 76 79 79 86 322 78 78 85 467 468 85 87 513 85 470 339

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-262-6	01	1	0309-
66	RUBBER; LWR STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-145-0	02	1	0309-
76	DAMPER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75537-230-2	01	1	0309-
77	PIN; DAMPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-138-2	01	1	0309-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) ID=8	9-09185-408-0	01	1	0309-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=10	9-09185-410-0	02	1	0309-
78	RING; SNAP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) ID=15	9-09185-415-0	01	1	0309-
79	ROLLER ASM; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-159-0	04	1	0309-
80	RUBBER; STOPPER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-09987-123-0	01	1	0309-
81	SPRING; AIR FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-151-2	01	1	0309-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C)	1-09980-577-0	01	1	0309-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (A) M6X12	1-75538-208-0	02	1	0309-
85	BOLT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0309-
86	BUSHING; GUIDE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0309-
87	WASHER; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=8.2	9-09150-508-0	01	1	0309-
88	NUT; AIR SUSP FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10	1-75537-273-1	01	1	0309-
322	VALVE; AIR SPRING FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-186-2	01	1	0309-
339	UNION; DRIVER SEAT FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-131-2	01	1	0309-
467	LEVER; LOCK FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-134-0	01	1	0309-
468	SPRING; RETURN (A)	1-75518-206-0	01	1	0309-
468	SPRING; RETURN (B)	1-75518-207-0	01	1	0309-
468	SPRING; RETURN (C)	1-75518-208-0	02	1	0309-
468	SPRING; RETURN FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (D)	1-75538-132-0	01	1	0309-
470	CLIP; HOSE FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-137-0	01	1	0309-
513	SPACER; LEVER FABRIC SEAT W/RECLINING(SFQ),PASSENGER SEAT MULTI USED(WX9) SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	1-75538-133-0	01	1	0309-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
