Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-43 - SUN VISOR AND ASSIST GRIP
▶
7-43 — SUN VISOR AND ASSIST GRIP
(#28965) — 71 parça
◀

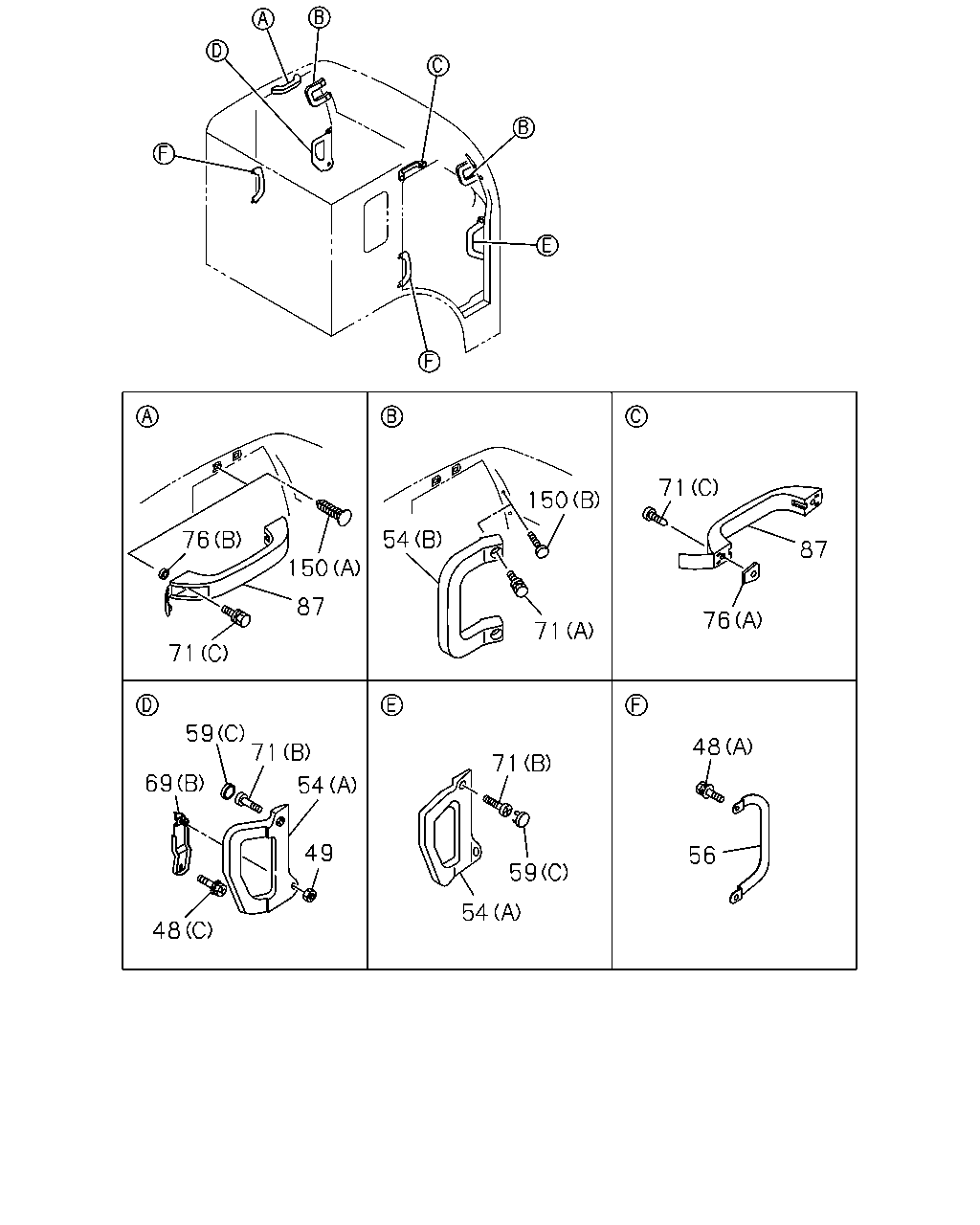

[743A] ASSIST GRIP;CAB INSIDE (30 parça)
[743A] SUN VISOR AND SUPPORT ASM LH,RH (23 parça)
[743A] ASSIST GRIP (18 parça)
▶
71
150
54
76
87
150
87
76
71
71
59
71
48
71
69
54
49
56
59
54
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0309-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0309-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0309-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0309-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0309-
49
NUT; ASSIST GRIP
M6 FLANGE
0-91150-106-0
01
1
0309-
54
GRIP; ASSIST,QUARTER SIDE
ASSIST GRIP A POST<NBK> (B)
1-73618-185-1
02
1
0309-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-563-1
01
1
0309-
54
GRIP; ASSIST,QUARTER SIDE
(A)
1-73617-564-1
01
1
0309-
54
GRIP; ASSIST,QUARTER SIDE
EXC. ASSIST GRIP A POST<NBK> (B)
1-73618-185-1
01
1
0309-
56
GRIP; ASSIST,SIDE SILL
1-73617-062-5
02
1
0309-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
0309-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
0309-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0309-
69
BRACKET; ASSIST GRIP
(A)
1-65570-242-0
01
1
0309-
69
BRACKET; ASSIST GRIP
(A)
1-65570-243-0
01
1
0309-
69
BRACKET; ASSIST GRIP
(B)
1-73618-178-2
01
1
0309-
71
SCREW
ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER
1-09981-422-0
04
1
0309-0310
71
SCREW
ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER
5-09981-064-0
04
1
0311-
71
SCREW
ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER
8-94279-411-0
04
1
0309-
71
SCREW
(B) M6X20 W/LK&PL WASHER
1-09981-073-0
03
1
0309-
71
SCREW
EXC. ASSIST GRIP A POST<NBK> (C) M6X35 W/PL WASHER
1-09981-422-0
02
1
0309-0310
71
SCREW
EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER
5-09981-064-0
02
1
0311-
71
SCREW
EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER
8-94279-411-0
02
1
0309-
76
SPACER; ASSIST GRIP
ASSIST GRIP A POST<NBK> (B) OD=13 T=4.5
8-94230-464-1
02
1
0309-
76
SPACER; ASSIST GRIP
(A)
1-73618-180-0
02
1
0309-
87
GRIP; ASSIST,CANT RAIL SIDE
ASSIST GRIP A POST<NBK> DARK GRAY
8-97098-476-2
02
1
0309-
87
GRIP; ASSIST,CANT RAIL SIDE
EXC. ASSIST GRIP A POST<NBK> DARK GRAY
8-97098-476-2
01
1
0309-
150
CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY
1-73996-301-0
02
1
0309-
150
CLIP; ASSIST GRIP HOLE
EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY
1-73996-364-0
02
1
0309-
18
12
154
158
1
154
19
19
19
154
19
143
18
12
158
1
154
26
1
154
155
154
33
26
33
34
23
23
34
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BOARD; HEADER SHELF
(B)
1-72447-758-3
01
1
0309-
1
BOARD; HEADER SHELF
(A)
1-72447-761-6
01
1
0309-
1
BOARD; HEADER SHELF
(A)
1-72447-876-4
01
1
0309-
12
SCREW; HEADER SHELF
M6X24 W/LK&PL WASHER
8-94279-404-0
08
1
0309-
18
SUPPORT; HEADER SHELF CENTER
(B)
1-72447-824-2
01
1
0309-
18
SUPPORT; HEADER SHELF CENTER
(A)
1-72447-877-2
01
1
0309-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-878-4
01
1
0309-
19
SUPPORT ASM; HEADER SHELF
(B)
1-72447-879-7
01
1
0309-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-323-1
01
1
0309-
19
SUPPORT ASM; HEADER SHELF
(A)
1-72448-324-1
01
1
0309-
23
SUN VISOR
SUN VISOR PASSENGER<D20>
1-73138-157-1
01
1
0309-
23
SUN VISOR
1-73138-156-1
01
1
0309-
26
HOLDER; SUN VISOR
1-73137-175-0
01
1
0309-
26
HOLDER; SUN VISOR
SUN VISOR PASSENGER<D20>
1-73137-175-0
01
1
0309-
33
SCREW; HOLDER,SUN VISOR
M4X20 TAPPING OVAL-HEAD
0-70580-420-0
01
1
0309-
33
SCREW; HOLDER,SUN VISOR
SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD
0-70580-420-0
01
1
0309-
34
SCREW; SUN VISOR
M6X25
1-09981-441-0
04
1
0309-
143
BEZEL
1-72447-768-2
01
1
0309-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0309-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
0309-
155
FASTENER; HOLDER
EXC. SUN VISOR PASSENGER<D20>
1-09983-181-0
01
1
0309-
158
LOCK; HEADER SHELF
(B)
1-72448-376-0
01
1
0309-
158
LOCK; HEADER SHELF
(A)
1-72538-180-0
01
1
0309-
64
64
64
62
64
48
48
48
48
154
69
66
103
48
59
69
66
48
48
59
103
48
59
48
48
59
62
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
48
BOLT; ASSIST GRIP
(A) M6X12 W/LK&PL WASHER
1-09980-611-0
04
1
0309-
48
BOLT; ASSIST GRIP
(E) M6X33.5 W/LK&PL WASHER
1-09980-613-1
04
1
0309-
48
BOLT; ASSIST GRIP
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
04
1
0309-
48
BOLT; ASSIST GRIP
(C) M8X24.5 W/LK&PL WASHER
8-94279-208-0
01
1
0309-
48
BOLT; ASSIST GRIP
(D) M8X30 W/LK&PL WASHER
8-94279-210-0
04
1
0309-
59
COVER; ASSIST GRIP
(B) OUTER
1-71998-789-2
02
1
0309-
59
COVER; ASSIST GRIP
(A) INNER
1-71998-790-2
02
1
0309-
59
COVER; ASSIST GRIP
(C)
1-73617-565-0
02
1
0309-
62
GRIP; ASSIST,ROOF PANEL
1-71907-492-0
02
1
0309-
64
SHEET; ASSIST GRIP
25X25
8-94272-533-0
04
1
0309-
66
BOLT; ASSIST GRIP BRKT
M8X20.5 W/LK&PL WASHER
8-94279-207-0
04
1
0309-
69
BRACKET; ASSIST GRIP
(A)
1-65570-242-0
01
1
0309-
69
BRACKET; ASSIST GRIP
(A)
1-65570-243-0
01
1
0309-
69
BRACKET; ASSIST GRIP
(B)
1-73618-178-2
01
1
0309-
103
GRIP; ASSIST,FRT PNL
1-71998-939-3
01
1
0309-
103
GRIP; ASSIST,FRT PNL
1-71998-940-3
01
1
0309-
154
BOLT; SUPPORT
(A) M8X15 W/PL WASHER
1-79198-003-2
08
1
0309-
154
BOLT; SUPPORT
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
18
1
0309-
