Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-40 - INSTRUMENT PANEL AND BOX
▶
7-40 — INSTRUMENT PANEL AND BOX
(#28963) — 86 parça
◀

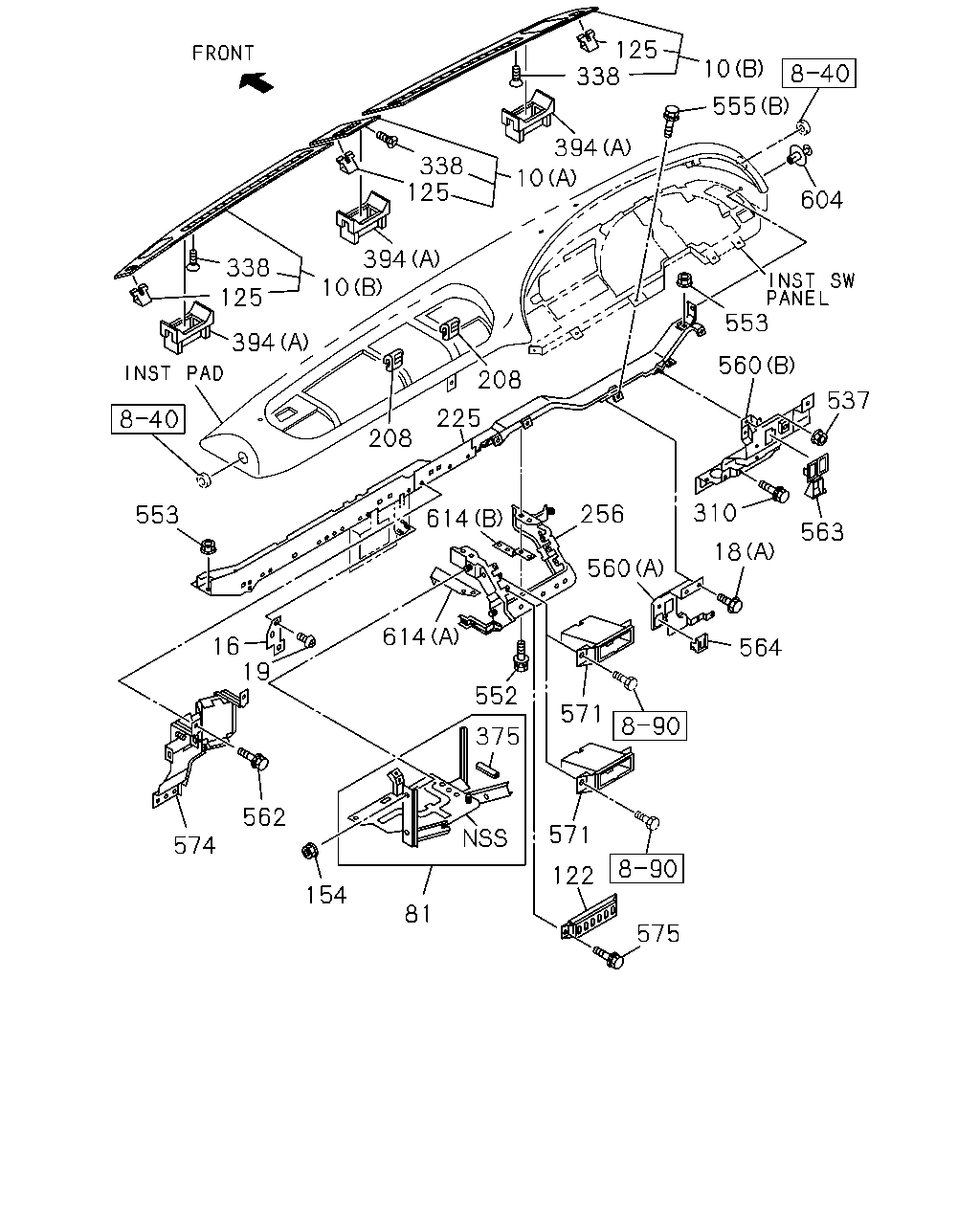

[740A] FACIA FRAME AND OTHER PARTS (38 parça)

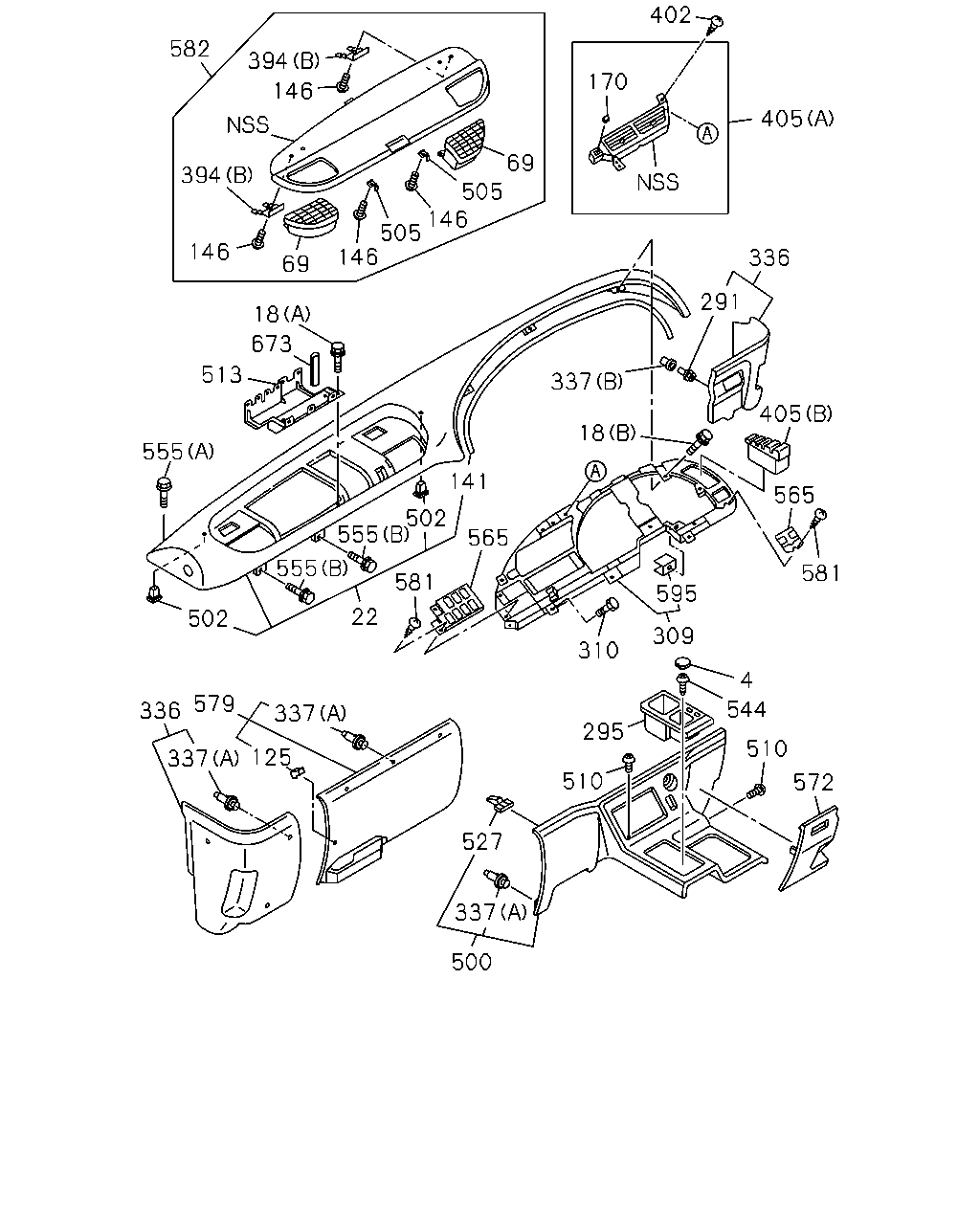

[740A] COVER AND OTHER PARTS (43 parça)

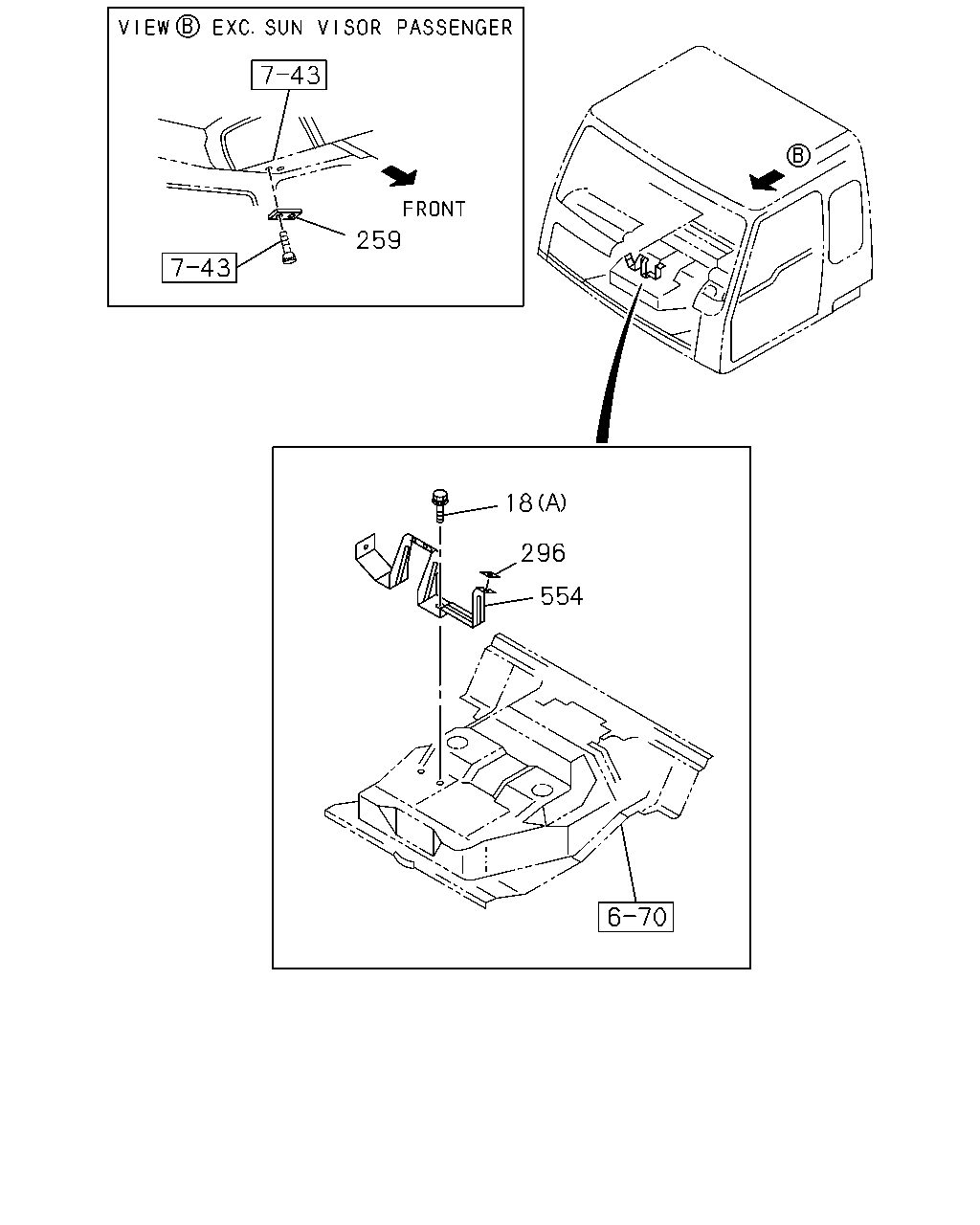

[740A] CENTER BEZEL BRACKET (5 parça)
▶
125
338
10
555
394
338
125
10
604
394
10
338
125
553
394
560
208
537
225
208
310
256
553
614
563
18
560
614
16
19
564
552
571
375
562
571
574
122
154
81
575
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PANEL ASM; GARNISH
(A) CENTER
1-72437-540-6
01
1
0309-
10
PANEL ASM; GARNISH
(B) W/SPEAKER NET
1-72437-600-6
01
1
0309-
10
PANEL ASM; GARNISH
(B) W/SPEAKER NET
1-72437-601-6
01
1
0309-
16
BRACKET; INST PNL
1-73908-023-2
01
1
0309-
18
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
09
1
0309-
18
BOLT; BRKT
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
03
1
0309-
19
SCREW; BRKT
M5X14
8-94279-325-0
02
1
0309-
81
BRACKET; ELEC CONT UNIT
1-73907-548-7
01
1
0309-
122
PANEL; CENTER CLUSTER
1-65671-550-5
01
1
0309-
125
CLIP; INST PANEL
8-97217-066-0
11
1
0309-0309
125
CLIP; INST PANEL
8-97217-066-0
19
1
0310-
154
NUT
M6 FLANGE
0-91150-106-0
04
1
0309-
208
HOLDER; BOX,DASH SIDE
1-72558-027-2
02
1
0309-
225
FRAME; FACIA
1-65671-725-8
01
1
0309-
256
BEZEL ASM; CENTER
1-65671-523-9
01
1
0309-
310
BOLT; SW PNL
M6X19.5 W/LK&PL WASHER
8-94279-201-0
05
1
0309-
338
SCREW; COVER
M5X14
8-94148-576-1
12
1
0309-0309
338
SCREW; COVER
M5X14
8-94279-325-0
22
1
0310-
375
FINISHER; BRKT,CONT UNIT
L=80
5-71997-133-0
01
1
0403-
394
HOLDER; PANEL
(A)
1-72438-066-0
08
1
0309-
394
HOLDER; PANEL
(B)
1-72558-026-5
02
1
0309-
537
NUT; BRKT
M6 FLANGE
0-91150-106-0
01
1
0309-
552
BOLT; FRAME
M6X19.5 W/LK&PL WASHER
8-94279-201-0
06
1
0309-
553
NUT; FRAME
M8 FLANGE
0-91150-108-0
04
1
0309-
555
BOLT; PAD
(A) M10X25 FLANGE
0-28281-025-0
08
1
0309-
555
BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0309-
560
BRACKET
(B)
1-65671-757-4
01
1
0309-
560
BRACKET
(A)
1-65680-976-3
01
1
0309-
562
BOLT; PANEL
M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0309-
563
BEZEL; BRKT
1-72447-628-5
01
1
0309-
564
COVER; SW
BRAKE SYSTEM HSA<SLD>
8-97856-401-3
01
1
0309-
571
BEZEL; POCKET
1-72438-151-3
01
1
0309-
571
BEZEL; POCKET
1-72438-151-3
01
1
0309-
574
PANEL; RELAY BOX
1-73907-365-9
01
1
0309-
575
BOLT; PANEL
M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
0309-
604
CLIP; INST PAD
1-09983-123-0
01
1
0309-
614
BRACKET; HARNESS
(A)
1-65671-745-1
01
1
0309-
614
BRACKET; HARNESS
(B)
1-65671-746-1
01
1
0309-
402
582
394
170
146
405
69
394
505
146
505
146
146
336
69
291
18
673
513
337
405
18
555
141
565
502
555
565
555
581
581
595
22
502
309
310
4
579
544
336
337
295
510
125
337
510
572
527
337
500
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
COVER; INST PNL
1-72537-106-0
01
1
0309-
18
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
09
1
0309-
18
BOLT; BRKT
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
03
1
0309-
22
PAD; INST
1-72317-347-2
01
1
0309-
69
GRILLE; SIDE,AIR OUTLET
1-76367-069-0
01
1
0309-
69
GRILLE; SIDE,AIR OUTLET
1-76367-070-0
01
1
0309-
125
CLIP; INST PANEL
8-97217-066-0
11
1
0309-0309
125
CLIP; INST PANEL
8-97217-066-0
19
1
0310-
141
PROTECTOR; EDGE
1-72318-430-0
01
1
0309-
146
SCREW; TAP
M5X14
8-94279-325-0
10
1
0309-
170
COVER; HOLE
1-76367-068-0
01
1
0309-
291
FASTENER; INST CLUSTER
1-72438-137-0
06
1
0309-
295
TRAY; CTR CLUSTER
1-72437-543-1
01
1
0309-
309
PANEL; SW,INST
1-72418-009-6
01
1
0309-
310
BOLT; SW PNL
M6X19.5 W/LK&PL WASHER
8-94279-201-0
05
1
0309-
336
COVER; INST PANEL SIDE
1-72437-622-0
01
1
0309-
336
COVER; INST PANEL SIDE
1-72437-624-0
01
1
0309-
337
FASTENER; COVER
(A)
1-72438-124-2
12
1
0309-
337
FASTENER; COVER
(A)
1-72438-124-2
02
1
0309-
337
FASTENER; COVER
(B)
1-72438-138-0
03
1
0309-
394
HOLDER; PANEL
(A)
1-72438-066-0
08
1
0309-
394
HOLDER; PANEL
(B)
1-72558-026-5
02
1
0309-
402
SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER
0-74110-620-0
02
1
0309-
405
GRILLE ASM; METER VENT
(B)
1-76367-059-3
01
1
0309-
405
GRILLE ASM; METER VENT
(A)
1-76367-062-2
01
1
0309-
500
CLUSTER; INST CENTER
CENTER SEAT DELETE(SP9)
1-72437-619-0
01
1
0309-
500
CLUSTER; INST CENTER
EXC. CENTER SEAT DELETE(SP9)
1-72437-648-0
01
1
0309-
502
GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL
8-94279-084-2
04
1
0309-
505
LOCK; LID
1-72558-024-2
02
1
0309-
510
SCREW; CENTER CLUSTER
M6X16
8-94479-534-0
02
1
0309-
513
BRACKET; RELAY
1-73908-425-0
01
1
0309-
527
CLIP; INST CLUSTER
8-97217-066-0
04
1
0309-
544
SCREW; TRAY
M6X16
8-94479-534-0
01
1
0309-
555
BOLT; PAD
(A) M10X25 FLANGE
0-28281-025-0
08
1
0309-
555
BOLT; PAD
(B) M6X19.5 W/LK&PL WASHER
8-94279-201-0
03
1
0309-
565
BEZEL; SW PANEL
1-72418-010-2
01
1
0309-
565
BEZEL; SW PANEL
1-72418-011-3
01
1
0309-
572
COVER; INSPECTION
1-72437-634-0
01
1
0309-
579
COVER; INST PNL
1-72437-626-0
01
1
0309-
581
SCREW
M6X20 TAPPING W/PL WASHER
0-74110-620-0
02
1
0309-
582
LID; FUSE & RELAY
1-72547-124-0
01
1
0309-
595
NUT; HOOK
1-72418-013-0
11
1
0309-
673
FINISHER; BRKT,RELAY
L=50
8-94270-377-1
01
1
0309-
259
18
296
554
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
18
BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER
8-94279-201-0
09
1
0309-
18
BOLT; BRKT
(B) M6X20 W/LK&PL WASHER
8-94279-203-0
03
1
0309-
259
PLATE; STUFF,SUN VISOR
EXC. SUN VISOR PASSENGER<D20>
1-73317-410-0
01
1
0309-
296
SEAL; INST CENTER BEZEL
EXC. CENTER SEAT DELETE(SP9)
8-97856-616-0
01
1
0309-
554
BRACKET; CENTER BEZEL
1-65671-535-2
01
1
0309-
