Isuzu WW
▶
TRUCKS
▶
CXH
▶
10930 - CXH RHD
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶
7-20 — MIRROR AND MIRROR STAY
(#28961) — 79 parça
◀

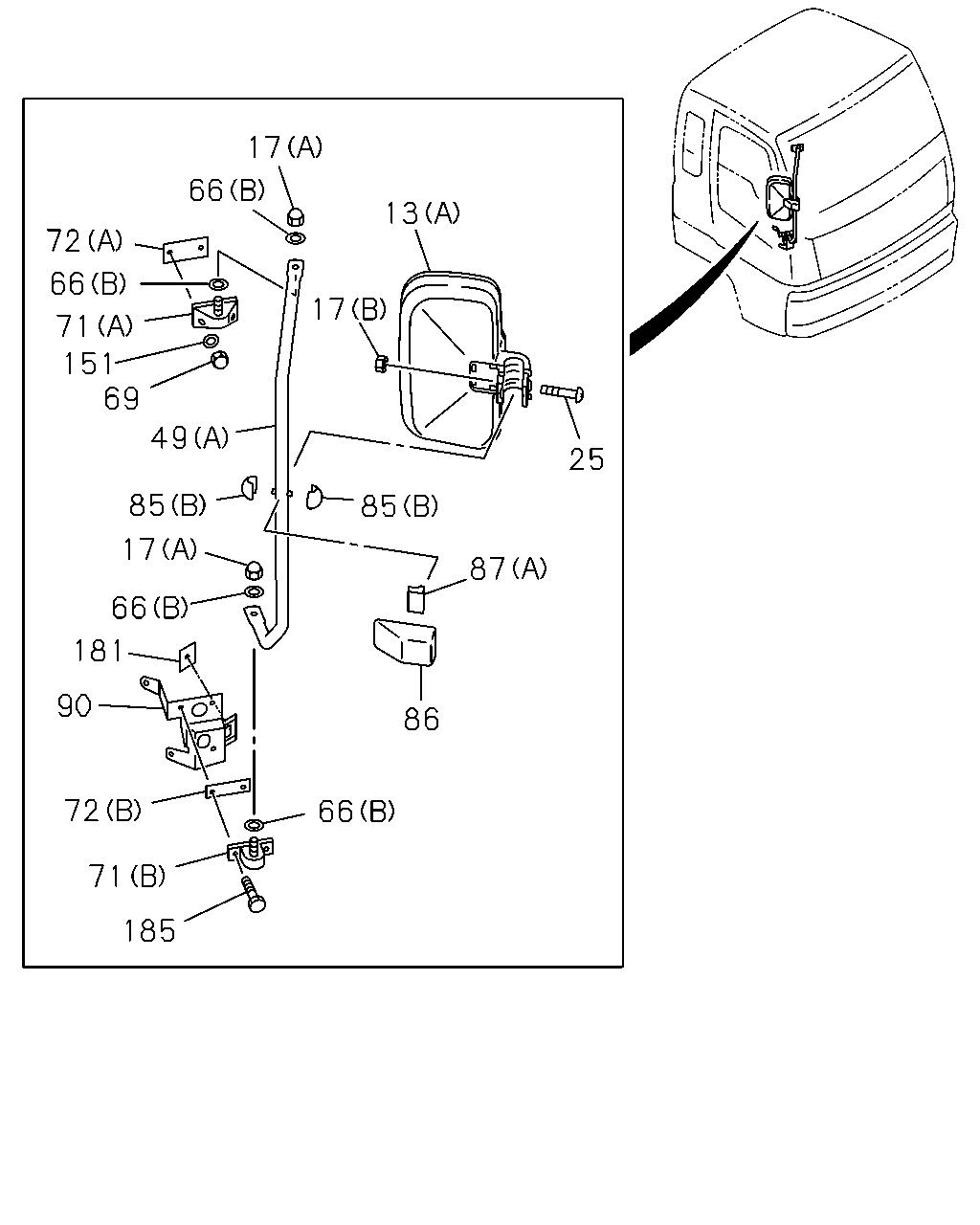

[720A] RH (30 parça)

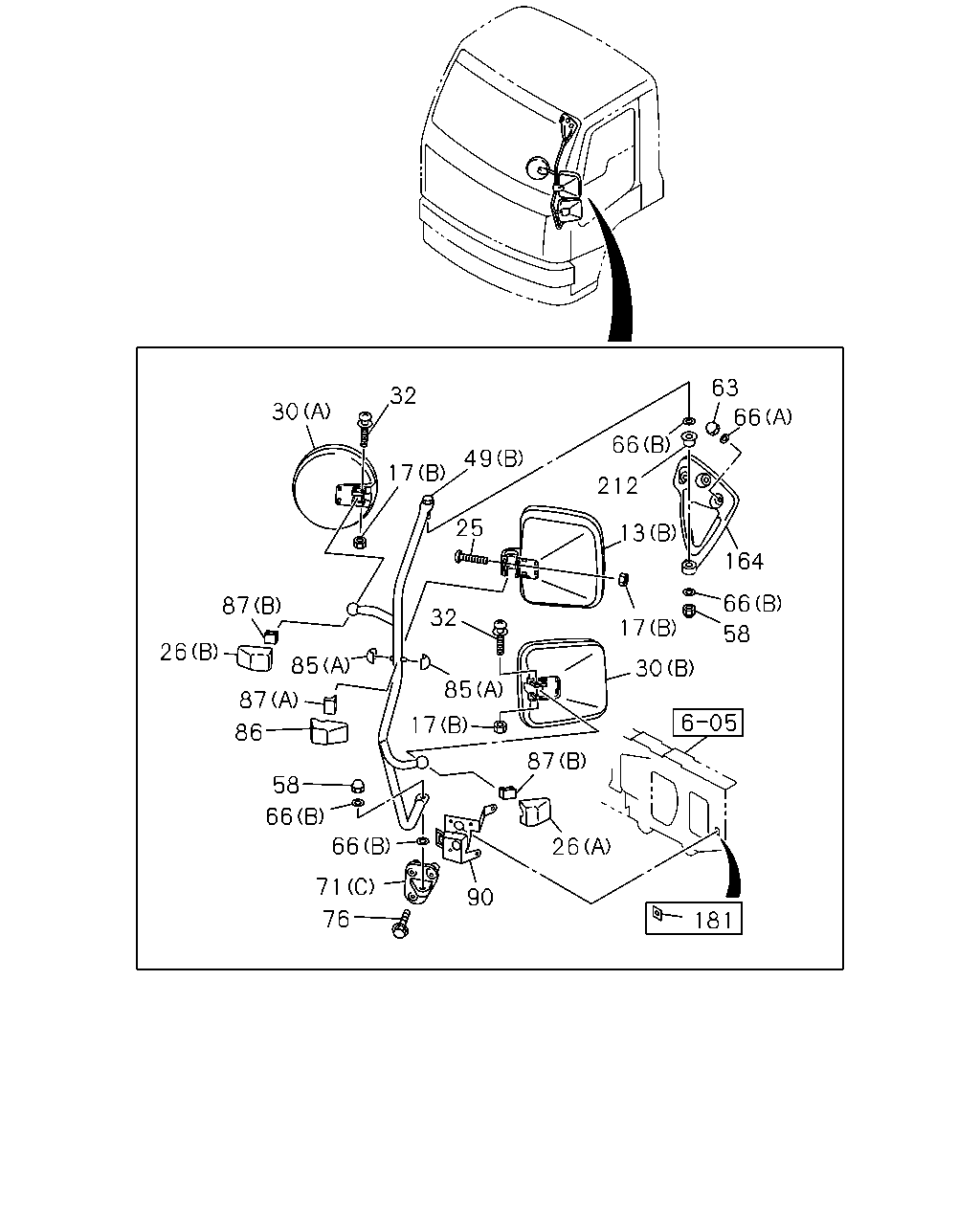

[720A] LH (35 parça)
[720A] COMPONENT;OUTSIDE RR VIEW MIRROR (12 parça)
[720A] ROOM MIRROR (2 parça)
▶
17
66
13
72
66
17
71
151
69
49
25
85
85
17
87
66
181
90
86
72
66
71
185
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(B)
1-71737-917-3
01
1
0309-
13
MIRROR ASM; OUTSIDE RR VIEW
(A)
1-71737-918-3
01
1
0309-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
02
1
0309-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
06
1
0309-
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
02
1
0309-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
0309-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
0309-
49
STAY; MIRROR SIDE
(B)
1-71797-896-2
01
1
0309-
49
STAY; MIRROR SIDE
(A)
1-71798-490-2
01
1
0309-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0309-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
04
1
0309-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
04
1
0309-
69
NUT; CAP
M8
1-09984-187-0
02
1
0309-
71
BRACKET; OUTSIDE MIRROR
(A) UPPER
1-71798-484-1
01
1
0309-
71
BRACKET; OUTSIDE MIRROR
(B) LOWER
1-71798-486-2
01
1
0309-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-581-3
01
1
0309-
72
SHEET
(A) UPPER
1-71798-487-3
01
1
0309-
72
SHEET
(B) LOWER
1-71798-488-1
01
1
0309-
85
PIVOT; MAIN MIRROR
(A) ID=22.2
1-71736-489-2
02
1
0309-
85
PIVOT; MAIN MIRROR
(B) ID=19.1
1-71737-633-2
02
1
0309-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
0309-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
0309-
87
SPACER
(B)
1-71737-646-2
02
1
0309-
87
SPACER
(A)
1-71737-704-0
01
1
0309-
87
SPACER
(A)
1-71737-704-0
01
1
0309-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0309-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0309-
151
WASHER; PL,MIRROR
ID=8.4 OD=16.0 T=1.6
1-09985-191-0
02
1
0309-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0309-
185
BOLT; BRKT
M8X35 FLANGE
0-28690-835-0
02
1
0309-
63
32
30
66
66
49
17
212
25
13
164
17
66
87
32
58
26
85
30
85
87
17
86
87
58
66
66
26
71
90
76
181
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(B)
1-71737-917-3
01
1
0309-
13
MIRROR ASM; OUTSIDE RR VIEW
(A)
1-71737-918-3
01
1
0309-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
02
1
0309-
17
NUT; CAP,MIRROR STAY
(B) M5
1-09984-124-0
06
1
0309-
17
NUT; CAP,MIRROR STAY
(A) M10 CAP NUT
1-09984-134-0
02
1
0309-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
0309-
25
SCREW; OUTSIDE MIRROR
M5X50
1-09981-444-0
02
1
0309-
26
COVER; OUTSIDE MIRROR
(B) BLACK
1-71737-649-1
01
1
0309-
26
COVER; OUTSIDE MIRROR
(A) BLACK
1-71737-652-1
01
1
0309-
30
MIRROR; UNDER
(A)
1-71798-591-1
01
1
0309-
30
MIRROR; UNDER
(B)
1-71798-592-1
01
1
0309-
32
SCREW; UNDER MIRROR
M5X40 W/PL WASHER
1-71737-797-0
04
1
0309-
49
STAY; MIRROR SIDE
(B)
1-71797-896-2
01
1
0309-
49
STAY; MIRROR SIDE
(A)
1-71798-490-2
01
1
0309-
58
NUT; MIRROR STAY
M10
1-09985-342-0
02
1
0309-
63
NUT; STAY
M8
1-09984-187-0
03
1
0309-
66
WASHER; PL
(A) ID=8.4 OD=16.0 T=1.6
1-09985-191-0
03
1
0309-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
04
1
0309-
66
WASHER; PL
(B) ID=10.5 OD=26 T=2.6
1-09985-184-0
04
1
0309-
71
BRACKET; OUTSIDE MIRROR
(A) UPPER
1-71798-484-1
01
1
0309-
71
BRACKET; OUTSIDE MIRROR
(B) LOWER
1-71798-486-2
01
1
0309-
71
BRACKET; OUTSIDE MIRROR
(C)
1-71798-581-3
01
1
0309-
76
BOLT; STAY BRKT
M8X30 W/LK WASHER
8-94279-183-1
03
1
0309-
85
PIVOT; MAIN MIRROR
(A) ID=22.2
1-71736-489-2
02
1
0309-
85
PIVOT; MAIN MIRROR
(B) ID=19.1
1-71737-633-2
02
1
0309-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
0309-
86
COVER; STAY,OUTSIDE MIRROR
BLACK
1-71737-760-1
01
1
0309-
87
SPACER
(B)
1-71737-646-2
02
1
0309-
87
SPACER
(A)
1-71737-704-0
01
1
0309-
87
SPACER
(A)
1-71737-704-0
01
1
0309-
90
BRACKET; MIRROR STAY
1-71798-828-1
01
1
0309-
90
BRACKET; MIRROR STAY
1-71798-829-1
01
1
0309-
164
STAY; ROOF
1-71798-299-4
01
1
0309-
181
SEAL; BRKT
25X25
8-94272-533-0
02
1
0309-
212
BUSHING; MIRROR
1-09983-175-1
01
1
0309-
13
133
132
134
13
133
134
132
30
135
134
132
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
13
MIRROR ASM; OUTSIDE RR VIEW
(B)
1-71737-917-3
01
1
0309-
13
MIRROR ASM; OUTSIDE RR VIEW
(A)
1-71737-918-3
01
1
0309-
30
MIRROR; UNDER
(A)
1-71798-591-1
01
1
0309-
30
MIRROR; UNDER
(B)
1-71798-592-1
01
1
0309-
132
RING; MIRROR
(B)
1-71737-933-0
01
1
0309-
132
RING; MIRROR
(C)
1-71737-934-0
01
1
0309-
132
RING; MIRROR
(A)
1-71737-935-0
01
1
0309-
133
LENS; MIRROR,OUTSIDE
(B)
1-71737-926-0
01
1
0309-
133
LENS; MIRROR,OUTSIDE
(A)
1-71737-927-0
01
1
0309-
134
CLIP; MIRROR LENS
1-71737-936-0
01
1
0309-
134
CLIP; MIRROR LENS
1-71737-936-0
02
1
0309-
135
LENS; MIRROR,SIDE UNDER
1-71737-929-0
01
1
0309-
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MIRROR; ROOM
1-73117-033-1
01
1
0309-
2
SCREW; MIRROR TO BODY
M6X20
1-09981-310-0
02
1
0309-
