◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXH ▶ 10930 - CXH RHD ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#28960) — 14 parça
çizim 22216
181
BalonParca AdiParca NoAdetTipApplied Date
181 PLATE; CAUTION,AIR CLEANER 1-85886-796-1 01 1 0309-

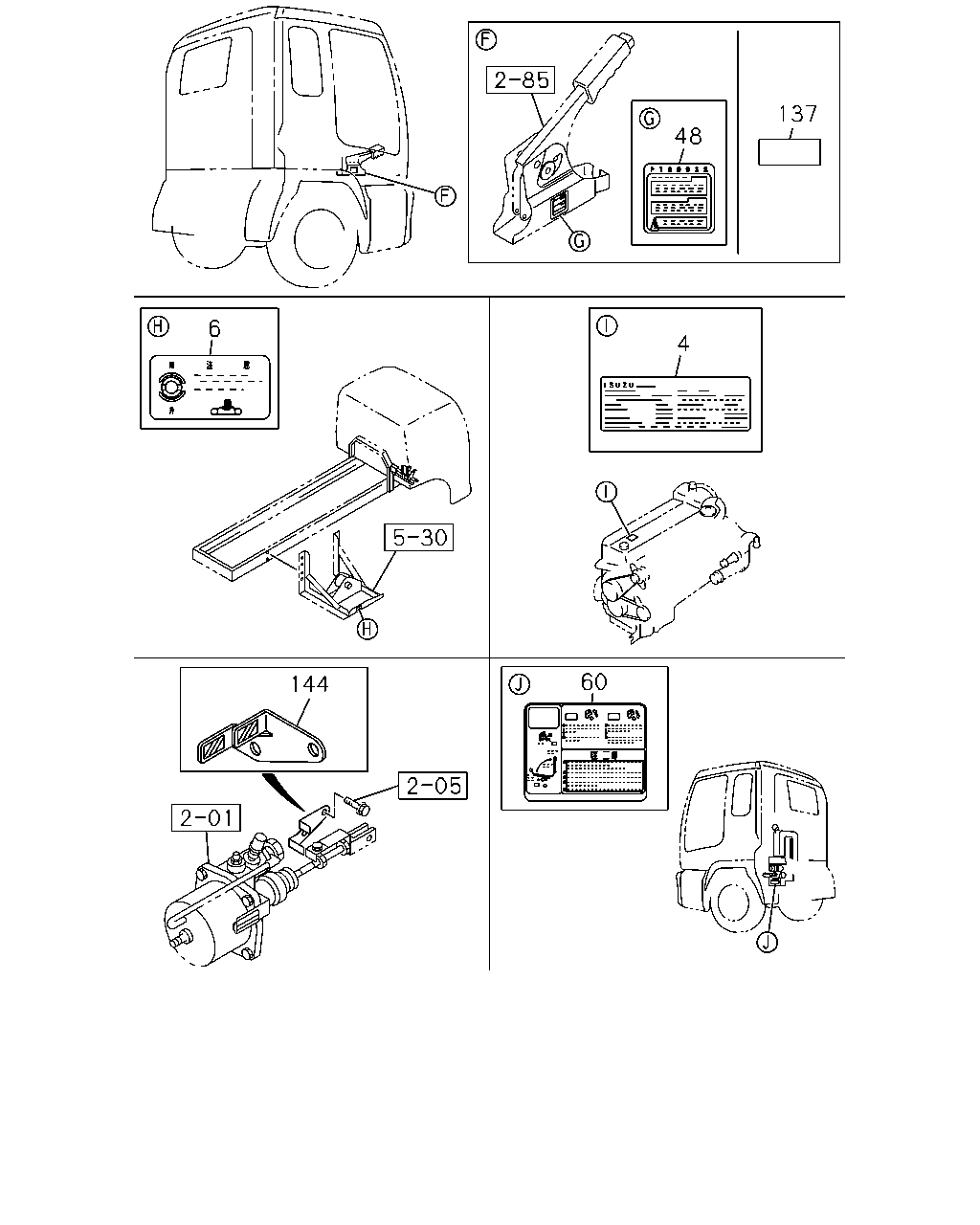

çizim 82231
137 48 6 4 60 144
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE 1-85875-174-0 01 1 0309-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE WHEEL CARRIER FRAME SIDE<P13> 		1-85883-113-0 01 1 0309-
48 PLATE; CAUTION,PTO
DUMP CONTROL LEVER<RC4> 		1-85881-254-0 01 1 0309-
60 PLATE; CAUTION,CAB TILT 1-85883-175-0 01 1 0309-
137 PLATE; CAUTION,WARNING
MIXER TRUCK<RA2> 		1-85881-737-0 01 1 0309-0309
144 PLATE; CAUTION,CLU
MJX16P M/T(Y3Z) 		1-85878-345-0 01 1 0309-

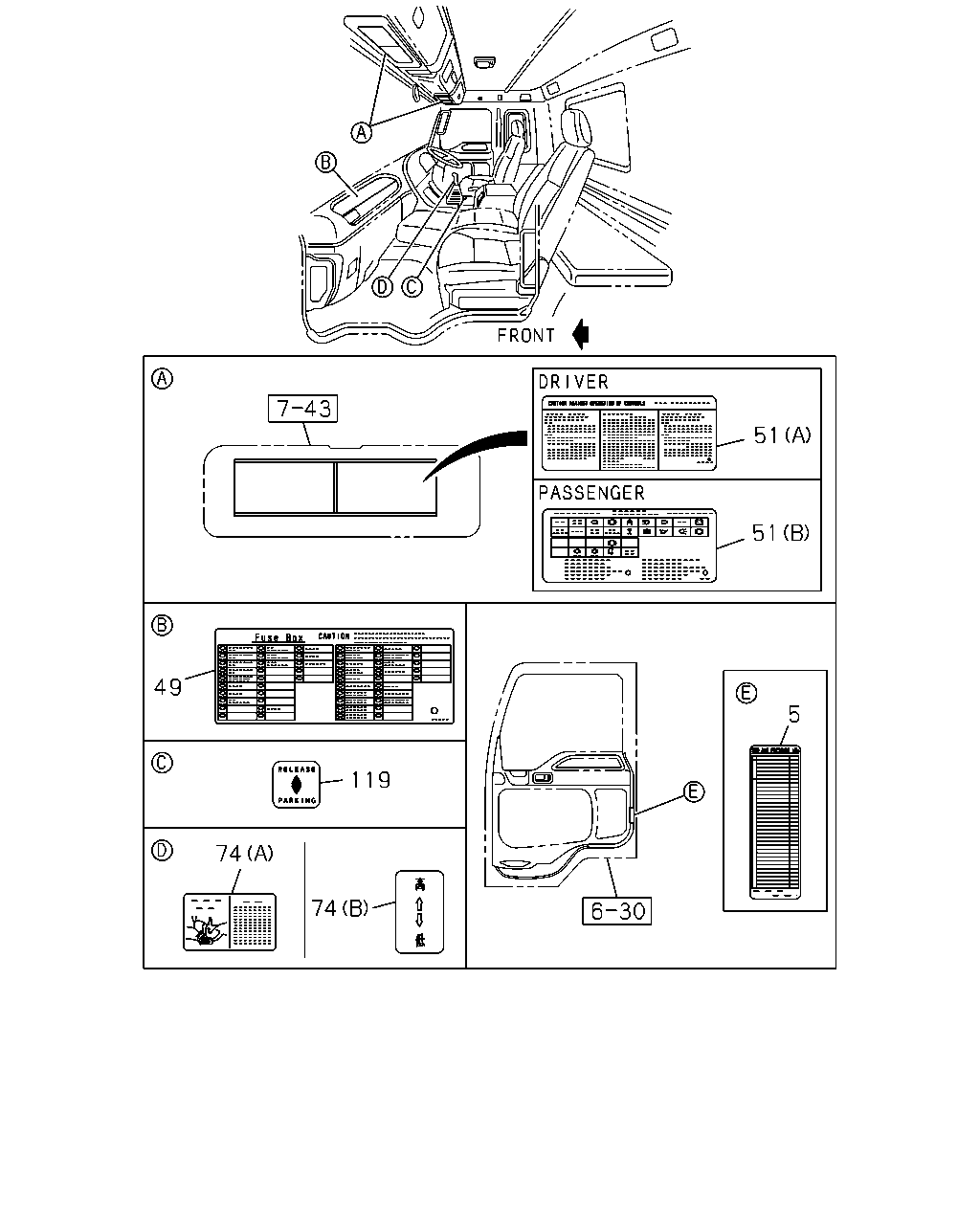

çizim 83982
51 51 49 5 119 74 74
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0309-
49 PLATE; CAUTION,FUSE BOX 1-85878-431-0 01 1 0309-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-432-0 01 1 0309-
51 PLATE; CAUTION,WARNING
(A) 		1-85880-777-0 01 1 0309-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) (B) 		1-85881-666-2 01 1 0309-
74 PLATE; CAUTION,CHANGE LEV
MJX16P M/T(Y3Z) (A) 		1-85881-849-0 01 1 0309-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-759-0 01 1 0309-
