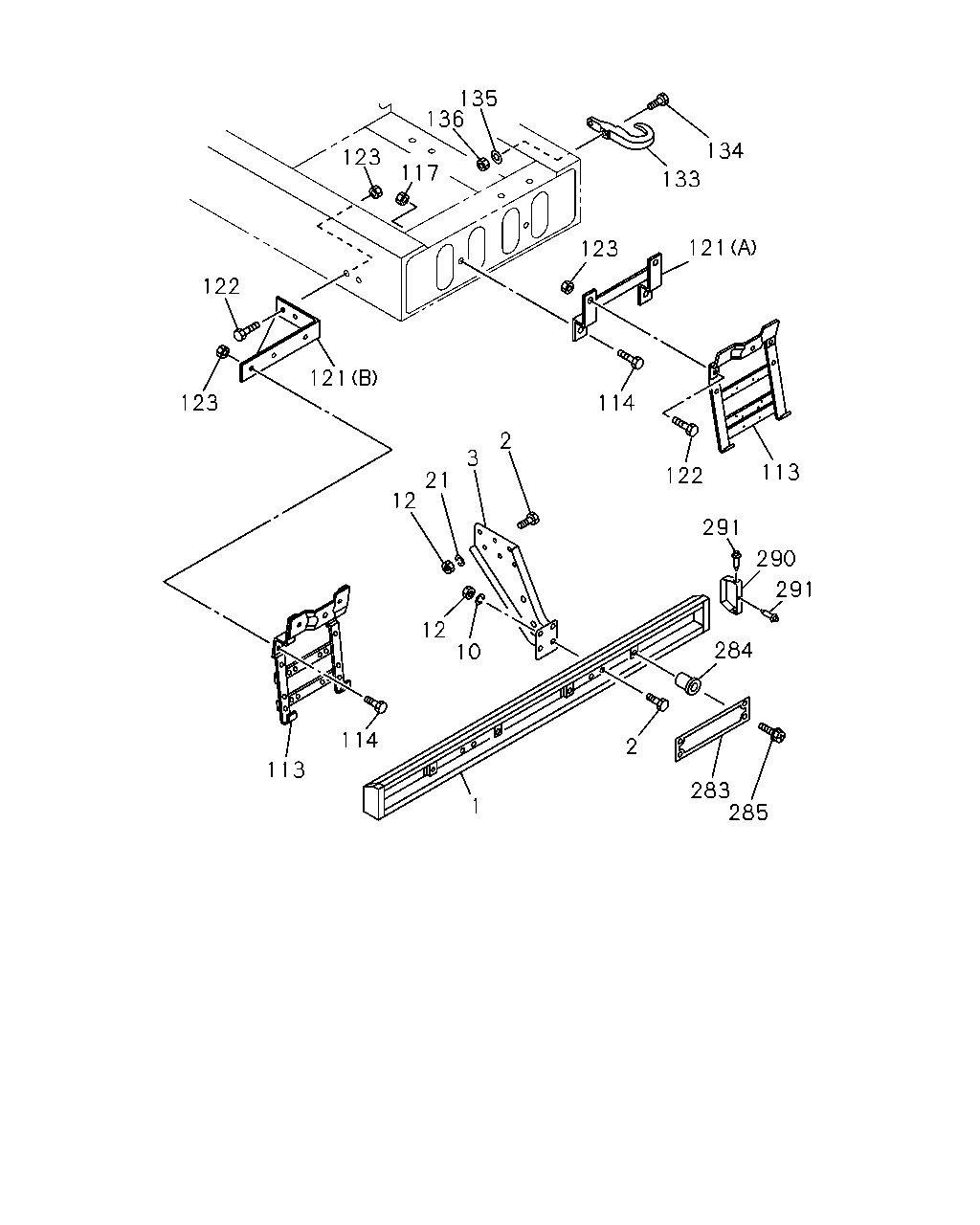

1 |
BUMPER; RR
REAR BUMPER,REINFORCEMENT<SMS>
STAMP B2L
|
1-71220-076-1 |
01 |
1 |
9307- |
● |
● |
| |
2 |
BOLT; BACK BAR
REAR BUMPER,REINFORCEMENT<SMS>
M16X40
|
0-20801-640-0 |
12 |
1 |
9307- |
● |
● |
| |
2 |
BOLT; BACK BAR
REAR BUMPER,REINFORCEMENT<SMS>
M12X30 W/LK WASHER
|
0-50041-230-0 |
08 |
1 |
9307- |
● |
● |
| |
3 |
BRACKET; BUMPER
REAR BUMPER,REINFORCEMENT<SMS>
STAMP BU
|
1-71230-255-1 |
01 |
1 |
9307- |
● |
● |
| |
3 |
BRACKET; BUMPER
REAR BUMPER,REINFORCEMENT<SMS>
STAMP BU
|
1-71230-254-1 |
01 |
1 |
9307- |
● |
● |
| |
10 |
WASHER; PL,BRKT
REAR BUMPER,REINFORCEMENT<SMS>
ID=12.5 OD=32
|
9-09160-712-0 |
08 |
1 |
9307- |
● |
● |
| |
12 |
NUT; BRKT
REAR BUMPER,REINFORCEMENT<SMS>
M12
|
9-99110-512-0 |
08 |
1 |
9307- |
● |
● |
| |
12 |
NUT; BRKT
REAR BUMPER,REINFORCEMENT<SMS>
M16
|
9-99110-516-0 |
12 |
1 |
9307- |
● |
● |
| |
21 |
WASHER; LK,BUMPER
REAR BUMPER,REINFORCEMENT<SMS>
ID=16.2
|
9-09150-816-0 |
12 |
1 |
9307- |
● |
● |
| |
113 |
BRACKET; LICENSE PLATE
|
1-53485-026-1 |
01 |
1 |
9002-9105 |
● |
● |
| |
113 |
BRACKET; LICENSE PLATE
|
1-53485-047-0 |
01 |
1 |
9106-9108 |
● |
● |
| |
113 |
BRACKET; LICENSE PLATE
|
1-53485-049-2 |
01 |
1 |
9109- |
● |
● |
| |
114 |
BOLT; BRKT,LICENSE PLATE
M8X25 W/LK WASHER
|
9-01900-825-0 |
02 |
1 |
9002-9204 |
● |
● |
| |
114 |
BOLT; BRKT,LICENSE PLATE
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9205-9302 |
● |
● |
| |
114 |
BOLT; BRKT,LICENSE PLATE
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9303-9306 |
● |
● |
| |
114 |
BOLT; BRKT,LICENSE PLATE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9307- |
● |
● |
| |
117 |
NUT; BRKT
M8
|
9-09110-408-0 |
02 |
1 |
9002- |
● |
● |
| |
121 |
STAY; RR LICENSE PLATE BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2>
(A)
|
1-53485-054-0 |
01 |
1 |
9307-9409 |
● |
|
| |
121 |
STAY; RR LICENSE PLATE BRKT
TAIL PIPE SINGLE HORIZONTAL<NC2>
(A)
|
1-53485-056-0 |
01 |
1 |
9410- |
● |
|
| |
121 |
STAY; RR LICENSE PLATE BRKT
(B)
|
1-53485-002-1 |
01 |
1 |
9002- |
|
● |
| |
122 |
BOLT; STAY TO FRAME
TAIL PIPE SINGLE HORIZONTAL<NC2>
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9307- |
● |
|
| |
122 |
BOLT; STAY TO FRAME
FRAME EQUIPMENT HEAVY DUTY<F03>
M12X35 W/LK WASHER
|
9-01901-235-0 |
02 |
1 |
9002-9204 |
|
● |
| |
122 |
BOLT; STAY TO FRAME
FRAME EQUIPMENT HEAVY DUTY<F03>
M12X35 W/LK WASHER
|
0-50041-235-0 |
02 |
1 |
9205- |
|
● |
| |
122 |
BOLT; STAY TO FRAME
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M12X30 W/LK WASHER
|
9-01901-230-0 |
02 |
1 |
9002-9204 |
|
● |
| |
122 |
BOLT; STAY TO FRAME
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M12X30 W/LK WASHER
|
0-50041-230-0 |
02 |
1 |
9205- |
|
● |
| |
123 |
NUT; STAY
TAIL PIPE SINGLE HORIZONTAL<NC2>
M8
|
9-09110-408-0 |
02 |
1 |
9307- |
● |
|
| |
123 |
NUT; STAY
M12
|
9-99110-412-0 |
02 |
1 |
9002-9304 |
|
● |
| |
123 |
NUT; STAY
M12
|
9-99110-512-0 |
02 |
1 |
9305- |
|
● |
| |
133 |
HOOK
|
1-57181-024-0 |
01 |
1 |
9002-9006 |
● |
● |
| |
133 |
HOOK
|
1-57181-027-1 |
01 |
1 |
9007- |
● |
● |
| |
134 |
BOLT; HOOK
M16X70
|
0-10811-670-0 |
01 |
1 |
9307- |
● |
|
| |
134 |
BOLT; HOOK
FRAME EQUIPMENT HEAVY DUTY<F03>
M16X70
|
0-10811-670-0 |
01 |
1 |
9307- |
|
● |
| |
134 |
BOLT; HOOK
M16X60
|
0-10811-660-0 |
01 |
1 |
9307- |
● |
● |
| |
134 |
BOLT; HOOK
FRAME EQUIPMENT HEAVY DUTY<F03>
M16X60
|
9-91051-660-0 |
01 |
1 |
9002-9005 |
● |
● |
| |
134 |
BOLT; HOOK
FRAME EQUIPMENT HEAVY DUTY<F03>
M16X60
|
0-10811-660-0 |
01 |
1 |
9006-9306 |
● |
● |
| |
134 |
BOLT; HOOK
FRAME EQUIPMENT HEAVY DUTY<F03>
M16X80
|
9-91051-680-0 |
01 |
1 |
9002-9005 |
● |
● |
| |
134 |
BOLT; HOOK
FRAME EQUIPMENT HEAVY DUTY<F03>
M16X80
|
0-10811-680-0 |
01 |
1 |
9006-9306 |
● |
● |
| |
134 |
BOLT; HOOK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M16X70
|
9-91051-670-0 |
01 |
1 |
9002-9005 |
● |
● |
| |
134 |
BOLT; HOOK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M16X70
|
0-10811-670-0 |
01 |
1 |
9006-9306 |
● |
● |
| |
134 |
BOLT; HOOK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M16X55
|
9-92051-655-0 |
01 |
1 |
9002-9008 |
● |
● |
| |
134 |
BOLT; HOOK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M16X55
|
0-20801-655-0 |
01 |
1 |
9009-9306 |
● |
● |
| |
134 |
BOLT; HOOK
EXC. FRAME EQUIPMENT HEAVY DUTY<F03>
M16X60
|
0-20801-660-0 |
01 |
1 |
9307- |
|
● |
| |
135 |
WASHER; LK,HOOK
ID=16.2
|
9-09150-516-0 |
02 |
1 |
9002- |
● |
● |
| |
136 |
NUT; HOOK
M16
|
9-99110-416-0 |
02 |
1 |
9002- |
● |
● |
| |
283 |
REFLECTOR; REFLEX,RR
REAR BUMPER,REINFORCEMENT<SMS>
|
1-82290-040-0 |
02 |
1 |
9307- |
● |
● |
| |
284 |
NUT; REFLECTOR
REAR BUMPER,REINFORCEMENT<SMS>
M6
|
1-09470-003-0 |
08 |
1 |
9307- |
● |
● |
| |
285 |
BOLT; REFLECTOR
REAR BUMPER,REINFORCEMENT<SMS>
M6X22.9 W/PL WASHER
|
8-94496-062-0 |
08 |
1 |
9307- |
● |
● |
| |
290 |
COVER; RR
REAR BUMPER,REINFORCEMENT<SMS>
|
1-71290-040-0 |
02 |
1 |
9307- |
● |
● |
| |
291 |
RIVET; REFLECTOR
REAR BUMPER,REINFORCEMENT<SMS>
PUSH RIVET BLACK
|
1-71290-041-0 |
06 |
1 |
9307- |
● |
● |
