6-84 — BACK TRIM (#2894) — 29 parça

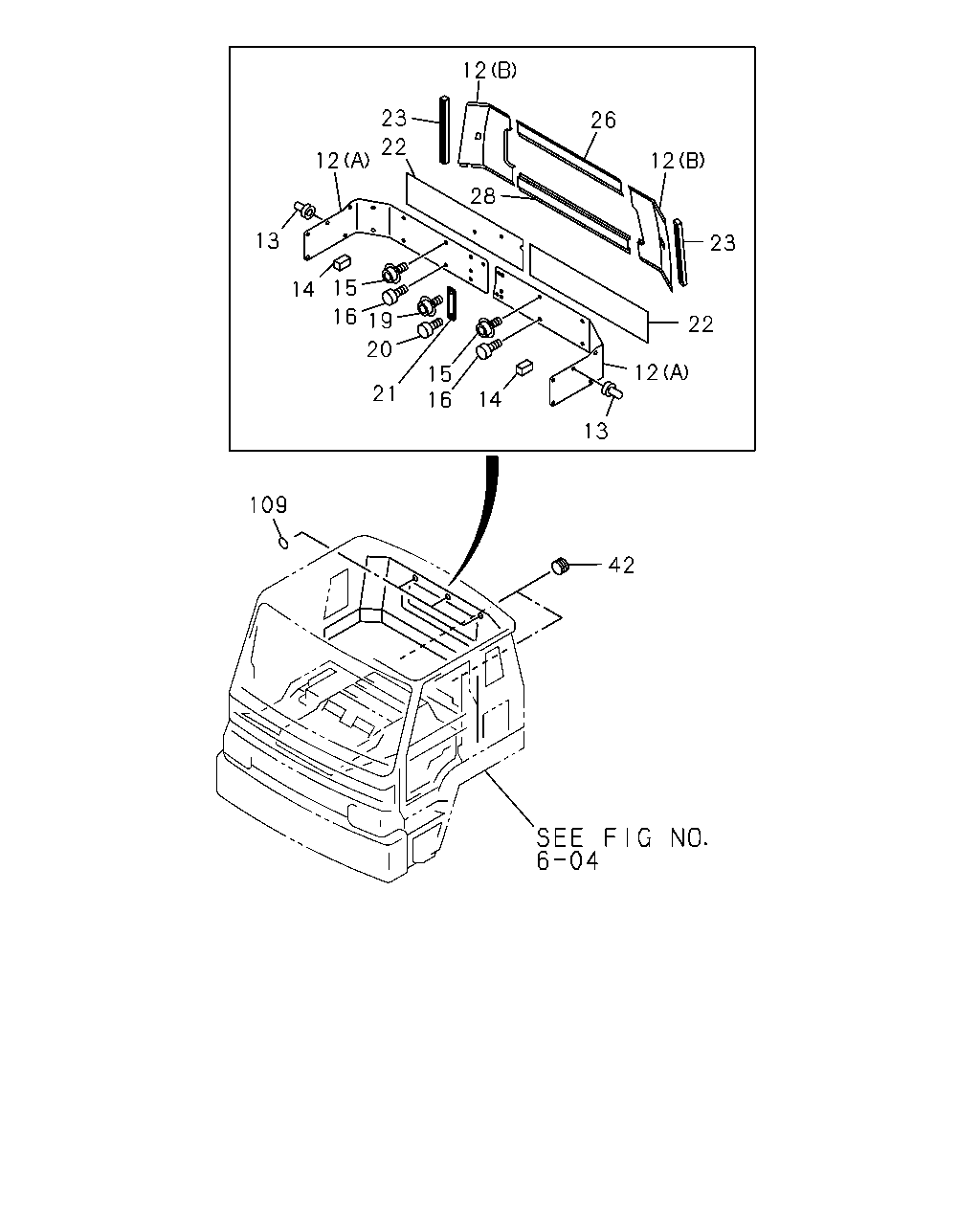

çizim 96139
42 109 13 14 16 15 21 20 19 16 15 14 13 12 23 22 12 28 26 23 12 22 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-506-2 01 1 9002-9306 ● ●
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-577-1 01 1 9307- ● ●
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-505-2 01 1 9002-9306 ● ●
12 PAD; TRIM,BED ROOM SIDE
(A) 		1-73347-576-1 01 1 9307- ● ●
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-564-1 01 1 9002-9306 ● ●
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-631-0 01 1 9307- ● ●
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-563-1 01 1 9002-9306 ● ●
12 PAD; TRIM,BED ROOM SIDE
INTERIOR FULL TRIM<WM3> (B) 		1-73347-630-0 01 1 9307- ● ●
13 CLIP; BED ROOM TRIM 1-09987-119-1 04 1 9002- ● ●
14 INSULATOR; FLOOR SIDE REAR 1-73377-160-0 02 1 9002- ● ●
15 HOOK; BED ROOM TRIM
M4X14 HOOK MALE 		1-09981-370-0 08 1 9002- ● ●
16 CLIP; TRIM,BED ROOM
D6X23 BLACK 		1-09987-114-0 10 1 9002- ● ●
19 HOOK; RET
M4X14 HOOK MALE 		1-09981-370-0 01 1 9002- ● ●
20 FASTENER; RET
D6X23 BLACK 		1-09987-114-0 01 1 9002- ● ●
21 RETAINER; TRIM,BED ROOM 1-73347-507-0 01 1 9002-9306 ● ●
21 RETAINER; TRIM,BED ROOM 1-73347-603-0 01 1 9307- ● ●
22 SHEET; SILENCER,CAB FLOOR 1-73367-013-0 01 1 9002- ● ●
22 SHEET; SILENCER,CAB FLOOR 1-73367-012-0 01 1 9002- ● ●
23 FINISHER; BACK INNER PANEL
INTERIOR FULL TRIM<WM3> 		1-73337-300-0 02 1 9002-9306 ● ●
23 FINISHER; BACK INNER PANEL
INTERIOR FULL TRIM<WM3> 		1-73337-438-0 02 1 9307- ● ●
23 FINISHER; BACK INNER PANEL
EXC. INTERIOR FULL TRIM<WM3> 		1-73337-264-0 02 1 9002- ● ●
26 TRIM; ROOM,BACK WINDOW CENTER UPR
INTERIOR FULL TRIM<WM3> 		1-73347-567-1 01 1 9002-9306 ● ●
26 TRIM; ROOM,BACK WINDOW CENTER UPR
INTERIOR FULL TRIM<WM3> 		1-73347-632-0 01 1 9307- ● ●
28 TRIM; ROOM,BACK WINDOW CENTER LWR
INTERIOR FULL TRIM<WM3> 		1-73347-569-1 01 1 9002-9306 ● ●
28 TRIM; ROOM,BACK WINDOW CENTER LWR
INTERIOR FULL TRIM<WM3> 		1-73347-633-0 01 1 9307- ● ●
42 SEAL; BACK OUTER PANEL
OD=36 T=0.05 BLACK 		5-76777-035-0 04 1 9002-9103 ● ●
42 SEAL; BACK OUTER PANEL
OD=36 T=0.05 BLACK 		5-76777-035-0 07 1 9104- ● ●
109 SEAL; HOLE
EXC. INTERIOR FULL TRIM<WM3> WHITE 		1-76777-076-0 03 1 9104- ● ●
109 SEAL; HOLE
EXC. INTERIOR FULL TRIM<WM3> OD=20 T=0.4 BLACK 		1-76798-020-0 03 1 9104- ● ●
