Sayfa 3-78 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 3 - Brakes, Brake System ▶ 3-78 - FIXING PARTS; AIR PIPING ▶

3-78 — FIXING PARTS; AIR PIPING (#28933) — 126 parça

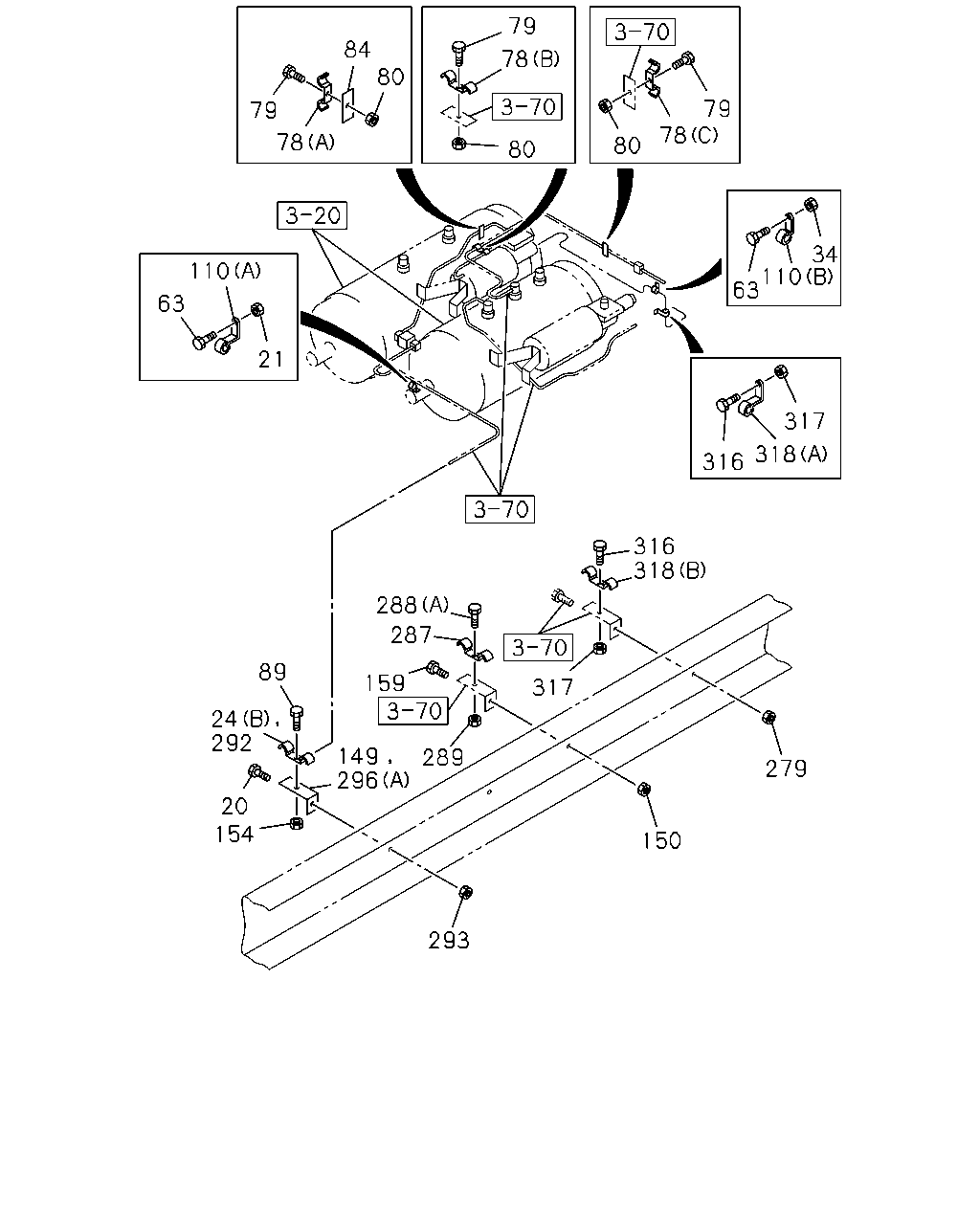

79 84 80 78 79 78 79 78 80 80 34 110 63 110 63 21 317 318 316 316 318 288 287 89 159 317 24 292 149 296 289 279 20 154 150 293

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
20	BOLT; CLIP M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●
20	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●
20	BOLT; CLIP M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
24	CLIP; PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-	●	●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	0106-	●	●
34	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
63	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●
78	CLIP; AIR PIPE (A) ID=16 & 13 L=18 & 17	1-09700-658-0	01	1	0106-	●	●
78	CLIP; AIR PIPE (B) ID=16 & 13 L=21.5 & 21.5	1-09700-668-0	01	1	0106-	●	●
78	CLIP; AIR PIPE (C) ID=13 & 7 L=20 & 17	1-09700-692-0	01	1	0106-	●	●
79	BOLT; PIPE CLIP M8X16 FLANGE	0-28080-816-0	03	1	0106-	●	●
80	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	03	1	0106-	●	●
84	BRACKET; PIPE CLIP L=50	1-47475-299-2	01	1	0106-	●	●
89	BOLT; PIPE CLIP M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (D) ID=24 L=27	1-09700-809-0	01	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	09	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	16	1	0106-	●	●
149	BRACKET; PIPE CLIP L=55	1-47475-304-0	01	1	0106-	●	●
150	NUT; CLIP BRKT M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
154	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
159	BOLT; CLIP BRKT M8X35 FLANGE	0-28680-835-0	01	1	0106-	●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0107	●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-	●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-	●	●
279	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
287	CLIP; AIR PIPE ID=16 & 7 L=18 & 15	1-09700-661-0	01	1	0106-	●	●
287	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (B) M8X20 FLANGE	0-28680-820-0	04	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●
289	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
292	CLIP; AIR PIPE ID=9 & 9 L=15 & 15	1-09700-654-0	01	1	0106-	●	●
292	CLIP; AIR PIPE ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	02	1	0106-	●	●
293	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0106-	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0106-	●	●
296	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	0106-	●	●
316	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-	●	●
317	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0106-	●	●
318	CLIP; AIR PIPE (A) ID=6 H=20 L=20	1-09700-603-0	01	1	0106-	●	●
318	CLIP; AIR PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-	●	●

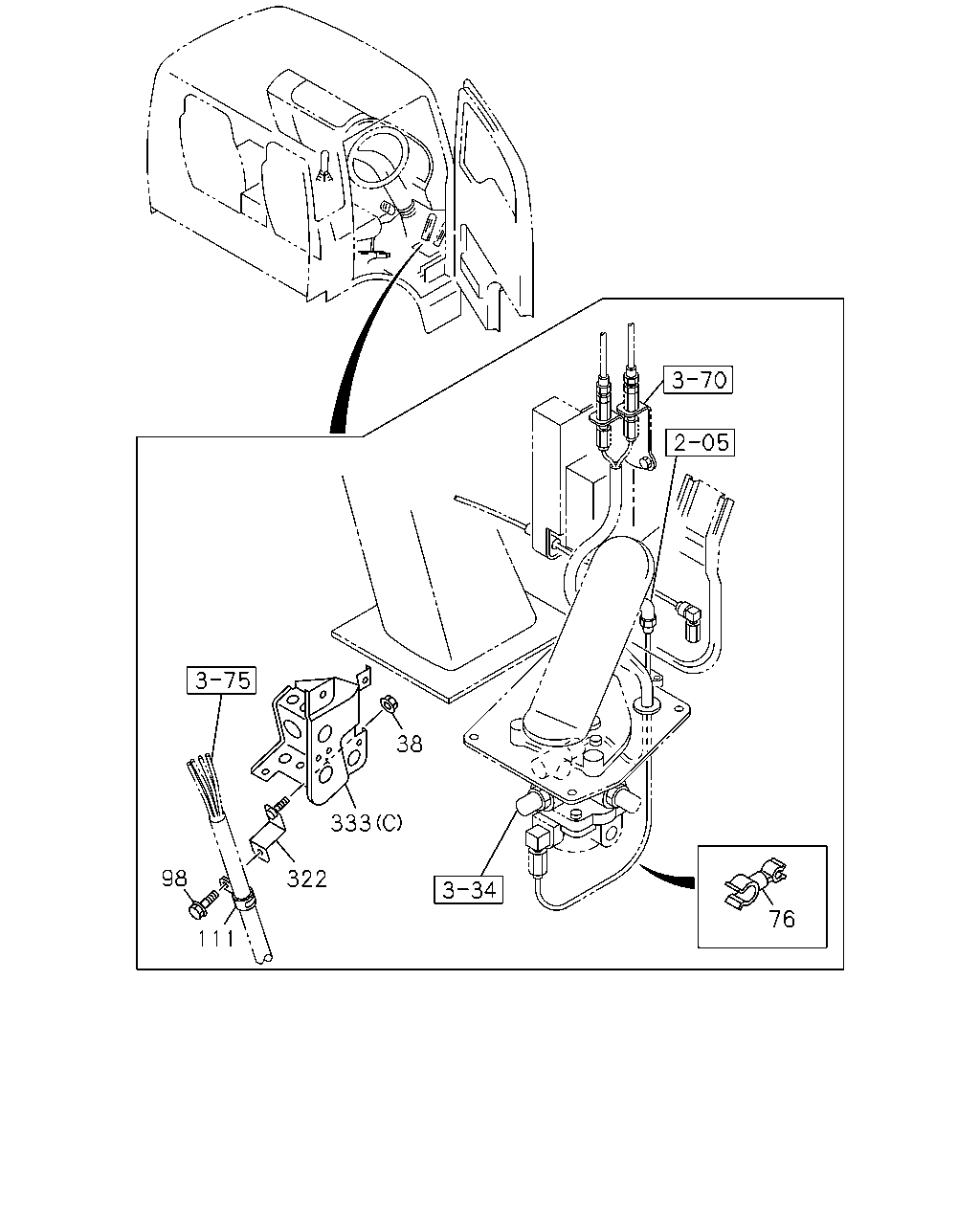

38 333 98 322 76 111

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
38	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
76	CLIP; NYLON TUBE ID=6 & 8.3	8-94167-742-0	02	1	0106-	●	●
98	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-	●	●
111	CLIP; AIR PIPE ID=35 L=33	1-09700-945-0	01	1	0106-	●	●
322	BRACKET; CLIP	1-79996-360-0	01	1	0106-	●	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-337-1	01	1	0106-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-47477-818-0	01	1	0106-	●	●
333	BRACKET; BRK AIR PIPE (C)	1-79997-360-6	01	1	0106-	●	●

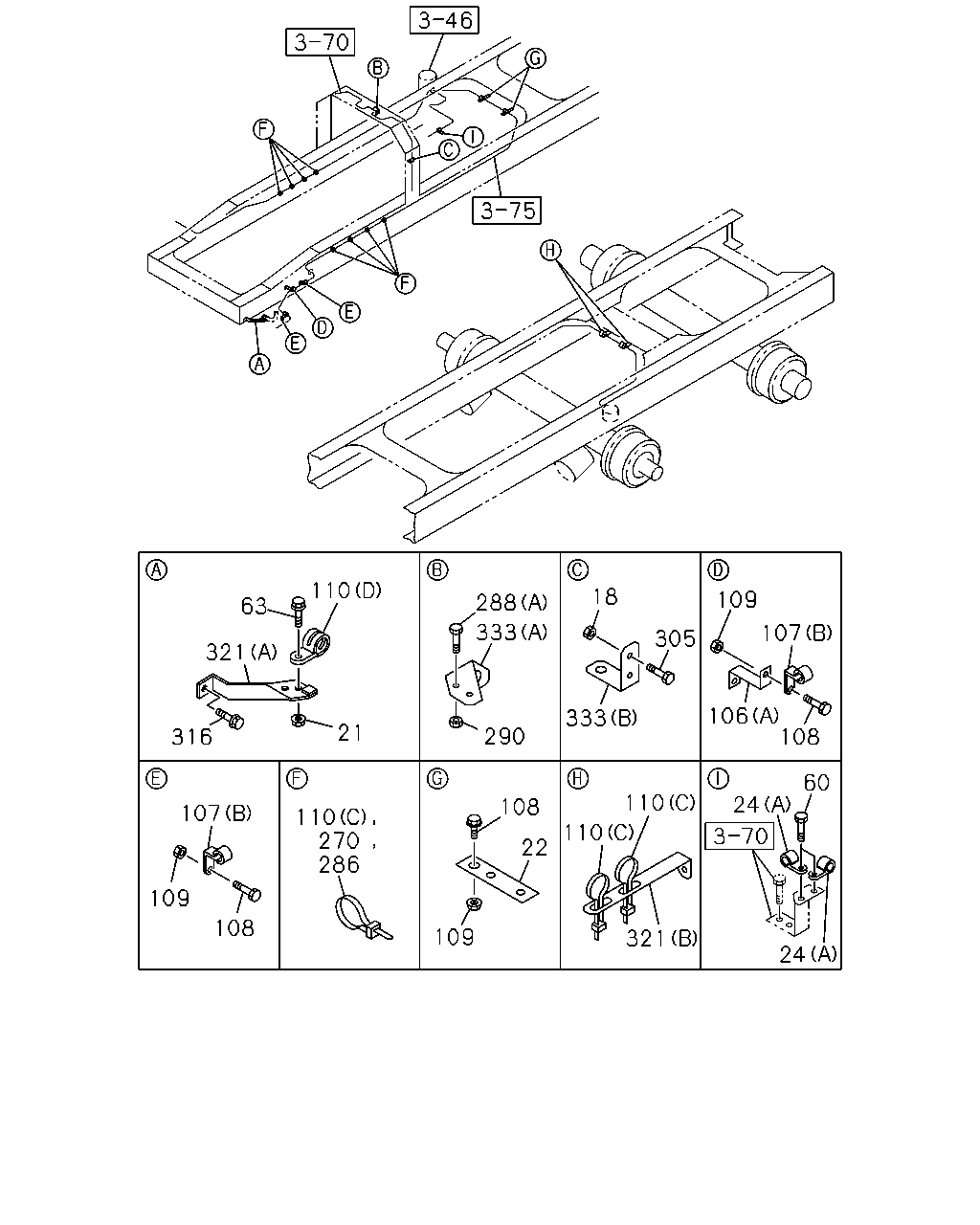

110 18 109 288 63 333 107 305 321 106 108 333 21 290 316 110 24 60 108 107 110 270 286 110 22 109 108 109 321 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
18	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
21	NUT; CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
22	BRACKET; CLIP L=130	1-47477-975-0	02	1	0106-	●	●
24	CLIP; PIPE (B) ID=7 & 7 L=17.5 & 17.5	1-09700-745-0	01	1	0106-	●	●
24	CLIP; PIPE (A) ID=16 L=20	9-09525-535-0	02	1	0106-	●	●
60	BOLT; CLIP FIX M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●
63	BOLT; CLIP M8X25 FLANGE	0-28680-825-0	03	1	0106-	●	●
106	BRACKET; TUBE CLIP (B) L=85	1-47476-758-0	01	1	0108-	●	●
106	BRACKET; TUBE CLIP (A)	1-47477-694-0	01	1	0106-	●	●
107	CLIP; NYLON TUBE (C) ID=28 L=40	1-09701-261-0	01	1	0108-	●	●
107	CLIP; NYLON TUBE (A) ID=12 H=24 L=20	1-09700-605-0	02	1	0106-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=28 H=45 L=30	1-09700-948-0	03	1	0106-0107	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=28 H=45 L=30	1-09700-948-0	02	1	0108-	●	●
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 H=30 L=35	1-09700-875-0	03	1	0106-0107	●	●
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0108-	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	05	1	0106-0107	●	●
108	BOLT; TUBE CLIP M8X25 FLANGE	0-28080-825-0	04	1	0108-	●	●
108	BOLT; TUBE CLIP M8X20 FLANGE	0-28080-820-0	01	1	0108-	●	●
108	BOLT; TUBE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
109	NUT; TUBE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (B) ID=15 H=24 L=20	1-09700-606-0	01	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (D) ID=24 L=27	1-09700-809-0	01	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (A) ID=35 H=45 L=33	1-09700-947-0	01	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	09	1	0106-	●	●
110	CLIP; BAND,NYLON TUBE (C) L=250	1-09707-126-0	16	1	0106-	●	●
270	CLIP; NYLON TUBE L=250	1-09707-126-0	02	1	0106-	●
270	CLIP; NYLON TUBE WHEEL BASE 5900MM(59W) L=250	1-09707-126-0	05	1	0106-		●
270	CLIP; NYLON TUBE WHEEL BASE 6300MM(63W) L=250	1-09707-126-0	06	1	0106-		●
286	CLIP; NYLON TUBE L=250	5-09707-030-1	01	1	0106-0109	●	●
286	CLIP; NYLON TUBE L=250	1-09707-126-0	01	1	0110-	●	●
288	BOLT; CLIP,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (B) M8X20 FLANGE	0-28680-820-0	04	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●
290	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
305	BOLT; CLIP BRKT M8X20 FLANGE	0-28680-820-0	02	1	0106-	●	●
316	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-	●	●
321	BRACKET; CLIP (A)	1-47477-632-0	01	1	0106-	●	●
321	BRACKET; CLIP (B) L=100	1-47477-645-2	01	1	0106-	●	●
333	BRACKET; BRK AIR PIPE (B)	1-47477-337-1	01	1	0106-	●	●
333	BRACKET; BRK AIR PIPE (A)	1-47477-818-0	01	1	0106-	●	●
333	BRACKET; BRK AIR PIPE (C)	1-79997-360-6	01	1	0106-	●	●

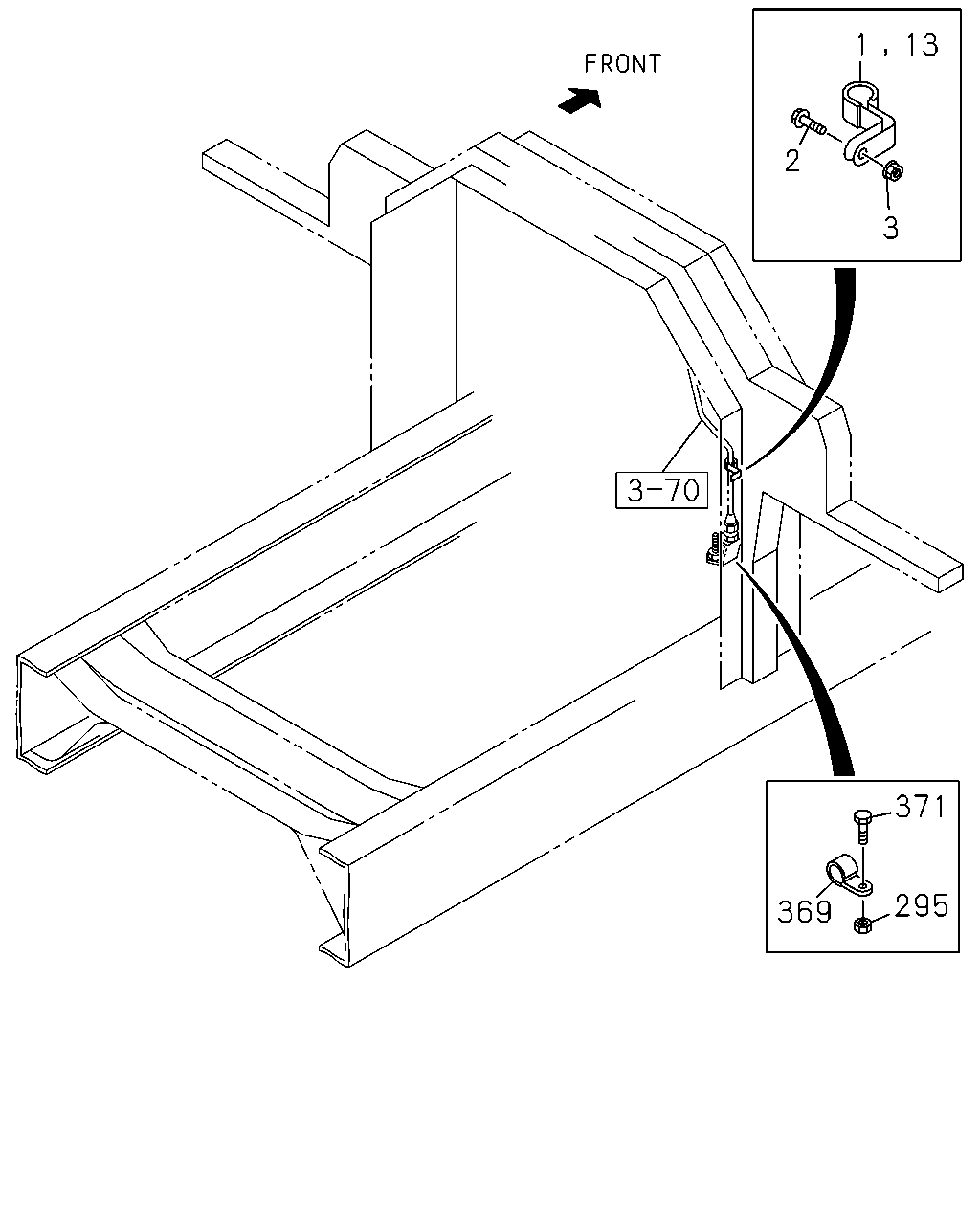

13 1 2 3 371 295 369

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	01	1	0106-	●	●
2	BOLT; CLIP FIX M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●
3	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0106-	●	●
295	NUT; CLIP,AIR PIPE M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
369	CLIP; AIR PIPE ID=7 L=20	9-09524-635-0	01	1	0106-	●	●
371	BOLT; CLIP,AIR PIPE M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●

296 297 106 279 288 107 133 107 13 254 316

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	CLIP; AIR PIPE ID=6 H=20 L=20	1-09700-603-0	02	1	0106-	●	●
106	BRACKET; TUBE CLIP (B) L=85	1-47476-758-0	01	1	0108-	●	●
106	BRACKET; TUBE CLIP (A)	1-47477-694-0	01	1	0106-	●	●
107	CLIP; NYLON TUBE (C) ID=28 L=40	1-09701-261-0	01	1	0108-	●	●
107	CLIP; NYLON TUBE (A) ID=12 H=24 L=20	1-09700-605-0	02	1	0106-	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=28 H=45 L=30	1-09700-948-0	03	1	0106-0107	●	●
107	CLIP; NYLON TUBE SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=28 H=45 L=30	1-09700-948-0	02	1	0108-	●	●
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 H=30 L=35	1-09700-875-0	03	1	0106-0107	●	●
107	CLIP; NYLON TUBE EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) ID=25 H=30 L=35	1-09700-875-0	02	1	0108-	●	●
133	BOLT; BRKT M8X20 FLANGE	0-28080-820-0	01	1	0108-	●	●
254	BOLT; PIPE CLIP M8X20 W/LK&PL WASHER	8-94279-208-0	05	1	0106-0204	●	●
254	BOLT; PIPE CLIP M8X20.5 W/LK&PL WASHER	8-94279-207-0	05	1	0205-	●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0106-0107	●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-	●	●
279	NUT; BRKT M8 FLANGE	0-91150-108-0	01	1	0108-	●	●
279	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (A) M8X16 FLANGE	0-28080-816-0	01	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (B) M8X20 FLANGE	0-28680-820-0	04	1	0106-	●	●
288	BOLT; CLIP,AIR PIPE (A) M8X20 FLANGE	0-28680-820-0	01	1	0106-	●	●
296	BRACKET; CLIP (B) L=50	1-47475-299-2	01	1	0106-	●	●
296	BRACKET; CLIP (A) L=55	1-47475-304-0	01	1	0106-	●	●
297	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
316	BOLT; CLIP M8X20 FLANGE	0-28680-820-0	03	1	0106-	●	●
316	BOLT; CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-	●	●
