3-70 — BRAKE PIPING; AIR,AIR MASTER (#28930) — 165 parça

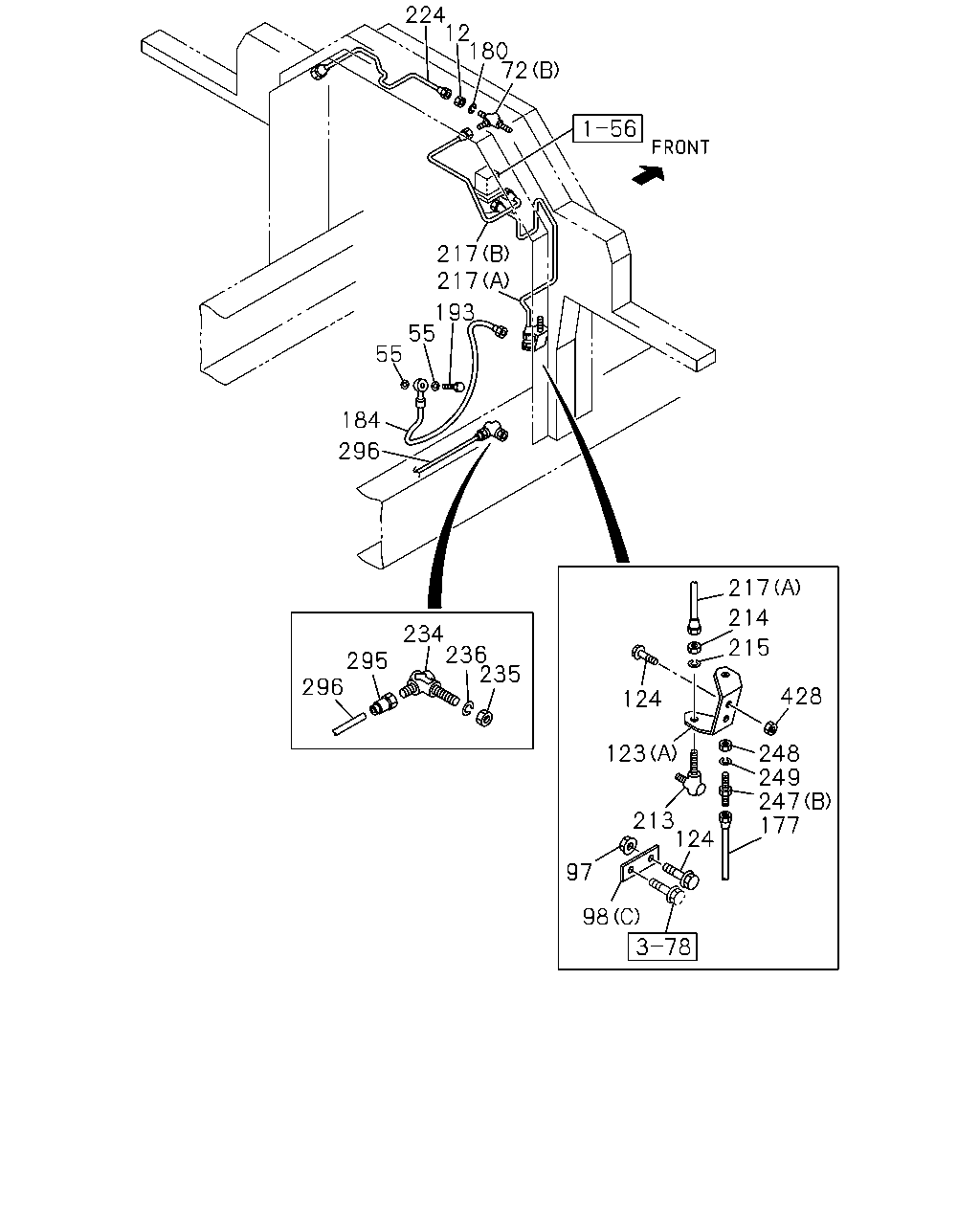

çizim 80050
224 12 180 72 217 217 193 55 55 184 296 217 214 234 236 235 215 295 296 428 124 123 248 249 247 177 213 124 97 98
BalonParca AdiParca NoAdetTipApplied Date A B
12 NUT; UNION
M12 		9-09840-280-0 01 1 0106- ● ●
12 NUT; UNION
M20 		9-99111-420-0 01 1 0106- ● ●
55 GASKET; AIR PIPE
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0106- ● ●
72 UNION; AIR PIPE
(A) 		1-09654-097-1 01 1 0106- ● ●
72 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0106- ● ●
97 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(B) L=55 		1-47475-304-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(C) 		1-47475-648-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47477-840-0 02 1 0106- ● ●
123 BRACKET; UNION
(D) 		1-53458-742-2 01 1 0111-0302 ● ●
123 BRACKET; UNION
(D) 		1-53458-741-2 01 1 0303- ● ●
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0106- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> (C) 		1-47477-188-1 01 1 0106- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q> (B) 		1-47477-187-0 01 1 0106- ● ●
124 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
124 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
124 BOLT; BRKT
M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ●
177 PIPE; AIR,UNION TO UNION
L=913 SERVICED BY L=1000 		1-47428-814-0 01 1 0106- ● ●
180 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0106- ● ●
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0106- ● ●
184 HOSE; FLEX,AIR GOV
L=370 		0-07532-370-1 01 1 0106- ● ●
193 BOLT; EYE,FLEX HOSE,GOV LINE
M14X27 FLANGE 		1-09675-086-0 01 1 0106- ● ●
213 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0106- ● ●
214 NUT; UNION,AIR PIPE
M12 		9-09840-280-0 01 1 0106- ● ●
215 WASHER; LK,UNION,AIR PIPE
ID=12.2 		9-09150-512-0 01 1 0106- ● ●
217 PIPE; VAC,UNION TO MAG VLV
(A) L=620 		1-49121-778-0 01 1 0106- ● ●
217 PIPE; VAC,UNION TO MAG VLV
(B) L=552 		1-49121-876-0 01 1 0106- ● ●
224 PIPE; AIR,UNION TO FLEX HOSE
L=494 SERVICED BY L=500 		1-47428-807-0 01 1 0106- ● ●
234 UNION; AIR PIPE
M12 ELBOW 		9-09225-206-1 01 1 0106- ● ●
235 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0106- ● ●
236 WASHER; LK,UNION,PIPE
ID=12.2 		9-09150-512-0 01 1 0106- ● ●
247 UNION; AIR PIPE
(B) M12 		1-09654-087-1 01 1 0106- ● ●
247 UNION; AIR PIPE
(A) M12 L=40 		9-09223-006-1 01 1 0106- ● ●
248 NUT; PIPE UNION
M12 		9-09840-280-0 01 1 0106- ● ●
249 WASHER; LK,PIPE UNION
ID=12.2 		9-09150-512-0 01 1 0106- ● ●
295 CONNECTOR; NYLON TUBE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0106- ●
295 CONNECTOR; NYLON TUBE
DIN6 & M12 STRAIGHT 		1-09661-379-0 01 1 0106- ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0203- ● ●
428 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●

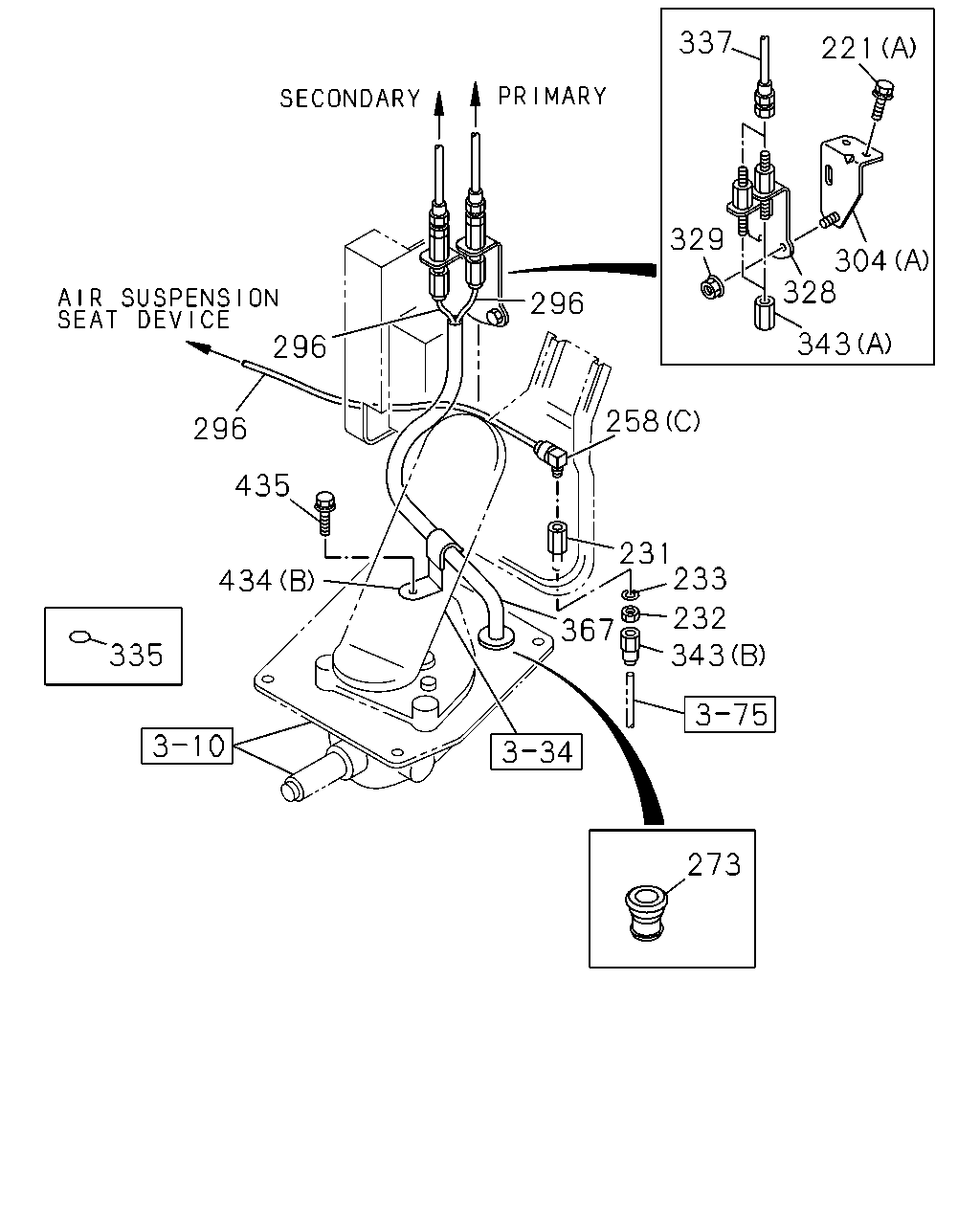

çizim 80767
337 221 329 304 328 296 343 296 258 296 435 231 233 434 232 343 367 335 273
BalonParca AdiParca NoAdetTipApplied Date A B
221 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0106- ●
221 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
231 UNION; AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) 		1-09656-713-2 01 1 0106- ● ●
232 NUT; UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) M10 H=8 		1-09400-029-0 01 1 0106- ● ●
233 WASHER; LK,UNION,AIR PIPE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) ID=10.2 		9-09150-510-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0106-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
273 GROMMET 1-09332-135-0 01 1 0106- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0203- ● ●
304 BRACKET; UNION
(B) 		1-47477-182-1 01 1 0106- ●
304 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) (B) 		1-47477-182-1 01 1 0106- ●
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0106- ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) (B) 		1-47477-184-1 01 1 0106- ●
328 UNION; AIR PIPE 1-47470-442-0 01 1 0106- ● ●
329 NUT; UNION,AIR PIPE
M6 FLANGE 		0-91150-106-0 01 1 0106- ● ●
335 SEAL; UNION
EXC. SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) OD=30 BLACK 		1-76798-035-0 01 1 0106- ● ●
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=520 		0-07210-520-0 02 1 0106- ● ●
343 UNION; NYLON TUBE
(A) 		1-09660-796-1 02 1 0106- ● ●
343 UNION; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (B) 		1-09661-382-0 01 1 0106- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0202 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87410-089-0 AR 1 0106- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0203- ● ●
434 CLIP
(A) L=250 		1-09707-126-0 01 1 0106- ● ●
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0106- ● ●
435 BOLT; CLIP
M8X20 W/LK&PL WASHER 		8-94279-208-0 01 1 0106- ● ●

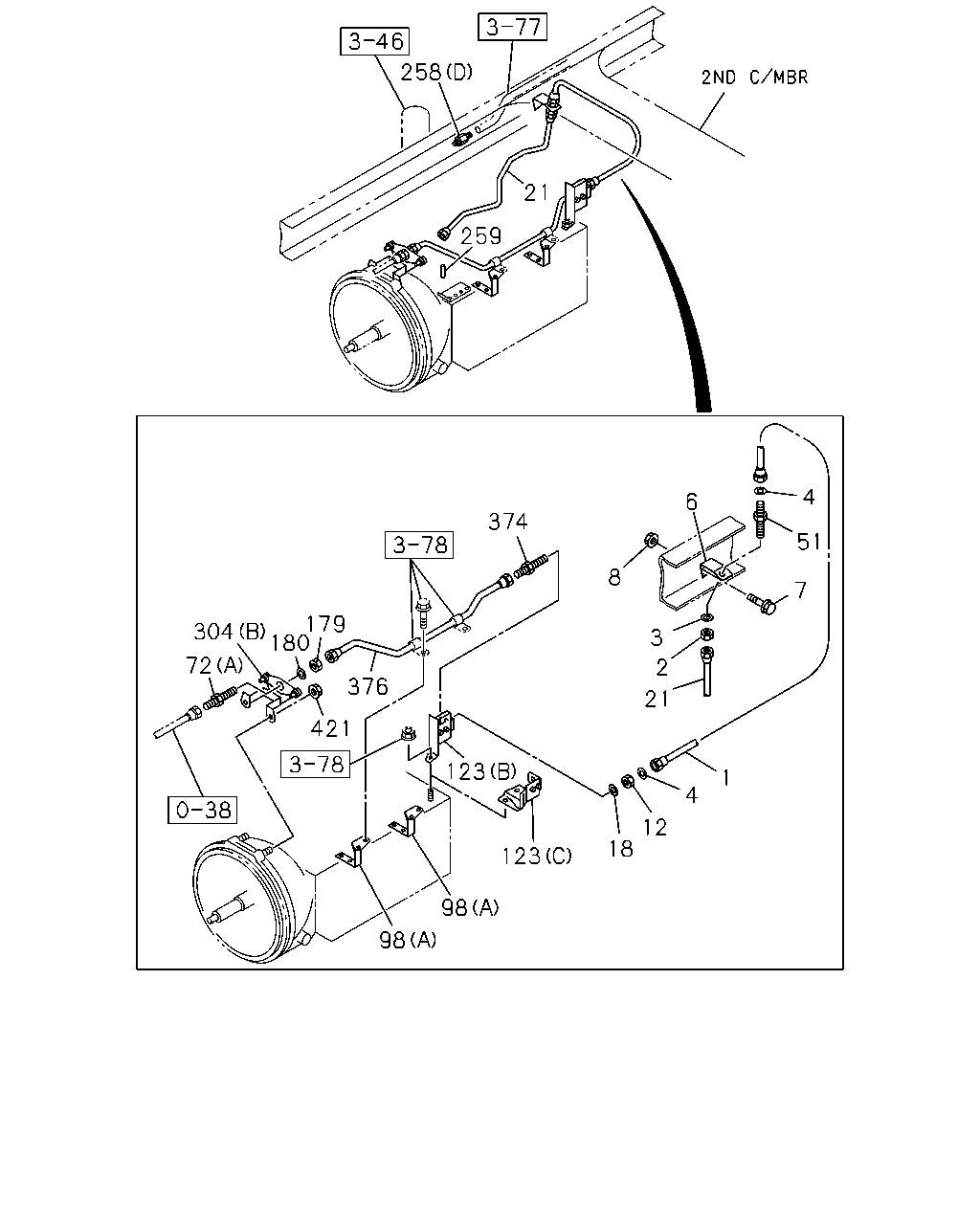

çizim 80799
258 21 259 4 6 374 51 8 7 179 304 180 3 72 2 376 21 421 123 1 4 12 18 123 98 98
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,AIR TANK
L=440 		0-07846-440-1 01 1 0106- ● ●
2 NUT; FLEX HOSE,AIR TANK
M20 		9-99111-420-0 01 1 0106- ● ●
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=20.2 		9-09150-520-0 01 1 0106- ● ●
4 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 03 1 0106- ● ●
6 BRACKET; FLEX HOSE,AIR TANK 1-47477-661-0 01 1 0106- ● ●
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X35 FLANGE 		0-28680-835-0 02 1 0106- ● ●
8 NUT; BRKT,FLEX HOSE,AIR TANK
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
12 NUT; UNION
M12 		9-09840-280-0 01 1 0106- ● ●
12 NUT; UNION
M20 		9-99111-420-0 01 1 0106- ● ●
18 WASHER; LK,UNION
ID=20.2 		9-09150-520-0 01 1 0106- ● ●
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-082-0 01 1 0106- ● ●
51 UNION
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0106- ● ●
72 UNION; AIR PIPE
(A) 		1-09654-097-1 01 1 0106- ● ●
72 UNION; AIR PIPE
(B) M12 3WAY 		9-09228-906-1 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(B) L=55 		1-47475-304-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(C) 		1-47475-648-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47477-840-0 02 1 0106- ● ●
123 BRACKET; UNION
(D) 		1-53458-742-2 01 1 0111-0302 ● ●
123 BRACKET; UNION
(D) 		1-53458-741-2 01 1 0303- ● ●
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0106- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> (C) 		1-47477-188-1 01 1 0106- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q> (B) 		1-47477-187-0 01 1 0106- ● ●
179 NUT; UNION
M22 		9-09111-422-0 01 1 0106- ● ●
180 WASHER; LK,UNION
ID=12.2 		9-09150-512-0 01 1 0106- ● ●
180 WASHER; LK,UNION
ID=22.5 		9-09150-522-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0106-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
259 SLEEVE; RUBBER,NYLON TUBE
L=175 		1-09707-178-0 01 1 0109- ● ●
304 BRACKET; UNION
(B) 		1-47477-182-1 01 1 0106- ●
304 BRACKET; UNION
EXC. ENGINE REAR PTO(SV1) (B) 		1-47477-182-1 01 1 0106- ●
304 BRACKET; UNION
(A) 		1-71117-211-0 01 1 0106- ● ●
304 BRACKET; UNION
ENGINE REAR PTO(SV1) (B) 		1-47477-184-1 01 1 0106- ●
374 CONNECTOR
M20 & M22 STRAIGHT 		1-09654-166-1 01 1 0106- ● ●
376 PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T> L=643 		1-49112-568-0 01 1 0106- ●
376 PIPE; AIR,FLEX HOSE
MAG6 M/T<X9T> EXC. ENGINE REAR PTO(SV1) L=643 		1-49112-568-0 01 1 0106- ●
376 PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q> L=639 		1-49112-566-0 01 1 0106- ●
376 PIPE; AIR,FLEX HOSE
MJA7 M/T<X9Q> EXC. ENGINE REAR PTO(SV1) L=639 		1-49112-566-0 01 1 0106- ●
376 PIPE; AIR,FLEX HOSE
ENGINE REAR PTO(SV1) MAG6 M/T<X9T> L=685 		1-49112-569-0 01 1 0106- ●
421 NUT; BRKT
M10 FLANGE 		0-91150-210-0 02 1 0106- ● ●

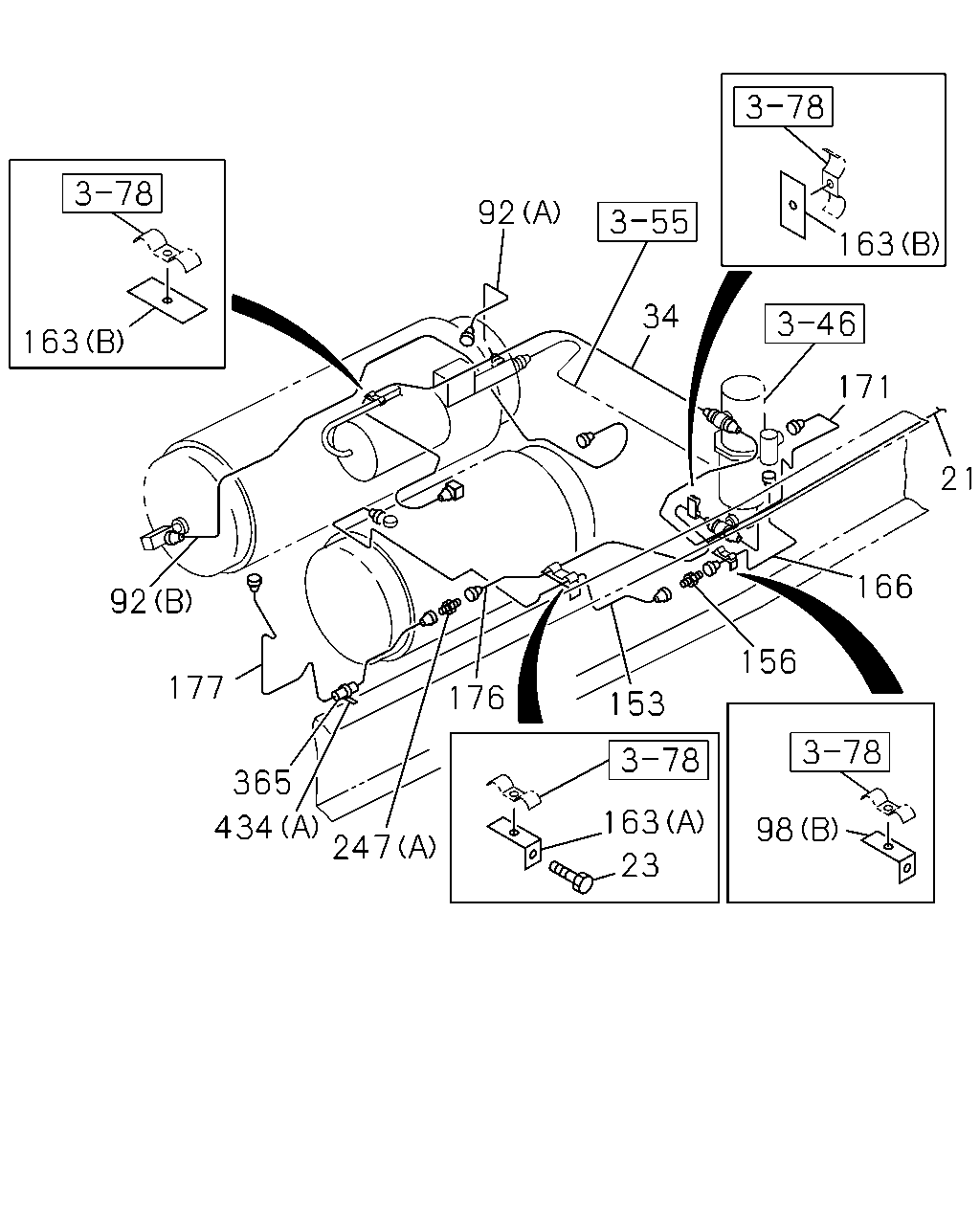

çizim 82171
92 163 34 163 171 21 166 92 156 177 176 153 365 163 434 247 98 23
BalonParca AdiParca NoAdetTipApplied Date A B
21 PIPE; AIR,UNION TO AIR DRYER 1-49123-082-0 01 1 0106- ● ●
23 BOLT; BRKT,AIR PIPE
M8X35 FLANGE 		0-28680-835-0 01 1 0106- ● ●
34 PIPE; AIR 1-49122-881-0 01 1 0106- ● ●
92 PIPE; AIR,AIR TANK TO AIR MASTER
(A) L=541 		1-47492-107-0 01 1 0106- ● ●
92 PIPE; AIR,AIR TANK TO AIR MASTER
(B) L=1509 		1-49116-233-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(B) L=55 		1-47475-304-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(C) 		1-47475-648-0 01 1 0106- ● ●
98 BRACKET; AIR PIPE
(A) 		1-47477-840-0 02 1 0106- ● ●
153 PIPE; AIR,AIR TANK TO UNION 1-49123-094-0 01 1 0106- ● ●
156 UNION; AIR PIPE
M12 L=40 		9-09223-006-1 01 1 0106- ● ●
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 02 1 0106- ● ●
163 BRACKET; AIR PIPE
(B) L=50 		1-47475-299-2 01 1 0106- ● ●
163 BRACKET; AIR PIPE
(A) L=55 		1-47475-304-0 01 1 0106- ● ●
166 PIPE; AIR,UNION TO GOV
L=464 		1-49119-765-0 01 1 0106- ● ●
171 PIPE; AIR,GOV TO AIR DRYER
L=667 		1-49119-766-0 01 1 0106- ● ●
176 PIPE; AIR,AIR DRYER TO UNION 1-49122-886-0 01 1 0106- ● ●
177 PIPE; AIR,UNION TO UNION
L=913 SERVICED BY L=1000 		1-47428-814-0 01 1 0106- ● ●
247 UNION; AIR PIPE
(B) M12 		1-09654-087-1 01 1 0106- ● ●
247 UNION; AIR PIPE
(A) M12 L=40 		9-09223-006-1 01 1 0106- ● ●
365 SLEEVE; RUBBER,FLEX HOSE 1-09368-625-0 01 1 0106- ● ●
434 CLIP
(A) L=250 		1-09707-126-0 01 1 0106- ● ●
434 CLIP
(B) ID=17 		8-94449-734-1 01 1 0106- ● ●

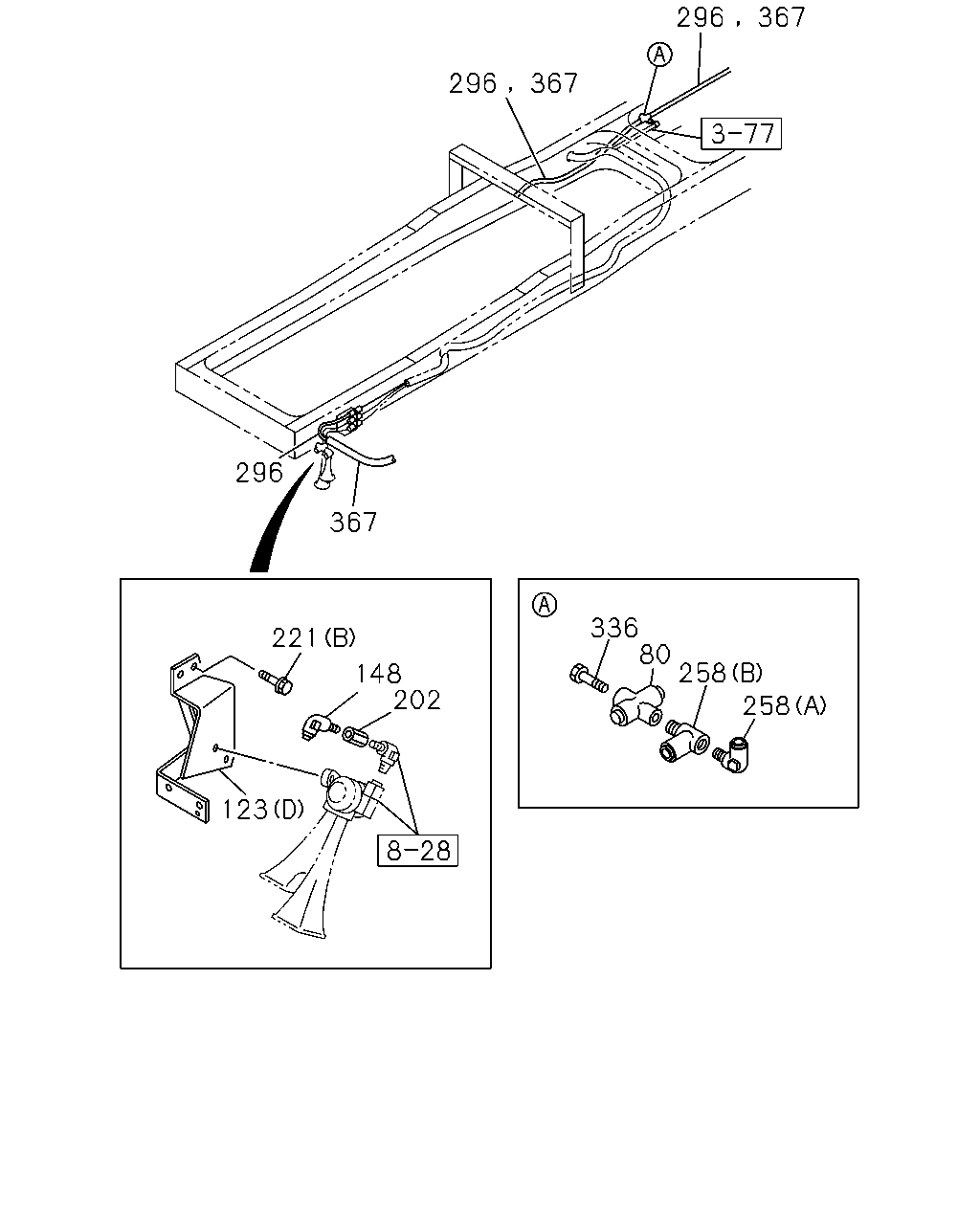

çizim 82853
296 367 296 367 296 367 336 80 258 258 221 148 202 123
BalonParca AdiParca NoAdetTipApplied Date A B
80 UNION; 3 WAY
DIN8 & DIN12 & R3/8 3WAY 		1-09661-130-0 01 1 0106- ● ●
123 BRACKET; UNION
(D) 		1-53458-742-2 01 1 0111-0302 ● ●
123 BRACKET; UNION
(D) 		1-53458-741-2 01 1 0303- ● ●
123 BRACKET; UNION
(A) 		1-47477-045-0 01 1 0106- ● ●
123 BRACKET; UNION
MAG6 M/T<X9T> (C) 		1-47477-188-1 01 1 0106- ● ●
123 BRACKET; UNION
MJA7 M/T<X9Q> (B) 		1-47477-187-0 01 1 0106- ● ●
148 CONNECTOR; UNION
DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0111- ● ●
202 ADAPTER
M12 & RC1/4 STRAIGHT 		1-09660-885-0 02 1 0111- ● ●
221 BOLT; BRKT
(B) M10X35 FLANGE 		0-28681-035-0 02 1 0106- ●
221 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(D) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(A) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
(B) DIN12 & RC1/4 & R3/8 3WAY 		1-09661-132-0 01 1 0106- ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) DIN8 R1/8 ELBOW 		1-09660-644-1 01 1 0106-0302 ● ●
258 CONNECTOR; NYLON TUBE
SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL) (C) TRI LC6X4-R1/8 		1-09660-760-1 01 1 0303- ● ●
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=4000 OD=8 		1-87410-074-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=6000 OD=8 		1-87410-075-0 AR 1 0106- ● ●
296 TUBE; NYLON
SERVICED BY L=2000 OD=6 		1-87411-001-0 AR 1 0203- ● ●
336 BOLT; PIPE UNION
M8X20 FLANGE 		0-28080-820-0 01 1 0106- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 AR 1 0106-0202 ● ●
367 TUBE; CORRUGATE
SERVICED BY L=4000 ID=10 		1-87410-089-0 AR 1 0106- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=13 		1-87410-091-0 AR 1 0106- ● ●
367 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87411-019-0 AR 1 0203- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
