Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#28929) — 43 parça
Tümü
A - CXZ5MC
B - CXZ5MF
◀

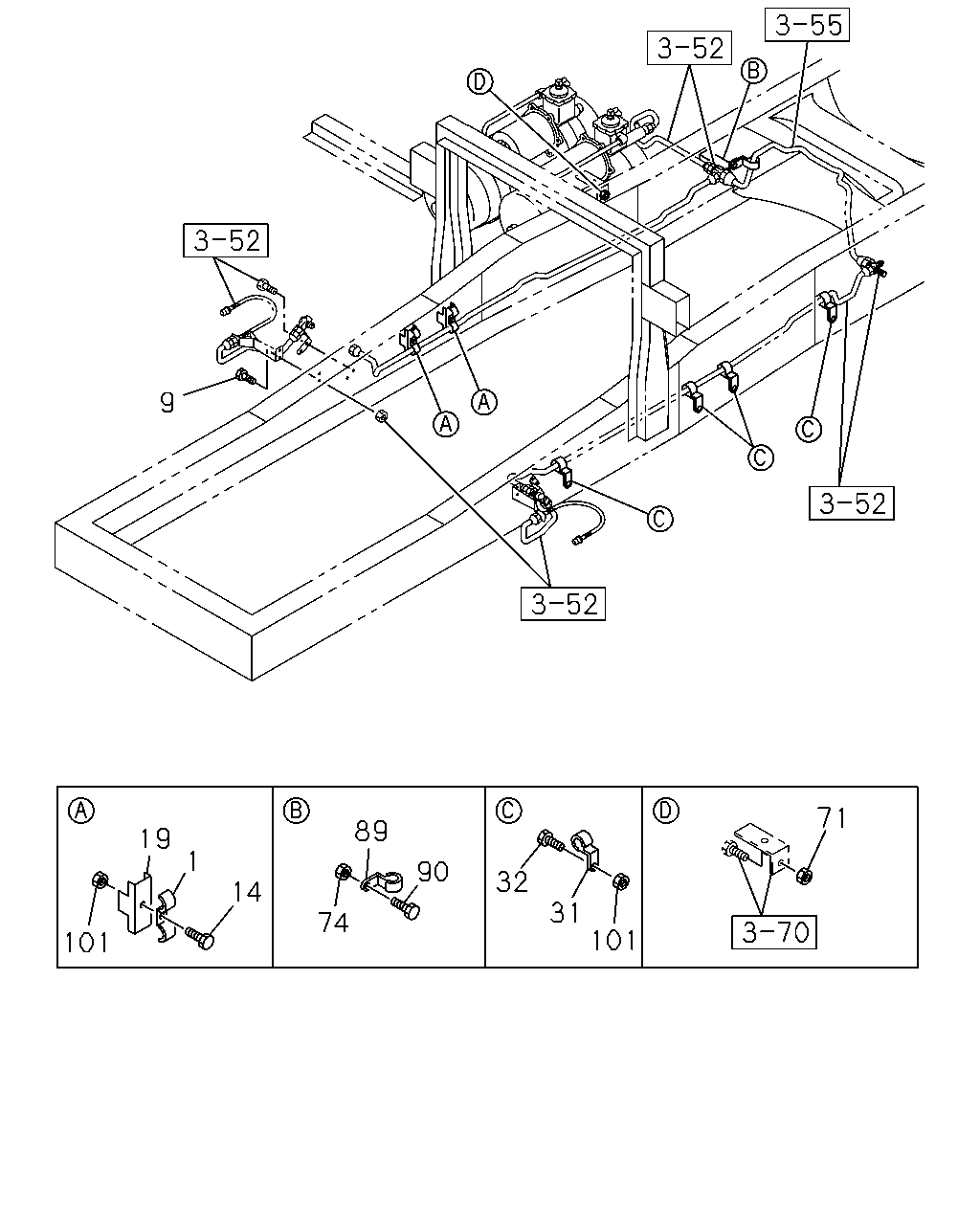

[358A] FRAME SIDE;FRONT (12 parça)

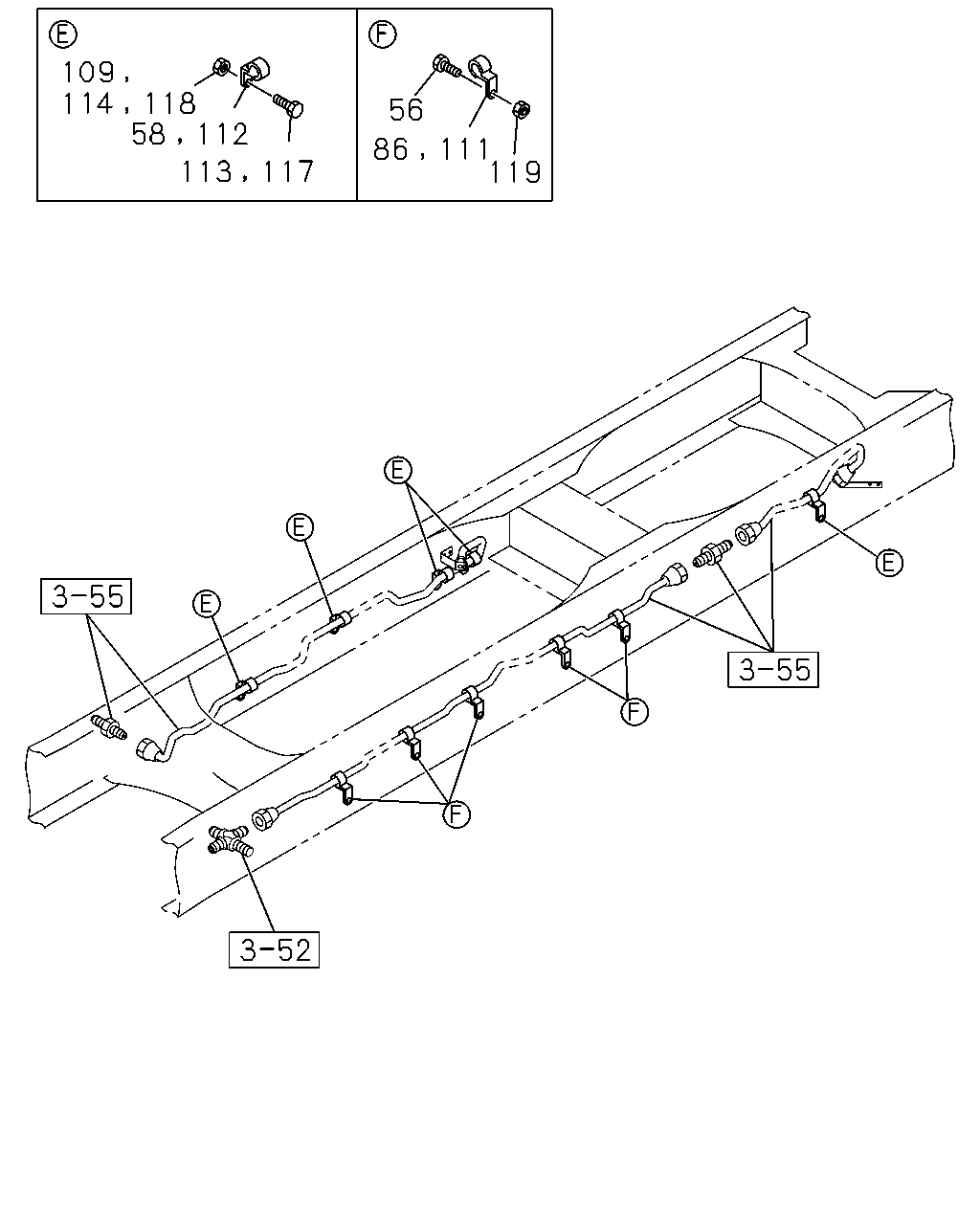

[358A] FRAME SIDE;REAR (27 parça)

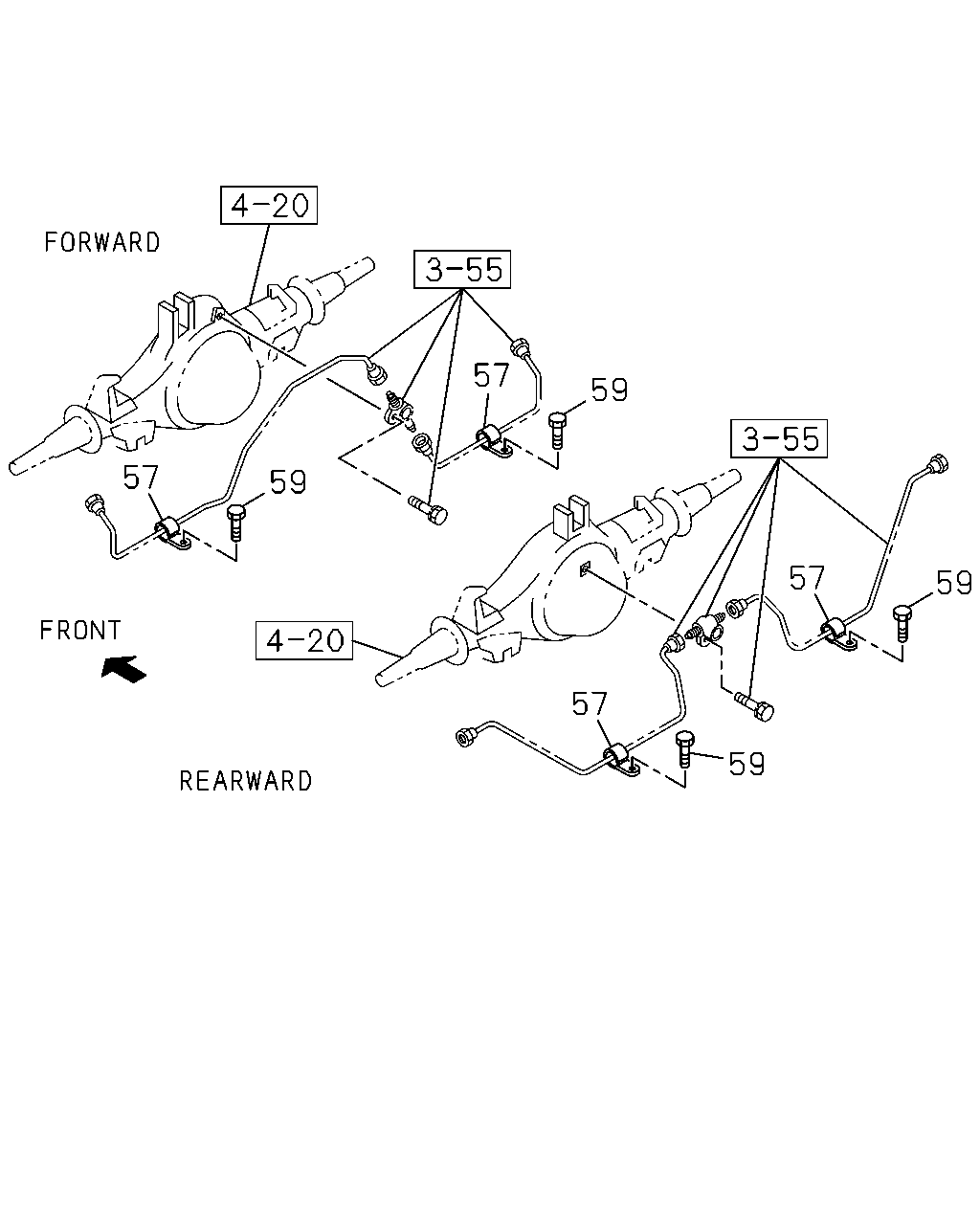

[358A] REAR AXLE SIDE (4 parça)
▶
9
71
89
19
1
90
32
14
31
74
101
101
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
CLIP; OIL PIPE TO BODY
ID=7 & 9 L=17.5 & 17.5
1-09700-746-0
02
1
0106-
●
●
9
BOLT; BRKT
M8X35 FLANGE
0-28680-835-0
02
1
0106-
●
●
14
BOLT; CLIP,OIL PIPE
M8X45 FLANGE
0-28080-845-0
02
1
0106-
●
●
19
BRACKET; OIL PIPE
1-47475-427-1
02
1
0106-
●
●
31
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
04
1
0106-
●
●
32
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28680-830-0
04
1
0106-
●
●
71
NUT; BRKT
M8 FLANGE
0-91150-108-0
01
1
0106-
●
●
74
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
02
1
0106-
●
●
89
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
02
1
0106-
●
●
90
BOLT; CLIP,OIL PIPE
M8X25 FLANGE
0-28680-825-0
01
1
0106-
●
●
90
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28680-830-0
04
1
0106-
●
●
101
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
06
1
0106-
●
●
109
58
112
56
86
111
119
113
117
114
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
56
BOLT; CLIP
M8X30 FLANGE
0-28680-830-0
05
1
0106-
●
56
BOLT; CLIP
WHEEL BASE 6300MM(63W) M8X30 FLANGE
0-28680-830-0
05
1
0106-
●
56
BOLT; CLIP
WHEEL BASE 5900MM(59W) M8X30 FLANGE
0-28680-830-0
04
1
0106-
●
58
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
04
1
0106-
●
58
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
01
1
0106-
●
58
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
11
1
0106-
●
86
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
05
1
0106-
●
86
CLIP; OIL PIPE
WHEEL BASE 6300MM(63W) ID=6 H=20 L=20
1-09700-603-0
05
1
0106-
●
86
CLIP; OIL PIPE
WHEEL BASE 5900MM(59W) ID=6 H=20 L=20
1-09700-603-0
04
1
0106-
●
109
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
03
1
0106-
●
●
111
CLIP; OIL PIPE
ID=6 H=20 L=20
1-09700-603-0
03
1
0106-
●
●
112
CLIP; OIL PIPE
WHEEL BASE 5900MM(59W) ID=6 H=20 L=20
1-09700-603-0
02
1
0106-
●
112
CLIP; OIL PIPE
WHEEL BASE 6300MM(63W) ID=6 H=20 L=20
1-09700-603-0
03
1
0106-
●
113
BOLT; CLIP,OIL PIPE
WHEEL BASE 5900MM(59W) M8X30 FLANGE
0-28680-830-0
02
1
0106-
●
113
BOLT; CLIP,OIL PIPE
WHEEL BASE 6300MM(63W) M8X30 FLANGE
0-28680-830-0
03
1
0106-
●
114
NUT; CLIP,OIL PIPE
WHEEL BASE 5900MM(59W) M8 FLANGE
0-91150-108-0
02
1
0106-
●
114
NUT; CLIP,OIL PIPE
WHEEL BASE 6300MM(63W) M8 FLANGE
0-91150-108-0
03
1
0106-
●
117
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28680-830-0
04
1
0106-
●
117
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28680-830-0
01
1
0106-
●
117
BOLT; CLIP,OIL PIPE
M8X30 FLANGE
0-28680-830-0
07
1
0106-
●
117
BOLT; CLIP,OIL PIPE
M8X40 FLANGE
0-28680-840-0
04
1
0106-
●
118
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
04
1
0106-
●
118
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
01
1
0106-
●
118
NUT; CLIP,OIL PIPE
M8 FLANGE
0-91150-108-0
11
1
0106-
●
119
NUT; CLIP
M8 FLANGE
0-91150-108-0
05
1
0106-
●
119
NUT; CLIP
WHEEL BASE 6300MM(63W) M8 FLANGE
0-91150-108-0
05
1
0106-
●
119
NUT; CLIP
WHEEL BASE 5900MM(59W) M8 FLANGE
0-91150-108-0
04
1
0106-
●
57
59
57
59
57
59
57
59
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
9-09524-635-0
03
1
0106-
●
●
57
CLIP; BRK PIPE,RR AXLE
ID=7 L=20
9-09524-635-0
04
1
0106-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28080-810-0
03
1
0106-
●
●
59
BOLT; BRK PIPE,RR AXLE
M8X10 FLANGE
0-28080-810-0
04
1
0106-
●
●
