Sayfa 3-55 - Isuzu EPC

3-55 — BRAKE PIPING; OIL,REAR (#28928) — 71 parça

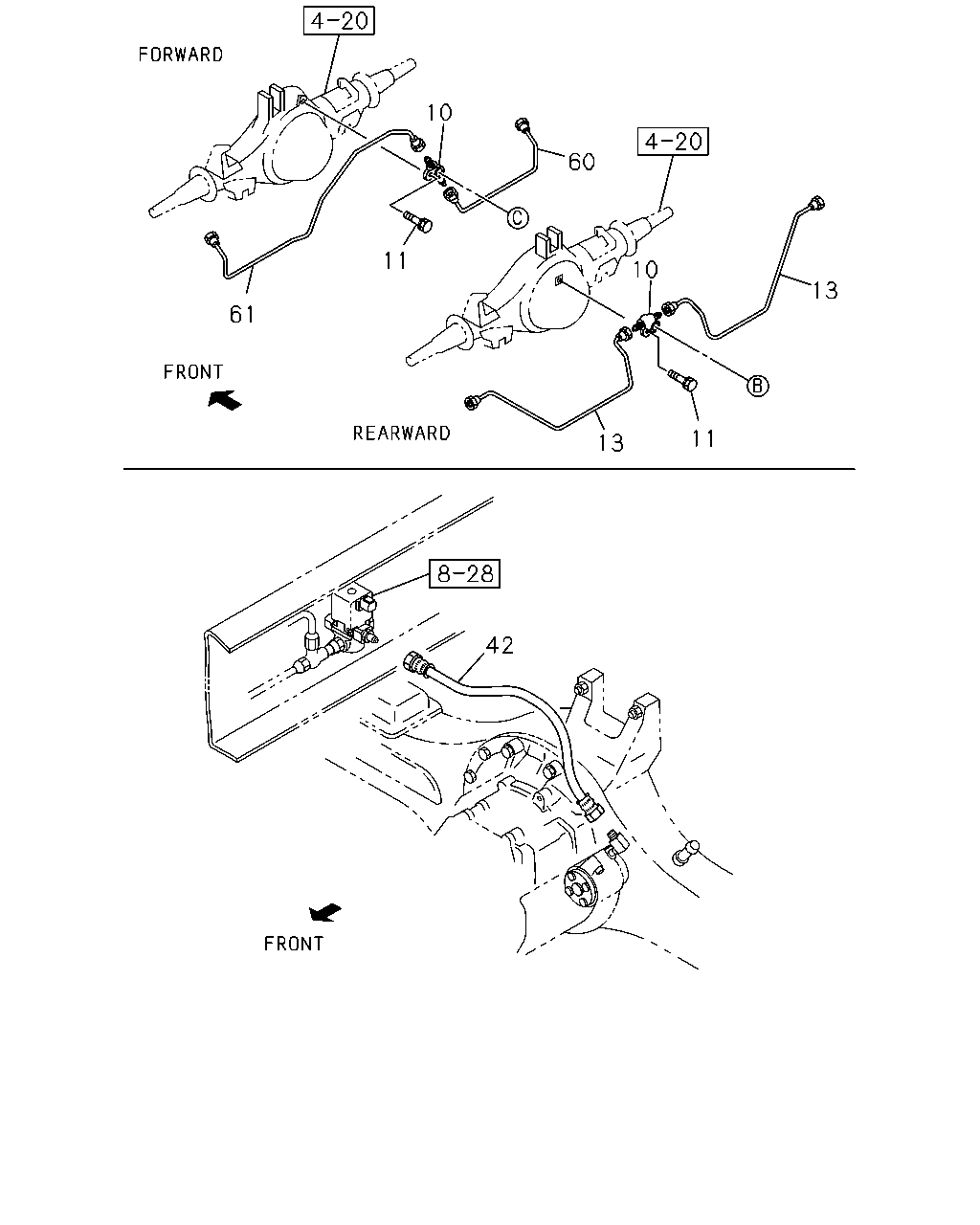

10 60 11 10 13 61 11 13 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0106-	●	●
10	NIPPLE; RR AXLE CASE	9-09903-668-3	01	1	0106-	●	●
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0106-	●	●
11	BOLT; NIPPLE,RR AXLE CASE M10X25 W/LK WASHER	0-50041-025-0	01	1	0106-	●	●
13	PIPE; BRK,RR AXLE L=871	1-47426-907-0	01	1	0106-	●	●
13	PIPE; BRK,RR AXLE L=1002	1-47426-906-0	01	1	0106-	●	●
42	HOSE; FLEX,DIFF LOCK L=580	1-09363-641-0	01	1	0106-	●	●
60	PIPE ASM; BRK L=793	1-47427-916-0	01	1	0106-	●	●
61	PIPE ASM; BRK L=1207	1-47426-905-0	01	1	0106-	●	●

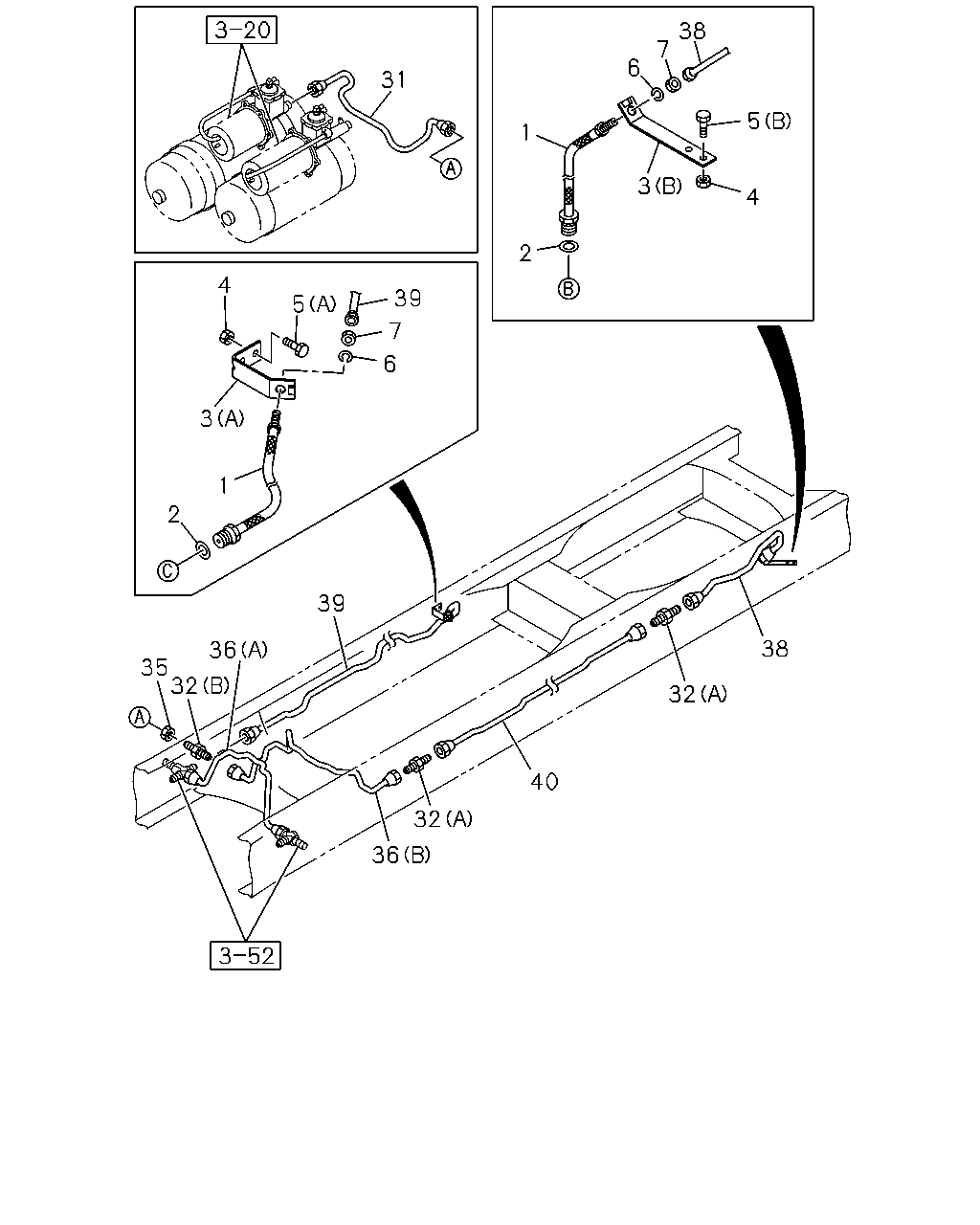

38 7 6 31 5 1 3 4 2 4 39 5 7 6 3 1 2 39 38 32 36 35 32 33 32 40 32 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=450	1-09364-188-0	01	1	0106-	●	●
1	HOSE; FLEX,RR BRK L=450	1-09364-188-0	01	1	0106-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0106-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0106-	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47475-357-2	01	1	0106-	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-573-1	01	1	0106-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X40 FLANGE	0-28080-840-0	02	1	0106-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X40 FLANGE	0-28680-840-0	02	1	0106-		●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0106-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0106-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0106-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0106-	●	●
31	PIPE; OIL,AIR MASTER TO UNION	1-49165-944-0	01	1	0106-	●	●
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	02	1	0106-	●	●
32	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0106-	●	●
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0106-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 5900MM(59W) L=1338 SERVICED BY L=1370	1-47426-354-0	01	1	0106-		●
33	PIPE; OIL,UNION TO UNION WHEEL BASE 6300MM(63W) L=1818 SERVICED BY L=2000	1-47426-359-0	01	1	0106-		●
35	NUT; UNION M12	9-09840-280-0	01	1	0106-	●	●
36	PIPE; OIL,UNION TO UNION (A) L=1075 SERVICED BY L=1100	1-47426-351-0	01	1	0106-	●	●
36	PIPE; OIL,UNION TO UNION (B) L=1788 SERVICED BY L=1820	1-47426-358-0	01	1	0106-	●
36	PIPE; OIL,UNION TO UNION (B) L=767	1-49165-312-0	01	1	0106-		●
38	PIPE; OIL,UNION TO FLEX HOSE L=903	1-47429-644-0	01	1	0106-	●
38	PIPE; OIL,UNION TO FLEX HOSE	1-49166-133-0	01	1	0106-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0106-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	0106-		●
40	PIPE; BRK,UNION TO UNION	1-49166-132-0	01	1	0106-	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W)	1-49165-224-0	01	1	0106-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W)	1-49165-225-0	01	1	0106-		●

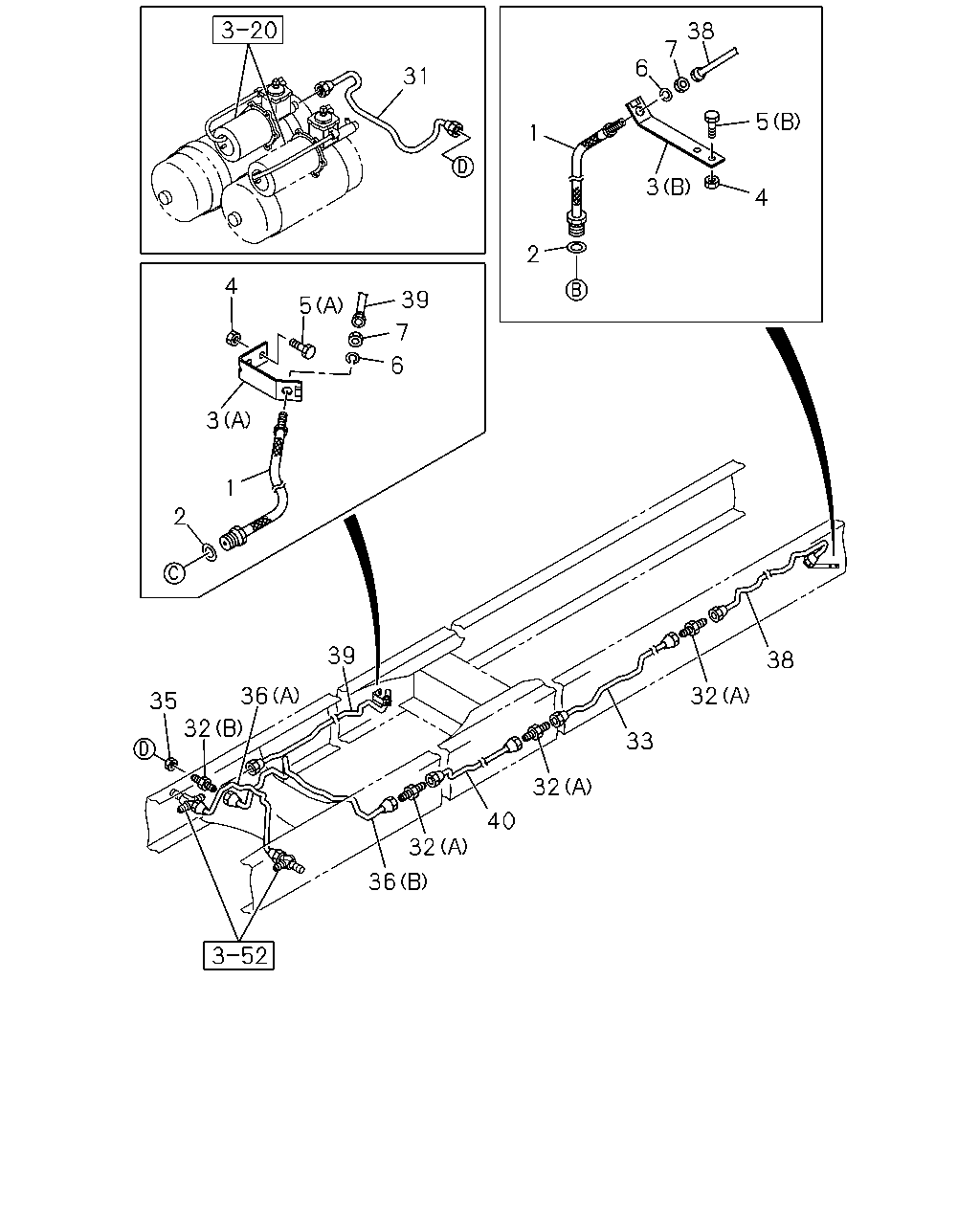

38 7 6 31 5 1 3 4 2 4 39 5 7 6 3 1 2 39 38 36 35 32 32 40 32 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,RR BRK L=450	1-09364-188-0	01	1	0106-	●	●
1	HOSE; FLEX,RR BRK L=450	1-09364-188-0	01	1	0106-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0106-	●	●
2	GASKET; FLEX HOSE,RR BRK ID=9 OD=17	9-09920-472-0	01	1	0106-	●	●
3	BRACKET; FLEX HOSE,RR BRK (A)	1-47475-357-2	01	1	0106-	●	●
3	BRACKET; FLEX HOSE,RR BRK (B)	1-47476-573-1	01	1	0106-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
4	NUT; BRKT,FLEX HOSE,RR BRK M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X35 FLANGE	0-28680-835-0	02	1	0106-	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (B) M8X40 FLANGE	0-28080-840-0	02	1	0106-	●	●
5	BOLT; BRKT,FLEX HOSE,RR BRK (A) M8X40 FLANGE	0-28680-840-0	02	1	0106-		●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0106-	●	●
6	WASHER; LK,FLEX HOSE ID=12.2	9-09150-512-0	01	1	0106-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0106-	●	●
7	NUT; FLEX HOSE M12	9-09840-280-0	01	1	0106-	●	●
31	PIPE; OIL,AIR MASTER TO UNION	1-49165-944-0	01	1	0106-	●	●
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	02	1	0106-	●	●
32	UNION; OIL PIPE (B) M12 L=66.5	9-09223-306-1	01	1	0106-	●	●
32	UNION; OIL PIPE (A) M12 L=40	9-09223-006-1	01	1	0106-		●
35	NUT; UNION M12	9-09840-280-0	01	1	0106-	●	●
36	PIPE; OIL,UNION TO UNION (A) L=1075 SERVICED BY L=1100	1-47426-351-0	01	1	0106-	●	●
36	PIPE; OIL,UNION TO UNION (B) L=1788 SERVICED BY L=1820	1-47426-358-0	01	1	0106-	●
36	PIPE; OIL,UNION TO UNION (B) L=767	1-49165-312-0	01	1	0106-		●
38	PIPE; OIL,UNION TO FLEX HOSE L=903	1-47429-644-0	01	1	0106-	●
38	PIPE; OIL,UNION TO FLEX HOSE	1-49166-133-0	01	1	0106-		●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=2044 SERVICED BY L=2200	1-47426-360-0	01	1	0106-	●
39	PIPE; OIL,UNION TO RR FLEX HOSE L=1992 SERVICED BY L=2000	1-47426-359-0	01	1	0106-		●
40	PIPE; BRK,UNION TO UNION	1-49166-132-0	01	1	0106-	●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 5900MM(59W)	1-49165-224-0	01	1	0106-		●
40	PIPE; BRK,UNION TO UNION WHEEL BASE 6300MM(63W)	1-49165-225-0	01	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
