3-52 — BRAKE PIPING; OIL,FRONT (#28927) — 24 parça

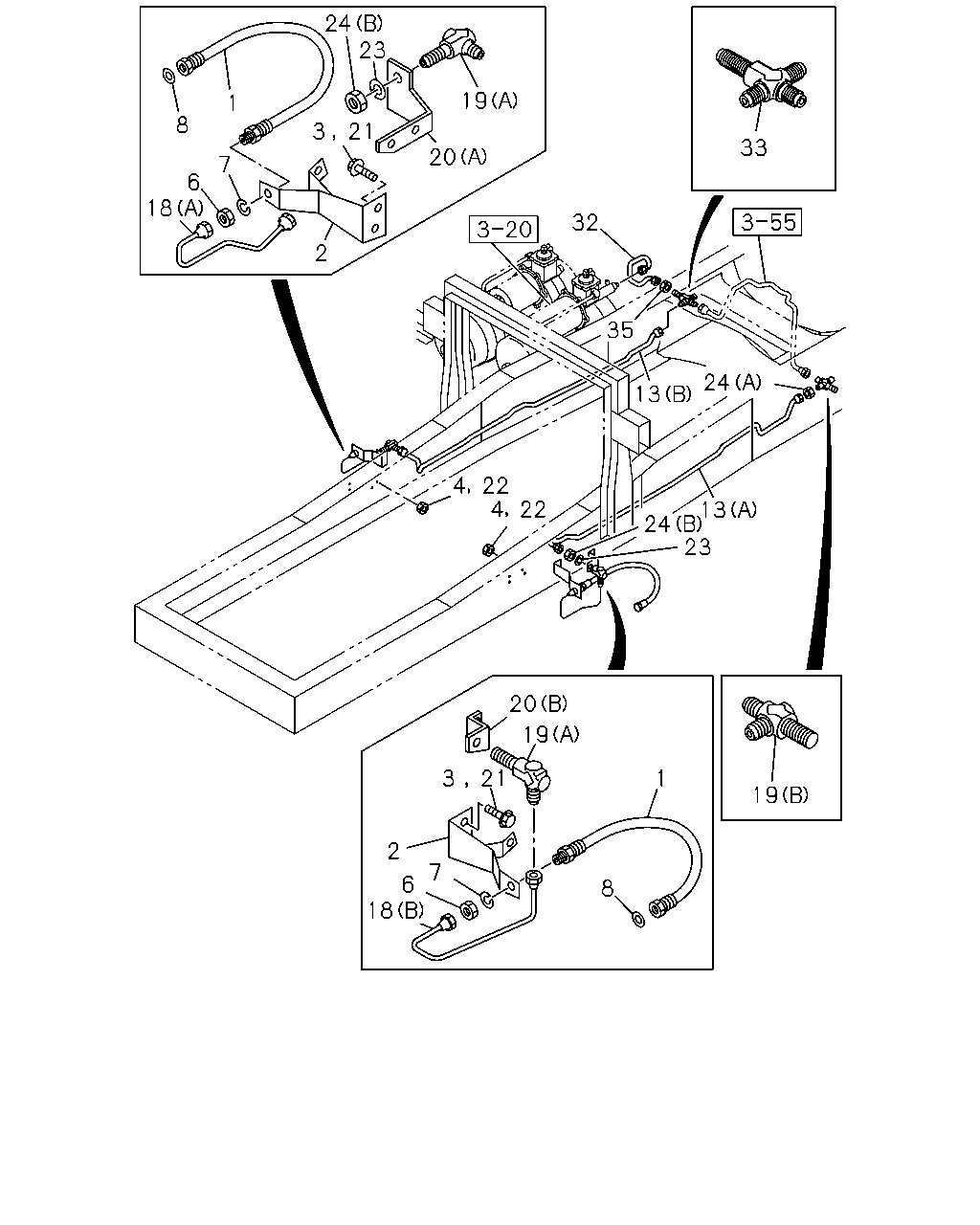

çizim 20841
24 23 19 1 8 3 21 33 20 7 6 18 32 2 35 24 13 4 22 4 13 24 23 22 20 19 3 21 1 19 2 7 6 18 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 HOSE; FLEX,FRT BRK
L=625 		1-09364-199-0 02 1 0106- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47477-343-1 01 1 0106- ● ●
2 BRACKET; FLEX HOSE,FRT BRK 1-47477-553-0 01 1 0106- ● ●
3 BOLT; BRKT,FLEX HOSE,FRT BRK
M8X30 FLANGE 		0-28680-830-0 04 1 0106- ● ●
4 NUT; FLEX HOSE BRKT,FRT BRK
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
6 NUT; FLEX HOSE,FRT BRK
M12 		9-09840-280-0 02 1 0106- ● ●
7 WASHER; LK,FLEX HOSE,FRT BRK
ID=12.2 		9-09150-512-0 02 1 0106- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=9 OD=17 		9-09920-472-0 02 1 0106- ● ●
13 PIPE; OIL,UNION TO UNION
(A) L=1719 SERVICED BY L=1820 		1-47426-358-0 01 1 0106- ● ●
13 PIPE; OIL,UNION TO UNION
(B) L=1690 SERVICED BY L=1820 		1-47426-358-0 01 1 0106- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(A) L=437 		1-47425-854-0 01 1 0106- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
(B) L=417 		1-47429-250-0 01 1 0106- ● ●
19 UNION; OIL PIPE
(B) M12 2WAY 		1-09654-059-2 01 1 0106- ● ●
19 UNION; OIL PIPE
(A) M12 ELBOW 		9-09225-206-1 02 1 0106- ● ●
20 BRACKET; UNION,OIL PIPE
(A) 		1-47475-222-5 01 1 0106- ● ●
20 BRACKET; UNION,OIL PIPE
(B) 		1-47476-168-1 01 1 0106- ● ●
21 BOLT; UNION BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0106- ● ●
22 NUT; UNION BRKT
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
23 WASHER; LK,UNION,OIL PIPE
ID=12.2 		9-09150-512-0 02 1 0106- ● ●
24 NUT; UNION,OIL PIPE
(A) M12 FLANGE 		0-91150-212-0 01 1 0106- ● ●
24 NUT; UNION,OIL PIPE
(B) M12 		9-09840-280-0 02 1 0106- ● ●
32 PIPE; OIL,AIR MASTER TO UNION 1-49165-945-0 01 1 0106- ● ●
33 UNION; OIL PIPE 1-09656-019-1 01 1 0106- ● ●
35 NUT; UNION,OIL PIPE
M14 		9-99111-414-0 01 1 0106- ● ●
