Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
3 - Brakes, Brake System
▶

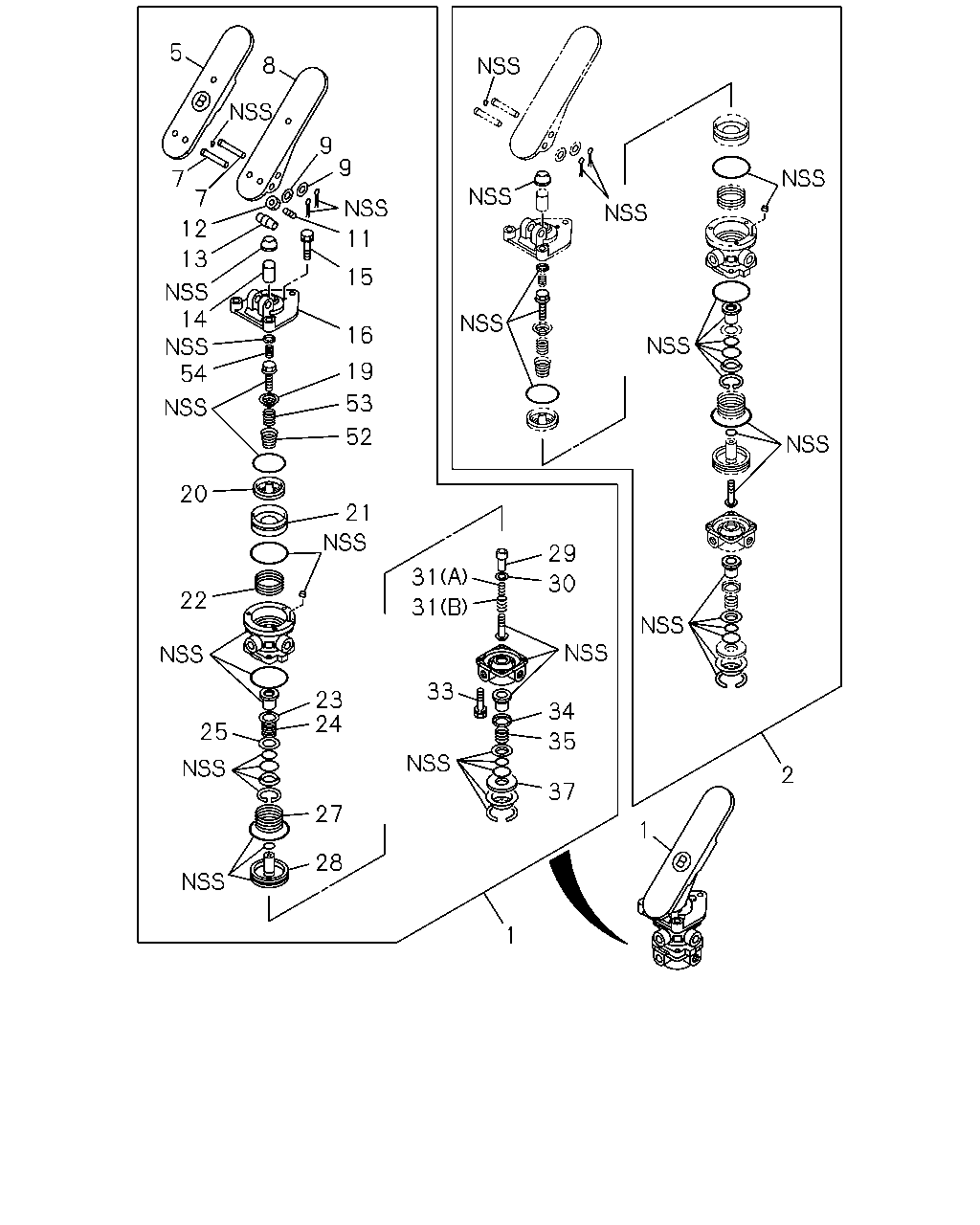

3-34 - BRAKE VALVE; AIR
▶
3-34 — BRAKE VALVE; AIR
(#28925) — 43 parça
Tümü
A - CXZ5MC
B - CXZ5MF
5
8
9
9
7
7
12
11
13
15
14
54
16
19
53
52
20
21
29
31
30
22
31
33
23
24
34
25
35
2
37
27
1
28
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
VALVE; BRK
1-48100-774-0
01
1
0106-0206
●
●
1
VALVE; BRK
1-48100-863-0
01
1
0207-
●
●
2
REPAIR KIT; BRK VLV
1-85576-182-0
01
1
0106-0206
●
●
2
REPAIR KIT; BRK VLV
1-85576-318-0
01
1
0207-
●
●
5
COVER; PEDAL,BRK VLV
1-48119-333-0
01
1
0106-0206
●
●
5
COVER; PEDAL,BRK VLV
1-48119-432-0
01
1
0207-
●
●
7
PIN; PEDAL,BRK VLV
1-48119-244-0
02
1
0106-0206
●
●
7
PIN; PEDAL,BRK VLV
1-48119-431-0
02
1
0207-
●
●
8
PEDAL; BRK VLV
1-48119-332-0
01
1
0106-0206
●
●
8
PEDAL; BRK VLV
1-48119-429-0
01
1
0207-
●
●
9
WASHER; PIN,BRK VLV
1-48119-106-0
02
1
0106-0206
●
●
11
SCREW; SET,BRK VLV
1-48119-245-0
01
1
0106-0206
●
●
11
SCREW; SET,BRK VLV
1-48119-003-1
01
1
0207-
●
●
12
NUT; SCREW,PEDAL,BRK VLV
9-88510-123-0
01
1
0106-
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-243-0
01
1
0106-0206
●
●
13
ROLLER; PEDAL,BRK VLV
1-48119-430-0
01
1
0207-
●
●
14
PLUNGER; BRK VLV
1-48119-383-0
01
1
0106-0206
●
●
14
PLUNGER; BRK VLV
1-48119-561-0
01
1
0207-
●
●
15
BOLT; PLATE,BRK VLV
1-48219-039-0
03
1
0106-
●
●
16
PLATE; MTG,BRKT VLV
1-48119-268-0
01
1
0106-0206
●
●
16
PLATE; MTG,BRKT VLV
1-48119-547-0
01
1
0207-
●
●
19
SEAT; SPRING,BRK VLV
1-48123-041-0
01
1
0106-
●
●
20
PISTON; UPR,BRK VLV
1-48119-336-0
01
1
0106-0206
●
●
20
PISTON; UPR,BRK VLV
1-48119-565-0
01
1
0207-
●
●
21
BUSHING; UPR BODY
1-48119-293-0
01
1
0106-
●
●
22
SPRING; PISTON,LWR,BRK VLV
1-48143-009-0
01
1
0106-
●
●
23
WASHER; UPR,BRK VLV
1-48129-145-0
01
1
0106-
●
●
24
SPRING; UPR,BRK VLV
1-48123-018-0
01
1
0106-
●
●
25
WASHER; PISTON,BRK VLV
1-48129-138-0
01
1
0106-
●
●
27
SPRING; PISTON,LWR,BRK VLV
1-48123-055-0
01
1
0106-
●
●
28
PISTON; LWR,BRK VLV
1-48129-292-0
01
1
0106-0206
●
●
28
PISTON; LWR,BRK VLV
1-48129-317-0
01
1
0207-
●
●
29
SLEEVE; VLV,BRK VLV
1-48129-083-1
01
1
0106-
●
●
30
WASHER; SLEEVE,BRK VLV
1-48129-082-0
01
1
0106-
●
●
31
SPRING; VLV,BRK VLV
(A)
1-48123-032-0
01
1
0106-
●
●
31
SPRING; VLV,BRK VLV
(B)
1-48123-033-0
01
1
0106-
●
●
33
BOLT; BODY,BRK VLV
1-48119-213-0
04
1
0106-
●
●
34
RETAINER; VLV,BRK VLV
1-48129-144-0
01
1
0106-
●
●
35
SPRING; VLV,BRK VLV
1-48123-019-0
01
1
0106-
●
●
37
WASHER; VLV LWR,BRK VLV
1-48129-080-0
01
1
0106-
●
●
52
SPRING; PISTON,OUTER,BRK VLV
1-48123-074-0
01
1
0106-
●
●
53
SPRING; PISTON,INNER,BRK VLV
1-48123-068-0
01
1
0106-
●
●
54
SPRING; PISTON,UPR,BRK VLV
1-48123-067-0
01
1
0106-
●
●
