◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#28921) — 51 parça

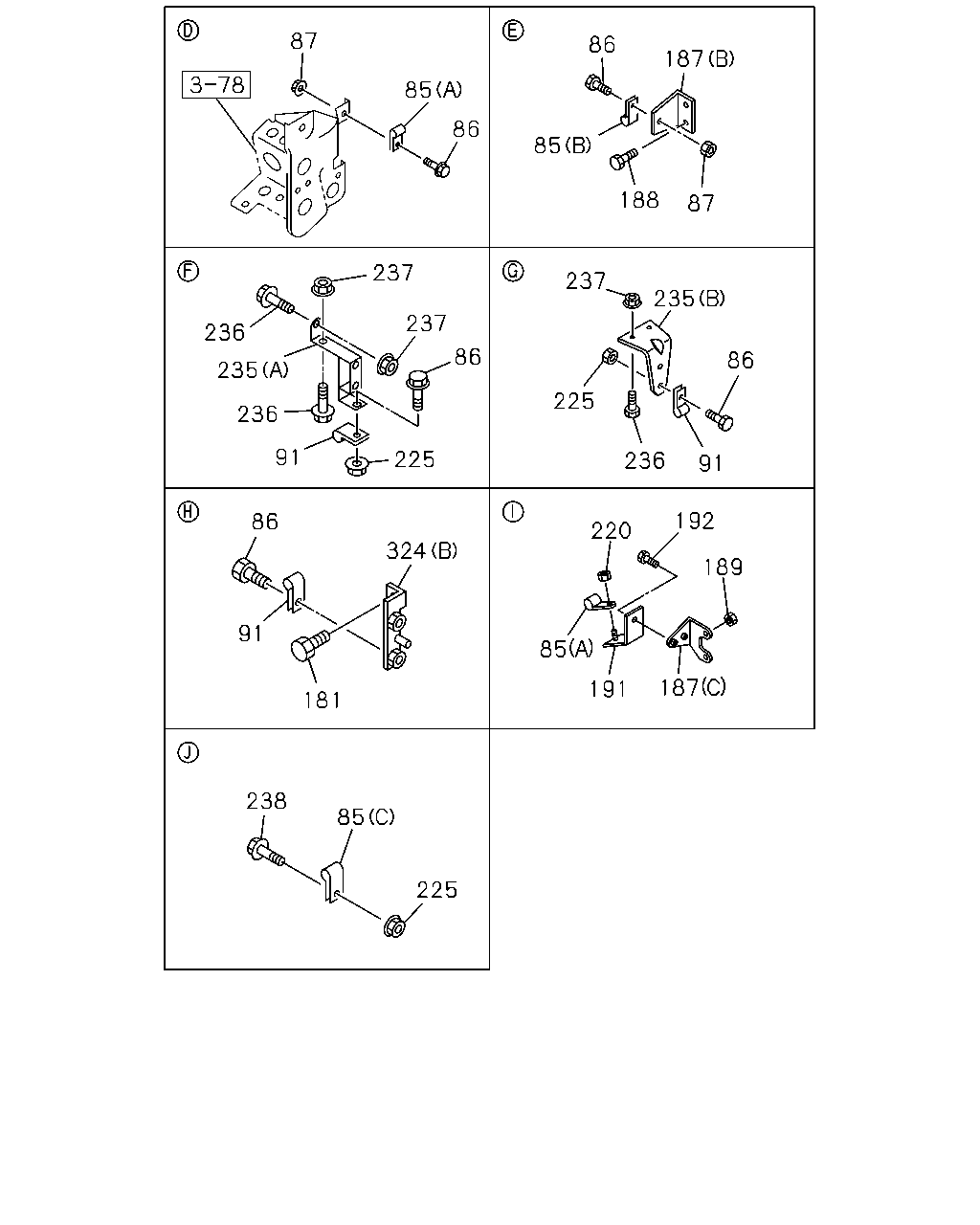

çizim 21098
87 86 187 85 86 85 188 87 237 237 235 237 236 86 86 235 225 236 91 225 236 91 192 86 220 324 189 91 85 187 191 181 238 85 225
BalonParca AdiParca NoAdetTipApplied Date A B
85 CLIP; BRKT
(A) ID=14 		1-09700-057-1 01 1 0106- ● ●
85 CLIP; BRKT
(A) ID=14 		1-09700-057-1 01 1 0106- ● ●
85 CLIP; BRKT
(B) ID=14.5 L=20 		1-09701-012-0 01 1 0106- ● ●
85 CLIP; BRKT
(C) ID=14.5 L=28 		1-09701-013-0 01 1 0106- ● ●
86 BOLT
M8X25 FLANGE 		0-28680-825-0 04 1 0106- ● ●
86 BOLT
M8X25 FLANGE 		0-28680-825-0 03 1 0106- ● ●
87 NUT
M8 FLANGE 		0-91150-108-0 02 1 0106- ● ●
91 CLIP; PARKING BRK CABLE
ID=14.5 L=20 		1-09701-012-0 04 1 0106- ● ●
181 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 01 1 0106- ● ●
187 BRACKET; HAND BRK
(B) 		1-47477-503-0 01 1 0106- ● ●
187 BRACKET; HAND BRK
(A) 		1-79996-223-0 01 1 0106- ● ●
187 BRACKET; HAND BRK
MAG6 M/T<X9T> (C) 		1-46147-118-1 01 1 0106- ● ●
187 BRACKET; HAND BRK
MJA7 M/T<X9Q> (C) 		1-46147-116-1 01 1 0106- ● ●
188 BOLT; BRKT SET
M8X25 FLANGE 		0-28680-825-0 02 1 0106- ● ●
189 NUT; BRKT SET
M10 FLANGE 		0-91150-210-0 02 1 0106- ● ●
191 STAY; BRKT 1-46147-233-0 01 1 0106- ● ●
192 BOLT; STAY FIX
M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
220 NUT; CLIP,PARKING CONT CABLE
M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
225 NUT; CABLE CLIP
M8 FLANGE 		0-91150-108-0 04 1 0106- ● ●
235 BRACKET; CONT CABLE TO FRAME
(B) 		1-46147-183-0 02 1 0106- ● ●
235 BRACKET; CONT CABLE TO FRAME
(A) 		1-47477-180-1 01 1 0106-0206 ● ●
236 BOLT; BRKT TO FRAME
M8X30 FLANGE 		0-28680-830-0 06 1 0106- ● ●
237 NUT; BRKT TO FRAME
M8 FLANGE 		0-91150-108-0 06 1 0106- ● ●
238 BOLT; CLIP TO BRKT
M8X25 FLANGE 		0-28680-825-0 01 1 0106- ● ●
324 BRACKET
(A) 		1-79996-140-1 01 1 0106- ● ●
324 BRACKET
(B) 		1-82699-510-2 01 1 0106- ● ●
çizim 21414
61 102 101 98 61 99
BalonParca AdiParca NoAdetTipApplied Date A B
61 CABLE; PARKING BRK
MAG6 M/T<X9T> L=4732 		1-79996-193-3 01 1 0106- ● ●
61 CABLE; PARKING BRK
MJA7 M/T<X9Q> L=4782 		1-79996-196-5 01 1 0106- ● ●
98 BOLT; RR COVER
M10X30 FLANGE 		0-28681-030-0 02 1 0106- ● ●
99 NUT; CONT CABLE
M10 FLANGE 		0-91150-210-0 02 1 0106- ● ●
101 NUT; CABLE TO LEVER 1-46259-007-0 01 1 0106- ● ●
102 NUT; LK,CABLE TO LEVER
M8 		9-09110-408-0 01 1 0106- ● ●

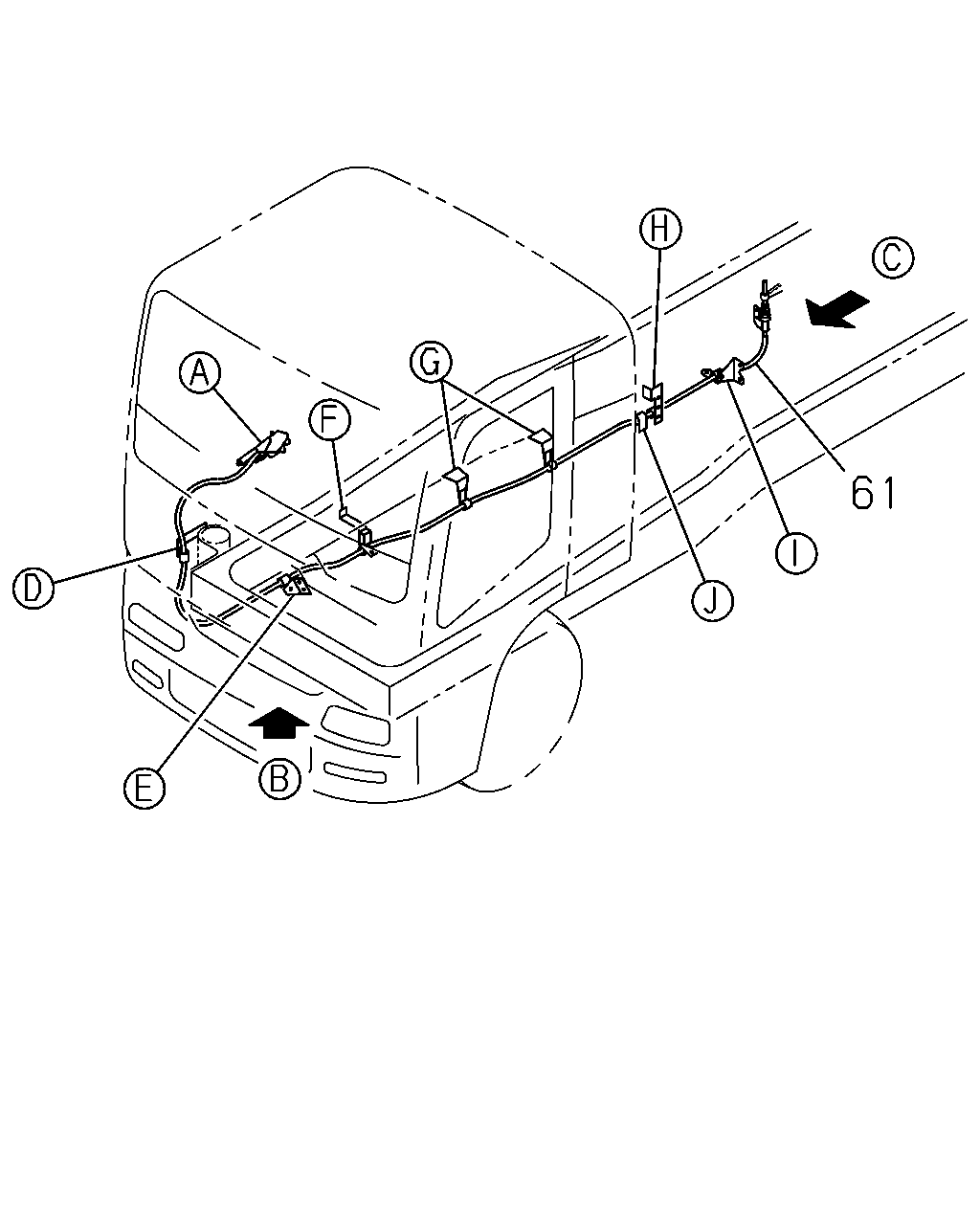

çizim 22021
61
BalonParca AdiParca NoAdetTipApplied Date A B
61 CABLE; PARKING BRK
MAG6 M/T<X9T> L=4732 		1-79996-193-3 01 1 0106- ● ●
61 CABLE; PARKING BRK
MJA7 M/T<X9Q> L=4782 		1-79996-196-5 01 1 0106- ● ●
çizim 80021
51 73 52 52 90 28 61 23 241 187 4 61 46 24 61 90 45
BalonParca AdiParca NoAdetTipApplied Date A B
4 STEM; PARKING BRK 1-79996-487-0 01 1 0106- ● ●
23 SWITCH; PARKING BRK 1-82440-100-0 01 1 0106- ● ●
28 BOLT; HAND BRK LEVER
M8X20 W/LK&PL WASHER 		8-94279-208-0 03 1 0106- ● ●
45 BOLT; CABLE TO FLOOR
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 01 1 0106- ● ●
46 CLIP; FRT CABLE TO FLOOR
ID=13 L=20 		9-09525-235-0 01 1 0106- ● ●
51 PIN; JOINT,RELAY LEVER 1-09987-243-1 01 1 0106- ● ●
52 WASHER; CURVED RELAY LEVER
ID=19 		8-94206-429-1 02 1 0106- ● ●
61 CABLE; PARKING BRK
MAG6 M/T<X9T> L=4732 		1-79996-193-3 01 1 0106- ● ●
61 CABLE; PARKING BRK
MJA7 M/T<X9Q> L=4782 		1-79996-196-5 01 1 0106- ● ●
73 WASHER; PL,CABLE
ID=17 		9-09160-516-0 01 1 0106- ● ●
90 BOLT; CABLE TO BRKT
(A) M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0106- ● ●
90 BOLT; CABLE TO BRKT
(B) M10X20 W/LK&PL WASHER 		8-94279-211-0 01 1 0106- ● ●
187 BRACKET; HAND BRK
(B) 		1-47477-503-0 01 1 0106- ● ●
187 BRACKET; HAND BRK
(A) 		1-79996-223-0 01 1 0106- ● ●
187 BRACKET; HAND BRK
MAG6 M/T<X9T> (C) 		1-46147-118-1 01 1 0106- ● ●
187 BRACKET; HAND BRK
MJA7 M/T<X9Q> (C) 		1-46147-116-1 01 1 0106- ● ●
241 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0106- ● ●
