3-10 — BRAKE PEDAL AND CONTROL (#28920) — 15 parça

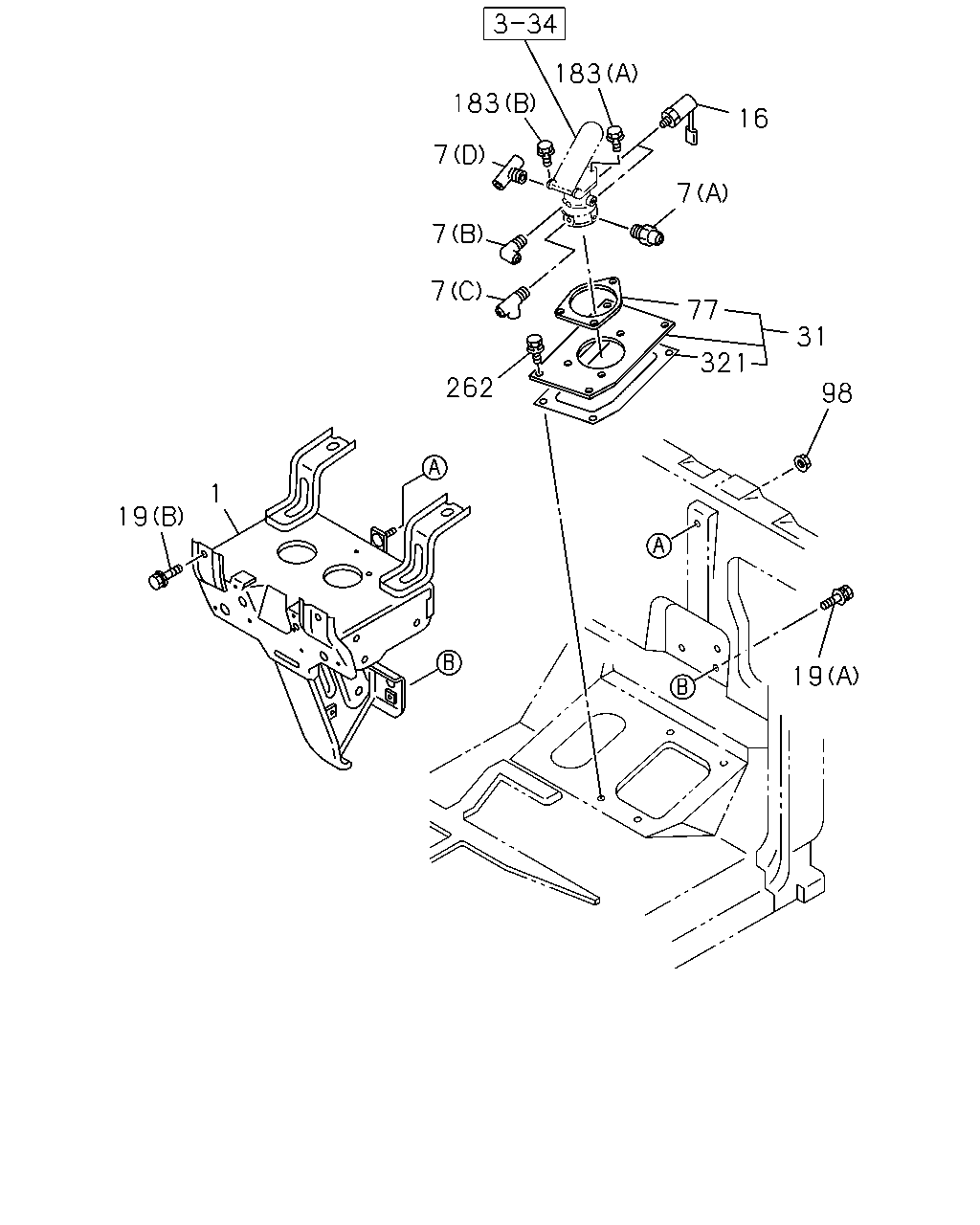

çizim 79844
183 183 16 7 7 7 7 77 31 321 262 98 1 19 19
BalonParca AdiParca NoAdetTipApplied Date A B
1 BRACKET ASM; PEDAL 1-73908-280-1 01 1 0106- ● ●
7 CONNECTOR; BRK VALVE
(A) DIN8,R3/8 STRAIGHT 		1-09660-651-1 01 1 0106- ● ●
7 CONNECTOR; BRK VALVE
(B) DIN8 & R3/8 ELBOW 		1-09660-652-1 01 1 0106- ● ●
7 CONNECTOR; BRK VALVE
(C) 		1-09660-969-0 01 1 0106- ● ●
7 CONNECTOR; BRK VALVE
(D) 		1-09660-970-0 01 1 0106- ● ●
16 SWITCH; STOP LAMP
GREEN 		1-82410-176-0 02 1 0106- ● ●
19 BOLT; BRKT
(A) M8X20 		1-79198-002-0 02 1 0106- ● ●
19 BOLT; BRKT
(B) M8X20 W/LK&PL WASHER 		8-94279-208-0 02 1 0106- ● ●
31 PLATE; MTG,BRKT VLV 1-73996-271-3 01 1 0106- ● ●
77 RUBBER; SEAL,BRK 1-73996-207-0 01 1 0106- ● ●
98 NUT; BRKT
M8 FLANGE W/RUBBER 		1-09984-176-0 02 1 0106- ● ●
183 BOLT; BRK VLV
(A) M10X25 W/LK WASHER 		1-09980-503-0 01 1 0106- ● ●
183 BOLT; BRK VLV
(B) M10X35 W/LK WASHER 		1-09980-504-0 02 1 0106- ● ●
262 BOLT; PLATE
M8X20 W/LK&PL WASHER 		8-94279-208-0 04 1 0106- ● ●
321 SEAL; VALVE 1-73996-143-0 01 1 0106- ● ●
