Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
3 - Brakes, Brake System
▶
3-08 - PARKING BRAKE
▶

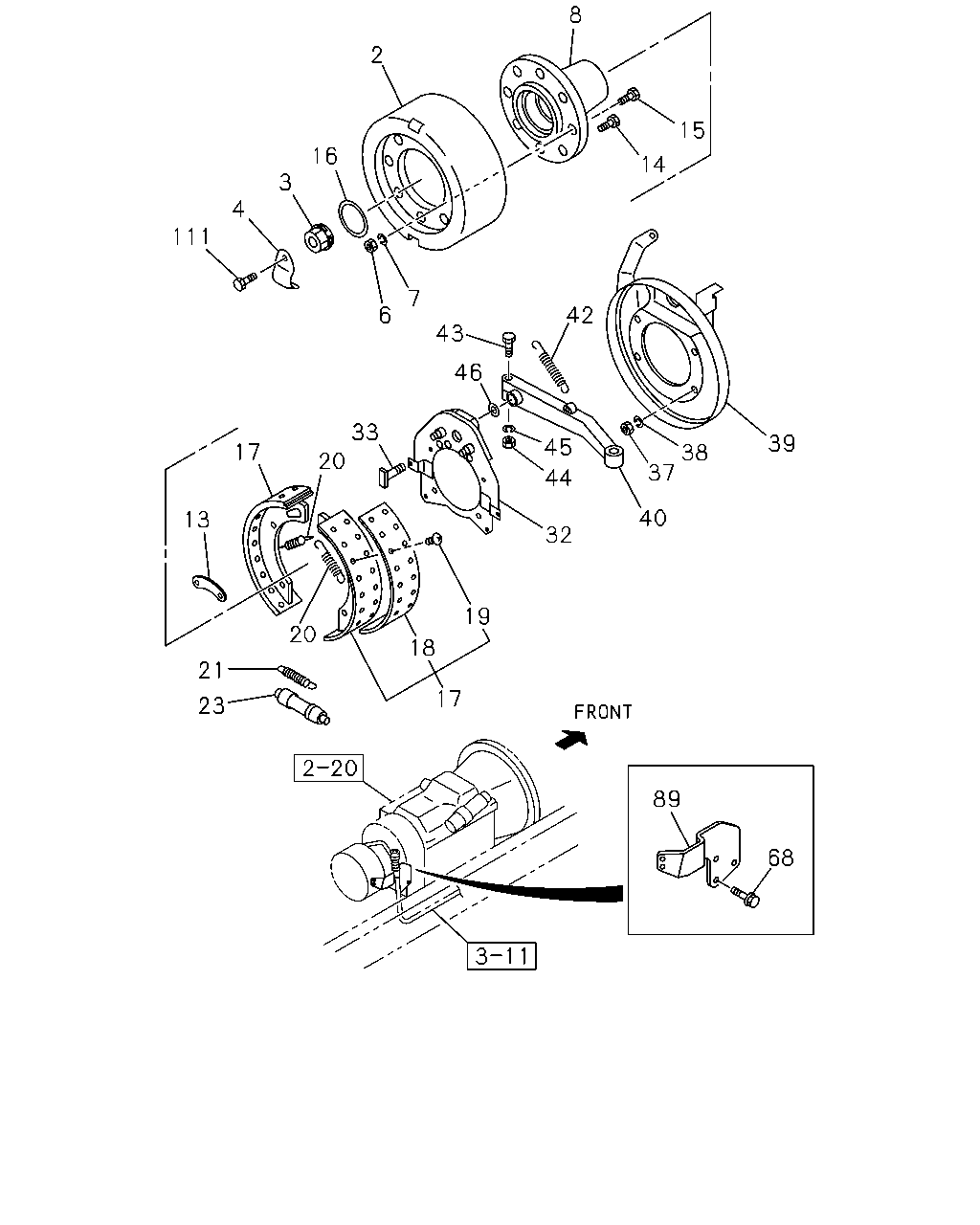

3-08 — PARKING BRAKE
(#28919) — 33 parça
Tümü
A - MJA7U M/T
B - MAG6W M/T
8
2
15
16
14
3
4
111
7
42
6
43
46
33
39
45
17
38
37
20
44
40
13
32
19
20
18
21
17
23
89
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
2
DRUM; PARKING BRK
1-46211-026-1
01
1
0106-
●
●
3
NUT; LK
M44
1-09449-076-0
01
1
0106-
●
3
NUT; LK
M46
1-09449-062-0
01
1
0106-
●
4
COVER; ADJ HOLE
1-46219-019-0
02
1
0106-
●
●
6
NUT; FLANGE
M16
9-99110-516-0
02
1
0106-
●
●
7
WASHER; LK,FLANGE
ID=16.2
9-09150-516-0
02
1
0106-
●
●
8
FLANGE; PARKING BRK
1-37243-213-0
01
1
0106-
●
8
FLANGE; PARKING BRK
1-37243-215-0
01
1
0106-
●
13
BRACE; PARKING BRK
9-46239-002-0
01
1
0106-
●
●
14
BOLT; DRUM TO FLANGE
M16X38
1-46219-010-0
02
1
0106-
●
●
15
BOLT; FLANGE
M16X55
1-46219-039-0
04
1
0106-
●
●
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
9-09920-607-0
01
1
0106-
●
16
GASKET; FLANGE
ALSO INCLUDED IN GASKET SET(M/T).
1-09623-305-0
01
1
0106-
●
17
SHOE; PARKING BRK
1-46220-022-0
02
1
0106-
●
●
18
LINING; BRK,PARKING
1-46225-023-0
02
1
0106-
●
●
19
RIVET; LINING,PARKING BRK
1-09732-012-0
32
1
0106-
●
●
20
SPRING; RETURN,SECONDARY,PARKING BRK
9-09942-434-0
02
1
0106-
●
●
21
SPRING; RETURN,PARKING BRK SHOE
9-09942-516-0
01
1
0106-
●
●
23
SCREW; ADJ,PARKING BRK SHOE
1-46240-003-0
01
1
0106-
●
●
32
PLATE; SUPPORT,PARKING BRK
1-46213-033-0
01
1
0106-
●
●
33
SHAFT; CAM,PARKING BRK
9-46251-069-0
01
1
0106-
●
●
37
NUT; SUPPORT PLATE
M16
9-99110-516-0
04
1
0106-
●
●
38
WASHER; LK,SUPPORT PLATE
ID=16.2
9-09150-516-0
04
1
0106-
●
●
39
COVER; DUST,PARKING BRK
1-46213-066-1
01
1
0106-
●
●
40
LEVER; CM/SHF,PARKING BRK
1-46252-014-0
01
1
0106-
●
●
42
SPRING; RETURN,LEVER
1-09583-128-0
01
1
0106-
●
●
43
BOLT; LEVER TO CM/SHF
0-10811-045-0
01
1
0106-
●
●
44
NUT; LEVER TO CM/SHF
M10
9-09111-410-0
01
1
0106-
●
●
45
WASHER; LK,LEVER TO CM/SHF
ID=10.2
9-09150-510-0
01
1
0106-
●
●
46
WASHER; LEVER
9-09855-362-0
01
1
0106-
●
●
68
BOLT; BRKT,PARKING BRK CONT
M10X22 FLANGE
0-28181-022-0
03
1
0106-
●
●
89
BRACKET; PARKING BRK CONT
1-46147-295-0
01
1
0106-
●
●
111
BOLT; COVER,CHECK HOLE
M8X20 W/LK WASHER
0-50040-820-0
02
1
0106-
●
●
