◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10880 - CXZ RHD 10PE1 TWIN VERTICAL ▶ 3 - Brakes, Brake System ▶ 3-05 - REAR WHEEL BRAKE ▶
3-05 — REAR WHEEL BRAKE (#28918) — 82 parça

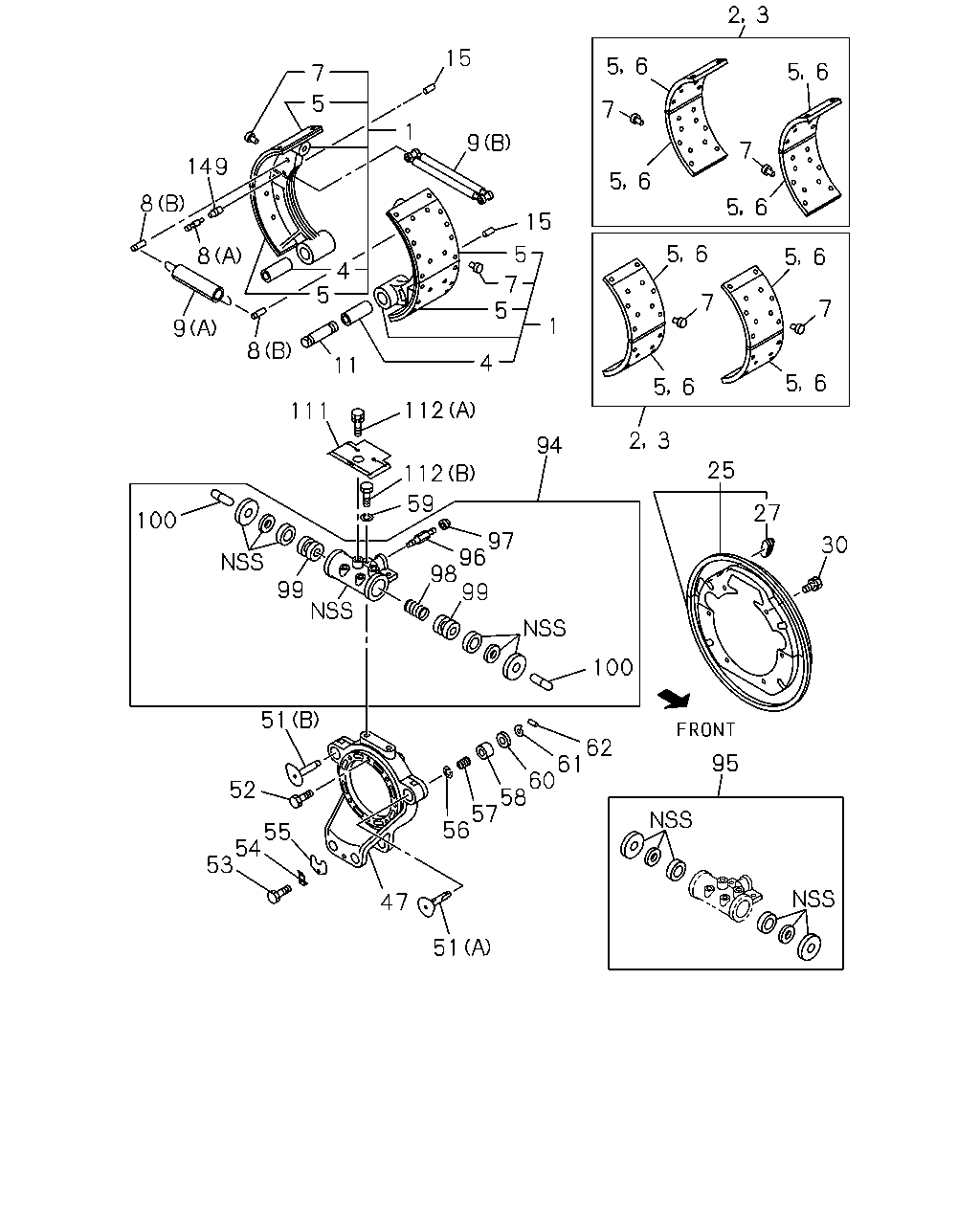

çizim 23568
2 3 15 5 6 5 6 7 5 7 1 9 7 149 5 6 8 5 6 15 5 6 5 8 5 6 4 5 7 5 7 7 1 9 8 4 11 5 6 5 6 112 111 2 3 94 25 112 59 27 100 97 96 98 99 30 99 100 51 62 61 60 58 57 56 95 52 55 54 53 47 51
BalonParca AdiParca NoAdetTipApplied Date A B
1 SHOE; BRK,RR 1-47120-708-0 04 1 0106- ● ●
1 SHOE; BRK,RR 1-47120-708-0 04 1 0106- ● ●
2 LINING SET; RR BRK,STANDARD 1-88310-529-0 02 1 0106- ● ●
2 LINING SET; RR BRK,STANDARD 1-88310-529-0 02 1 0106- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-530-0 02 1 0106- ● ●
3 LINING SET; RR BRK,OVER SIZE 1-88310-530-0 02 1 0106- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0106- ● ●
4 BUSHING; BRK SHOE,RR WHEEL 1-47112-012-0 04 1 0106- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47125-813-0 08 1 0106- ● ●
5 LINING; RR BRK SHOE,STANDARD 1-47125-813-0 08 1 0106- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-814-0 08 1 0106- ● ●
6 LINING; RR BRK SHOE,OVER SIZE 1-47125-814-0 08 1 0106- ● ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0106- ● ●
7 RIVET; LINING,RR BRK
L=18.5 		1-09732-034-0 AR 1 0106- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 0106- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(A) 		1-09744-051-0 04 1 0106- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 0106- ● ●
8 PIN; RETURN SPRING,RR BRK SHOE
(B) 		1-47119-025-0 04 1 0106- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 0106- ● ●
9 SPRING; RETURN,BRK SHOE
(A) 		1-09583-175-0 02 1 0106- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 04 1 0106- ● ●
9 SPRING; RETURN,BRK SHOE
(B) 		1-09583-210-0 04 1 0106- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
ID=31 & 8 		1-47131-039-0 04 1 0106- ● ●
11 PIN; ANCHOR,RR WHEEL BRK
ID=31 & 8 		1-47131-039-0 04 1 0106- ● ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 0106- ● ●
15 PIN; GUIDE,ADJ CAM,RR WHEEL BRK 1-47116-002-0 04 1 0106- ● ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 0106- ● ●
25 COVER SET; RR BRK DRUM 1-47151-461-1 02 1 0106- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0106- ● ●
27 COVER; CHECK HOLE,DRUM COVER 1-09333-151-0 04 1 0106- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0106- ● ●
30 BOLT; DRUM COVER
M10X12 		1-47159-187-0 12 1 0106- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 0106- ● ●
47 BRACKET; ANCHOR PIN,RR WHEEL BRK 1-47137-151-0 02 1 0106- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 0106- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(A) 		1-47165-058-1 02 1 0106- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 0106- ● ●
51 CAM ASM; SHOE ADJ,RR WHEEL BRK
(B) 		1-47165-059-1 02 1 0106- ● ●
52 BOLT; ANCHOR BRKT
M14X43 		1-09040-045-0 02 1 0106- ● ●
52 BOLT; ANCHOR BRKT
M14X43 		1-09040-045-0 02 1 0106- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0106- ● ●
53 BOLT; LOCK PLATE
M10X16 		0-20801-016-0 02 1 0106- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0106- ● ●
54 WASHER; LK,ANCHOR PIN,RR BRK 1-47133-011-0 02 1 0106- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0106- ● ●
55 PLATE; LK,RR WHEEL CYL 1-47133-005-0 02 1 0106- ● ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 0106- ● ●
56 WASHER; ADJ CAM,RR WHEEL BRK 1-47169-033-0 04 1 0106- ● ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 0106- ● ●
57 SPRING; ADJ CAM,RR WHEEL BRK 1-47169-046-0 04 1 0106- ● ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 0106- ● ●
58 BOOT; ADJ CAM,RR WHEEL BRK 1-47169-034-0 04 1 0106- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0106- ● ●
59 WASHER; LK,RR WHEEL CYL
ID=14.2 		9-09150-514-0 04 1 0106- ● ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 0106- ● ●
60 COVER; ADJ CAM BOOT,RR WHEEL BRK 1-47169-031-0 04 1 0106- ● ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 0106- ● ●
61 INDICATOR; WEAR,RR BRK SHOE 1-47169-032-1 04 1 0106- ● ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 0106- ● ●
62 PIN; ADJ CAM SPINDLE,RR WHEEL BRK 1-47169-030-0 04 1 0106- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47601-124-0 02 1 0106- ● ●
94 CYLINDER; WHEEL,RR BRK 1-47601-124-0 02 1 0106- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-886-0 02 1 0106- ● ●
95 CUP SET; RR WHEEL CYL 1-87830-886-0 02 1 0106- ● ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0106- ● ●
96 SCREW; BLEEDER,RR BRK 1-47615-002-0 02 1 0106- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0106- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
OD=12 		1-47619-011-0 02 1 0106- ● ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 0106- ● ●
98 SPRING; RR WHEEL CYL 1-09580-019-0 02 1 0106- ● ●
99 PISTON; RR WHEEL CYL 1-47624-390-0 04 1 0106- ● ●
99 PISTON; RR WHEEL CYL 1-47624-390-0 04 1 0106- ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 0106- ● ●
100 ROD; PUSH,RR WHEEL CYL 1-47621-009-0 04 1 0106- ● ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 0106- ● ●
111 COVER; WHEEL CYL 1-47159-081-0 02 1 0106- ● ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20801-435-0 04 1 0106- ● ●
112 BOLT; WHEEL CYL SETTING
(B) M14X35 		0-20801-435-0 04 1 0106- ● ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0106- ● ●
112 BOLT; WHEEL CYL SETTING
(A) M8X16 W/LK WASHER 		0-50040-816-0 06 1 0106- ● ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 0106- ● ●
149 PIN; GUIDE RETURN 1-47119-024-0 04 1 0106- ● ●
