2-85 — POWER TAKE OFF CONTROL (#28916) — 20 parça

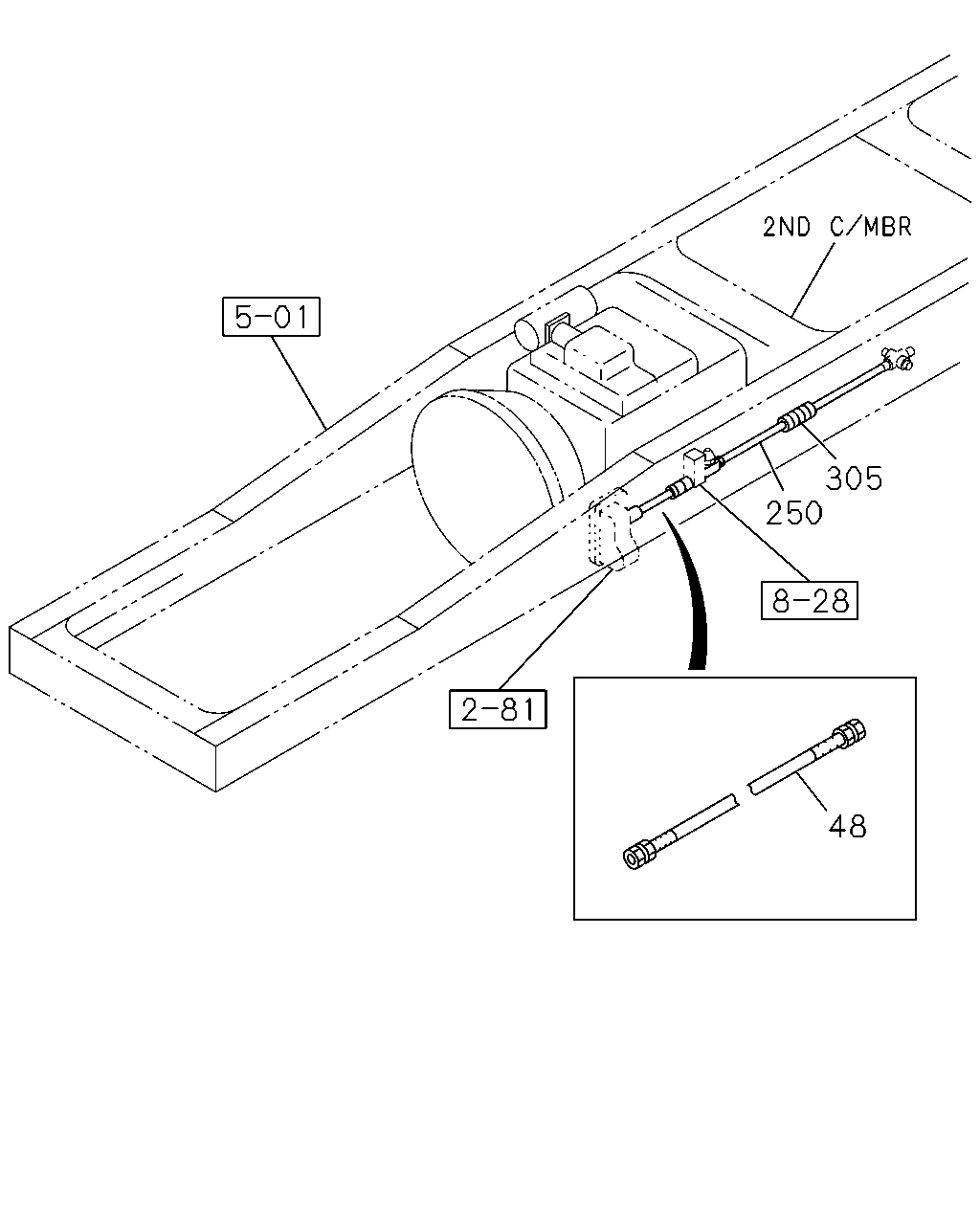

çizim 20656
305 250 48
BalonParca AdiParca NoAdetTipApplied Date A B
48 HOSE; FLEX,PTO
L=390 		1-09363-616-0 01 1 0106- ●
48 HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) L=390 		1-09363-616-0 01 1 0106- ●
250 TUBE; NYLON
SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106- ●
250 TUBE; NYLON
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 OD=8 		1-87410-073-0 01 1 0106- ●
305 TUBE; CORRUGATE
SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106- ●
305 TUBE; CORRUGATE
TRANSMISSION SIDE PTO WO/LEVER(SH5) SERVICED BY L=2000 ID=10 		1-87410-088-0 01 1 0106- ●
çizim 83242
246 3 132 3 217 1 3 3 3 1 139 55
BalonParca AdiParca NoAdetTipApplied Date A B
1 LEVER ASM; PTO & DUMP CONT
(B) 		1-79996-244-0 01 1 0106- ●
1 LEVER ASM; PTO & DUMP CONT
DUMP CONTROL LEVER<RC4> (B) 		1-79996-244-0 01 1 0106- ●
1 LEVER ASM; PTO & DUMP CONT
PTO CONTROL(SV6) (A) 		1-79907-048-1 01 1 0106- ●
3 BOLT; BRKT,DUMP CONT LEVER
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
3 BOLT; BRKT,DUMP CONT LEVER
DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 03 1 0106- ●
3 BOLT; BRKT,DUMP CONT LEVER
PTO CONTROL(SV6) M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0106- ●
55 GROMMET; CABLE
EXC. DUMP CONTROL LEVER<RC4>,PTO CONTROL(SV6) 		1-09983-068-0 01 1 0106- ●
132 COVER; PTO CONT 1-79997-376-0 01 1 0106- ●
132 COVER; PTO CONT
DUMP CONTROL LEVER<RC4> 		1-79997-376-0 01 1 0106- ●
139 BRACKET; CONT BOX
PTO CONTROL(SV6) 		1-79907-044-0 01 1 0106- ●
217 WASHER; PL
ID=4.3 		9-09160-504-0 02 1 0106- ●
217 WASHER; PL
DUMP CONTROL LEVER<RC4> ID=4.3 		9-09160-504-0 02 1 0106- ●
246 SCREW; CABLE CLIP
M4X8 TAPPING 		0-71180-408-0 02 1 0106- ●
246 SCREW; CABLE CLIP
DUMP CONTROL LEVER<RC4> M4X8 TAPPING 		0-71180-408-0 02 1 0106- ●
