2-39 — POWER ASSISTOR (#28914) — 70 parça

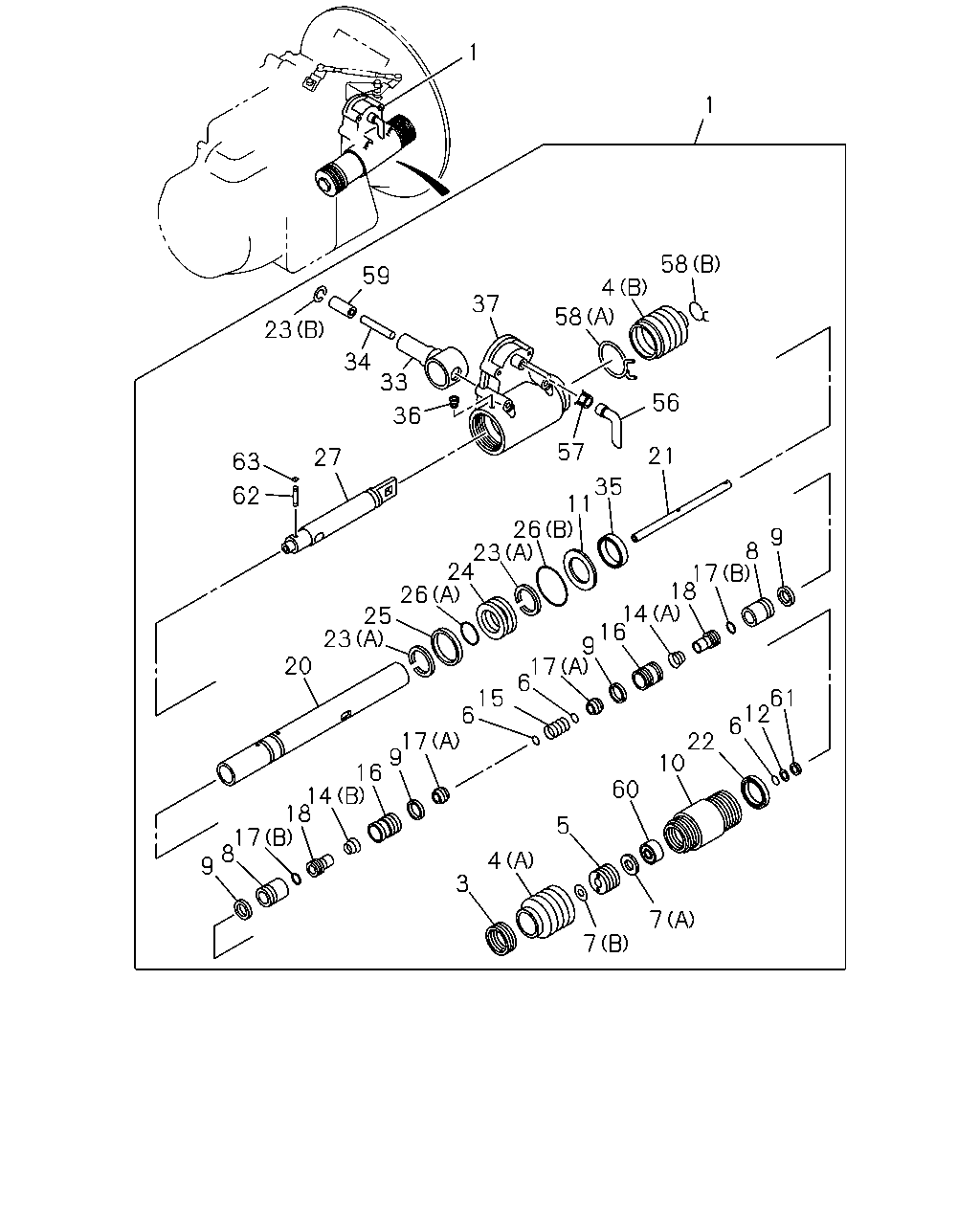

1 1 58 59 4 37 58 23 34 33 56 36 57 21 27 63 35 11 26 23 24 26 25 23 62 9 8 17 18 14 16 9 20 17 6 61 12 6 15 6 17 9 16 14 18 17 8 9 22 10 60 5 4 3 7 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-271-2	01	1	0106-	●	●
3	NUT; LK,ROD ASSISTOR SHIFT CONTROL<WX8>	1-33739-025-0	01	1	0106-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0106-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	0106-0108	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-101-0	01	1	0109-0109	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	0110-	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-596-0	01	1	0106-	●	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	0106-	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0106-	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	0106-	●	●
8	TUBE ASSISTOR SHIFT CONTROL<WX8>	1-33739-560-0	02	1	0106-	●	●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0106-	●	●
10	CYLINDER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-352-0	01	1	0106-	●	●
11	PLATE; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-108-0	01	1	0106-	●	●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	0106-	●	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	0106-	●	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	0106-	●	●
15	SPRING; VALVE SEAL ASSISTOR SHIFT CONTROL<WX8>	1-33739-014-0	01	1	0106-	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-067-0	02	1	0106-	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	0106-	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0106-	●	●
18	LIFTER; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-586-0	02	1	0106-	●	●
20	ROD ASM; W/CAP ASSISTOR SHIFT CONTROL<WX8>	1-33739-599-0	01	1	0106-	●	●
21	PIPE; AIR,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-960-0	01	1	0106-	●	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0106-	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0106-	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0106-	●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-499-0	01	1	0106-	●	●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-350-0	01	1	0106-	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	0106-	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	0106-	●	●
27	ROD; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-959-0	01	1	0106-	●	●
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-609-0	01	1	0106-	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-575-0	01	1	0106-	●	●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0106-	●	●
36	SCREW; SET ASSISTOR SHIFT CONTROL<WX8>	1-33739-040-0	01	1	0106-	●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-606-0	01	1	0106-	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0106-	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	0106-	●	●
58	CLAMP; BOOT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-562-0	01	1	0110-	●	●
58	CLAMP; BOOT ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-562-0	01	1	0106-0108	●	●
58	CLAMP; BOOT ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-977-0	01	1	0106-	●	●
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-563-0	01	1	0106-0108	●	●
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-102-0	01	1	0109-	●	●
60	COLLAR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-595-0	01	1	0106-	●	●
61	PLATE; VLV LIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-581-0	01	1	0106-	●	●
62	PIN; PIPE ASSISTOR SHIFT CONTROL<WX8>	1-33739-566-0	01	1	0106-	●	●
63	CLAMP; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-565-0	01	1	0106-	●	●

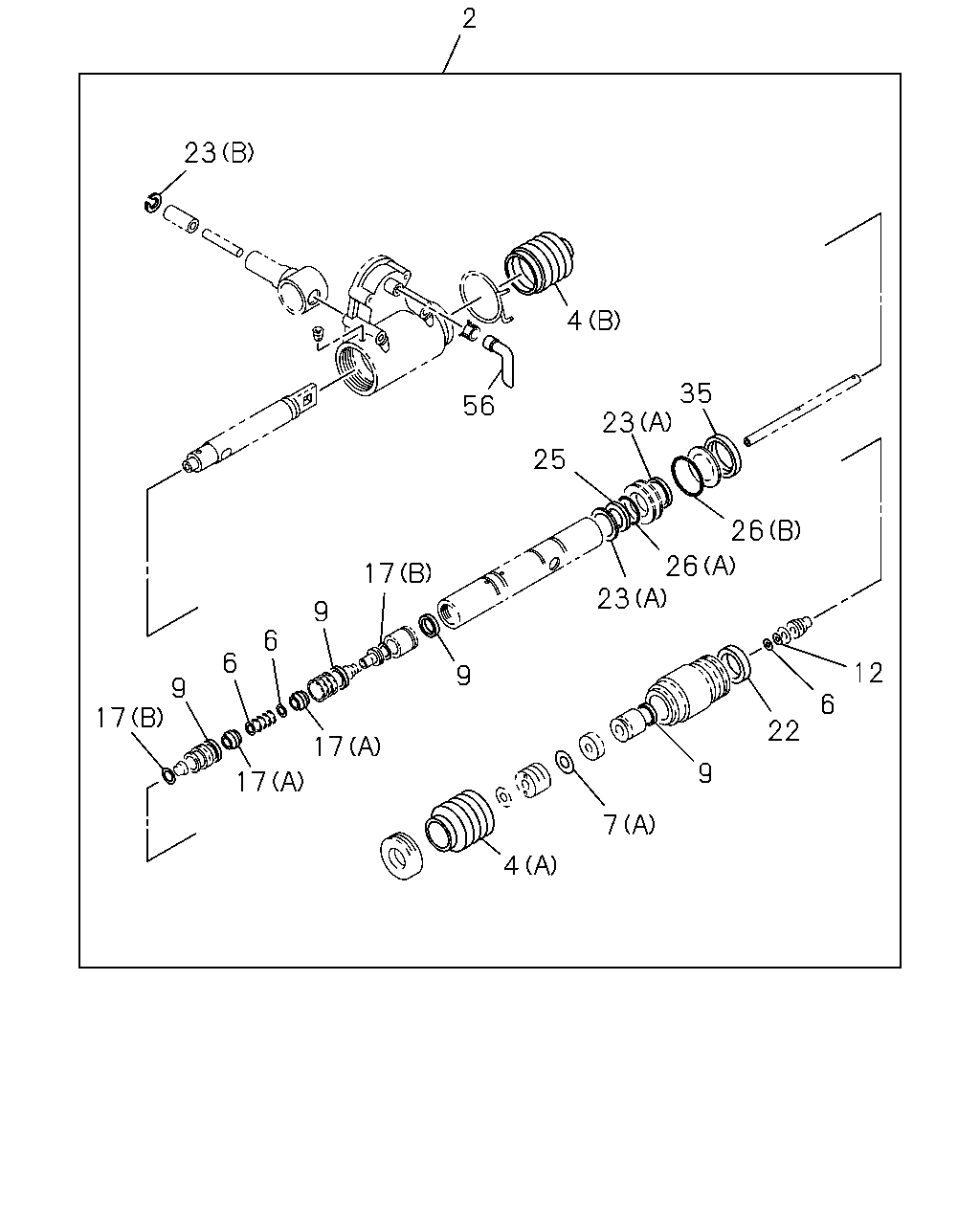

2 23 4 35 56 23 25 26 26 17 23 9 6 6 12 9 9 17 6 22 17 9 17 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-608-0	01	1	0106-0108	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33738-107-0	01	1	0109-0109	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-85572-128-0	01	1	0110-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0106-	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	0106-0108	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-101-0	01	1	0109-0109	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	0110-	●	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	0106-	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0106-	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	0106-	●	●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0106-	●	●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	0106-	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	0106-	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0106-	●	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0106-	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0106-	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0106-	●	●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-350-0	01	1	0106-	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	0106-	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	0106-	●	●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0106-	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0106-	●	●
