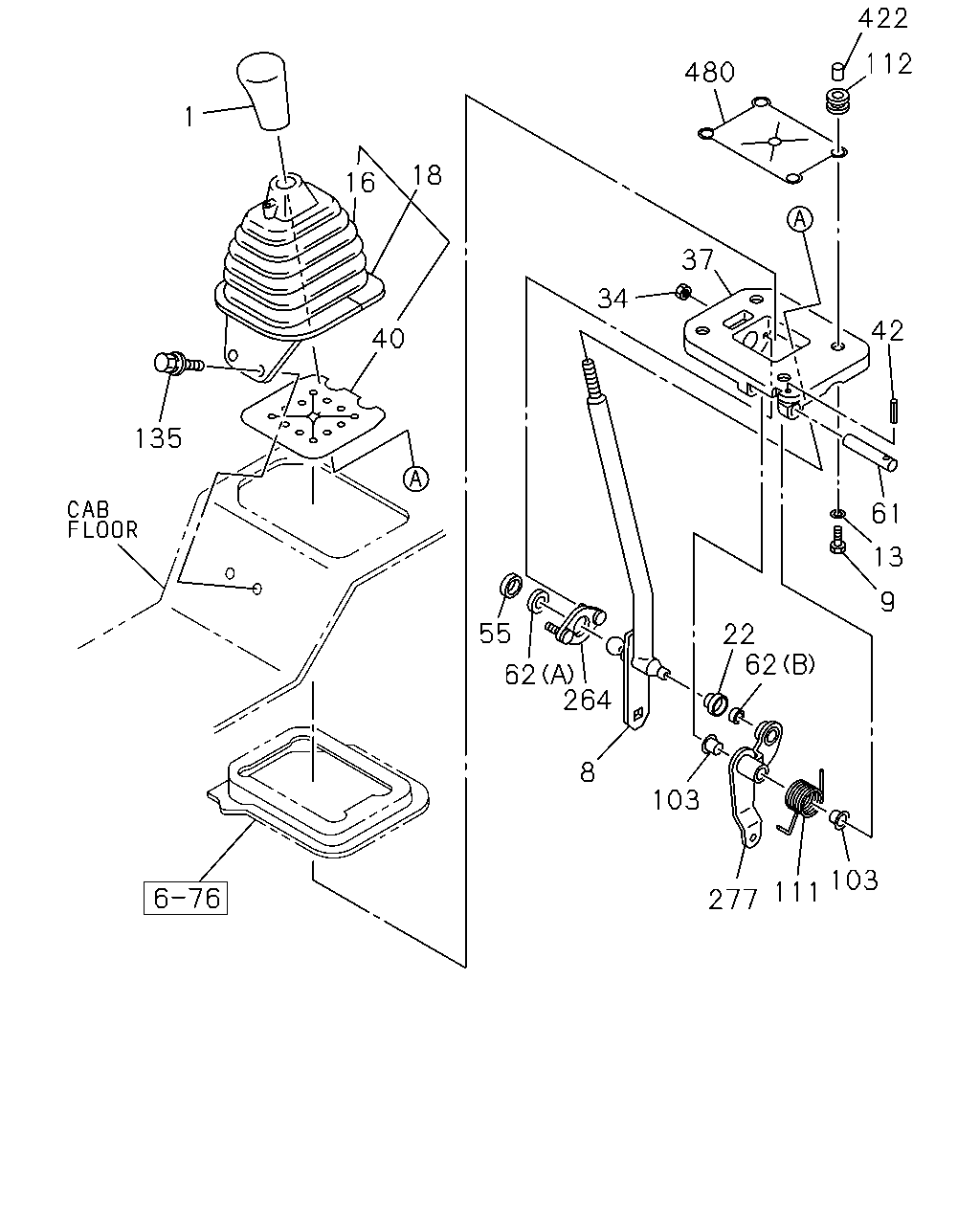

2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#28911) — 25 parça

422 112 480 1 18 16 37 34 42 40 135 61 13 9 55 22 62 62 264 8 103 103 111 277

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	KNOB; CHANGE LEVER MAG6 M/T<X9T>	1-33611-068-0	01	1	0106-	●	●
1	KNOB; CHANGE LEVER MJA7 M/T<X9Q>	1-33611-092-0	01	1	0106-	●	●
8	LEVER; CHANGE ASSISTOR SHIFT CONTROL<WX8>	1-33613-344-0	01	1	0106-	●	●
8	LEVER; CHANGE EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33613-348-0	01	1	0106-	●	●
9	BOLT; CHANGE LEVER M8X25 FLANGE	0-28680-825-0	04	1	0106-	●	●
13	WASHER; PL,SUPER SHIFT LEVER ID=8.4 OD=22	9-09160-708-0	04	1	0106-	●	●
16	BOOT; CHANGE LEVER	1-79996-368-0	01	1	0106-	●	●
18	BOOT; CHANGE LEVER	1-79996-436-2	01	1	0106-	●	●
22	COVER; DUST,CHANGE LEVER	1-33619-573-0	01	1	0106-	●	●
34	NUT M6 FLANGE	0-91150-106-0	02	1	0106-	●	●
37	BRACKET; CHANGE LEVER SUPPORT	1-33619-467-0	01	1	0106-	●	●
40	SEAL; BOOT HOLDER CHANGE LEVER	1-79996-345-0	01	1	0106-	●	●
42	PIN; SPRING,SELECT LEVER PIN D=5 L=28	8-94252-581-0	01	1	0106-	●	●
55	SEAT; RUBBER,SELECT SPRING	1-33619-429-0	01	1	0106-	●	●
61	PIN; SELECT LEVER	1-33619-470-0	01	1	0106-	●	●
62	SEAT; BALL,CHANGE LEVER (A)	1-33619-427-0	01	1	0106-	●	●
62	SEAT; BALL,CHANGE LEVER (B)	8-97011-900-0	01	1	0106-	●	●
103	BUSHING; RELAY LEVER ID=14 OD=16	8-94252-671-0	02	1	0106-	●	●
111	SPRING MAG6 M/T<X9T>	1-09585-133-1	01	1	0106-	●	●
112	RUBBER; CUSHION	8-97091-426-0	04	1	0106-	●	●
135	BOLT M8X20 W/LK&PL WASHER	8-94279-208-0	04	1	0106-	●	●
264	PLATE; COVER	1-33619-469-0	01	1	0106-	●	●
277	LEVER; RELAY	1-33651-636-0	01	1	0106-	●	●
422	BUSHING; CHANGE LEVER	8-97091-427-0	04	1	0106-	●	●
480	RUBBER; COVER	1-33619-554-0	01	1	0106-	●	●
