Sayfa 2-30 - Isuzu EPC

2-30 — GEAR SHIFTER AND QUADRANT BOX (#28910) — 427 parça

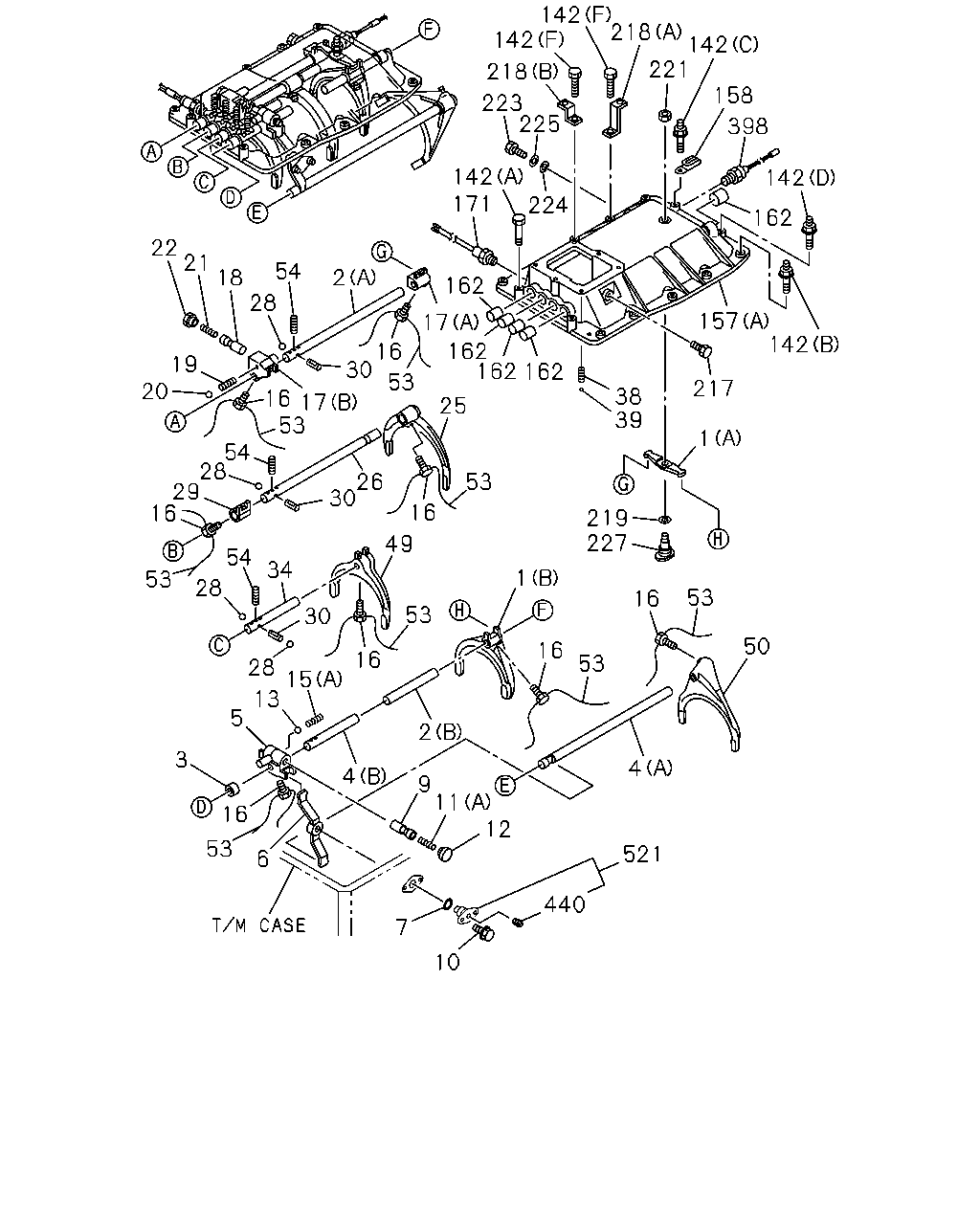

142 218 142 142 221 218 158 223 225 398 142 171 142 224 162 22 21 54 18 28 2 162 157 142 17 162 162 16 30 19 20 162 16 17 53 53 217 38 39 25 1 54 28 29 16 53 26 30 16 219 227 49 54 34 1 53 28 53 16 53 30 50 16 16 53 28 15 13 5 2 3 4 9 11 4 12 16 53 521 6 440 7 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	ARM; SHIFT,1ST & REV (A)	1-33511-082-0	01	1	0106-	●
1	ARM; SHIFT,1ST & REV (B)	1-33511-175-1	01	1	0106-	●
2	ROD; SHIFT,1ST & REV (B)	1-33531-400-1	01	1	0106-	●
2	ROD; SHIFT,1ST & REV (A)	1-33531-408-1	01	1	0106-	●
3	STOPPER; 6TH SHIFT ROD	9-33537-018-0	01	1	0106-	●
4	ROD; SHIFT,6TH (B)	1-33531-405-1	01	1	0106-	●
4	ROD; SHIFT,6TH (A)	1-33531-414-1	01	1	0106-	●
5	BLOCK; SHIFT,6TH	1-33511-372-2	01	1	0106-	●
6	LEVER; RELAY	9-33511-402-1	01	1	0106-	●
6	LEVER; RELAY	1-33511-233-1	01	1	0106-		●
7	GASKET; SPINDLE ALSO INCLUDED IN GASKET SET(M/T). ID=24.4	1-09623-057-0	01	1	0106-	●
9	SLEEVE; 6TH,SHIFT BLOCK	1-33516-022-1	01	1	0106-	●
10	BOLT; SPINDLE M14X20	1-09044-078-0	02	1	0106-	●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0106-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0106-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0106-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0106-	●	●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0106-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	0106-		●
16	BOLT; SHIFT ARM & BLOCK SET M12X20 W/HOLE	1-09052-038-0	08	1	0106-	●
17	BLOCK; SHIFT,1ST & REV (A)	1-33511-038-2	01	1	0106-	●
17	BLOCK; SHIFT,1ST & REV (B)	1-33511-298-4	01	1	0106-	●
18	SLEEVE; 1ST & REV,SHIFT BLOCK	1-33516-022-1	01	1	0106-	●
19	SPRING; COIL COMP	1-09580-438-0	01	1	0106-	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	0106-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0106-	●	●
21	SPRING; COIL COMP SLEEVE	1-09580-444-0	01	1	0106-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0106-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-		●
25	ARM; SHIFT,2ND & 3RD	1-33511-184-1	01	1	0106-	●
26	ROD; SHIFT,2ND & 3RD	1-33531-410-1	01	1	0106-	●
28	BALL; INTER LK	9-00097-501-0	04	1	0106-	●	●
29	BLOCK; SHIFT,2ND & 3RD	1-33511-376-1	01	1	0106-	●
30	PIN; INTER LK	9-33534-003-0	03	1	0106-	●	●
34	ROD; SHIFT,4TH & 5TH ARM	1-33531-412-1	01	1	0106-	●
38	SPRING; DETENT	1-09580-379-0	04	1	0106-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0106-	●	●
49	ARM; SHIFT,4TH & 5TH	1-33511-369-1	01	1	0106-	●
50	ARM; SHIFT,6TH	1-33511-185-3	01	1	0106-	●
53	WIRE; BOLT L=180	1-09780-024-0	06	1	0106-	●
53	WIRE; BOLT L=200	9-08351-020-0	02	1	0106-	●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0106-	●	●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0106-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	03	1	0106-	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0106-	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0106-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	04	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-		●
157	BOX; QUAD,TRANS (A)	1-33541-415-0	01	1	0106-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-507-3	01	1	0106-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-256-2	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	0106-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	0106-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0106-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0106-		●
162	COVER; SHIFT ROD,QUAD BOX OD=24 L=31	9-33545-011-1	05	1	0106-	●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0106-	●	●
217	SCREW; SET,6TH SHIFT BLOCK M8X12.5	9-09814-533-0	01	1	0106-	●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0106-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0106-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0106-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0106-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0106-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0106-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0106-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0106-	●	●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0106-	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0106-		●
440	PLUG; OIL PT1/4	9-99204-513-0	01	1	0106-	●
521	SPINDLE; 6TH	1-33119-255-0	01	1	0106-	●

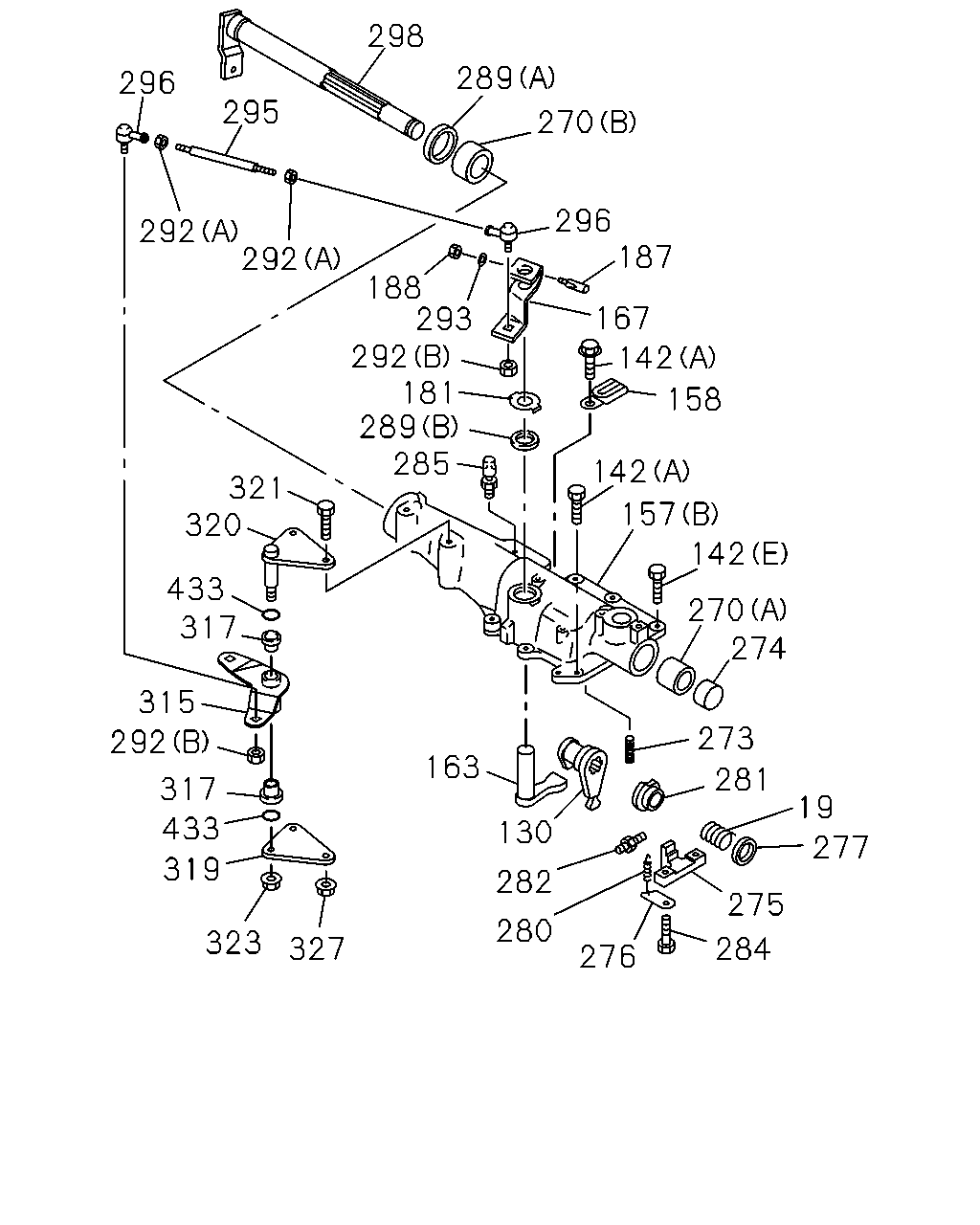

298 289 296 295 270 296 187 292 292 188 293 292 181 289 285 167 142 158 142 321 320 157 142 433 317 270 274 315 273 292 163 281 317 19 433 130 277 319 282 275 280 323 327 284 276

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP	1-09580-438-0	01	1	0106-	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	0106-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-119-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-125-0	01	1	0106-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-103-1	01	1	0106-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0106-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	03	1	0106-	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0106-	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0106-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	04	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-		●
157	BOX; QUAD,TRANS (A)	1-33541-415-0	01	1	0106-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-507-3	01	1	0106-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-256-2	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	0106-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	0106-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0106-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0106-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0106-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0106-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0106-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-138-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	0106-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0106-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0106-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0106-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	0106-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	0106-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	0106-	●	●
273	PIN; SPR,STOPPER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09748-016-0	01	1	0106-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0106-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33529-031-1	01	1	0106-		●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-027-0	01	1	0106-		●
276	PLATE; SPRING RET	1-33529-010-0	01	1	0106-		●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	0106-		●
280	SPRING; COIL TENSION ASSISTOR SHIFT CONTROL<WX8>	1-09583-285-0	01	1	0106-		●
280	SPRING; COIL TENSION EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09583-255-0	01	1	0106-		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	0106-		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	0106-		●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	0106-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0106-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0106-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0106-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0106-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0106-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0106-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0106-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-815-0	01	1	0106-		●
296	ROD END	1-09760-108-0	02	1	0106-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-161-0	01	1	0106-0307	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-146-0	01	1	0106-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-113-0	01	1	0106-0307		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-179-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-150-0	01	1	0106-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-756-0	01	1	0106-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-970-0	01	1	0106-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-777-0	01	1	0106-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-752-0	01	1	0106-	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-640-0	01	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-591-0	01	1	0106-		●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-630-0	01	1	0106-	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0106-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0106-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0106-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0106-	●	●

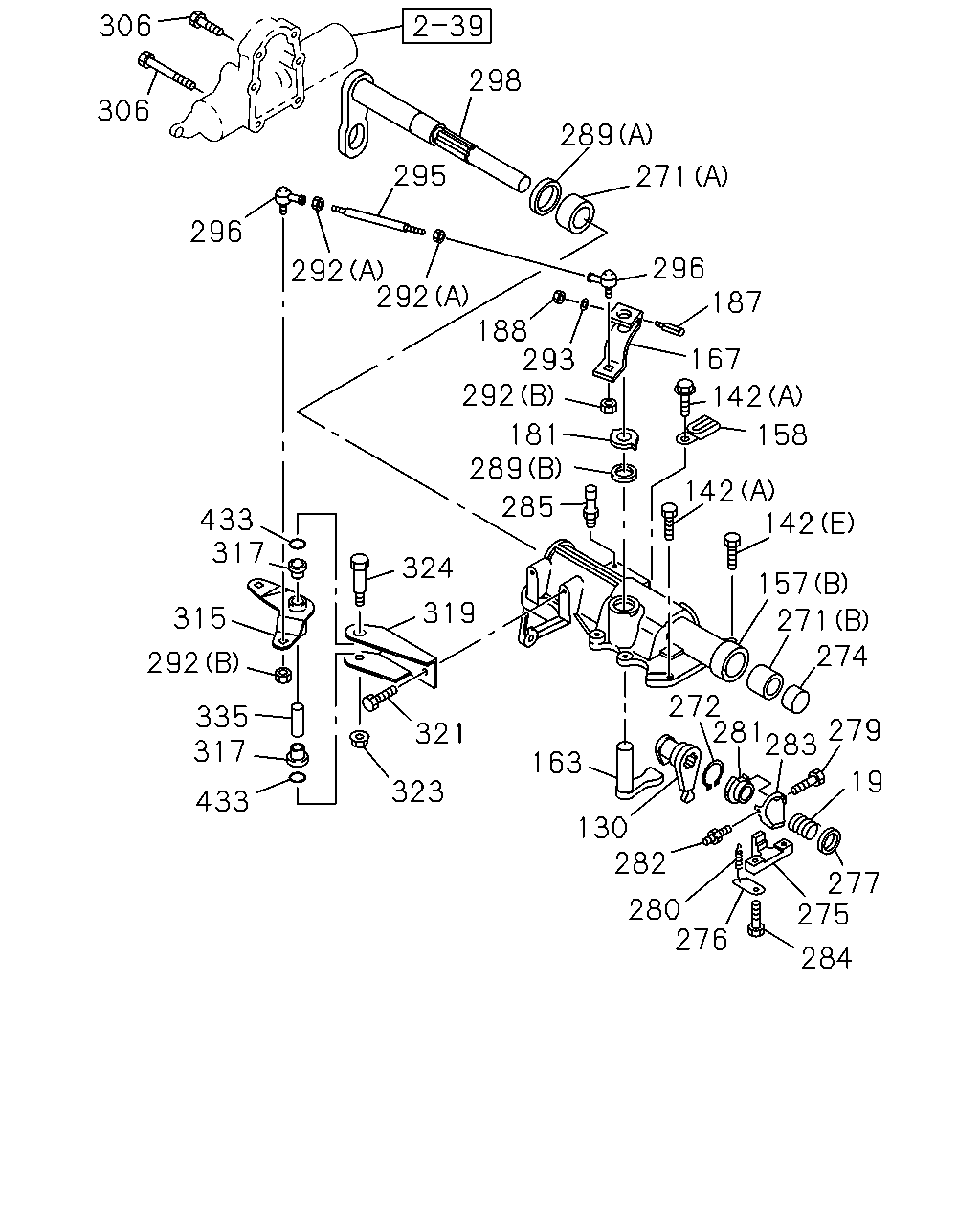

306 306 298 289 271 296 295 292 296 292 187 188 293 167 142 181 292 289 142 285 324 157 433 319 317 271 315 274 163 292 321 272 317 323 130 433 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-119-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-125-0	01	1	0106-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-103-1	01	1	0106-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0106-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	03	1	0106-	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0106-	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0106-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	04	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-		●
157	BOX; QUAD,TRANS (A)	1-33541-415-0	01	1	0106-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-507-3	01	1	0106-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-256-2	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	0106-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	0106-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0106-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0106-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0106-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-138-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	0106-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0106-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0106-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0106-	●	●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	0106-	●	●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	0106-	●	●
272	RING; SNAP,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0106-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0106-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0106-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0106-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0106-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0106-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0106-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0106-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0106-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-815-0	01	1	0106-		●
296	ROD END	1-09760-108-0	02	1	0106-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-161-0	01	1	0106-0307	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-146-0	01	1	0106-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-113-0	01	1	0106-0307		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-179-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-150-0	01	1	0106-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	0106-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE	0-28181-080-0	04	1	0106-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-756-0	01	1	0106-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-970-0	01	1	0106-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-777-0	01	1	0106-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-752-0	01	1	0106-	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-640-0	01	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-591-0	01	1	0106-		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0106-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0106-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0106-	●	●
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE	0-28081-060-0	01	1	0106-	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-220-0	01	1	0106-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0106-	●	●

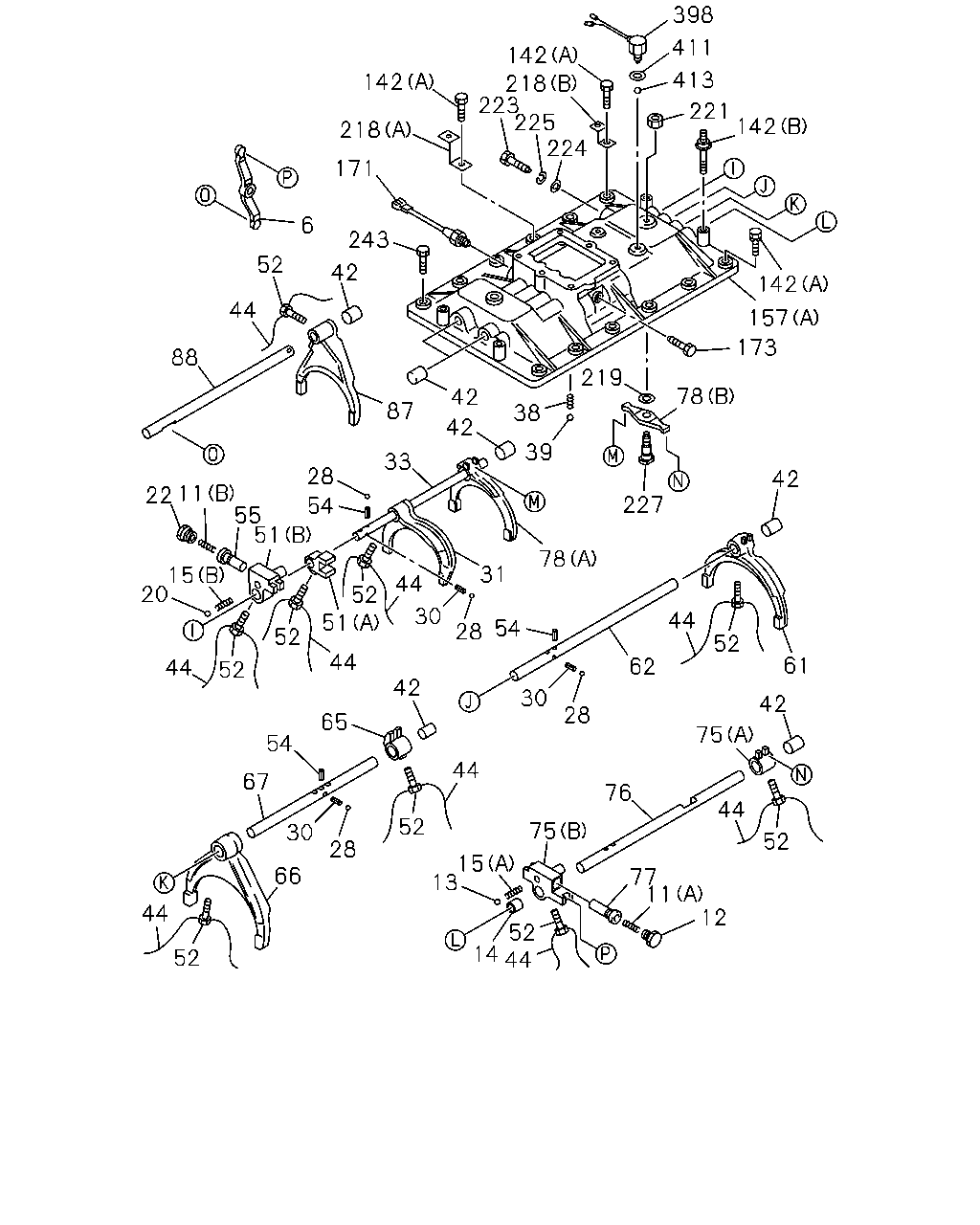

398 411 142 413 142 218 223 225 224 221 142 218 171 6 243 52 42 142 44 157 173 88 219 78 42 87 38 42 39 33 28 42 227 55 51 54 78 31 15 20 44 52 30 44 51 54 28 52 52 44 61 62 44 52 42 30 42 28 65 75 54 44 67 76 44 52 75 30 52 28 15 13 66 77 11 12 44 52 14 44 52 22 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	LEVER; RELAY	9-33511-402-1	01	1	0106-	●
6	LEVER; RELAY	1-33511-233-1	01	1	0106-		●
11	SPRING; RETURN,SHIFT SLEEVE (A)	9-09941-160-0	01	1	0106-	●	●
11	SPRING; RETURN,SHIFT SLEEVE (B)	1-09580-444-0	01	1	0106-		●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0106-	●
12	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-		●
13	BALL; LK,SHIFT SLEEVE	9-00097-509-0	01	1	0106-	●	●
14	STOPPER; SHIFT ROD,7TH TO RR	1-33537-019-0	01	1	0106-		●
15	SPRING; LK,SHIFT SLEEVE (A)	9-09941-007-0	01	1	0106-	●	●
15	SPRING; LK,SHIFT SLEEVE (B)	1-09580-436-0	01	1	0106-		●
20	BALL; DETENT SLEEVE	9-00097-509-0	01	1	0106-	●	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-003-1	01	1	0106-	●
22	CAP; RETURN SPR,SHIFT BLOCK	1-33516-027-1	01	1	0106-		●
28	BALL; INTER LK	9-00097-501-0	04	1	0106-	●	●
30	PIN; INTER LK	9-33534-003-0	03	1	0106-	●	●
31	ARM; SHIFT,LOW & 2ND	1-33511-291-1	01	1	0106-		●
33	ROD; SHIFT,LOW & 2ND	1-33531-426-1	01	1	0106-		●
38	SPRING; DETENT	1-09580-379-0	04	1	0106-	●	●
39	BALL; DETENT	1-09843-012-0	04	1	0106-	●	●
42	CAP; QUAD BOX OD=24 L=31	9-33545-011-1	07	1	0106-		●
44	WIRE; LK L=180	1-09780-024-0	07	1	0106-		●
44	WIRE; LK L=200	9-08351-020-0	02	1	0106-		●
51	BLOCK; SHIFT,1ST & 2ND (B)	1-33511-298-4	01	1	0106-		●
51	BLOCK; SHIFT,1ST & 2ND (A)	1-33511-605-0	01	1	0106-		●
52	BOLT; SHIFT ARM M12X20 W/HOLE	1-09052-038-0	09	1	0106-		●
54	PIN; SPR,SHIFT BLOCK	1-09748-014-0	03	1	0106-	●	●
55	SLEEVE; 1ST & 2ND	1-33516-022-1	01	1	0106-		●
61	ARM; SHIFT,3RD & 4TH	1-33511-314-2	01	1	0106-		●
62	ROD; SHIFT,3RD & 4TH	1-33531-428-1	01	1	0106-		●
65	BLOCK ASM; SHIFT,5TH & 6TH	1-33511-286-1	01	1	0106-		●
66	ARM; SHIFT,5TH & 6TH	1-33511-273-1	01	1	0106-		●
67	ROD; SHIFT,5TH & 6TH	1-33531-429-1	01	1	0106-		●
75	BLOCK ASM; SHIFT,REV & 7TH (A)	1-33511-236-1	01	1	0106-		●
75	BLOCK ASM; SHIFT,REV & 7TH (B)	1-33511-300-4	01	1	0106-		●
76	ROD; SHIFT,REV & 7TH BLOCK	1-33531-432-1	01	1	0106-		●
77	SLEEVE; REV & 7TH	1-33516-022-1	01	1	0106-		●
78	ARM; SHIFT,REV (B)	1-33511-082-0	01	1	0106-		●
78	ARM; SHIFT,REV (A)	1-33511-313-1	01	1	0106-		●
87	ARM; SHIFT,7TH	1-33511-275-1	01	1	0106-		●
88	ROD; SHIFT,REV & 7TH ARM	1-33531-433-1	01	1	0106-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0106-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	03	1	0106-	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0106-	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0106-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	04	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-		●
157	BOX; QUAD,TRANS (A)	1-33541-415-0	01	1	0106-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-507-3	01	1	0106-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-256-2	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	0106-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	0106-		●
171	SWITCH; NEUTRAL	1-82440-101-1	01	1	0106-	●	●
173	SCREW; SET,7TH TO REV	1-09000-446-1	01	1	0106-		●
218	BRACKET; HARNESS CLIP,QUAD BOX (A)	1-47475-689-0	01	1	0106-	●	●
218	BRACKET; HARNESS CLIP,QUAD BOX (B)	1-82699-425-0	01	1	0106-	●	●
219	WASHER; PL,SPINDLE ID=16.5	9-09857-042-0	01	1	0106-	●	●
221	NUT; SPINDLE M12 FLANGE	0-91150-212-0	01	1	0106-	●	●
223	SCREW; SET,QUAD BOX M14X45	9-09816-057-1	01	1	0106-	●	●
224	WASHER; PL,QUAD BOX ID=15	9-09160-514-0	01	1	0106-	●	●
225	WASHER; LK,QUAD BOX ID=14.2	9-09150-514-0	01	1	0106-	●	●
227	SPINDLE; 1ST & REV	1-33519-012-0	01	1	0106-	●	●
243	BOLT; COVER EXC. ASSISTOR SHIFT CONTROL<WX8> M6X10 FLANGE	0-28080-610-0	01	1	0106-		●
398	SWITCH; REV LAMP	1-82440-082-0	01	1	0106-	●
398	SWITCH; REV LAMP	1-82440-083-3	01	1	0106-		●
411	GASKET; REV LAMP SW ALSO INCLUDED IN GASKET SET(M/T). ID=14.2	8-94462-114-0	01	1	0106-		●
413	BALL; BACK SW	9-00097-013-0	01	1	0106-		●

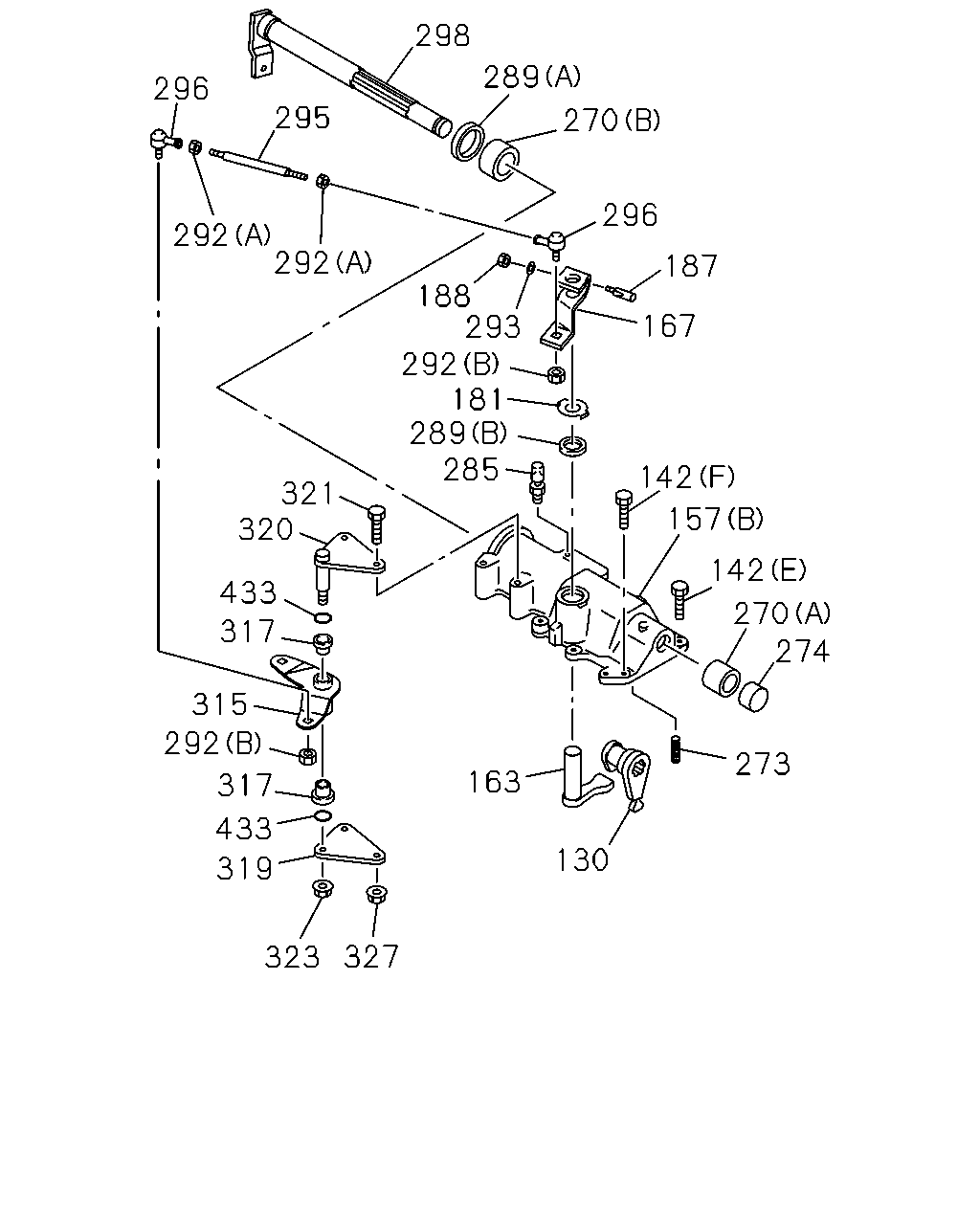

298 289 296 295 270 296 292 292 187 188 293 292 181 289 285 167 142 321 320 157 142 433 270 274 317 315 292 273 163 317 433 130 319 327 323

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-119-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-125-0	01	1	0106-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-103-1	01	1	0106-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0106-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	03	1	0106-	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0106-	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0106-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	04	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-		●
157	BOX; QUAD,TRANS (A)	1-33541-415-0	01	1	0106-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-507-3	01	1	0106-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-256-2	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	0106-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	0106-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0106-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0106-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0106-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-138-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	0106-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0106-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0106-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0106-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NTN	1-09811-006-0	01	1	0106-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (A) NSK	1-09811-057-0	01	1	0106-	●	●
270	BEARING; NEEDLE,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8> (B) NTN	1-09811-260-0	01	1	0106-	●	●
273	PIN; SPR,STOPPER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09748-016-0	01	1	0106-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0106-	●	●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0106-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0106-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0106-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0106-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0106-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0106-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0106-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-815-0	01	1	0106-		●
296	ROD END	1-09760-108-0	02	1	0106-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-161-0	01	1	0106-0307	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-146-0	01	1	0106-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-113-0	01	1	0106-0307		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-179-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-150-0	01	1	0106-		●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-756-0	01	1	0106-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-970-0	01	1	0106-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-777-0	01	1	0106-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-752-0	01	1	0106-	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-640-0	01	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-591-0	01	1	0106-		●
320	SHAFT; LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33619-630-0	01	1	0106-	●	●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0106-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0106-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0106-	●	●
327	NUT; BRKT,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0106-	●	●

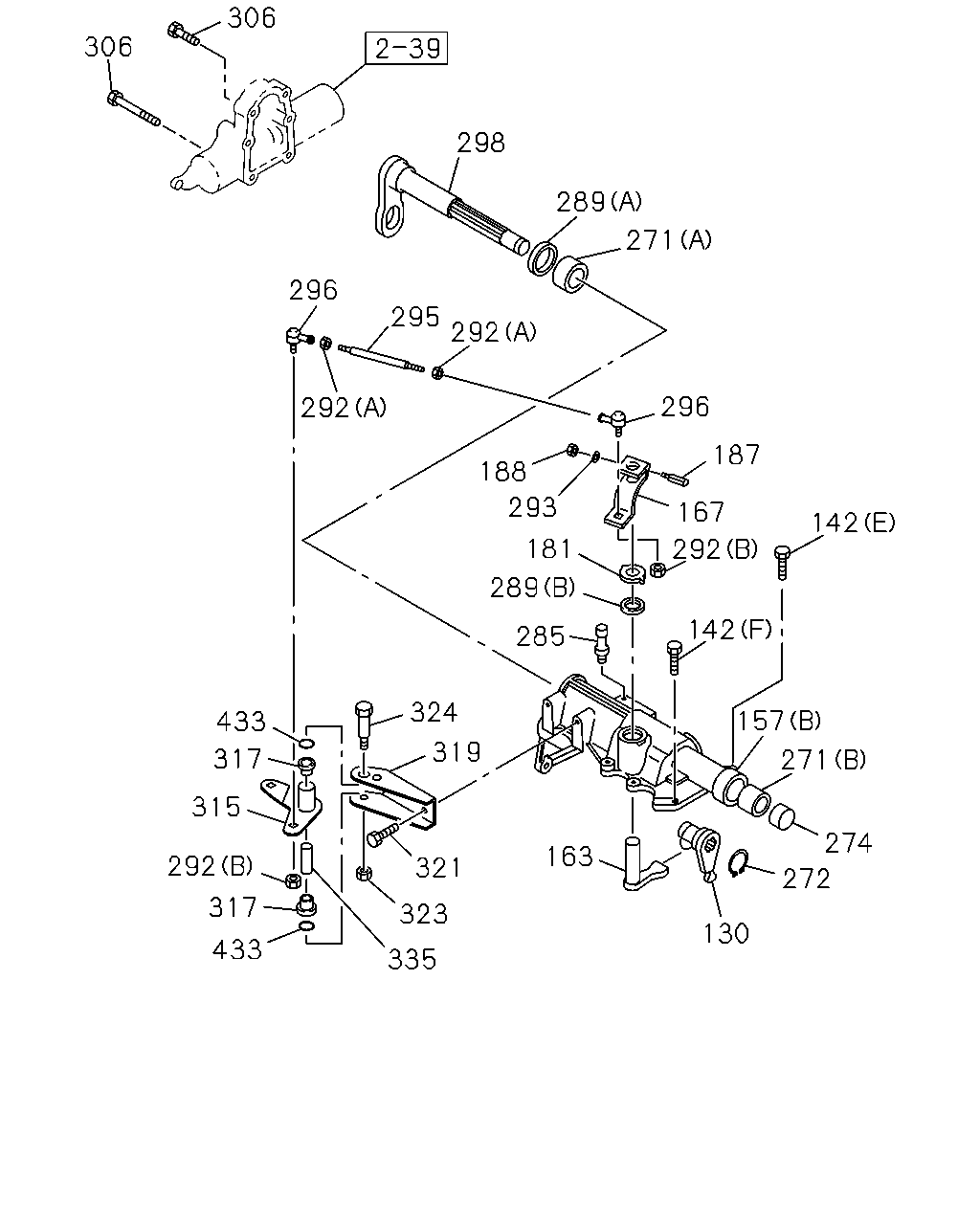

306 298 306 289 295 271 296 296 187 292 292 188 293 292 167 142 181 289 158 142 142 285 433 317 324 157 319 315 271 274 292 272 281 279 283 335 317 321 163 19 323 433 130 282 277 275 280 276 284

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
19	SPRING; COIL COMP	1-09580-438-0	01	1	0106-	●
19	SPRING; COIL COMP	1-09580-519-0	01	1	0106-		●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-124-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-119-0	01	1	0106-	●
130	LEVER; SHIFT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-125-0	01	1	0106-		●
130	LEVER; SHIFT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-103-1	01	1	0106-		●
142	BOLT; QUAD BOX (F) M10X28 FLANGE	0-28181-028-0	11	1	0106-	●
142	BOLT; QUAD BOX (E) M10X28 FLANGE REAMER	1-09040-089-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	03	1	0106-	●
142	BOLT; QUAD BOX (C) M10X20,M10X45 L=75	1-09049-015-0	01	1	0106-	●
142	BOLT; QUAD BOX (D) M10X20,M10X55 L=85	1-09049-016-0	01	1	0106-	●
142	BOLT; QUAD BOX (A) M10X55 FLANGE	8-94399-863-1	02	1	0106-	●	●
142	BOLT; QUAD BOX (A) M10X28 FLANGE	0-28181-028-0	12	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X26, L=56	1-09049-014-1	04	1	0106-		●
142	BOLT; QUAD BOX (B) M10X20,M10X55 L=85	1-09049-016-0	02	1	0106-		●
157	BOX; QUAD,TRANS (A)	1-33541-415-0	01	1	0106-	●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-507-3	01	1	0106-	●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-256-2	01	1	0106-	●
157	BOX; QUAD,TRANS (A)	1-33541-399-0	01	1	0106-		●
157	BOX; QUAD,TRANS ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-388-1	01	1	0106-		●
157	BOX; QUAD,TRANS EXC. ASSISTOR SHIFT CONTROL<WX8> (B)	1-33541-393-1	01	1	0106-		●
158	CLIP; HARNESS L=36	8-94224-891-1	01	1	0106-	●
158	CLIP; HARNESS L=36	8-94224-891-1	02	1	0106-		●
163	LEVER; SELECT,INTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33522-162-1	01	1	0106-	●
163	LEVER; SELECT,INTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-041-4	01	1	0106-	●
163	LEVER; SELECT,INTERNAL	1-33522-041-4	01	1	0106-		●
167	LEVER; SELECT,EXTERNAL ASSISTOR SHIFT CONTROL<WX8>	1-33521-163-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33521-138-0	01	1	0106-	●
167	LEVER; SELECT,EXTERNAL	1-33521-138-0	01	1	0106-		●
181	WASHER; PL,SELECT LEVER OD=40	1-09532-008-0	01	1	0106-	●	●
187	BOLT; SELECT LEVER M8X42	1-33659-045-0	01	1	0106-	●	●
188	NUT; SELECT LEVER M8 FLANGE	1-09440-062-1	01	1	0106-	●	●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (B) ID=20 OD=23	1-33549-016-0	01	1	0106-	●	●
271	BUSHING; QUAD BOX ASSISTOR SHIFT CONTROL<WX8> (A) ID=28 OD=32	1-33549-104-0	01	1	0106-	●	●
272	RING; SNAP,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-09588-175-0	01	1	0106-	●	●
274	COVER; SHAFT,QUAD BOX	9-33545-017-1	01	1	0106-	●	●
275	BLOCK; OBSTRUCT,QUAD BOX ASSISTOR SHIFT CONTROL<WX8>	1-33529-031-1	01	1	0106-		●
275	BLOCK; OBSTRUCT,QUAD BOX EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33529-027-0	01	1	0106-		●
276	PLATE; SPRING RET	1-33529-010-0	01	1	0106-		●
277	PLATE; SPRING SEAT	1-33529-009-0	01	1	0106-		●
279	BOLT; STOPPER ASSISTOR SHIFT CONTROL<WX8> M5X8	0-20800-508-0	01	1	0106-		●
280	SPRING; COIL TENSION ASSISTOR SHIFT CONTROL<WX8>	1-09583-285-0	01	1	0106-		●
280	SPRING; COIL TENSION EXC. ASSISTOR SHIFT CONTROL<WX8>	1-09583-255-0	01	1	0106-		●
281	PLATE; OBSTRUCT,QUAD BOX	1-33529-030-1	01	1	0106-		●
282	BOLT; SPRING REAMER	1-33529-024-0	01	1	0106-		●
283	STOPPER; SHIFT SHAFT ASSISTOR SHIFT CONTROL<WX8>	1-33529-032-0	01	1	0106-		●
284	BOLT; REAMER,QUAD BOX	1-09040-075-1	02	1	0106-		●
285	BREATHER; AIR,QUAD BOX	1-33149-008-0	01	1	0106-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-334-0	01	1	0106-0307	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (A) OD=41	1-09625-647-0	01	1	0308-	●	●
289	SEAL; OIL,CONT SHAFT,QUAD BOX ALSO INCLUDED IN GASKET SET(M/T). (B) OD=30	1-09625-386-0	01	1	0106-	●	●
292	NUT; LINK ROD (B) M8 FLANGE	1-09440-062-1	02	1	0106-	●	●
292	NUT; LINK ROD (A) M8	9-09111-408-0	02	1	0106-	●	●
293	WASHER; PL,TAPER BOLT ID=8.4 OD=22	9-09160-708-0	01	1	0106-	●	●
295	ROD; LINK,RELAY LEVER L=130	1-09765-262-0	01	1	0106-	●
295	ROD; LINK,RELAY LEVER EXC. ASSISTOR SHIFT CONTROL<WX8> L=130	1-09765-262-0	01	1	0106-		●
295	ROD; LINK,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8>	9-08400-815-0	01	1	0106-		●
296	ROD END	1-09760-108-0	02	1	0106-	●	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-161-0	01	1	0106-0307	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-180-0	01	1	0308-	●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-146-0	01	1	0106-	●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-113-0	01	1	0106-0307		●
298	SHAFT; SHIFT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33522-179-0	01	1	0308-		●
298	SHAFT; SHIFT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33522-150-0	01	1	0106-		●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X45 FLANGE	0-28181-045-0	02	1	0106-	●	●
306	BOLT; SHIFT ASSISTOR ASSISTOR SHIFT CONTROL<WX8> M10X80 FLANGE	0-28181-080-0	04	1	0106-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-756-0	01	1	0106-	●
315	LEVER; SELECT EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33651-970-0	01	1	0106-	●	●
315	LEVER; SELECT ASSISTOR SHIFT CONTROL<WX8>	1-33651-777-0	01	1	0106-		●
317	BUSHING; LEVER	1-09330-119-0	02	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-752-0	01	1	0106-	●
319	BRACKET; SELECT LEVER EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33657-640-0	01	1	0106-	●	●
319	BRACKET; SELECT LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33657-591-0	01	1	0106-		●
321	BOLT; BRKT,RELAY LEVER M10X80	0-10806-080-0	02	1	0106-	●	●
321	BOLT; BRKT,RELAY LEVER ASSISTOR SHIFT CONTROL<WX8> M10X22 FLANGE	0-28181-022-0	02	1	0106-	●	●
323	NUT; LK,SELECT LEVER	1-33659-219-0	01	1	0106-	●	●
324	BOLT; SHAFT ASSISTOR SHIFT CONTROL<WX8> M10X60 FLANGE	0-28081-060-0	01	1	0106-	●	●
335	COLLAR; DIST,RELAY LEVER ASM ASSISTOR SHIFT CONTROL<WX8>	1-33659-220-0	01	1	0106-	●	●
433	GASKET; BUSHING	1-09623-636-0	02	1	0106-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
