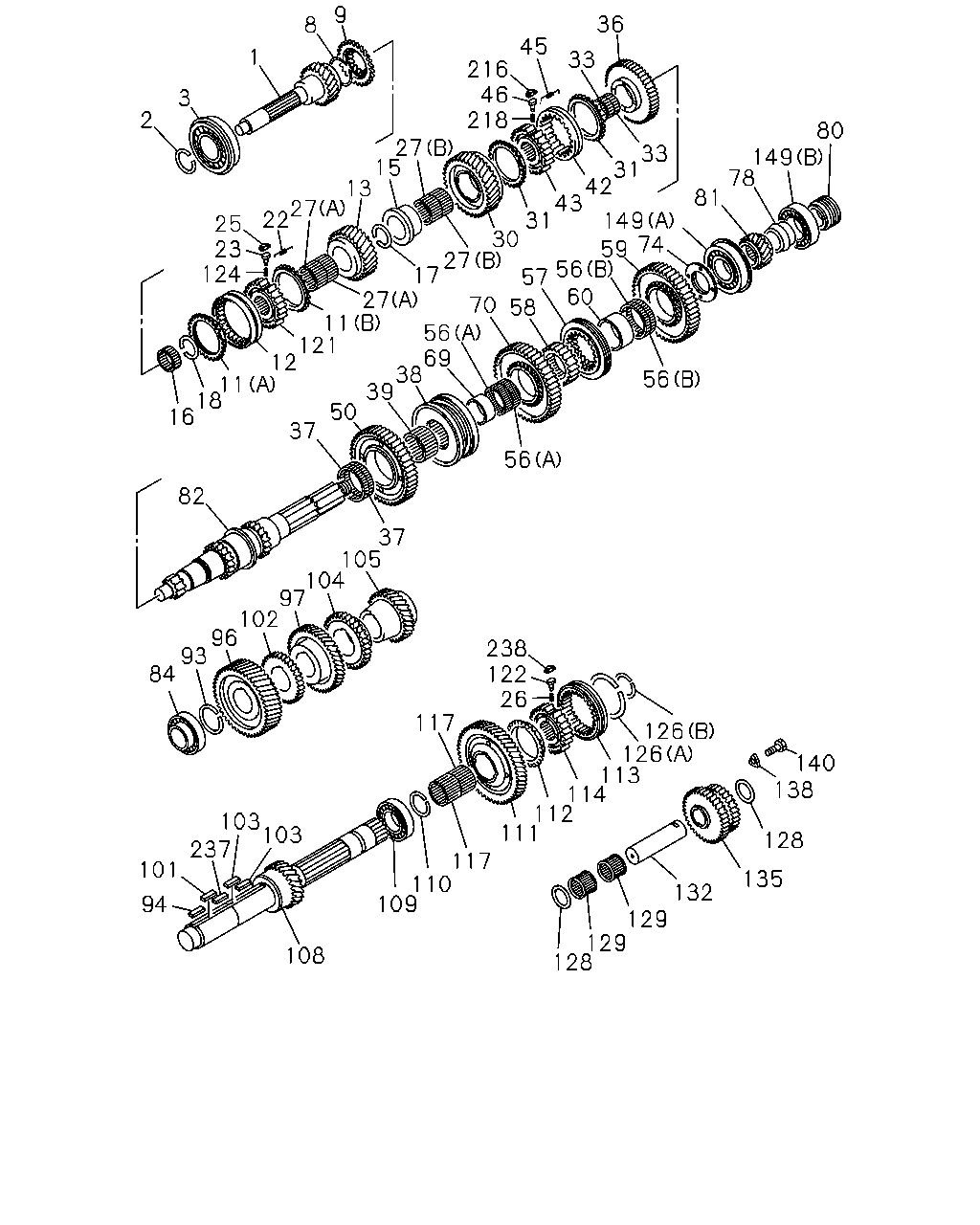

2-26 — MANUAL TRANSMISSION GEAR (#28909) — 223 parça

9 36 8 45 1 33 216 46 218 3 2 80 149 78 27 15 13 33 31 42 43 31 30 27 17 81 27 22 149 74 25 23 124 59 56 57 60 27 11 121 12 70 56 69 38 39 50 58 56 11 18 16 37 56 82 37 105 104 97 102 96 93 84 238 122 26 117 126 126 113 114 112 111 140 138 103 103 237 128 117 110 109 101 135 132 129 129 128 94 108

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0106-	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0106-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0106-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0106-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0106-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0106-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0106-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0106-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0106-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0106-	●	●
11	RING; BLOCK,5TH & 6TH (A) Z=54	1-33265-290-7	01	1	0106-		●
11	RING; BLOCK,5TH & 6TH (B) Z=54	1-33265-544-0	01	1	0106-		●
12	SLEEVE; 5TH & 6TH	1-33262-120-1	01	1	0106-		●
13	GEAR; 5TH,MAINSHAFT Z=28	1-33253-418-0	01	1	0106-		●
15	COLLAR; 4TH GEAR	1-33234-053-2	01	1	0106-		●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0106-	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0106-	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	0106-		●
18	RING; SNAP,CLU HUB ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0106-		●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0106-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0106-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0106-	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	0106-	●	●
27	BEARING; 4TH GEAR (C) NSK	1-09811-355-0	02	1	0106-	●
27	BEARING; 4TH GEAR (C) NTN	1-09811-402-0	02	1	0106-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0106-		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0106-		●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0106-		●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0106-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0106-		●
31	RING; BLOCK,3RD & 4TH Z=66	1-33265-545-0	02	1	0106-		●
33	BEARING; NEEDLE,3RD GEAR NSK	1-09811-409-0	02	1	0106-		●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0106-	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0106-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	0106-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	0106-		●
38	SYNCHRONIZER; LOW & 2ND	1-33260-111-1	01	1	0106-		●
39	HUB; CLU,LOW & 2ND	1-33261-163-1	01	1	0106-		●
42	SLEEVE	1-33262-222-0	01	1	0106-		●
43	HUB; CLU,3RD & 4TH,MAIN Z=66	1-33261-241-0	01	1	0106-		●
45	SPRING; BLOCK INSERT	1-09583-171-0	03	1	0106-		●
46	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0106-		●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0106-	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0106-		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	04	1	0106-	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0106-		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0106-		●
57	SLEEVE; REV	1-33262-112-1	01	1	0106-		●
58	HUB; CLU,REV	1-33261-164-1	01	1	0106-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0106-	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0106-		●
60	COLLAR; REV MAIN	1-33234-078-0	01	1	0106-		●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	0106-	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	0106-		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0106-	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0106-		●
74	WASHER; THRUST,REV GEAR	1-33239-093-1	01	1	0106-		●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	0106-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	0106-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0106-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0106-		●
81	GEAR; 7TH,MAIN Z=22-24	1-33254-008-0	01	1	0106-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0106-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0106-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0106-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0106-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	0106-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0106-		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0106-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0106-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0106-		●
97	GEAR; 5TH,COUNTER Z=40	1-33338-232-0	01	1	0106-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0106-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0106-	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0106-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	0106-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0106-	●	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0106-		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0106-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0106-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0106-	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0106-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0106-	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0106-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0106-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0106-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0106-	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0106-		●
111	GEAR; 7TH COUNTER SHAFT Z=58	1-33338-225-1	01	1	0106-		●
112	RING; BLOCK,7TH SYN Z=54	1-33265-356-0	01	1	0106-		●
113	SLEEVE; 7TH COUNTER SHAFT	1-33262-121-2	01	1	0106-		●
114	HUB; CLU,7TH	1-33261-177-2	01	1	0106-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NSK	1-09811-355-0	02	1	0106-		●
117	BEARING; NEEDLE,7TH,COUNTER SHAFT NTN	1-09811-402-0	02	1	0106-		●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0106-	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	0106-		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0106-	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	0106-	●	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0106-	●	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0106-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0106-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0106-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0106-		●
132	SHAFT; REV	1-33351-012-2	01	1	0106-	●
132	SHAFT; REV	1-33351-016-2	01	1	0106-		●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0106-	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0106-		●
138	PIECE; LK,REV SHAFT	9-33354-007-0	01	1	0106-		●
140	BOLT; LK PIECE M10X15 FLANGE	1-09049-019-0	01	1	0106-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0106-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0106-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0106-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0106-	●	●
216	INSERT; CLU HUB,2ND TO 3RD	1-33263-025-2	03	1	0106-		●
218	SPRING; INSERT,CLU HUB,2ND TO 3RD	1-09580-091-1	03	1	0106-		●
237	KEY; 5TH GEAR L=50.0	1-09735-010-0	01	1	0106-		●
238	INSERT	1-33263-025-2	03	1	0106-		●

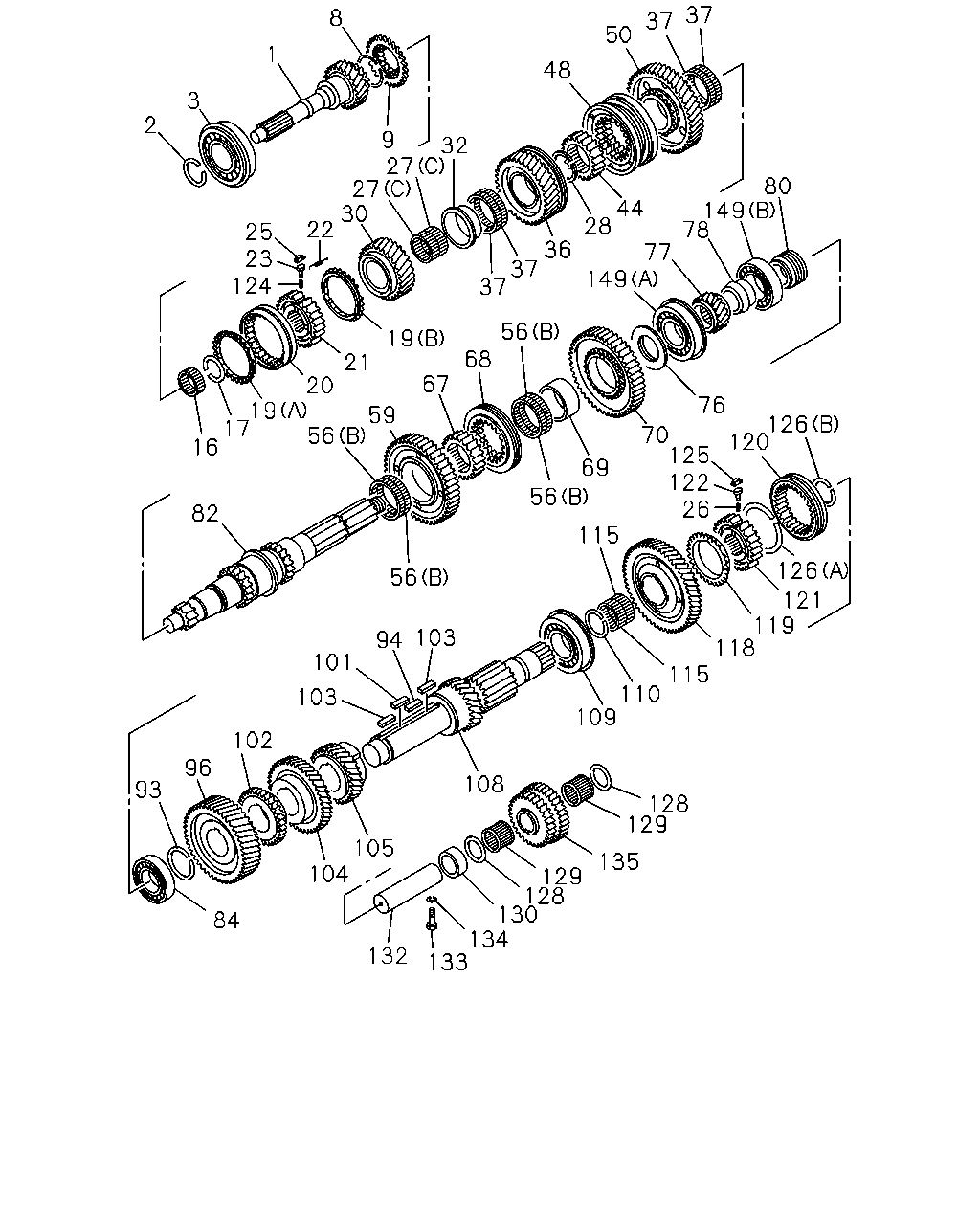

37 8 37 50 1 48 3 2 9 32 27 27 30 22 80 149 78 44 28 25 23 124 36 37 37 77 149 56 19 68 21 67 20 59 56 76 19 17 16 126 120 70 125 122 26 69 56 82 115 126 56 121 119 118 115 110 109 103 94 101 103 102 96 108 93 128 129 105 104 135 129 128 130 134 133 84 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	SHAFT; TOP GEAR,TRANS Z=21	1-33211-608-1	01	1	0106-	●
1	SHAFT; TOP GEAR,TRANS Z=23	1-33211-612-1	01	1	0106-		●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.53 WHITE	1-09588-131-0	AR	1	0106-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.56 YELLOW	1-09588-132-0	AR	1	0106-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.60 BLUE	1-09588-133-0	AR	1	0106-	●	●
2	RING; SNAP,TOP GEAR SHAFT ID=66 T=2.64 GREEN	1-09588-134-0	AR	1	0106-	●	●
3	BEARING; TOP GEAR SHAFT NTN	1-09810-164-0	01	1	0106-	●	●
3	BEARING; TOP GEAR SHAFT NSK	1-09810-185-0	01	1	0106-	●	●
8	CLIP; DOG CLU	1-33219-008-0	01	1	0106-	●	●
9	CLUTCH; DOG,TOP GEAR Z=54	1-33265-152-3	01	1	0106-	●	●
16	BEARING; PILOT,MAINSHAFT NSK	1-09810-139-0	01	1	0106-	●	●
17	RING; SNAP,4TH GEAR ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0106-	●
17	RING; SNAP,4TH GEAR	1-09588-118-0	01	1	0106-		●
19	RING; BLOCK,4TH & 5TH (A) Z=54	1-33265-290-7	01	1	0106-	●
19	RING; BLOCK,4TH & 5TH (B) Z=54	1-33265-544-0	01	1	0106-	●
20	SLEEVE	1-33262-097-1	01	1	0106-	●
21	HUB; CLU,4TH & 5TH	1-33261-186-2	01	1	0106-	●
22	SPRING; BLOCK,INSERT	1-09583-171-0	03	1	0106-	●	●
23	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0106-	●	●
25	INSERT; CLU HUB,4TH TO 5TH	1-33263-025-2	03	1	0106-	●	●
26	SPRING; BLOCK,INSERT	1-09580-091-1	03	1	0106-	●	●
27	BEARING; 4TH GEAR (C) NSK	1-09811-355-0	02	1	0106-	●
27	BEARING; 4TH GEAR (C) NTN	1-09811-402-0	02	1	0106-	●
27	BEARING; 4TH GEAR (A) NSK	1-09811-360-0	02	1	0106-		●
27	BEARING; 4TH GEAR (A) NTN	1-09811-391-0	02	1	0106-		●
27	BEARING; 4TH GEAR (B) NSK	1-09811-411-0	02	1	0106-		●
28	RING; SNAP,3RD GEAR	1-09588-118-0	01	1	0106-	●
30	GEAR; 4TH,MAINSHAFT Z=28	1-33253-462-0	01	1	0106-	●
30	GEAR; 4TH,MAINSHAFT Z=33	1-33253-635-0	01	1	0106-		●
32	COLLAR; 3RD GEAR	1-33234-056-1	01	1	0106-	●
36	GEAR; 3RD,MAINSHAFT Z=36	1-33252-191-2	01	1	0106-	●
36	GEAR; 3RD,MAINSHAFT Z=40	1-33252-266-2	01	1	0106-		●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-409-0	04	1	0106-	●
37	BEARING; NEEDLE,2ND & 3RD NSK	1-09811-410-0	02	1	0106-		●
44	HUB; CLU,2ND & 3RD,MAIN	1-33261-118-1	01	1	0106-	●
48	SYNCHRONIZER ASM; 2ND & 3RD	1-33260-102-2	01	1	0106-	●
50	GEAR; 2ND,MAINSHAFT Z=45	1-33251-262-0	01	1	0106-	●
50	GEAR; 2ND,MAINSHAFT Z=49	1-33251-204-0	01	1	0106-		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	04	1	0106-	●
56	BEARING; NEEDLE,1ST,REV (A) NSK	1-09811-409-0	02	1	0106-		●
56	BEARING; NEEDLE,1ST,REV (B) NSK	1-09811-410-0	02	1	0106-		●
59	GEAR; REV MAINSHAFT Z=38	1-33257-046-1	01	1	0106-	●
59	GEAR; REV MAINSHAFT Z=38-38	1-33257-044-0	01	1	0106-		●
67	HUB; CLU,1ST TO REV	1-33261-118-1	01	1	0106-	●
68	SLEEVE; 1ST TO REV	1-33262-024-1	01	1	0106-	●
69	COLLAR; 1ST GEAR MAIN	1-33234-085-0	01	1	0106-	●
69	COLLAR; 1ST GEAR MAIN	1-33234-077-0	01	1	0106-		●
70	GEAR; 1ST,MAINSHAFT Z=44	1-33255-038-6	01	1	0106-	●
70	GEAR; 1ST,MAINSHAFT Z=48	1-33255-043-2	01	1	0106-		●
76	WASHER; THRUST,MAIN LOW	1-33239-093-1	01	1	0106-	●
77	GEAR; 6TH,MAINSHAFT Z=21	1-33253-445-2	01	1	0106-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-074-0	01	1	0106-	●
78	COLLAR; DIST,MAINSHAFT BRG	1-33235-069-2	01	1	0106-		●
80	GEAR; SPD DRIVE Z=5	1-33371-014-2	01	1	0106-	●
80	GEAR; SPD DRIVE Z=5	1-33371-028-1	01	1	0106-		●
82	SHAFT; MAIN,TRANS Z=28-28-28-18	1-33231-310-0	01	1	0106-	●
82	SHAFT; MAIN,TRANS Z=28-28-28-37-24	1-33231-209-4	01	1	0106-		●
84	BEARING; COUNTER SHAFT,FRT NTN	1-09810-119-0	01	1	0106-	●	●
84	BEARING; COUNTER SHAFT,FRT NSK	1-09810-241-0	01	1	0106-	●	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-118-0	01	1	0106-	●
93	RING; SNAP,COUNTER FRT BRG	1-09588-149-0	01	1	0106-		●
94	KEY; FEATHER,COUNTER SHAFT L=50.0	1-09735-010-0	01	1	0106-	●	●
96	GEAR; COUNTER DRIVE Z=41	1-33331-194-0	01	1	0106-	●
96	GEAR; COUNTER DRIVE Z=45	1-33331-179-0	01	1	0106-		●
101	KEY; PTO DRIVE GEAR L=40	1-09735-008-0	01	1	0106-	●	●
102	GEAR; PTO DRIVE,COUNTER Z=33	1-33337-014-1	01	1	0106-	●
102	GEAR; PTO DRIVE,COUNTER Z=38	1-33337-019-0	01	1	0106-		●
103	KEY; COUNTER GEAR L=46	1-09735-038-1	01	1	0106-	●
103	KEY; COUNTER GEAR L=50.0	1-09735-010-0	01	1	0106-	●	●
103	KEY; COUNTER GEAR L=75.3	1-09735-042-0	01	1	0106-		●
104	GEAR; 4TH,COUNTER Z=36	1-33338-251-0	01	1	0106-	●
104	GEAR; 4TH,COUNTER Z=35	1-33338-218-2	01	1	0106-		●
105	GEAR; 3RD,COUNTER Z=29	1-33333-119-0	01	1	0106-	●
105	GEAR; 3RD,COUNTER Z=29	1-33333-110-1	01	1	0106-		●
108	SHAFT; COUNTER Z=22-13	1-33311-228-0	01	1	0106-	●
108	SHAFT; COUNTER Z=21-12	1-33311-222-0	01	1	0106-		●
109	BEARING; COUNTER SHAFT,RR NSK	1-09810-021-1	01	1	0106-	●	●
109	BEARING; COUNTER SHAFT,RR NTN	1-09810-163-0	01	1	0106-	●	●
110	RING; SNAP,COUNTER BRG	1-09588-042-1	01	1	0106-	●
110	RING; SNAP,COUNTER BRG	1-09588-155-0	01	1	0106-		●
115	BEARING; NEEDLE,6TH,COUNTER NSK	1-09811-355-0	02	1	0106-	●
115	BEARING; NEEDLE,6TH,COUNTER NTN	1-09811-402-0	02	1	0106-	●
118	GEAR; 6TH,COUNTER Z=54	1-33338-306-0	01	1	0106-	●
119	RING; BLOCK,6TH SYN Z=54	1-33265-356-0	01	1	0106-	●
120	SLEEVE	1-33262-098-2	01	1	0106-	●
121	HUB; CLU,6TH	1-33261-189-2	01	1	0106-	●
121	HUB; CLU,6TH	1-33261-186-2	01	1	0106-		●
122	PLUNGER; DETENT,SYN	1-33263-020-0	03	1	0106-	●	●
124	SPRING; PLUNGER,CLU HUB	1-09580-091-1	03	1	0106-	●	●
125	INSERT; 6TH SYN	1-33263-025-2	03	1	0106-	●
126	RING; SNAP,CLU HUB (A) ID=130 T=2.5	1-09588-040-0	01	1	0106-	●	●
126	RING; SNAP,CLU HUB (B) ID=55.8 T=2.53 WHITE	1-09588-160-1	01	1	0106-	●	●
128	WASHER; THRUST,REV SHAFT T=4.0	9-33363-015-0	02	1	0106-	●	●
129	BEARING; NEEDLE,IDLER NTN	9-00096-215-0	02	1	0106-	●
129	BEARING; NEEDLE,IDLER NTN	1-09811-297-0	02	1	0106-		●
130	COLLAR; DIST,NEEDLE BRG	1-33359-001-0	01	1	0106-	●
132	SHAFT; REV	1-33351-012-2	01	1	0106-	●
132	SHAFT; REV	1-33351-016-2	01	1	0106-		●
133	SCREW; SET,REV SHAFT	1-09122-023-0	01	1	0106-	●
134	WASHER; LK,REV SHAFT ID=8.2	9-09150-508-0	01	1	0106-	●
135	GEAR; REV IDLER Z=27-22	1-33361-036-1	01	1	0106-	●
135	GEAR; REV IDLER Z=26-31	1-33361-047-0	01	1	0106-		●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NSK	1-09810-021-1	01	1	0106-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (A) NTN	1-09810-163-0	01	1	0106-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NSK	1-09810-172-0	01	1	0106-	●	●
149	BEARING; NEEDLE,MAINSHAFT,RR (B) NTN	1-09810-173-0	01	1	0106-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
