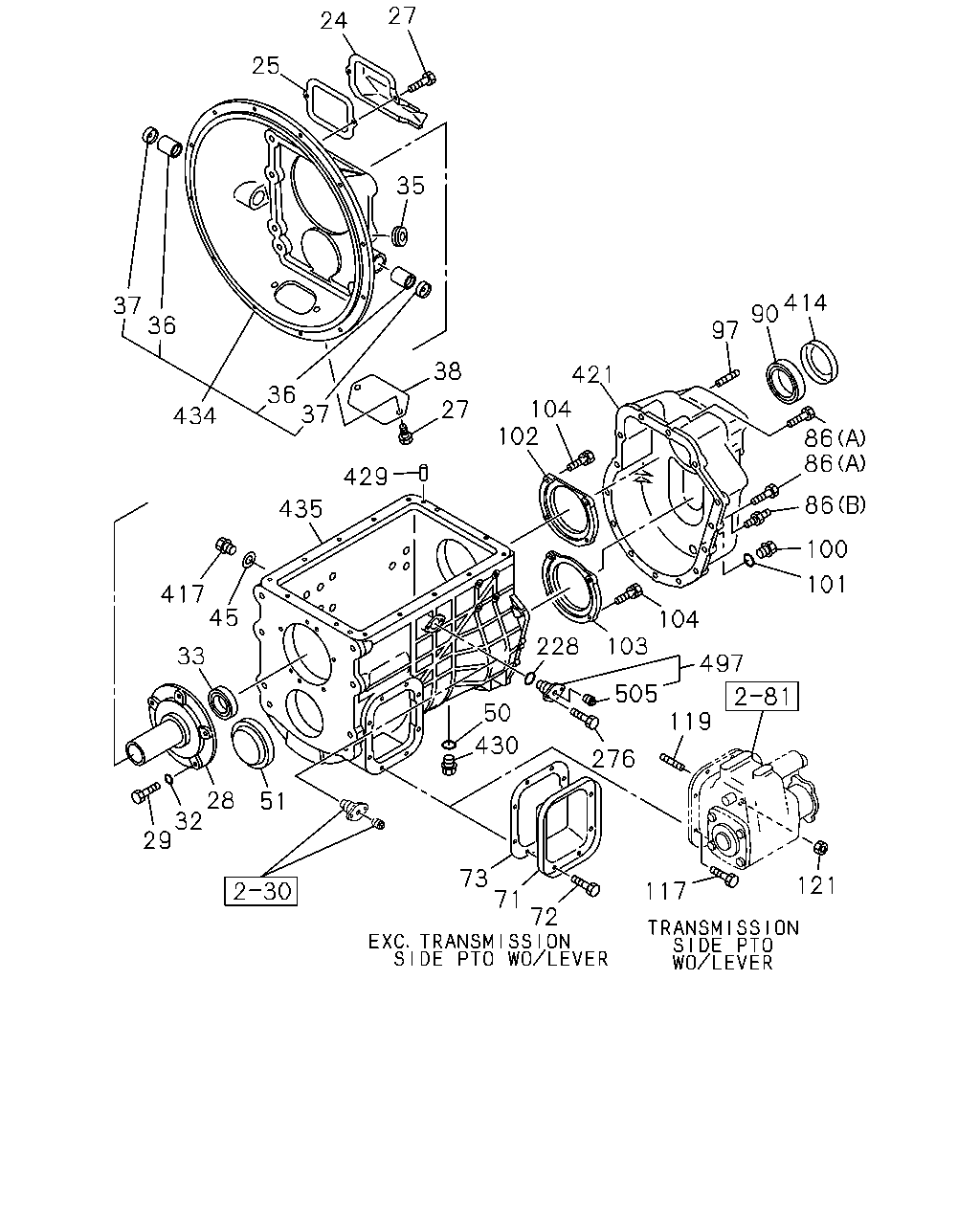

2-20 — MANUAL TRANSMISSION ASM AND CASE (#28907) — 68 parça

27 24 25 35 414 90 37 36 97 38 421 36 37 104 102 27 434 86 86 429 86 435 100 101 417 45 104 228 103 33 497 505 50 119 430 276 28 32 29 51 73 71 121 117 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	COVER; CHECK HOLE,DUST	1-31131-037-0	01	1	0106-	●	●
25	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T).	1-31139-008-0	01	1	0106-	●	●
27	BOLT; COVER TO CLU HSG M8X16 FLANGE	0-28080-816-0	04	1	0106-	●	●
28	COVER; FRT,TRANS CASE	1-33121-063-2	01	1	0106-	●	●
29	BOLT; FRT COVER M10X28 FLANGE REAMER	1-09040-089-1	05	1	0106-	●	●
32	GASKET; BOLT,FRT COVER ALSO INCLUDED IN GASKET SET(M/T). ID=10	1-09623-369-0	05	1	0106-	●	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T).	1-09625-562-0	01	1	0106-	●	●
35	GROMMET; CLU HSG	9-09575-796-0	01	1	0106-	●	●
36	BEARING; NEEDLE,CLU HSG	1-09811-087-0	02	1	0106-	●	●
37	SEAL; DUST,CLU HSG ALSO INCLUDED IN GASKET SET(M/T).	1-09625-003-0	02	1	0106-	●	●
38	COVER; CHECK HOLE,LWR	1-31131-003-0	01	1	0106-	●	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-	●	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-	●	●
51	COVER; SEAL,COUNTER,FRT	1-33319-195-1	01	1	0106-	●	●
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33141-030-1	01	1	0106-	●	●
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X16 FLANGE	0-28181-016-0	08	1	0106-	●	●
73	GASKET; SIDE COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T). EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33142-043-0	01	1	0106-	●	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	08	1	0106-		●
86	BOLT; RR COVER (A) M12X65 FLANGE	1-09044-113-0	02	1	0106-	●	●
86	BOLT; RR COVER (B) M10X16,M12X30 L=57.7	1-09049-018-0	03	1	0106-	●	●
86	BOLT; RR COVER (A) M17X35	1-09044-076-0	09	1	0106-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-578-1	01	1	0106-		●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T).	1-09625-577-1	01	1	0106-	●
97	STUD; PARKING BRK M16X51 L=72	1-09302-002-0	03	1	0106-	●	●
97	STUD; PARKING BRK M16X41 L=62	1-09302-151-0	01	1	0106-	●	●
100	PLUG; DRAIN RR COVER M24X17 FLANGE	1-09604-023-0	01	1	0106-	●	●
101	GASKET; DRAIN RR COVER ALSO INCLUDED IN GASKET SET(M/T). ID=26.8	1-09623-058-0	01	1	0106-	●	●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-020-1	01	1	0106-		●
102	RETAINER; BRG UPR,MAINSHAFT	1-33151-035-1	01	1	0106-	●
103	RETAINER; BRG	9-33151-014-0	01	1	0106-		●
103	RETAINER; BRG	1-33151-035-1	01	1	0106-	●
104	BOLT; BRG RET M10X25	1-09049-006-1	08	1	0106-	●	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	06	1	0106-		●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X22 FLANGE	0-28181-022-0	04	1	0106-	●
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	0-28181-050-0	02	1	0106-	●
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X25 L=40	9-04411-025-0	02	1	0106-	●	●
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
228	GASKET; NOZZLE ID=24.4	1-09623-057-0	01	1	0106-	●
276	BOLT; ADAPTER M14X20	1-09044-078-0	02	1	0106-	●
414	COVER; DUST,RR COVER	1-33139-011-1	01	1	0106-	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-064-1	01	1	0106-0201	●	●
417	PLUG; OIL FILLER,TRANS M24X17 FLANGE	1-09604-022-0	01	1	0202-	●	●
421	COVER; RR,TRANS	1-33131-191-2	01	1	0106-		●
421	COVER; RR,TRANS	1-33131-197-2	01	1	0106-	●
429	PIN; STRAIGHT OD=10 L=18	9-08151-018-0	02	1	0106-	●	●
430	PLUG; OIL DRAIN M24X17 FLANGE	1-09604-023-0	01	1	0106-	●	●
434	HOUSING; CLU	1-31110-163-3	01	1	0106-		●
434	HOUSING; CLU	1-31110-171-2	01	1	0106-	●
435	CASE; TRANS	1-33111-224-1	01	1	0106-		●
435	CASE; TRANS	1-33111-195-1	01	1	0106-	●
497	ADAPTER; PLUG	1-33119-255-0	01	1	0106-	●
505	PLUG; ADAPTER,OIL INLET PT1/4	9-99204-513-0	01	1	0106-	●

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B

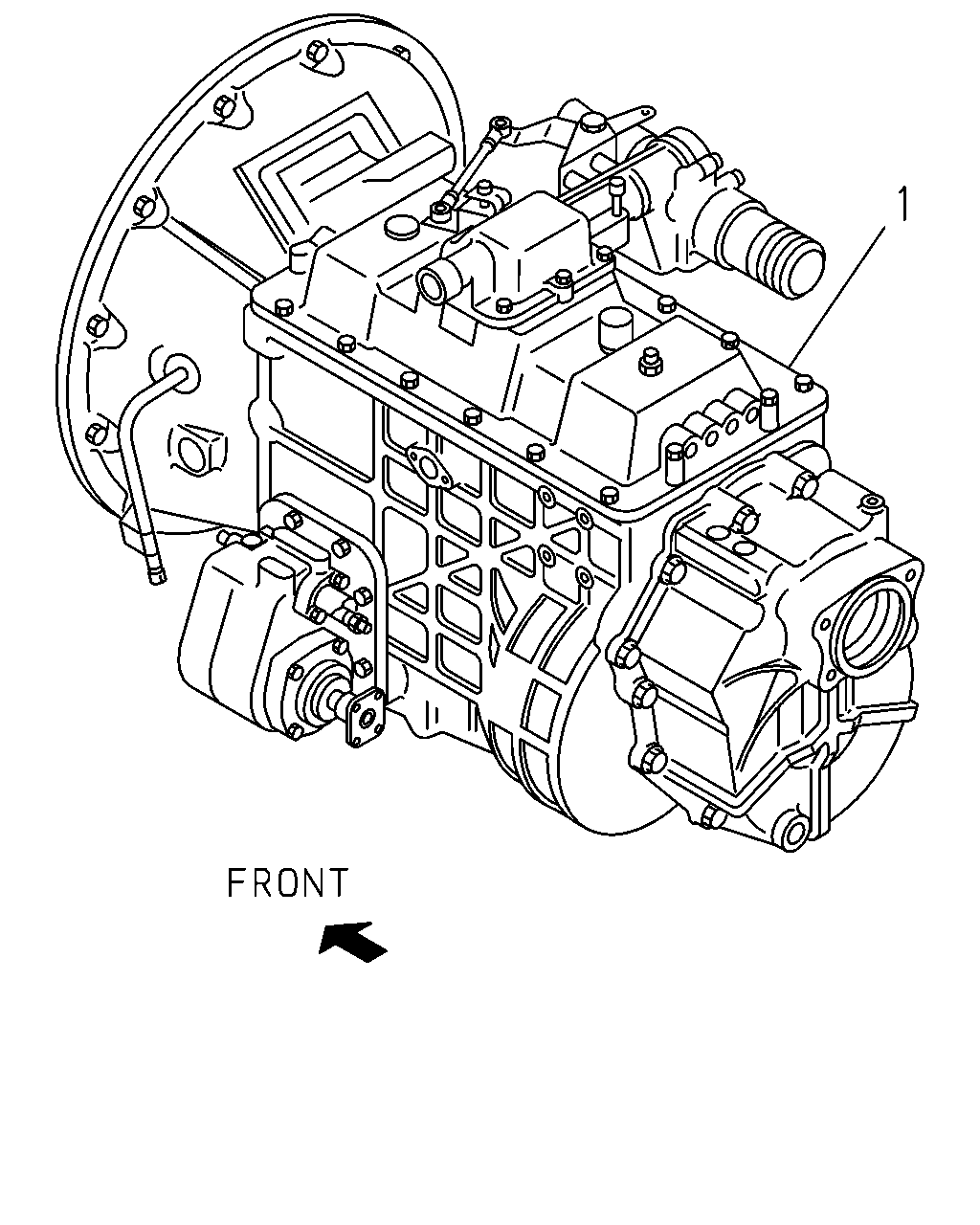

1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-231-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-239-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-239-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-238-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33043-238-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33043-230-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-33043-231-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,ASSISTOR SHIFT CONTROL<WX8>	1-33043-230-0	01	1	0106-		●
1	TRANSMISSION ASM; MANUAL ASSISTOR SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-251-0	01	1	0106-	●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> ASSISTOR SHIFT CONTROL<WX8> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	1-33043-259-0	01	1	0106-	●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8>	1-33043-259-0	01	1	0106-	●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. ASSISTOR SHIFT CONTROL<WX8>	1-33043-258-0	01	1	0106-	●
1	TRANSMISSION ASM; MANUAL CLU BOOSTER PEDAL EFFORT HEAVY<BGQ> EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33043-258-0	01	1	0106-	●
1	TRANSMISSION ASM; MANUAL EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>, TRANSMISSION SIDE PTO WO/LEVER(SH5),ASSISTOR SHIFT CONTROL<WX8>	1-33043-250-0	01	1	0106-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) ASSISTOR SHIFT CONTROL<WX8> EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>	1-33043-251-0	01	1	0106-	●
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. CLU BOOSTER PEDAL EFFORT HEAVY<BGQ>,ASSISTOR SHIFT CONTROL<WX8>	1-33043-250-0	01	1	0106-	●
