2-05 — CLUTCH PIPING (#28903) — 111 parça

24 153 167 56 104 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0106-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0106-	●	●
56	BRACKET; FLEX HOSE	1-47478-840-0	01	1	0106-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=433	1-47429-241-0	01	1	0106-	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	0106-	●	●

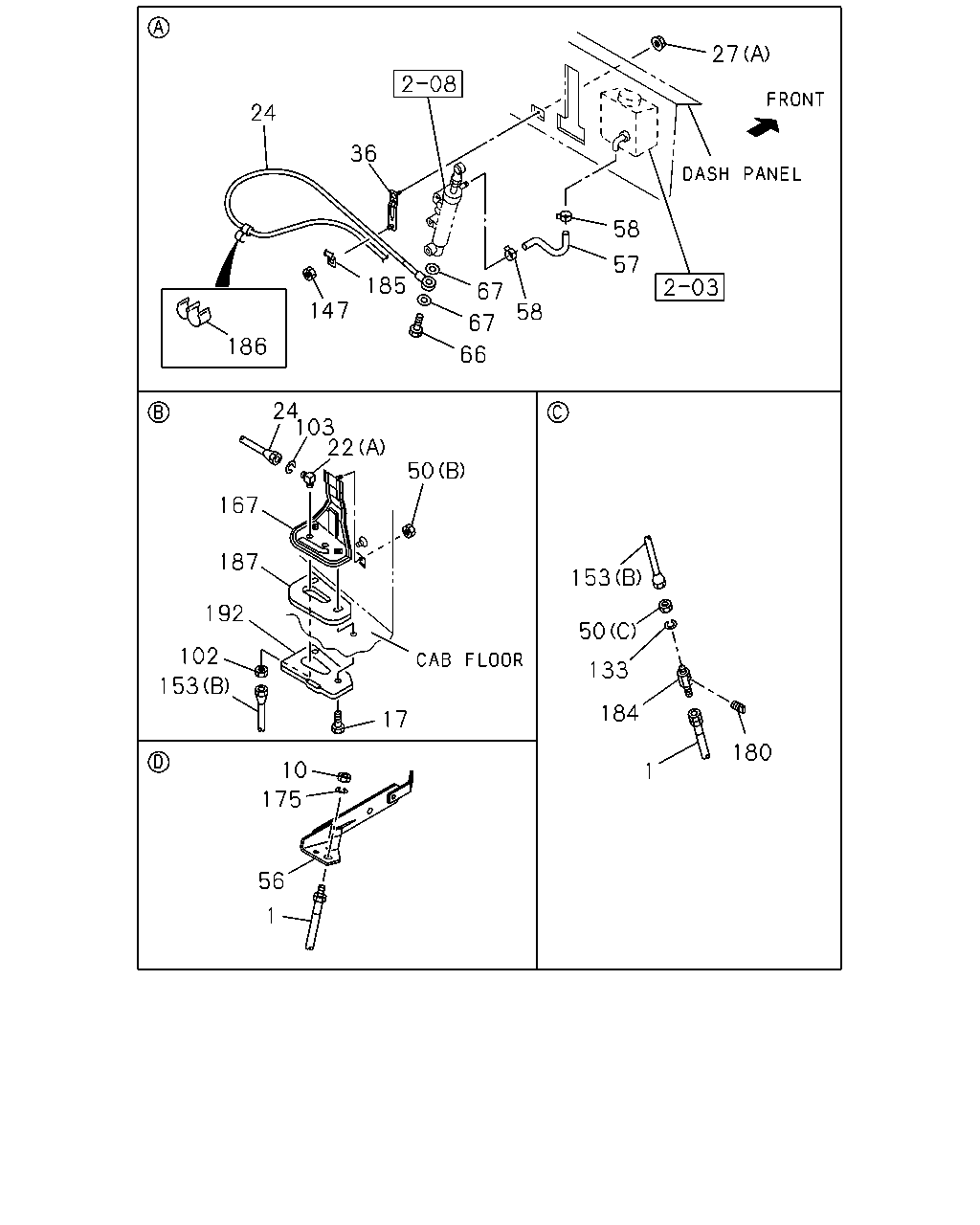

27 24 36 58 57 185 67 147 58 67 186 66 24 103 22 50 167 187 153 192 50 102 133 153 184 17 180 10 1 175 56 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HOSE; FLEX,CLU CONT L=430	1-09364-859-1	01	1	0106-	●	●
10	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-	●	●
17	BOLT; BRKT M8X20 W/LK&PL WASHER	8-94279-216-0	02	1	0106-	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	0106-	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> MAG6 M/T<X9T> (B)	1-09656-181-1	01	1	0106-	●	●
24	PIPE ASM; CLU,M/CYL TO UNION L=643	1-47424-529-2	01	1	0106-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-	●	●
36	BRACKET; CLIP	1-71117-191-1	01	1	0106-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	0106-	●	●
56	BRACKET; FLEX HOSE	1-47478-840-0	01	1	0106-	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0106-	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0106-	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 FLANGE	1-09675-146-0	01	1	0106-	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0106-	●	●
147	NUT; CLIP FIX M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=433	1-47429-241-0	01	1	0106-	●	●
167	BRACKET; UNION	1-71117-183-3	01	1	0106-	●	●
175	WASER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0106-	●	●
184	UNION; FLEX HOSE	1-09656-679-0	01	1	0106-	●	●
185	CLIP; BRKT ID=9 L=20	9-09545-108-0	01	1	0106-	●	●
186	HOLDER; CLIP SEAT ASM-DRIVER LEVEL AUTOMATIC W/ARM REST(SLL)	8-94107-710-0	02	1	0106-	●	●
187	SEAL; BRKT	1-71117-222-0	01	1	0106-	●	●
192	PLATE	1-71117-221-0	01	1	0106-	●	●

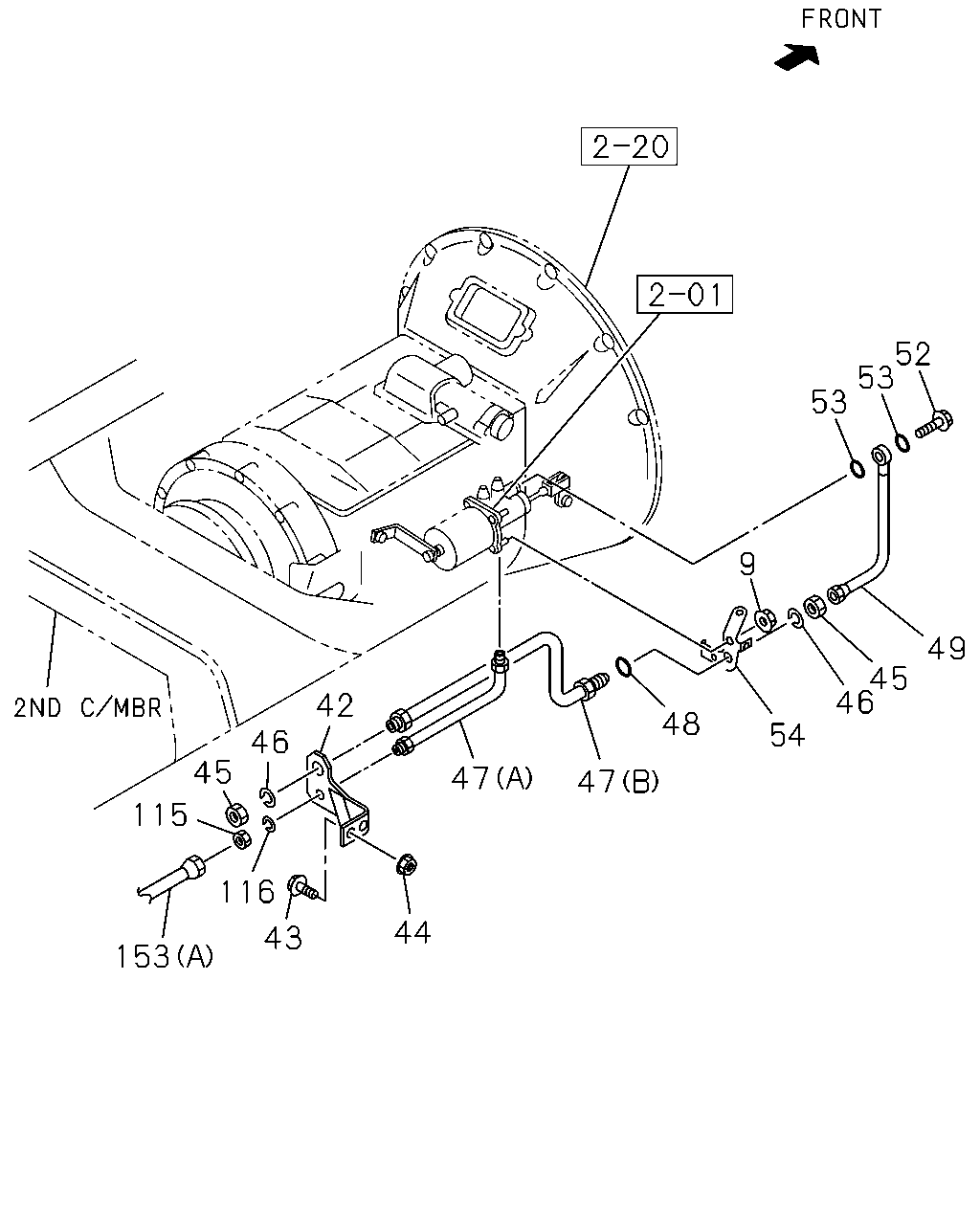

52 53 53 9 49 45 46 42 48 54 46 45 47 47 115 116 44 43 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	0106-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0106-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	0106-	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0106-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	0106-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0106-	●	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	0106-	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) L=560	0-07806-560-1	01	1	0106-	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0106-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0106-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAG6 M/T<X9T> L=245	1-49117-733-0	01	1	0106-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJA7 M/T<X9Q> L=293	1-49117-734-0	01	1	0106-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0106-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0106-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=433	1-47429-241-0	01	1	0106-	●	●

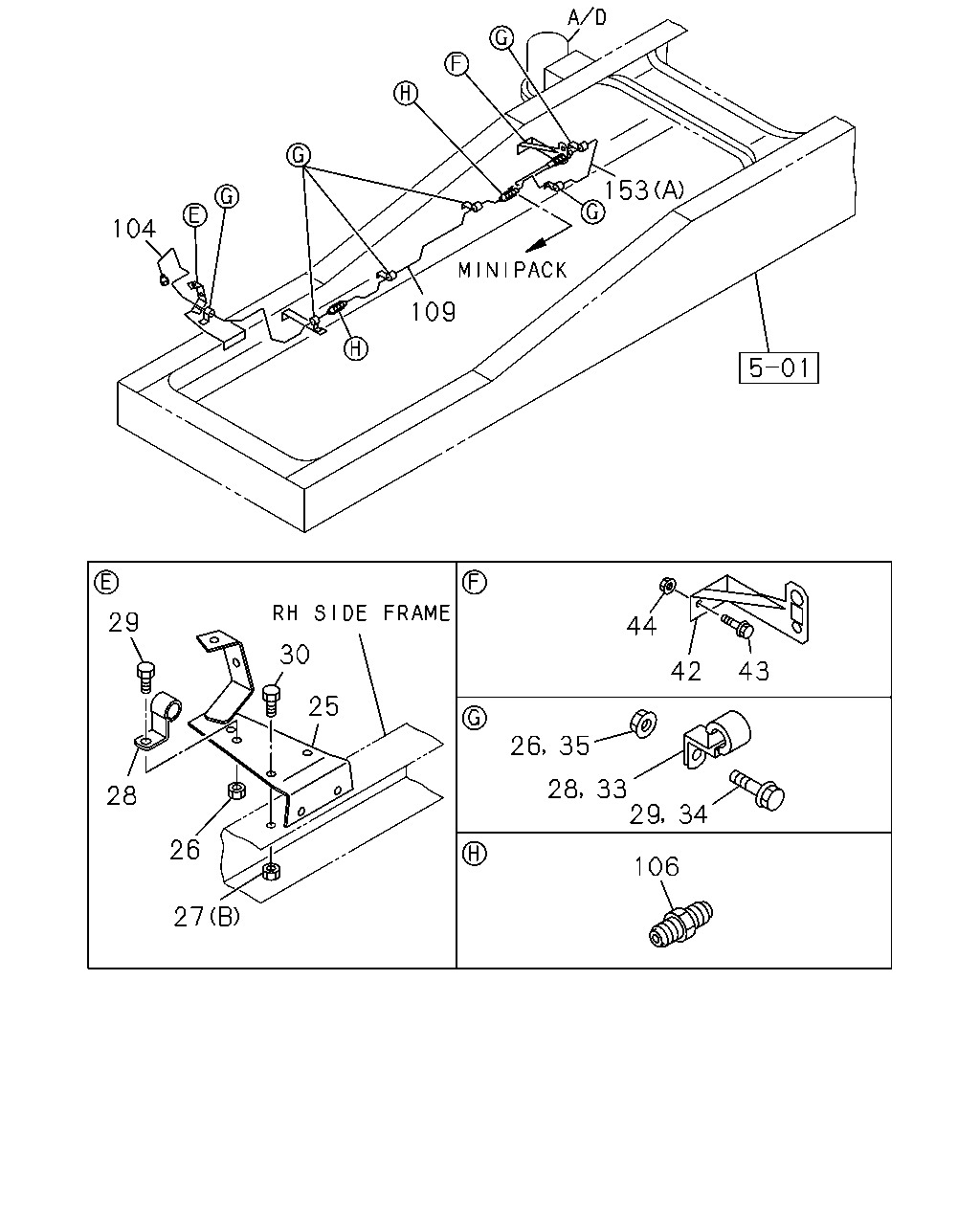

153 104 109 29 44 30 42 43 25 26 35 28 33 29 28 34 26 106 27

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
25	BRACKET; OIL PIPE	1-47477-604-2	01	1	0106-	●	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	01	1	0106-	●	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	03	1	0106-	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	01	1	0106-	●	●
30	BOLT; BRKT M8X35 FLANGE	0-28680-835-0	02	1	0106-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	02	1	0106-	●	●
33	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	01	1	0106-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	02	1	0106-	●	●
34	BOLT; PIPE CLIP M8X30 FLANGE	0-28680-830-0	01	1	0106-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
35	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0106-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	0106-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0106-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
104	PIPE; OIL,FLEX HOSE TO CONNECTOR L=1543 SERVICED BY L=1550	1-47426-390-0	01	1	0106-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0106-	●	●
106	UNION; OIL PIPE M14 STRAIGHT	9-09223-008-1	01	1	0106-	●	●
109	PIPE; AIR,UNION TO UNION L=1081 SERVICED BY L=1100	1-47426-387-0	01	1	0106-	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=433	1-47429-241-0	01	1	0106-	●	●

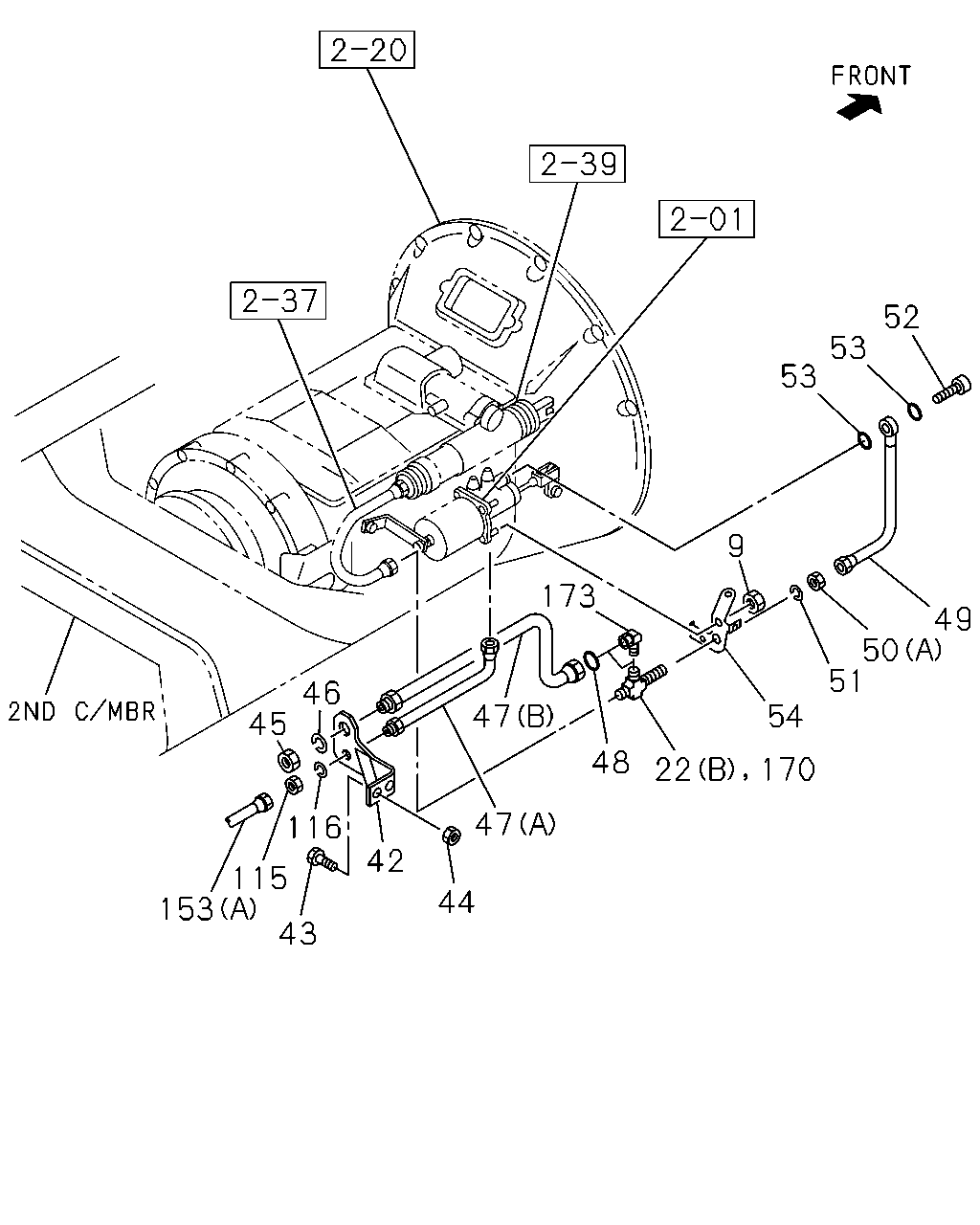

52 53 53 9 173 49 50 51 46 47 54 45 48 22 170 47 116 42 115 153 44 43

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
9	NUT; BRKT,FLEX HOSE M10 FLANGE	0-91150-210-0	02	1	0106-	●	●
22	UNION; CLU PIPE (A) M14	9-09225-208-1	01	1	0106-	●	●
22	UNION; CLU PIPE ASSISTOR SHIFT CONTROL<WX8> MAG6 M/T<X9T> (B)	1-09656-181-1	01	1	0106-	●	●
42	BRACKET; FLEX HOSE,CLU CONT	1-47477-546-1	01	1	0106-	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X35 FLANGE	0-28680-835-0	02	1	0106-	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0106-	●	●
45	NUT; FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	01	1	0106-	●	●
45	NUT; FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> M20	9-99111-420-0	02	1	0106-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	0106-	●	●
46	WASHER; LK,FLEX HOSE,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	02	1	0106-	●	●
47	HOSE; FLEX,CLU CONT (B) L=550	1-09364-434-0	01	1	0106-	●	●
47	HOSE; FLEX,CLU CONT ASSISTOR SHIFT CONTROL<WX8> (A) L=560	0-07806-560-1	01	1	0106-	●	●
47	HOSE; FLEX,CLU CONT EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=600	0-07706-600-0	01	1	0106-	●	●
48	GASKET; FLEX HOSE,CLU CONT ID=10.2 OD=16.0	9-09571-410-0	01	1	0106-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MAG6 M/T<X9T> L=245	1-49117-733-0	01	1	0106-	●	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER MJA7 M/T<X9Q> L=293	1-49117-734-0	01	1	0106-	●	●
50	NUT; UNION (B) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0106-	●	●
50	NUT; UNION (C) M14	9-99111-414-0	01	1	0106-	●	●
50	NUT; UNION ASSISTOR SHIFT CONTROL<WX8> (A) M20	9-99111-420-0	01	1	0106-	●	●
51	WASHER; LK ASSISTOR SHIFT CONTROL<WX8> ID=20.2	9-09150-520-0	01	1	0106-	●	●
52	BOLT; EYE,AIR PIPE M14X27 FLANGE	1-09675-086-0	01	1	0106-	●	●
53	GASKET; JOINT BOLT ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-	●	●
54	BRACKET; AIR,FLEX HOSE	1-47477-284-1	01	1	0106-	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0106-	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (B) L=464	1-47424-530-2	01	1	0106-	●	●
153	PIPE ASM; CLU,UNION TO FLEX (A) L=433	1-47429-241-0	01	1	0106-	●	●
170	UNION; AIR PIPE ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q>	1-09656-640-0	01	1	0106-	●	●
173	CONNECTOR ASSISTOR SHIFT CONTROL<WX8> MJA7 M/T<X9Q> M20 & PT1/4 ELBOW	1-09660-681-0	01	1	0106-	●	●
