10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#28896) — 24 parça
Tümü
A - CXZ5MC
B - CXZ5MF
◀

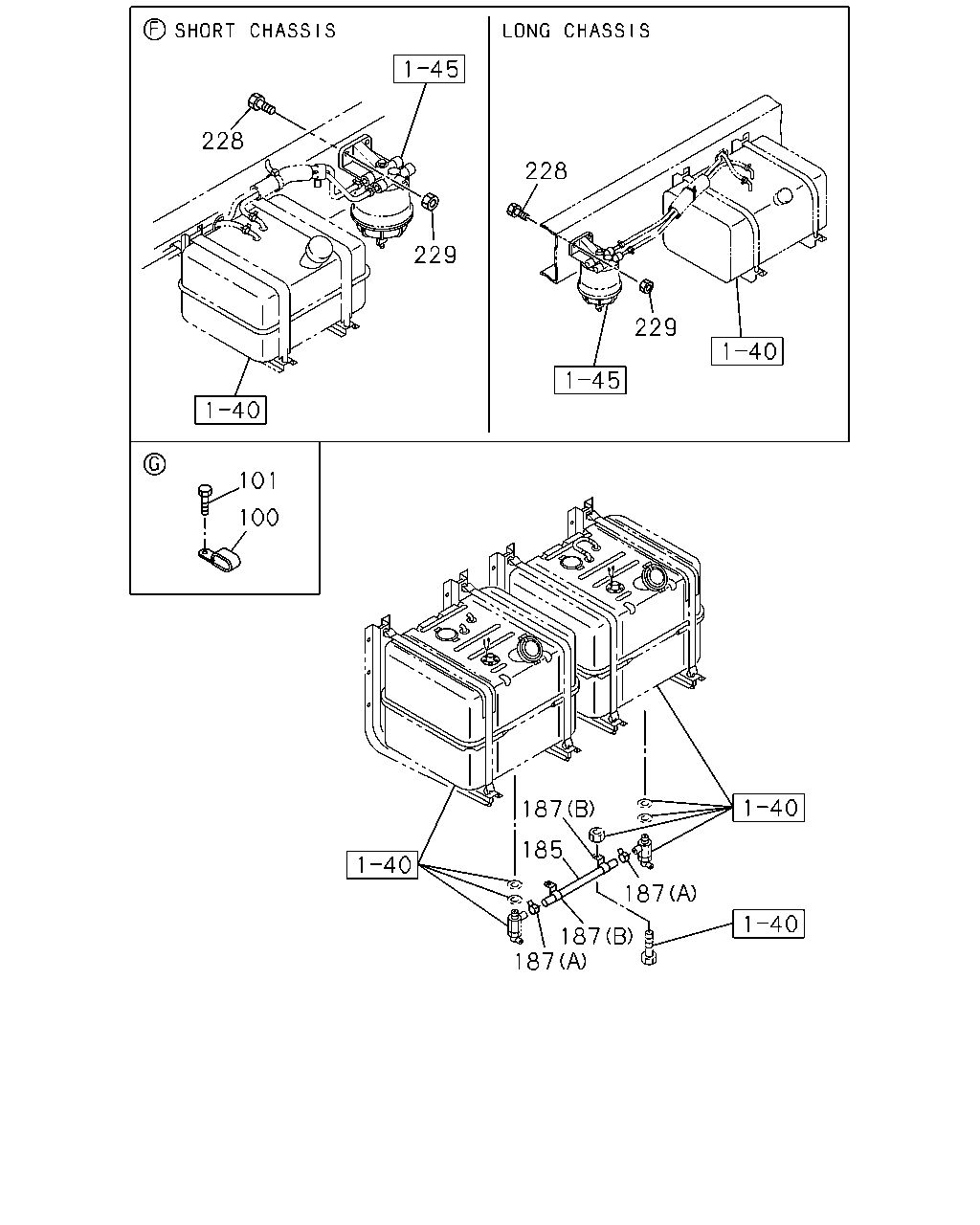

[141A] FUEL PIPE TANK TO TANK (8 parça)
[141A] FIXING;FUEL PIPING (16 parça)
▶
228
228
229
229
101
100
187
185
187
187
187
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
100
CLIP; FUEL PIPE
H=15 ID=14
1-09700-744-0
05
1
0106-
●
100
CLIP; FUEL PIPE
ID=16X2 L=20
9-09535-536-0
05
1
0106-
●
101
BOLT; CLIP,FUEL PIPE
10PE1H(68L) M8X25 FLANGE
0-28680-825-0
05
1
0106-
●
●
185
PIPE; FUEL TANK TO TANK
FUEL TANK 200L+200L<NF7> L=840 SERVICED BY L=3000
0-01262-300-0
01
1
0106-
●
187
CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 200L+200L<NF7> (A) ID=17.1
8-94122-679-0
02
1
0106-
●
187
CLIP; FUEL PIPE TANK TO TANK
FUEL TANK 200L+200L<NF7> (B) ID=19 H=25 L=25
9-09917-035-0
02
1
0106-
●
228
BOLT; BRKT,SEDIMENTER
M10X40 FLANGE
0-28081-040-0
02
1
0106-
●
●
229
NUT; BRKT,FUEL FILTER
M10 FLANGE
0-91150-210-0
02
1
0106-
●
●

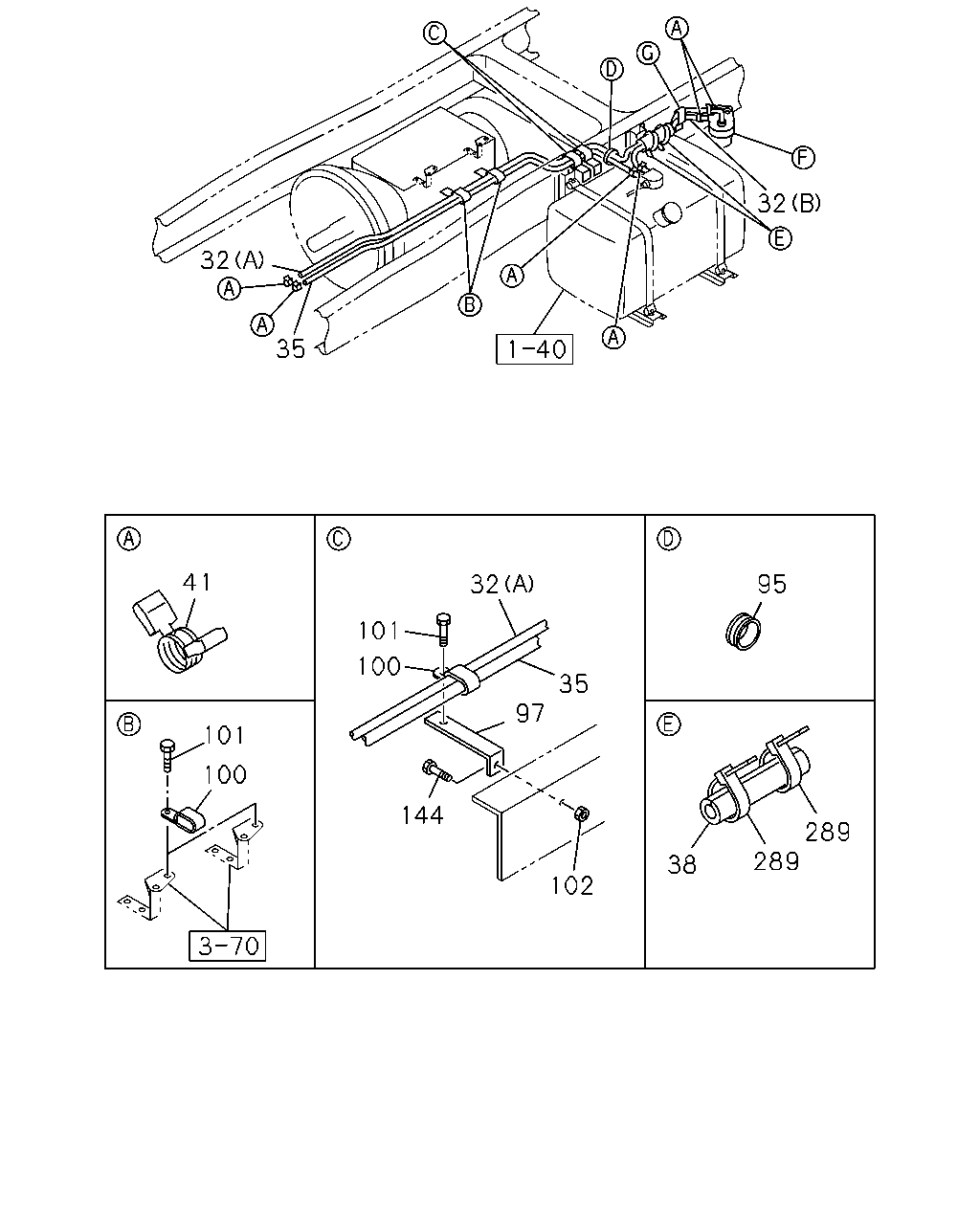

32
32
35
41
95
32
101
100
35
97
101
100
144
289
289
38
102
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
32
PIPE; DELIVERY,FUEL TANK
(B) L=1050 SERVICED BY L=3000
0-01260-300-0
01
1
0106-
●
32
PIPE; DELIVERY,FUEL TANK
(A) L=2350 SERVICED BY L=3000
0-01260-300-0
01
1
0106-
●
32
PIPE; DELIVERY,FUEL TANK
(A),(B) L=1300 SERVICED BY L=3000
0-01260-300-0
02
1
0106-
●
35
PIPE; FUEL TANK,RETURN
10PE1H(68L) L=2000 SERVICED BY L=3000
0-01260-300-0
01
1
0106-
●
●
38
SLEEVE; RUBBER,RUBBER HOSE
L=150
1-09360-677-1
01
1
0106-
●
41
CLIP; FUEL PIPE,FUEL TANK
ID=14
1-09704-102-0
06
1
0106-
●
95
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
01
1
0106-
●
●
95
BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=25
1-09332-011-1
01
1
0106-
●
97
BRACKET; CLIP
10PE1H(68L) L=115
1-47475-305-0
02
1
0106-
●
●
100
CLIP; FUEL PIPE
H=15 ID=14
1-09700-744-0
05
1
0106-
●
100
CLIP; FUEL PIPE
ID=16X2 L=20
9-09535-536-0
05
1
0106-
●
101
BOLT; CLIP,FUEL PIPE
10PE1H(68L) M8X25 FLANGE
0-28680-825-0
05
1
0106-
●
●
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
02
1
0106-
●
102
NUT; CLIP,FUEL PIPE
M8 FLANGE
0-91150-108-0
03
1
0106-
●
144
BOLT; CLIP,FUEL PIPE,C/MBR
10PE1H(68L) M8X35 FLANGE
0-28680-835-0
02
1
0106-
●
●
289
CLIP; BAND,HOSE
L=250
5-09707-030-1
02
1
0106-
●
