Sayfa 1-40 - Isuzu EPC

1-40 — FUEL TANK (#28895) — 235 parça

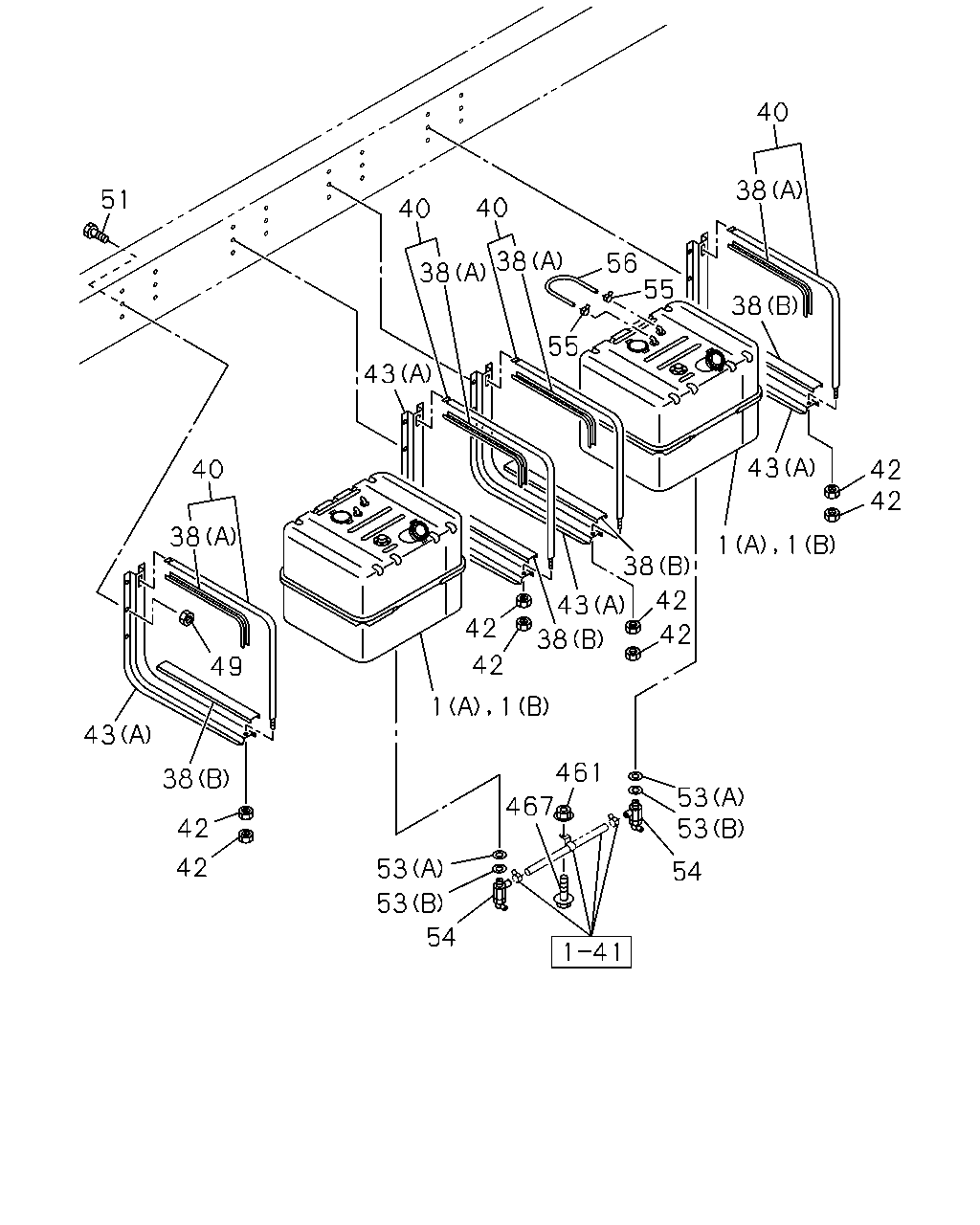

40 38 51 40 40 56 55 38 38 38 55 43 43 40 42 42 38 1 1 38 42 43 42 38 42 42 49 1 1 43 461 38 53 53 467 42 42 53 54 53 54

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0106-	●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0106-	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-		●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (A) L=1000	1-22553-028-1	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	02	1	0106-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	02	1	0106-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0106-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0106-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0106-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0106-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	02	1	0106-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0106-		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0106-	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0106-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0106-		●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (C)	1-53461-435-1	02	1	0106-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	0106-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	0106-	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0106-		●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L+200L<NF7> (C)	1-53461-279-4	02	1	0106-		●
49	NUT; BRKT M12	9-99110-512-0	08	1	0106-	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	0106-		●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	0106-		●
51	BOLT; BRKT TO FRAME M12X50 FLANGE	0-28081-250-0	08	1	0106-	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0106-		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	0106-		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) T=1.60	1-22416-001-0	02	1	0106-0112		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) ID=14.2	8-94462-114-0	02	1	0201-		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (A) T=0.80	1-22416-004-0	02	1	0106-0112		●
53	GASKET; COCK,FUEL TANK FUEL TANK 200L+200L<NF7> (B) ID=14.2 OD=20.0	9-09571-414-0	02	1	0201-		●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	9-09904-176-0	02	1	0106-0112		●
54	COCK ASM; FUEL TANK FUEL TANK 200L+200L<NF7>	1-09680-072-0	02	1	0201-		●
55	CLIP; FUEL PIPE FUEL TANK 200L+200L<NF7> ID=14	1-09704-102-0	02	1	0106-		●
56	PIPE; FUEL SHUTTER FUEL TANK 200L+200L<NF7> L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0106-		●
461	NUT; CLIP,FUEL PIPE FUEL TANK 200L+200L<NF7> M8 FLANGE	0-91150-108-0	02	1	0106-		●
467	BOLT FUEL TANK 200L+200L<NF7> M8X25 FLANGE	0-28680-825-0	02	1	0106-		●

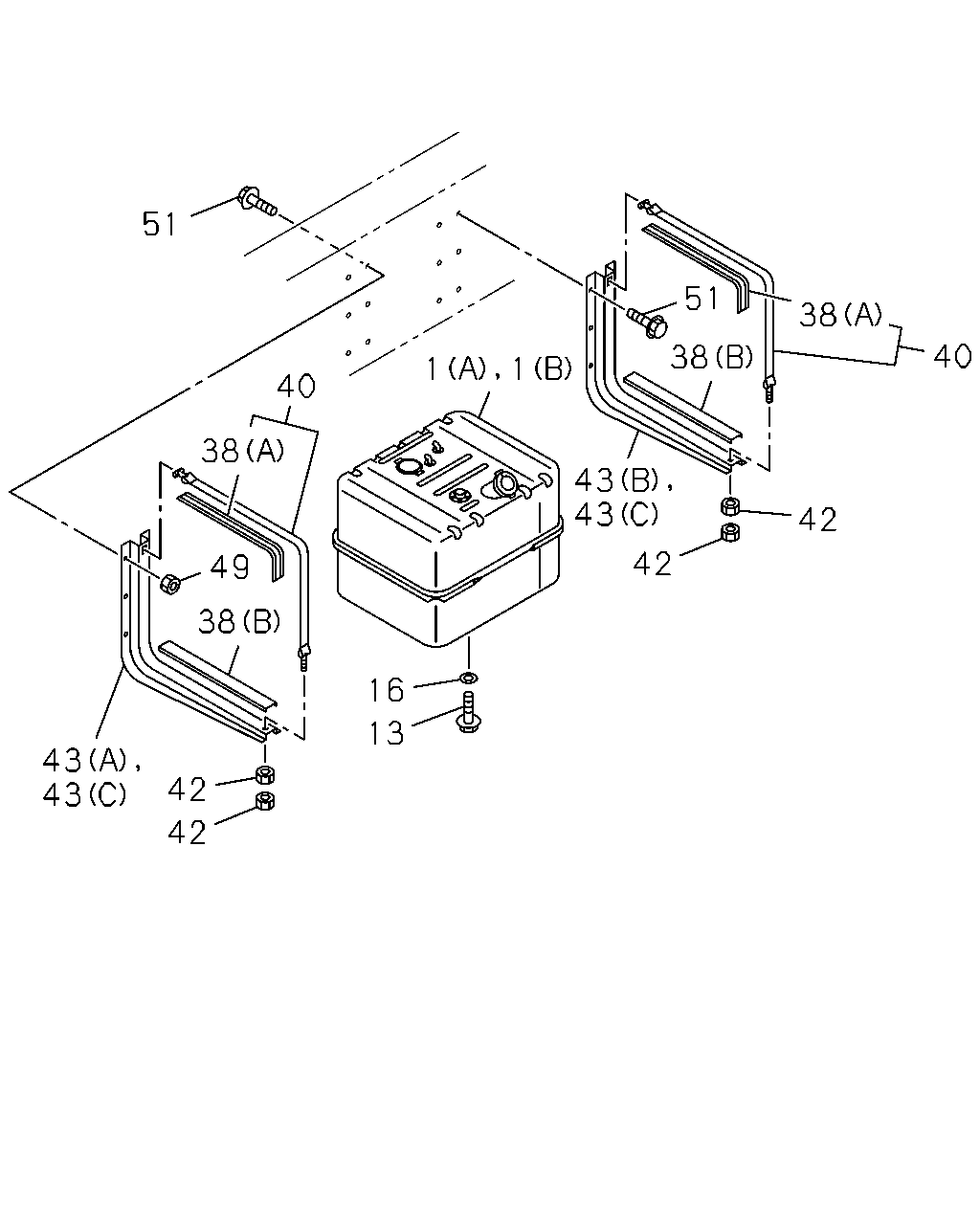

1 35 25 19 22 8 11 51 43 40 51 38 49 38 40 43 42 42 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0106-	●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0106-	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-		●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0106-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	0106-0106		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	0106-0106		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	02	1	0107-		●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	0106-0106	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>	1-09604-052-0	01	1	0106-0106		●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0107-	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0107-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	1-09604-052-0	02	1	0106-0106		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	02	1	0107-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	5-83148-001-0	02	1	0106-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-83149-003-0	01	1	0106-	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5>	5-83148-001-0	01	1	0106-	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>	5-83148-001-0	01	1	0106-		●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0106-	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	0106-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	0106-		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	0106-	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-83141-080-1	01	1	0106-		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	0106-	●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-83141-124-0	01	1	0106-	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-83141-124-0	01	1	0106-		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0106-		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0106-		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-22440-070-0	01	1	0201-	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-22440-070-0	01	1	0201-		●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	0106-	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-22440-034-1	01	1	0106-		●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0106-0112	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-22440-067-0	01	1	0106-0112		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0201-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0106-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0106-0112		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	0106-	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	0106-	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	05	1	0106-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	0106-		●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (A) L=1000	1-22553-028-1	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	02	1	0106-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	02	1	0106-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0106-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0106-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0106-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0106-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	02	1	0106-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0106-		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0106-	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0106-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0106-		●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (C)	1-53461-435-1	02	1	0106-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	0106-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	0106-	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0106-		●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L+200L<NF7> (C)	1-53461-279-4	02	1	0106-		●
49	NUT; BRKT M12	9-99110-512-0	08	1	0106-	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	0106-		●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	0106-		●
51	BOLT; BRKT TO FRAME M12X50 FLANGE	0-28081-250-0	08	1	0106-	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0106-		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	0106-		●

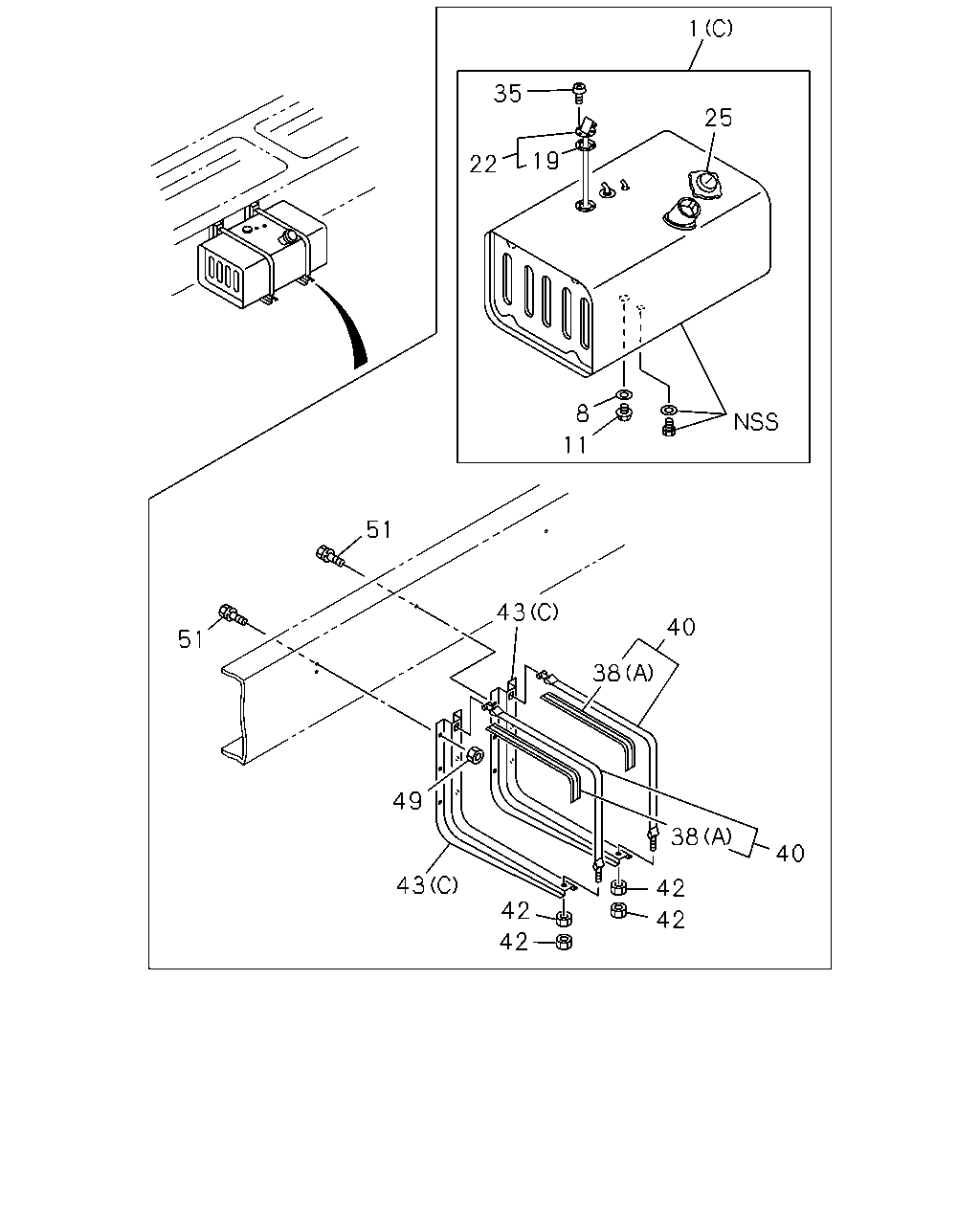

1 1 35 35 32 32 29 29 25 25 19 19 8 22 8 22 11 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0106-	●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0106-	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-		●
8	GASKET; DRAIN PLUG,FUEL TANK T=2.0	9-09923-030-0	01	1	0106-0106	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	01	1	0106-0106		●
8	GASKET; DRAIN PLUG,FUEL TANK ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-	●
8	GASKET; DRAIN PLUG,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0107-		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> T=2.0	9-09923-030-0	02	1	0106-0106		●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	02	1	0107-		●
11	PLUG; DRAIN,FUEL TANK	1-09604-052-0	01	1	0106-0106	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>	1-09604-052-0	01	1	0106-0106		●
11	PLUG; DRAIN,FUEL TANK M14X14	9-09862-156-0	01	1	0107-	●
11	PLUG; DRAIN,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0107-		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7>	1-09604-052-0	02	1	0106-0106		●
11	PLUG; DRAIN,FUEL TANK FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	02	1	0107-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	5-83148-001-0	02	1	0106-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 300L<RF5>	1-83149-003-0	01	1	0106-	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5>	5-83148-001-0	01	1	0106-	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>	5-83148-001-0	01	1	0106-		●
19	GASKET; FUEL TANK UNIT	9-83135-003-0	01	1	0106-	●
19	GASKET; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7>	9-83135-003-0	01	1	0106-		●
19	GASKET; FUEL TANK UNIT FUEL TANK 200L+200L<NF7>	9-83135-003-0	02	1	0106-		●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5>	1-83141-080-1	01	1	0106-	●
22	UNIT; FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-83141-080-1	01	1	0106-		●
22	UNIT; FUEL TANK FUEL TANK 300L<RF5>	1-83141-118-0	01	1	0106-	●
22	UNIT; FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-83141-124-0	01	1	0106-	●
22	UNIT; FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-83141-124-0	01	1	0106-		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-080-1	02	1	0106-		●
22	UNIT; FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-83141-124-0	02	1	0106-		●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46>	1-22440-070-0	01	1	0201-	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-22440-070-0	01	1	0201-		●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	01	1	0106-	●
25	CAP; FILLER,FUEL TANK FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7>	1-22440-034-1	01	1	0106-		●
25	CAP; FILLER,FUEL TANK EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	01	1	0106-0112	●
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46>	1-22440-067-0	01	1	0106-0112		●
25	CAP; FILLER,FUEL TANK FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-046-1	01	1	0201-	●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-034-1	02	1	0106-		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-067-0	02	1	0106-0112		●
25	CAP; FILLER,FUEL TANK FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46>	1-22440-070-0	02	1	0201-		●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.3	9-09160-505-0	01	1	0106-	●
29	WASHER; PL,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	01	1	0106-		●
29	WASHER; PL,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.3	9-09160-505-0	02	1	0106-		●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> ID=5.1	9-09150-505-0	05	1	0106-	●
32	WASHER; LK,FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	05	1	0106-		●
32	WASHER; LK,FUEL TANK UNIT FUEL TANK 200L+200L<NF7> ID=5.1	9-09150-505-0	10	1	0106-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 300L<RF5> M4X10 W/PL WASHER	9-03900-410-0	05	1	0106-	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 300L<RF5> M5X10	9-93497-510-0	05	1	0106-	●
35	SCREW; FUEL TANK UNIT EXC. FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	05	1	0106-		●
35	SCREW; FUEL TANK UNIT FUEL TANK 200L+200L<NF7> M5X10	9-93497-510-0	10	1	0106-		●

51 51 38 40 38 1 1 40 38 43 43 42 42 49 38 16 13 43 43 42 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (B) 720X610X496 200L	1-22401-121-1	01	1	0106-0112		●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 300L<RF5> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-	●
1	TANK; FUEL FUEL FILLER CAP LOCK AUTO RETURN<W46> EXC. FUEL TANK 200L+200L<NF7> (A) 720X610X496 200L	1-22401-193-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 300L<RF5> FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-028-2	01	1	0106-	●
1	TANK; FUEL FUEL TANK 300L<RF5> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (C) 880X549X649 300L	1-22401-108-2	01	1	0106-	●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	01	1	0106-0112		●
1	TANK; FUEL EXC. FUEL TANK 300L<RF5>,FUEL FILLER CAP LOCK AUTORETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-	●
1	TANK; FUEL EXC. FUEL TANK 200L+200L<NF7>,FUEL FILLER CAP LOCKAUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	01	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-121-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> FUEL FILLER CAP LOCK AUTO RETURN<W46> (B) 720X610X496 200L	1-22401-193-0	02	1	0201-		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-117-1	02	1	0106-0112		●
1	TANK; FUEL FUEL TANK 200L+200L<NF7> EXC. FUEL FILLER CAP LOCK AUTO RETURN<W46> (A) 720X610X496 200L	1-22401-190-0	02	1	0201-		●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 300L<RF5> M18X12	1-09604-081-0	01	1	0106-0112	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7> M18X12	1-09604-081-0	01	1	0106-0112		●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 300L<RF5> M14X14	9-09862-156-0	01	1	0201-	●
13	PLUG; SCREW,SUB TANK JOINT EXC. FUEL TANK 200L+200L<NF7> M14X14	9-09862-156-0	01	1	0201-		●
16	GASKET; PLUG EXC. FUEL TANK 300L<RF5> T=1.60	1-22416-001-0	01	1	0106-0112	●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7> T=1.60	1-22416-001-0	01	1	0106-0112		●
16	GASKET; PLUG EXC. FUEL TANK 300L<RF5> ID=14.2 OD=23.0	9-09572-014-0	01	1	0201-	●
16	GASKET; PLUG EXC. FUEL TANK 200L+200L<NF7> ID=14.2 OD=23.0	9-09572-014-0	01	1	0201-		●
38	INSULATION; SUPPORT BELT FUEL TANK 300L<RF5> (A) L=1000	1-22553-028-1	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (B) L=580	1-22553-003-0	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	02	1	0106-		●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 300L<RF5> (A) L=650	1-22553-022-1	02	1	0106-	●
38	INSULATION; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	02	1	0106-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (B) L=580	1-22553-003-0	04	1	0106-		●
38	INSULATION; SUPPORT BELT FUEL TANK 200L+200L<NF7> (A) L=650	1-22553-022-1	04	1	0106-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 300L<RF5> L=1125	1-22550-225-2	02	1	0106-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 300L<RF5> L=1030	1-22550-204-2	02	1	0106-	●
40	BELT; SUPPORT,FUEL TANK EXC. FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	02	1	0106-		●
40	BELT; SUPPORT,FUEL TANK FUEL TANK 200L+200L<NF7> L=1030	1-22550-204-2	04	1	0106-		●
42	NUT; SUPPORT BELT M10	9-09110-510-0	04	1	0106-	●
42	NUT; SUPPORT BELT EXC. FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	04	1	0106-		●
42	NUT; SUPPORT BELT FUEL TANK 200L+200L<NF7> M10	9-09110-510-0	08	1	0106-		●
43	BRACKET; FUEL TANK FUEL TANK 300L<RF5> (C)	1-53461-435-1	02	1	0106-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (B)	1-53461-408-3	01	1	0106-	●
43	BRACKET; FUEL TANK EXC. FUEL TANK 300L<RF5> (A)	1-53461-409-1	01	1	0106-	●
43	BRACKET; FUEL TANK FUEL TANK 200L+200L<NF7> (A)	1-53461-279-4	04	1	0106-		●
43	BRACKET; FUEL TANK EXC. FUEL TANK 200L+200L<NF7> (C)	1-53461-279-4	02	1	0106-		●
49	NUT; BRKT M12	9-99110-512-0	08	1	0106-	●
49	NUT; BRKT FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	18	1	0106-		●
49	NUT; BRKT EXC. FUEL TANK 200L+200L<NF7> M12	9-99110-512-0	06	1	0106-		●
51	BOLT; BRKT TO FRAME M12X50 FLANGE	0-28081-250-0	08	1	0106-	●
51	BOLT; BRKT TO FRAME FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	24	1	0106-		●
51	BOLT; BRKT TO FRAME EXC. FUEL TANK 200L+200L<NF7> M12X40 FLANGE	0-28681-240-0	12	1	0106-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
