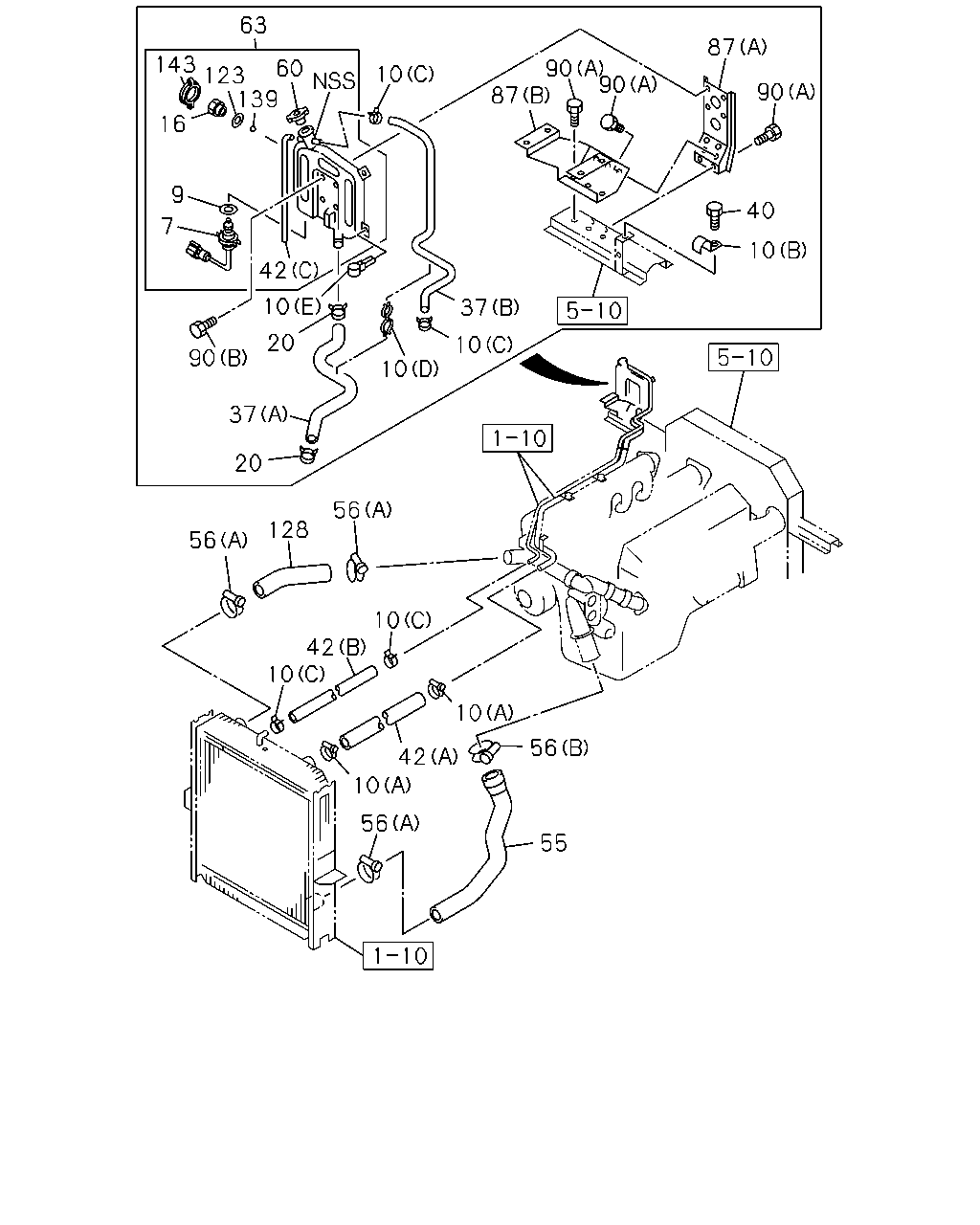

1-11 — RADIATOR HOSE AND SUB TANK
(#28892) — 28 parça
63
87
90
87
143
60
90
10
123
139
90
16
9
40
7
10
42
10
37
20
10
90
10
37
20
56
128
56
10
42
10
10
56
42
10
56
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
SWITCH ASM; TANK
1-82480-093-1
01
1
0106-
9
GASKET; SWITCH
ID=28 T=2.5
1-09630-126-0
01
1
0106-
10
CLIP; RUBBER HOSE
(B) ID=43 L=40
1-09700-624-2
01
1
0106-
10
CLIP; RUBBER HOSE
(A) ID=44
1-09704-077-0
02
1
0106-
10
CLIP; RUBBER HOSE
(C) ID=14
1-09704-102-0
04
1
0106-
10
CLIP; RUBBER HOSE
(D) ID=44 & 16
1-09709-125-0
04
1
0106-
10
CLIP; RUBBER HOSE
(E) ID=14 L=44
9-09917-427-0
02
1
0106-
16
PLUG; TANK
1-21464-514-0
02
1
0106-0205
20
CLIP; HOSE,RAD
ID=31
1-09707-093-1
02
1
0106-
37
HOSE; RUBBER
(A) L=1350 SERVICED BY L=3000
0-03559-300-0
01
1
0106-
37
HOSE; RUBBER
(B)
1-21437-706-0
01
1
0106-
40
BOLT; CLIP
M10X25 FLANGE
0-28681-025-0
01
1
0106-
42
HOSE; RUBBER
(B) L=330 SERVICED BY L=3000
0-03559-300-0
01
1
0106-
42
HOSE; RUBBER
(C) L=850
1-21489-154-0
01
1
0106-
42
HOSE; RUBBER
(A) L=290 SERVICED BY L=3000
5-09361-047-0
01
1
0106-
55
HOSE; WATER,RAD OUTLET
1-21437-489-2
01
1
0106-
56
CLIP; WATER HOSE,RAD
(A) ID=72
1-09704-068-0
03
1
0106-
56
CLIP; WATER HOSE,RAD
(B) ID=83
1-09704-075-0
01
1
0106-
60
CAP; SUB TANK
1-21450-137-0
01
1
0106-
63
TANK ASM; SUB
1-21481-142-1
01
1
0106-
87
BRACKET; SUB TANK
(B)
1-21489-155-0
01
1
0106-
87
BRACKET; SUB TANK
(A)
1-21489-157-0
01
1
0106-
90
BOLT; SUB TANK TO BRKT
(A) M8X20 FLANGE
0-28680-820-0
06
1
0106-
90
BOLT; SUB TANK TO BRKT
(B) M8X25 W/LK&PL WASHER
1-09030-027-0
04
1
0106-
123
GASKET
ID=26.2
8-94399-716-1
02
1
0106-0205
128
HOSE; WATER,RAD INL
1-21437-836-1
01
1
0106-
139
FLOAT
1-21489-161-0
02
1
0106-0205
143
COVER; PLUG
1-82389-017-0
02
1
0106-0205
