1-01 — ACCELERATOR PEDAL AND CONTROL (#28890) — 93 parça

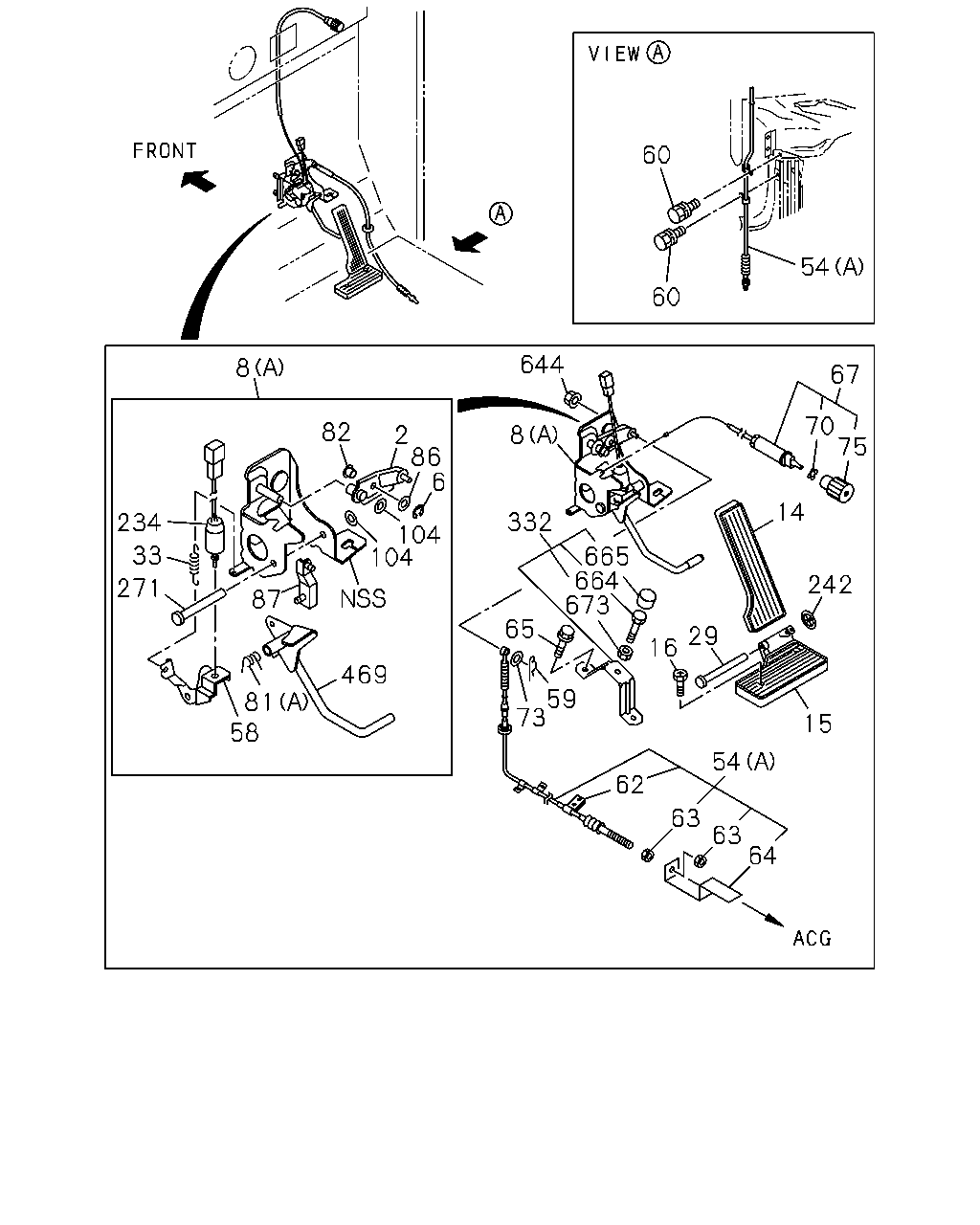

60 54 60 644 8 67 70 75 82 8 2 86 6 14 332 234 104 104 665 664 673 33 242 87 271 65 29 16 469 59 73 81 58 15 54 62 63 63 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0106-
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0106-
6	RING; SNAP,LINK TO LINK EXC. ELECTRONIC GOV RED3(KG5) ID=4	9-09185-404-0	02	1	0106-
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5) (B)	1-71907-551-3	01	1	0106-
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A)	1-73996-206-6	01	1	0106-
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-
15	STAND; HEEL,ACCEL PEDAL	1-73907-266-2	01	1	0106-
16	SCREW; HEEL STAND,ACCEL PEDAL M6X28 W/LK&PL WASHER	1-09980-543-0	02	1	0106-
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-
33	SPRING; IDLING CONT LEVER EXC. ELECTRONIC GOV RED3(KG5)	8-94414-815-0	01	1	0106-
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (B) L=850	1-71907-257-0	01	1	0106-
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1950	1-73907-477-0	01	1	0106-
58	LEVER; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-242-1	01	1	0106-
59	PIN; SNAP,ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=27.7	1-09747-005-0	01	1	0106-
60	BOLT; CABLE EXC. ELECTRONIC GOV RED3(KG5) M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
62	CLIP; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) L=30	1-09700-326-0	01	1	0106-
63	NUT; LOCK,BRKT EXC. ELECTRONIC GOV RED3(KG5) M8	9-09111-408-0	02	1	0106-
64	BRACKET; ENG CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-09768-018-1	01	1	0106-
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=399	1-73998-912-3	01	1	0106-0204
67	CABLE ASM; IDLE CONT EXC. ELECTRONIC GOV RED3(KG5) L=315	1-73908-423-0	01	1	0205-
70	NUT; CONT CABLE EXC. ELECTRONIC GOV RED3(KG5)	1-73908-045-1	01	1	0106-
73	WASHER; PL,ACCEL CONT CABLE EXC. ELECTRONIC GOV RED3(KG5) ID=8.4	9-09160-508-0	01	1	0106-
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97066-797-1	01	1	0106-0109
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	8-97137-504-0	01	1	0110-0204
75	KNOB ASM; IDLING CONT EXC. ELECTRONIC GOV RED3(KG5)	1-73908-409-0	01	1	0205-
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0106-0206
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0106-
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0106-
86	WASHER; PL,ENG CONT LEVER EXC. ELECTRONIC GOV RED3(KG5) ID=6.4	9-09160-506-0	02	1	0106-
87	LINK; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-211-1	01	1	0106-
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	01	1	0106-
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	02	1	0106-
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	0106-
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0106-
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0106-
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0106-
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-
469	LEVER ASM EXC. ELECTRONIC GOV RED3(KG5)	1-71907-209-5	01	1	0106-
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-0304
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-

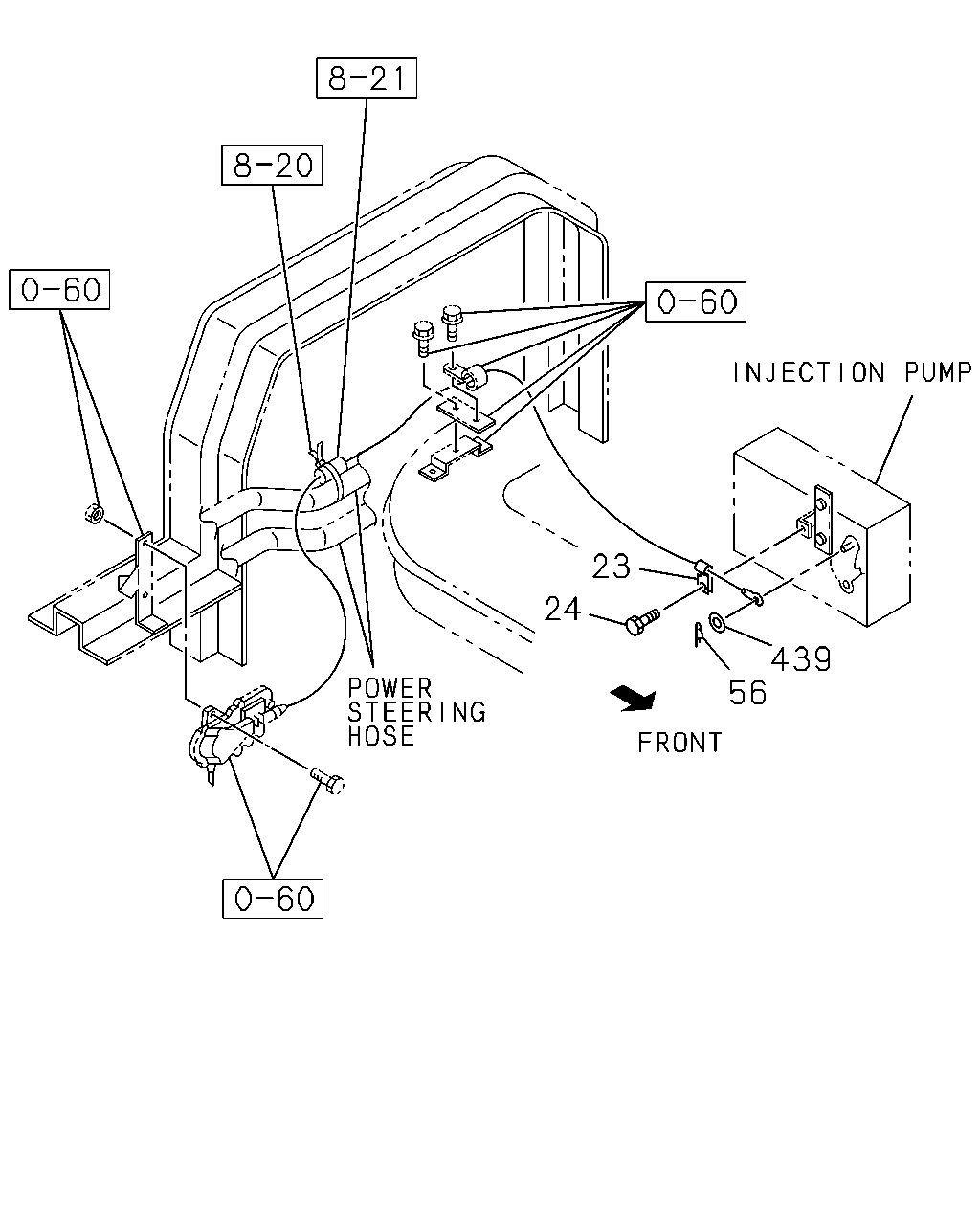

23 24 439 56

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	BRACKET; FUEL CUT CABLE	1-14319-138-0	01	1	0106-
24	BOLT; BRKT M8X12 FLANGE	0-28080-812-0	01	1	0106-
56	PIN; SNAP,JAW JOINT L=17.9	1-09747-002-0	01	1	0106-
439	WASHER; PL,PIN,JAW JOINT ID=5.3	9-09160-505-0	01	1	0106-

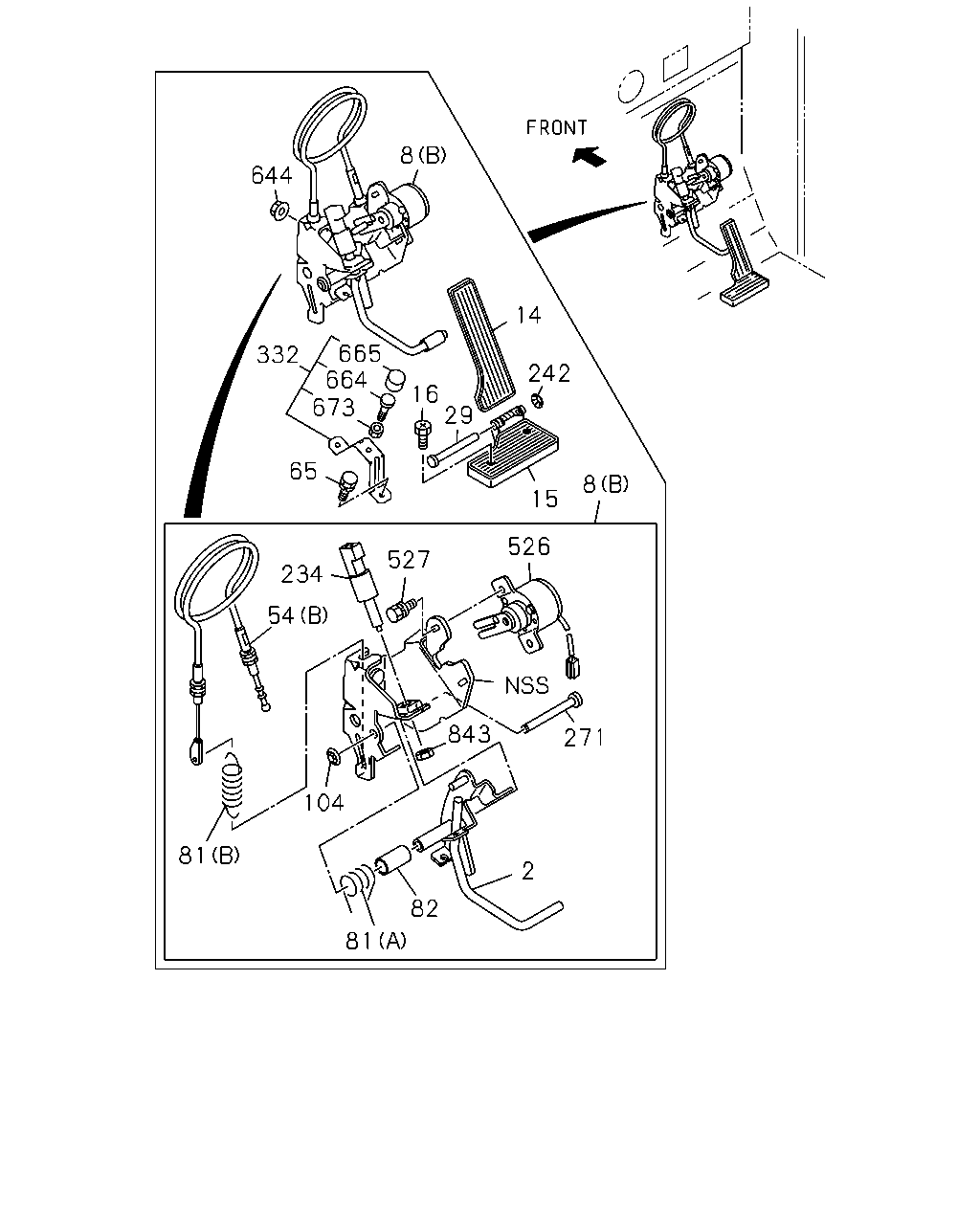

8 644 14 665 664 673 332 242 1 29 65 8 1 526 527 234 54 843 271 104 81 2 82 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	LEVER; ENG CONT ELECTRONIC GOV RED3(KG5)	1-71907-550-1	01	1	0106-
2	LEVER; ENG CONT EXC. ELECTRONIC GOV RED3(KG5)	1-71907-210-2	01	1	0106-
8	LINK ASM; ENG CONT ELECTRONIC GOV RED3(KG5) (B)	1-71907-551-3	01	1	0106-
8	LINK ASM; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A)	1-73996-206-6	01	1	0106-
14	PAD; PEDAL,ACCEL	1-73907-563-0	01	1	0106-
29	SHAFT; ACCEL PEDAL OD=8.0 L=74	1-71907-212-1	01	1	0106-
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (B) L=850	1-71907-257-0	01	1	0106-
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1950	1-73907-477-0	01	1	0106-
65	BOLT M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	1-71907-268-0	01	1	0106-0206
81	SPRING; RETURN,ENG CONT LEVER ELECTRONIC GOV RED3(KG5) (B)	8-97997-917-0	01	1	0207-
81	SPRING; RETURN,ENG CONT LEVER (A)	8-97853-205-1	01	1	0106-
82	BUSHING; ENG CONT LVR ELECTRONIC GOV RED3(KG5) L=31.5	1-53459-627-0	01	1	0106-
82	BUSHING; ENG CONT LVR EXC. ELECTRONIC GOV RED3(KG5)	1-71907-244-1	02	1	0106-
104	NUT; ENG CONT ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	01	1	0106-
104	NUT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) D=17.5	8-94368-617-0	02	1	0106-
234	SWITCH; ACCEL ELECTRONIC GOV RED3(KG5)	1-82380-131-1	01	1	0106-
234	SWITCH; ACCEL EXC. ELECTRONIC GOV RED3(KG5)	1-82380-114-3	01	1	0106-
242	NUT; ACCEL PEDAL ID=7.9 PUSH NUT	8-97022-565-0	01	1	0106-
271	SHAFT; ENG CONT ELECTRONIC GOV RED3(KG5) OD=8.0 L=69	1-71907-298-0	01	1	0106-
271	SHAFT; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) OD=8.0 L=74	1-71907-212-1	01	1	0106-
332	BRACKET; ACCEL PEDAL STOPPER	1-73998-937-1	01	1	0106-
526	SENSOR; ACCEL ELECTRONIC GOV RED3(KG5)	1-81534-003-2	01	1	0106-
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0106-0206
527	BOLT; ACCEL SENSOR ELECTRONIC GOV RED3(KG5) M6X16 W/LK&PL WASHER	8-94139-963-0	02	1	0207-
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	03	1	0106-0304
644	NUT; LINK,ENG CONT M8 FLANGE W/RUBBER	1-09984-176-0	02	1	0305-
664	BOLT; STOPPER M8X45	0-20800-845-0	01	1	0106-
665	COVER; STOPPER RUBBER	1-23249-009-0	01	1	0106-
673	NUT; STOPPER M8	9-09111-408-0	01	1	0106-
843	NUT ELECTRONIC GOV RED3(KG5) M12	9-99111-412-0	01	1	0106-

403 72 199 402 54 164 444 54 443 539 443 444

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
54	CABLE; ENG CONT ELECTRONIC GOV RED3(KG5) (B) L=850	1-71907-257-0	01	1	0106-
54	CABLE; ENG CONT EXC. ELECTRONIC GOV RED3(KG5) (A) L=1950	1-73907-477-0	01	1	0106-
72	PIN; JAW JOINT,CABLE END OD=8 L=17	9-08223-817-0	01	1	0106-
164	WASHER; PL ID=8.4	9-09160-508-0	01	1	0106-
199	PIN; SNAP L=27.7	1-09747-005-0	01	1	0106-
402	BRACKET; CABLE CLIP	1-23335-379-0	01	1	0106-
403	BOLT; BRKT,ACCEL PEDAL M8X16 FLANGE	0-28080-816-0	02	1	0106-
443	CLIP; CABLE (A) ID=8 H=20 L=20	1-09700-604-0	01	1	0106-
443	CLIP; CABLE (B) ID=9 L=20	9-09524-835-0	01	1	0106-
444	BOLT; CABLE CLIP M8X25 FLANGE	0-28680-825-0	02	1	0106-
539	NUT; CLIP M8 FLANGE	0-91150-208-0	01	1	0106-
