◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-70 - FLOOR PANEL ▶
6-70 — FLOOR PANEL (#2888) — 42 parça

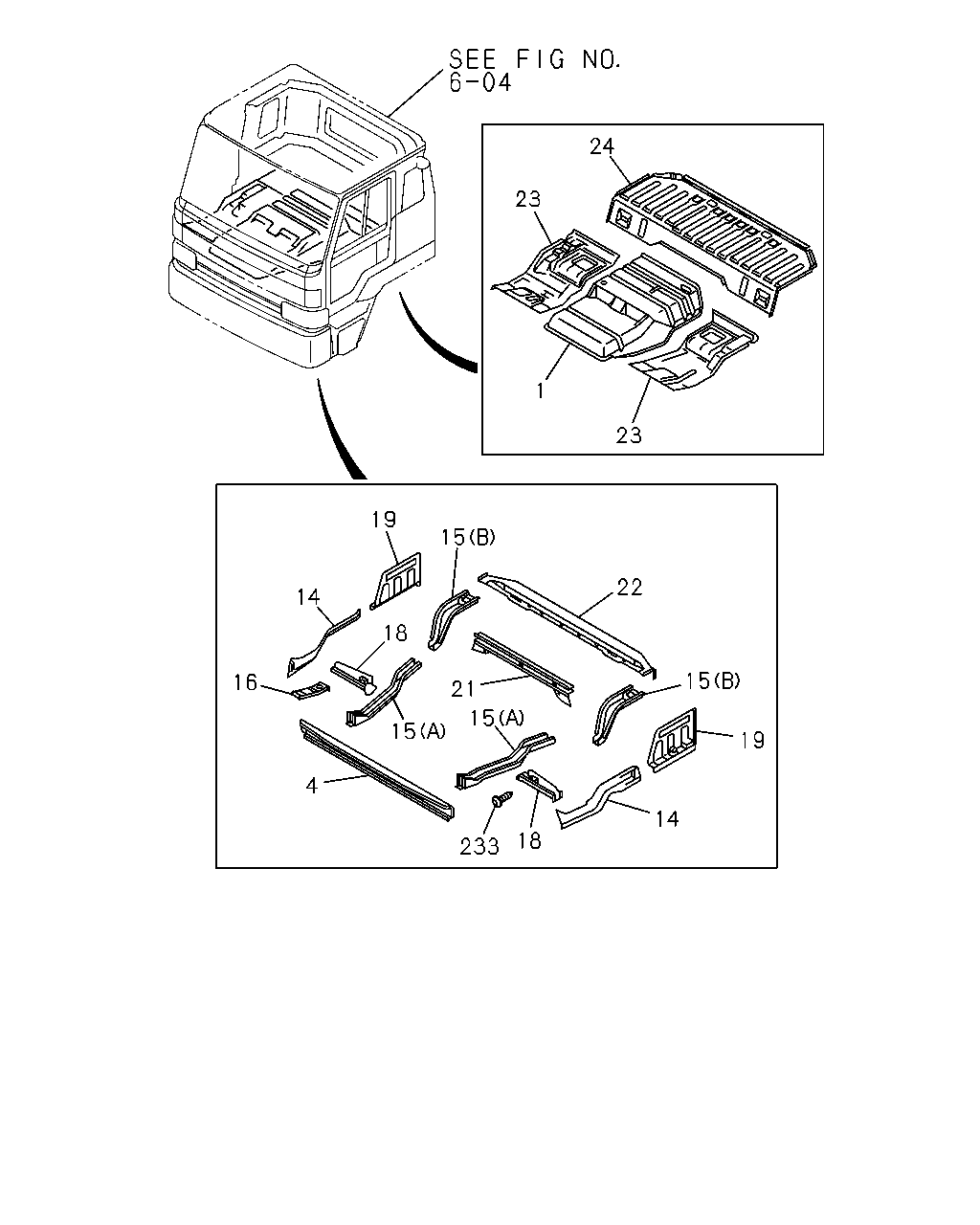

çizim 93916
14 19 15 22 18 233 4 21 15 15 15 15 19 14 16 1 23 23 24
BalonParca AdiParca NoAdetTipApplied Date A B
1 PANEL; FLOOR 1-62172-263-1 01 1 9002- ● ●
4 FRAME; FLOOR,FRT 1-62472-389-6 01 1 9002-9306 ● ●
4 FRAME; FLOOR,FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62472-389-7 01 1 9307-9312 ● ●
4 FRAME; FLOOR,FRT
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62472-389-8 01 1 9401- ●
4 FRAME; FLOOR,FRT
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> 		1-62472-389-8 01 1 9401- ●
4 FRAME; FLOOR,FRT
NYLON TUBE AIR PIPING<Z29> EXC. HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> 		1-62472-389-8 01 1 9401- ●
4 FRAME; FLOOR,FRT
HONG KONG EQUIPMENT(PQ1) 		1-62472-623-1 01 1 9307-9312 ● ●
4 FRAME; FLOOR,FRT
HONG KONG EQUIPMENT(PQ1) 		1-62472-623-2 01 1 9401- ● ●
4 FRAME; FLOOR,FRT
HEAD LAMP RECTANGULAR W/FOG LAMP<TAN> NYLON TUBE AIR PIPING<Z29> 		1-62472-623-2 01 1 9401- ●
14 PANEL; FLOOR SIDE,FRT 1-62472-264-6 01 1 9002- ● ●
14 PANEL; FLOOR SIDE,FRT 1-62472-263-6 01 1 9002- ● ●
15 FRAME; UNDER
(B) 		1-62472-209-6 01 1 9002- ● ●
15 FRAME; UNDER
(B) 		1-62472-208-7 01 1 9002- ● ●
15 FRAME; UNDER
NYLON TUBE AIR PIPING<Z29> (A) 		1-62472-403-2 01 1 9002- ● ●
15 FRAME; UNDER
NYLON TUBE AIR PIPING<Z29> (A) 		1-62472-402-1 01 1 9002- ● ●
15 FRAME; UNDER
EXC. NYLON TUBE AIR PIPING<Z29> (A) 		1-62472-333-3 01 1 9002-9205 ● ●
15 FRAME; UNDER
EXC. NYLON TUBE AIR PIPING<Z29> (A) 		1-62472-556-0 01 1 9206- ● ●
15 FRAME; UNDER
EXC. NYLON TUBE AIR PIPING<Z29> (A) 		1-62472-332-3 01 1 9002- ● ●
16 PANEL; SUPPORT CHANNEL,FLOOR PANEL FRT 1-62482-297-2 01 1 9002- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-455-1 01 1 9002-9105 ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-551-1 01 1 9106- ● ●
18 FRAME; FLOOR,CENTER SIDE 1-62472-311-1 01 1 9002- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-325-1 01 1 9002-9105 ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-566-0 01 1 9106- ● ●
19 PANEL; FLOOR SIDE,REAR 1-62472-106-7 01 1 9002- ● ●
21 FRAME; FLOOR CENTER
HONG KONG EQUIPMENT(PQ1) 		1-62472-370-1 01 1 9002-9105 ● ●
21 FRAME; FLOOR CENTER 1-62472-571-0 01 1 9106- ● ●
21 FRAME; FLOOR CENTER
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62472-340-1 01 1 9002-9105 ● ●
22 FRAME; FLOOR REAR 1-62472-338-3 01 1 9002-9012 ● ●
22 FRAME; FLOOR REAR 1-62472-543-4 01 1 9101- ● ●
23 PANEL; FLOOR,SIDE 1-62172-387-4 01 1 9002- ● ●
23 PANEL; FLOOR,SIDE
HONG KONG EQUIPMENT(PQ1) 		1-62172-367-7 01 1 9002- ● ●
23 PANEL; FLOOR,SIDE
EXC. HONG KONG EQUIPMENT(PQ1) 		1-62172-386-4 01 1 9002- ● ●
24 PANEL; BED PAN
NYLON TUBE AIR PIPING<Z29> 		1-62172-456-0 01 1 9002-9306 ●
24 PANEL; BED PAN
NYLON TUBE AIR PIPING<Z29> EXC. FULL TRACTOR TRUCK<RD6> 		1-62172-456-0 01 1 9002-9306 ●
24 PANEL; BED PAN
NYLON TUBE AIR PIPING<Z29> 		1-62172-545-1 01 1 9307- ●
24 PANEL; BED PAN
HONG KONG EQUIPMENT(PQ1) 		1-62172-309-9 01 1 9002-9312 ● ●
24 PANEL; BED PAN
HONG KONG EQUIPMENT(PQ1) 		1-62172-595-0 01 1 9401- ● ●
24 PANEL; BED PAN
EXC. HONG KONG EQUIPMENT(PQ1),NYLON TUBE AIR PIPING<Z29> 		1-62172-453-1 01 1 9002- ● ●
24 PANEL; BED PAN
FULL TRACTOR TRUCK<RD6> NYLON TUBE AIR PIPING<Z29> 		1-62172-418-1 01 1 9002-9306 ●
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 04 1 9002-9107 ● ●
233 PLUG; GUSSET,UNDER FRAME,CAB
D4.7X11 		1-76378-154-0 07 1 9108- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
