0-42 — FUEL PUMP AND PIPE (#28876) — 43 parça

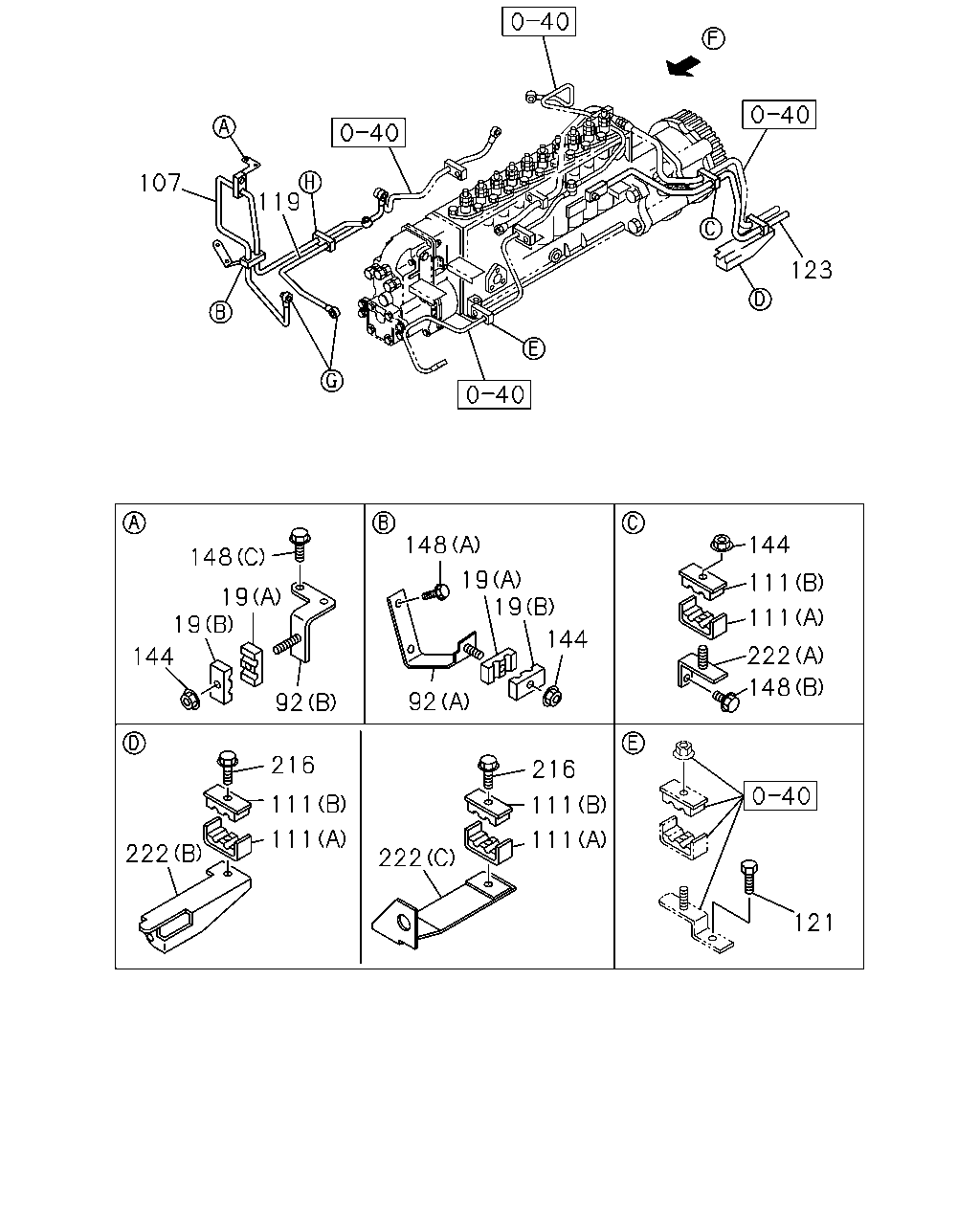

107 119 123 144 148 148 19 19 111 19 19 111 144 222 144 148 92 92 216 216 111 111 111 111 222 222 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0106-
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	0106-
92	BRACKET; FUEL PIPE (B)	1-15419-428-0	01	1	0106-
92	BRACKET; FUEL PIPE (C)	1-15419-455-0	01	1	0106-
92	BRACKET; FUEL PIPE (D)	1-15419-456-0	01	1	0106-
92	BRACKET; FUEL PIPE (E)	1-15419-458-0	01	1	0106-
92	BRACKET; FUEL PIPE (A)	1-15419-462-0	01	1	0106-
92	BRACKET; FUEL PIPE (F)	1-15419-622-0	01	1	0106-
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	0106-
111	CLIP; FUEL PIPE (A)	1-09701-193-1	02	1	0106-
111	CLIP; FUEL PIPE (B)	1-09701-194-1	02	1	0106-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	0106-
121	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	01	1	0106-
123	PIPE; FUEL,FUEL FILTER LEAK OFF ENGINE REAR PTO(SV1)	1-15415-722-1	01	1	0106-
123	PIPE; FUEL,FUEL FILTER LEAK OFF EXC. ENGINE REAR PTO(SV1)	1-15415-659-1	01	1	0106-
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	0106-
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	0106-
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0106-
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	0106-
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) (A) M10X20 FLANGE	0-28181-020-0	02	1	0106-
216	BOLT; CLIP,FUEL PIPE M6X35 FLANGE	0-28080-635-0	01	1	0106-
222	BRACKET; CLIP (A)	1-15419-383-1	01	1	0106-
222	BRACKET; CLIP ENGINE REAR PTO(SV1) (C)	1-13319-027-0	01	1	0106-
222	BRACKET; CLIP EXC. ENGINE REAR PTO(SV1) (B)	1-15419-402-1	01	1	0106-

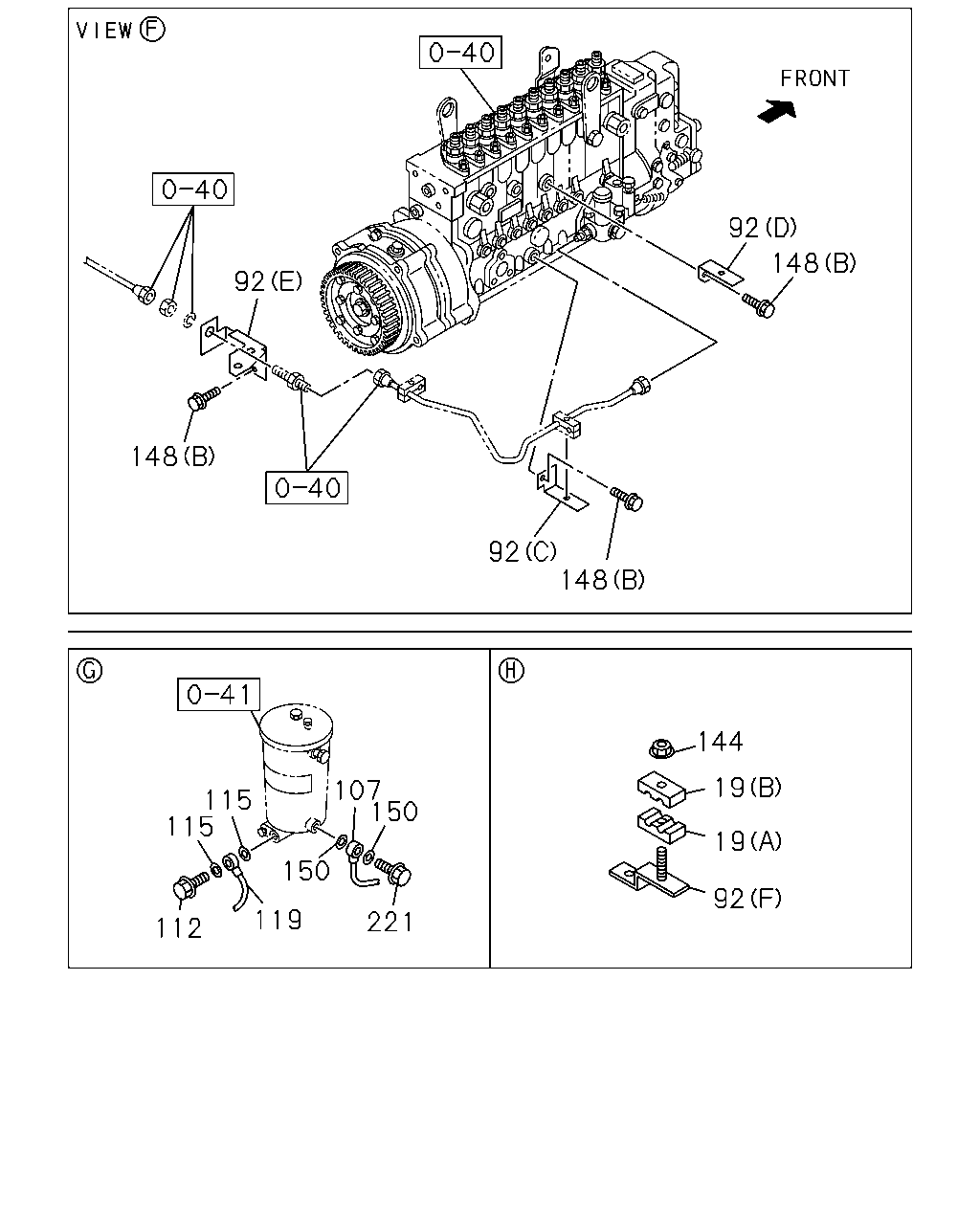

92 148 92 148 92 148 144 19 107 150 115 115 19 150 92 119 221 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
19	CLIP; FUEL PIPE (A)	1-09701-180-0	03	1	0106-
19	CLIP; FUEL PIPE (B) ID=10 & 10 L=25	8-94393-280-2	03	1	0106-
92	BRACKET; FUEL PIPE (B)	1-15419-428-0	01	1	0106-
92	BRACKET; FUEL PIPE (C)	1-15419-455-0	01	1	0106-
92	BRACKET; FUEL PIPE (D)	1-15419-456-0	01	1	0106-
92	BRACKET; FUEL PIPE (E)	1-15419-458-0	01	1	0106-
92	BRACKET; FUEL PIPE (A)	1-15419-462-0	01	1	0106-
92	BRACKET; FUEL PIPE (F)	1-15419-622-0	01	1	0106-
107	PIPE; FUEL,FEED PUMP TO FUEL FILTER	1-15415-726-2	01	1	0106-
112	BOLT; JOINT,FUEL FILTER M14X27 FLANGE	1-09675-086-0	01	1	0106-
115	GASKET; JOINT BOLT,FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
119	PIPE; FUEL,FUEL FILTER TO INJ PUMP	1-15415-641-1	01	1	0106-
144	NUT; CLIP M6 FLANGE	0-91150-106-0	04	1	0106-
148	BOLT; BRKT (B) M8X12 FLANGE	0-28080-812-0	06	1	0106-
148	BOLT; BRKT (C) M10X16 FLANGE	0-28181-016-0	02	1	0106-
148	BOLT; BRKT ENGINE REAR PTO(SV1) (A) M10X25 FLANGE	0-28181-025-0	02	1	0106-
148	BOLT; BRKT EXC. ENGINE REAR PTO(SV1) (A) M10X20 FLANGE	0-28181-020-0	02	1	0106-
150	GASKET; FUEL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	0106-
221	BOLT; FUEL PIPE M14X27 FLANGE	1-09675-086-0	01	1	0106-
