0-39 — AIR COMPRESSOR; BRAKE (#28873) — 110 parça

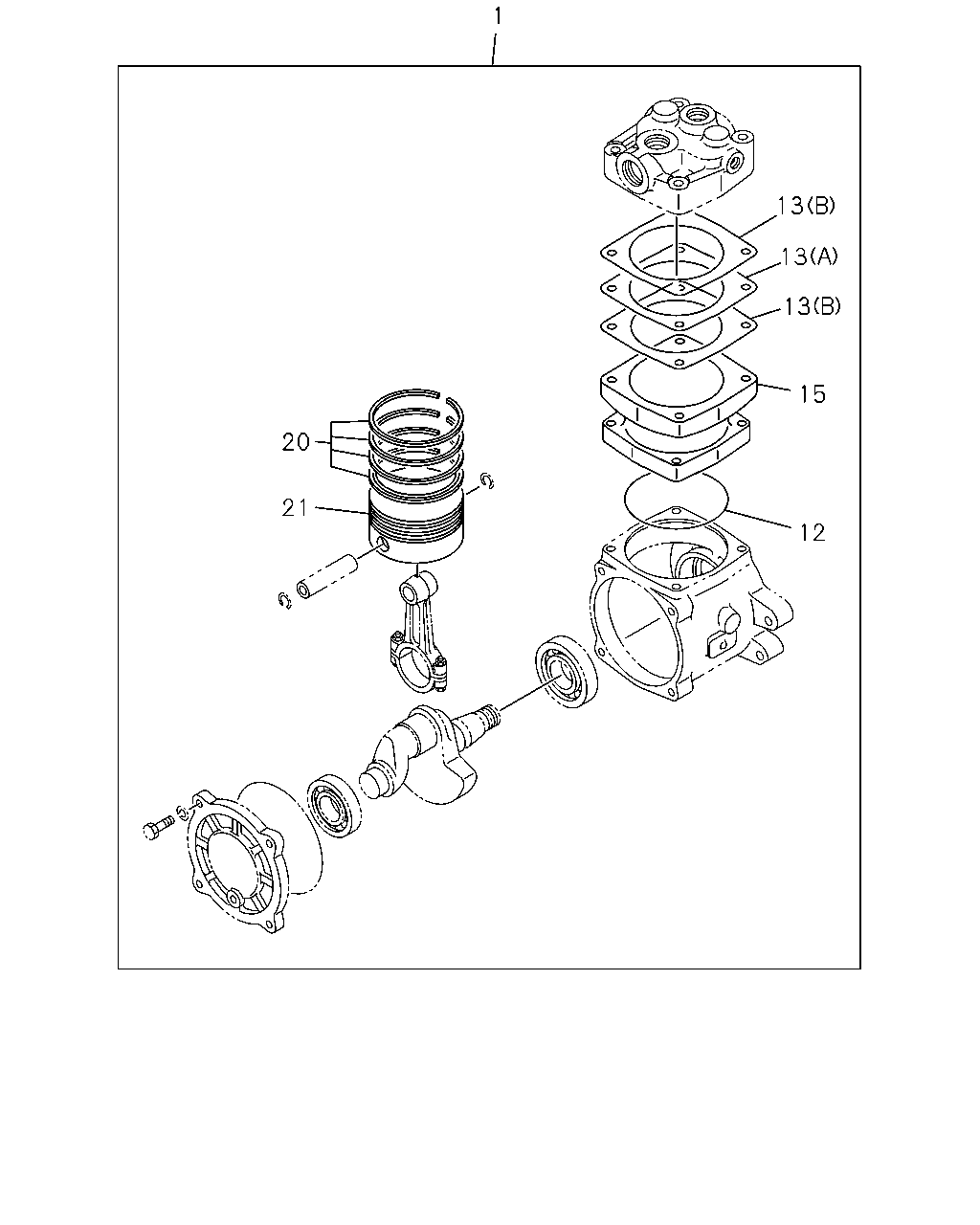

1 20 21 13 13 15 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19163-061-0	01	1	0106-
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	0106-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-09623-614-0	01	1	0106-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-021-0	02	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A)	1-09623-615-0	01	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19115-012-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.5	1-19139-003-0	01	1	0106-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19151-279-0	01	1	0106-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19163-058-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	0106-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19161-022-0	01	1	0106-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	0106-

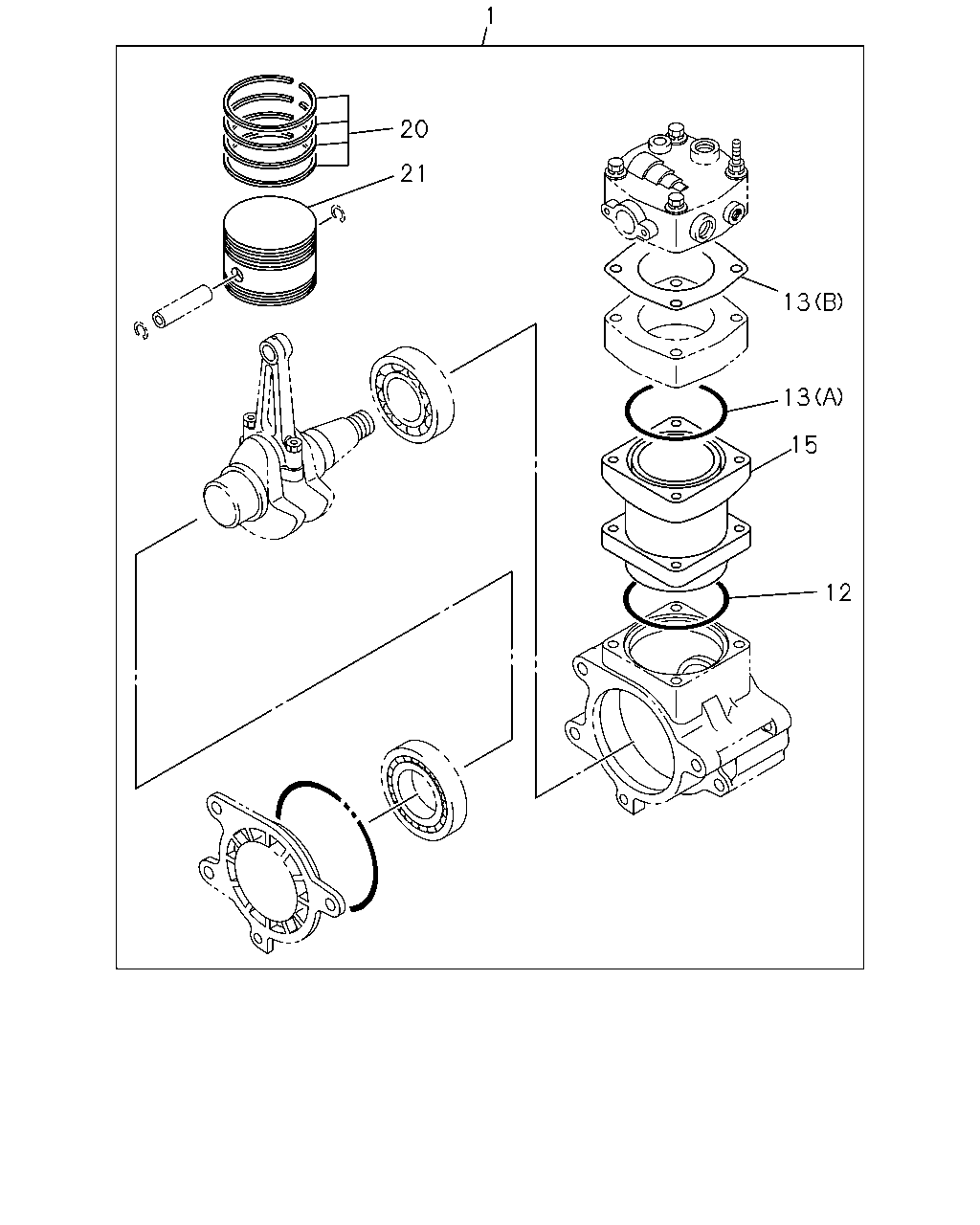

1 13 13 15 20 21 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LINER KIT; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19163-061-0	01	1	0106-
1	LINER KIT; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-019-0	01	1	0106-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-09623-614-0	01	1	0106-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-021-0	02	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A)	1-09623-615-0	01	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19115-012-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.5	1-19139-003-0	01	1	0106-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19151-279-0	01	1	0106-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19163-058-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	0106-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19161-022-0	01	1	0106-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	0106-

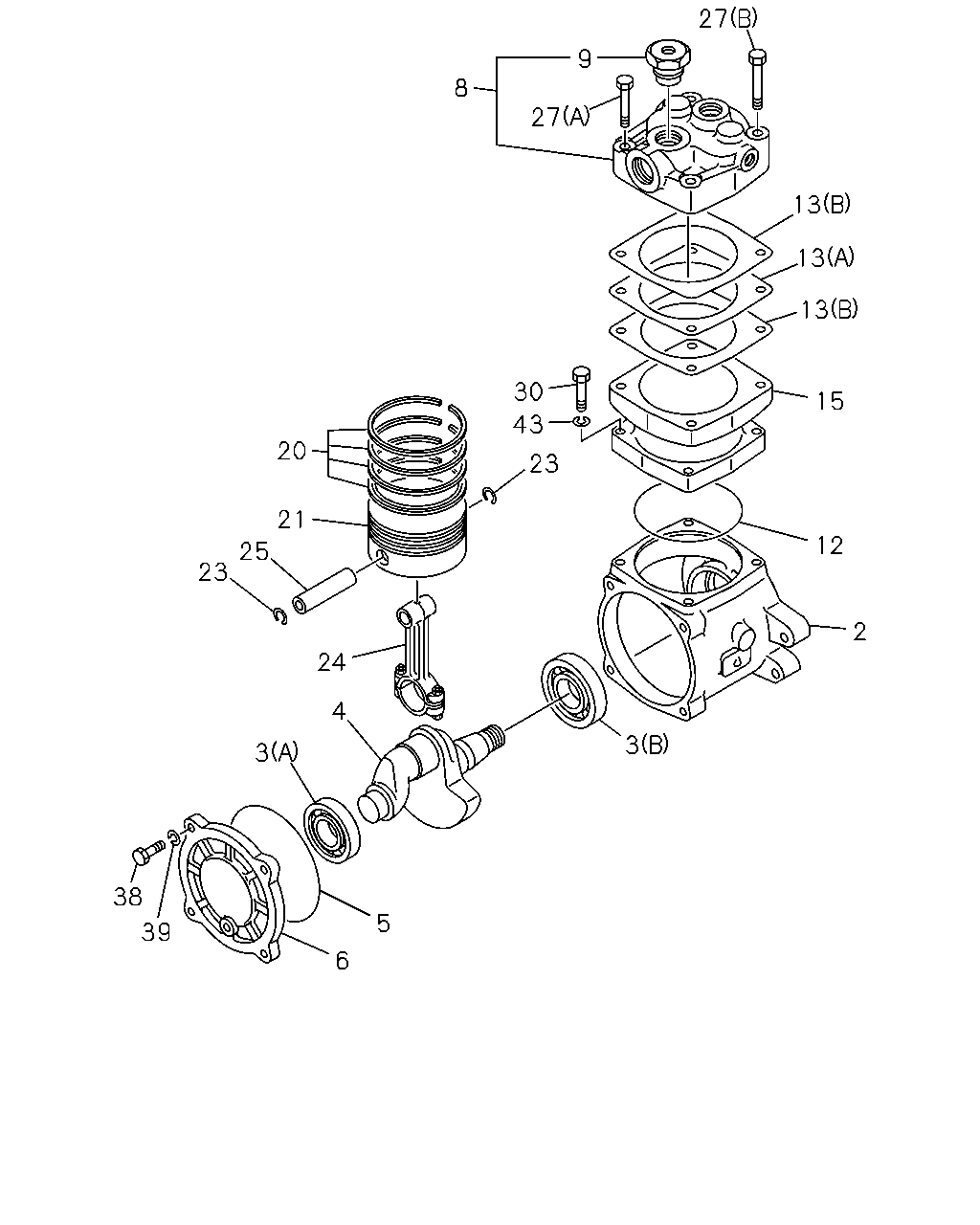

27 9 8 27 13 13 13 30 15 43 20 23 21 12 25 23 2 24 4 3 3 38 5 39 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19151-281-0	01	1	0106-
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	0106-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A)	1-09800-268-0	01	1	0106-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-09800-269-0	01	1	0106-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-00006-206-0	01	1	0106-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-00090-152-0	01	1	0106-
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19171-071-0	01	1	0106-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-031-0	01	1	0106-
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-09623-624-0	01	1	0106-
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-361-0	01	1	0106-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19156-074-0	01	1	0106-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-039-0	01	1	0106-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19110-061-0	01	1	0106-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	0106-
9	VALVE ASM; UNLOADER,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19120-017-1	01	1	0106-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-09623-614-0	01	1	0106-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-021-0	02	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A)	1-09623-615-0	01	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19115-012-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.5	1-19139-003-0	01	1	0106-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19151-279-0	01	1	0106-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19163-058-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	0106-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19161-022-0	01	1	0106-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	0106-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19169-003-0	02	1	0106-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	0106-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19173-019-0	01	1	0106-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	0106-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19167-004-0	01	1	0106-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0106-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) M10X45	9-01066-045-0	02	1	0106-
27	BOLT; HD EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) M10X60	9-01066-060-0	02	1	0106-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) M10X30	1-19119-026-0	05	1	0106-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	0106-
38	BOLT; COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19179-011-0	04	1	0106-
39	WASHER; LK,COVER FIX EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=8.2	9-09150-608-0	04	1	0106-
43	WASHER; LK,CYL TO CRANKCASE,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) ID=10.2	9-09150-610-0	04	1	0106-

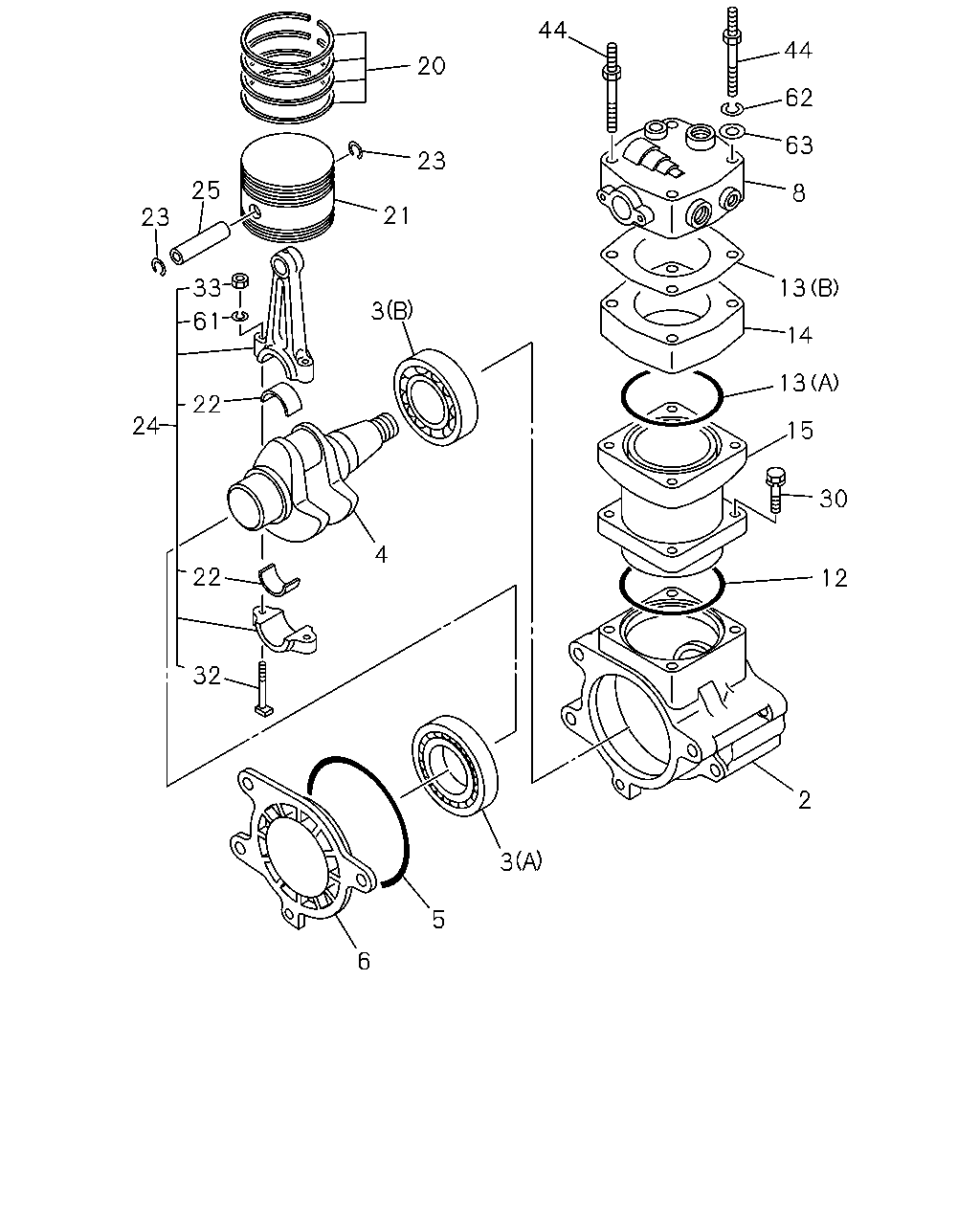

44 44 20 62 63 23 25 8 21 23 33 61 13 3 14 13 22 24 15 30 4 22 12 32 2 3 5 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	CRANKCASE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19151-281-0	01	1	0106-
2	CRANKCASE; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-220-0	01	1	0106-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A)	1-09800-268-0	01	1	0106-
3	BEARING; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-09800-269-0	01	1	0106-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A)	9-00006-206-0	01	1	0106-
3	BEARING; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	9-00090-152-0	01	1	0106-
4	CRANKSHAFT; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19171-071-0	01	1	0106-
4	CRANKSHAFT; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19171-031-0	01	1	0106-
5	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-09623-624-0	01	1	0106-
5	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-361-0	01	1	0106-
6	COVER ASM; BRG,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19156-074-0	01	1	0106-
6	COVER ASM; BRG,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19156-039-0	01	1	0106-
8	HEAD ASM; CYL,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19110-061-0	01	1	0106-
8	HEAD ASM; CYL,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19110-048-1	01	1	0106-
12	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-09623-614-0	01	1	0106-
12	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-09623-539-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B)	1-19139-021-0	02	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (A)	1-09623-615-0	01	1	0106-
13	GASKET; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) (B)	1-19115-012-0	01	1	0106-
13	GASKET; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (A) ID=14.5	1-19139-003-0	01	1	0106-
14	PLATE; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19130-008-0	01	1	0106-
15	CYLINDER; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19151-279-0	01	1	0106-
15	CYLINDER; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19151-219-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19163-058-0	01	1	0106-
20	RING KIT; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19163-021-0	01	1	0106-
21	PISTON; AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19161-022-0	01	1	0106-
21	PISTON; AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19161-009-0	01	1	0106-
22	BEARING; CONNROD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19177-008-0	02	1	0106-
23	RING; SNAP,PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19169-003-0	02	1	0106-
23	RING; SNAP,PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19168-008-0	02	1	0106-
24	ROD ASM; CONN,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19173-019-0	01	1	0106-
24	ROD ASM; CONN,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	1-19173-010-0	01	1	0106-
25	PIN; PISTON,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19167-004-0	01	1	0106-
25	PIN; PISTON,AIR CMPR EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)	9-19167-003-0	01	1	0106-
30	BOLT; CYL TO CRANKCASE AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) M10X30	1-19119-026-0	05	1	0106-
30	BOLT; CYL TO CRANKCASE EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) M10X25	9-02051-025-0	04	1	0106-
32	BOLT; CONNROD AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19179-021-0	02	1	0106-
33	NUT; CONNROD BOLT AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19179-023-0	02	1	0106-
44	STUD; CYL HD,AIR CMPR AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19119-025-0	04	1	0106-
61	WASHER; LK,CONNROD BOLT AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)	1-19179-022-0	02	1	0106-
62	WASHER; LK,STUD AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) ID=10.2	9-09150-510-0	02	1	0106-
63	WASHER; PL,STUD AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1) ID=10.5 OD=18	9-09160-510-0	02	1	0106-
