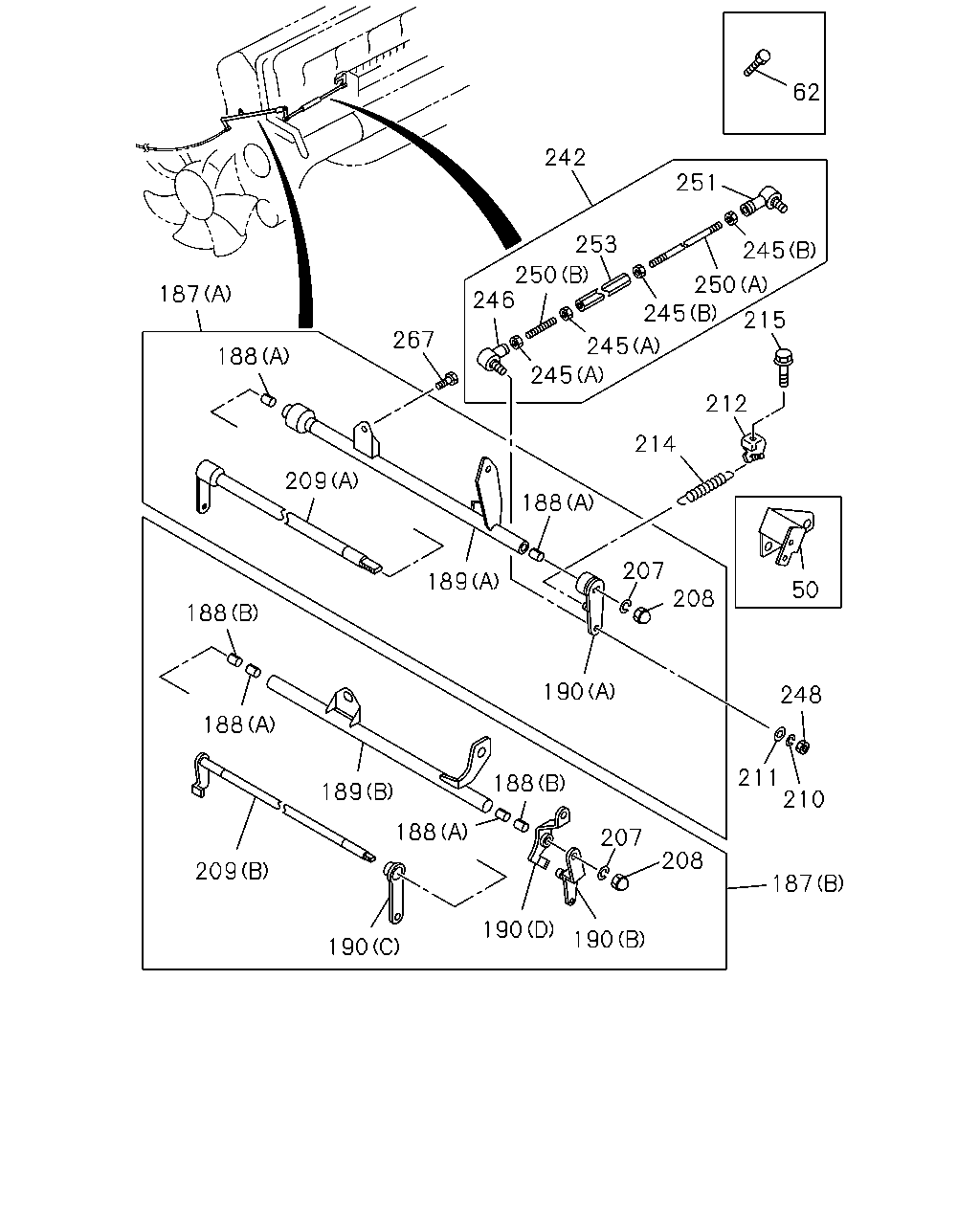

0-35 — ENGINE CONTROL VALVE AND LEVER (#28871) — 60 parça

62 242 251 253 245 250 246 250 245 187 215 267 245 188 245 212 214 209 188 189 207 208 50 188 190 248 188 211 210 188 189 188 207 208 209 187 190 190 190

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
50	BRACKET; ENG CONT CABLE ENGINE REAR PTO(SV1)	1-23335-493-0	01	1	0106-
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	0106-
187	CONTROL ASM; ENG ENGINE REAR PTO(SV1) (B)	1-23300-329-0	01	1	0106-
187	CONTROL ASM; ENG EXC. ENGINE REAR PTO(SV1) (A)	1-23300-326-0	01	1	0106-
188	BUSHING; CONT SHAFT (A)	1-09330-053-0	02	1	0106-
188	BUSHING; CONT SHAFT ENGINE REAR PTO(SV1) (B)	1-09330-059-0	02	1	0106-
189	BRACKET; ENG CONT ENGINE REAR PTO(SV1) (B)	1-23335-492-0	01	1	0106-
189	BRACKET; ENG CONT EXC. ENGINE REAR PTO(SV1) (A)	1-23335-482-0	01	1	0106-
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (B)	1-23311-353-0	01	1	0106-
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (C)	1-23311-354-0	01	1	0106-
190	LEVER; ENG CONT ENGINE REAR PTO(SV1) (D)	1-23311-355-0	01	1	0106-
190	LEVER; ENG CONT EXC. ENGINE REAR PTO(SV1) (A)	1-23311-352-0	01	1	0106-
207	WASHER; LK,CONT LEVER ID=8.2	9-09150-508-0	01	1	0106-
208	NUT; LEVER	1-09984-015-0	01	1	0106-
209	SHAFT; ENG CONT ENGINE REAR PTO(SV1) (B)	1-23331-130-0	01	1	0106-
209	SHAFT; ENG CONT EXC. ENGINE REAR PTO(SV1) (A)	1-23331-128-0	01	1	0106-
210	WASHER; LK,JOINT BALL ID=5.1	9-09150-505-0	02	1	0106-
211	WASHER; PL,JOINT BALL ID=5.3 OD=16	9-09164-705-0	02	1	0106-
212	BRACKET; SPR EYE	1-23335-486-0	01	1	0106-
214	SPRING; ENG CONT RETURN	1-09583-315-0	01	1	0106-
215	BOLT; BRKT SPR EYE M10X16 FLANGE	0-28181-016-0	01	1	0106-
242	LINK ASM L=216	1-23314-177-0	01	1	0106-
245	NUT; LINK (A) M5 LH THREAD	9-09840-277-0	02	1	0106-
245	NUT; LINK (B) M5	9-99110-405-0	02	1	0106-
246	JOINT; BALL,ENG CONT LINK	1-09760-104-0	01	1	0106-
248	NUT; JOINT BALL M5	9-99110-405-0	02	1	0106-
250	ROD; ROD TO JOINT (B) M5X50 LH THREAD	1-09765-197-0	01	1	0106-
250	ROD; ROD TO JOINT (A) M5X120	9-08400-512-0	01	1	0106-
251	JOINT; BALL,RIGHT SCREW,ENG CONT LINK	1-09760-103-0	01	1	0106-
253	JOINT; ROD TO ROD	9-23319-194-0	01	1	0106-
267	BOLT; ENG CONT M10X30 FLANGE	0-28181-030-0	01	1	0106-

52 45 52 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
45	CLIP; FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) ID=11 L=20	9-09525-035-0	02	1	0106-
51	BOLT; CLIP,FUEL CUT CABLE ELECTRONIC GOV RED3(KG5) M8X20 W/LK&PL WASHER	8-94279-208-0	02	1	0106-
52	CABLE; FUEL CUT ELECTRONIC GOV RED3(KG5)	1-73907-670-0	01	1	0106-

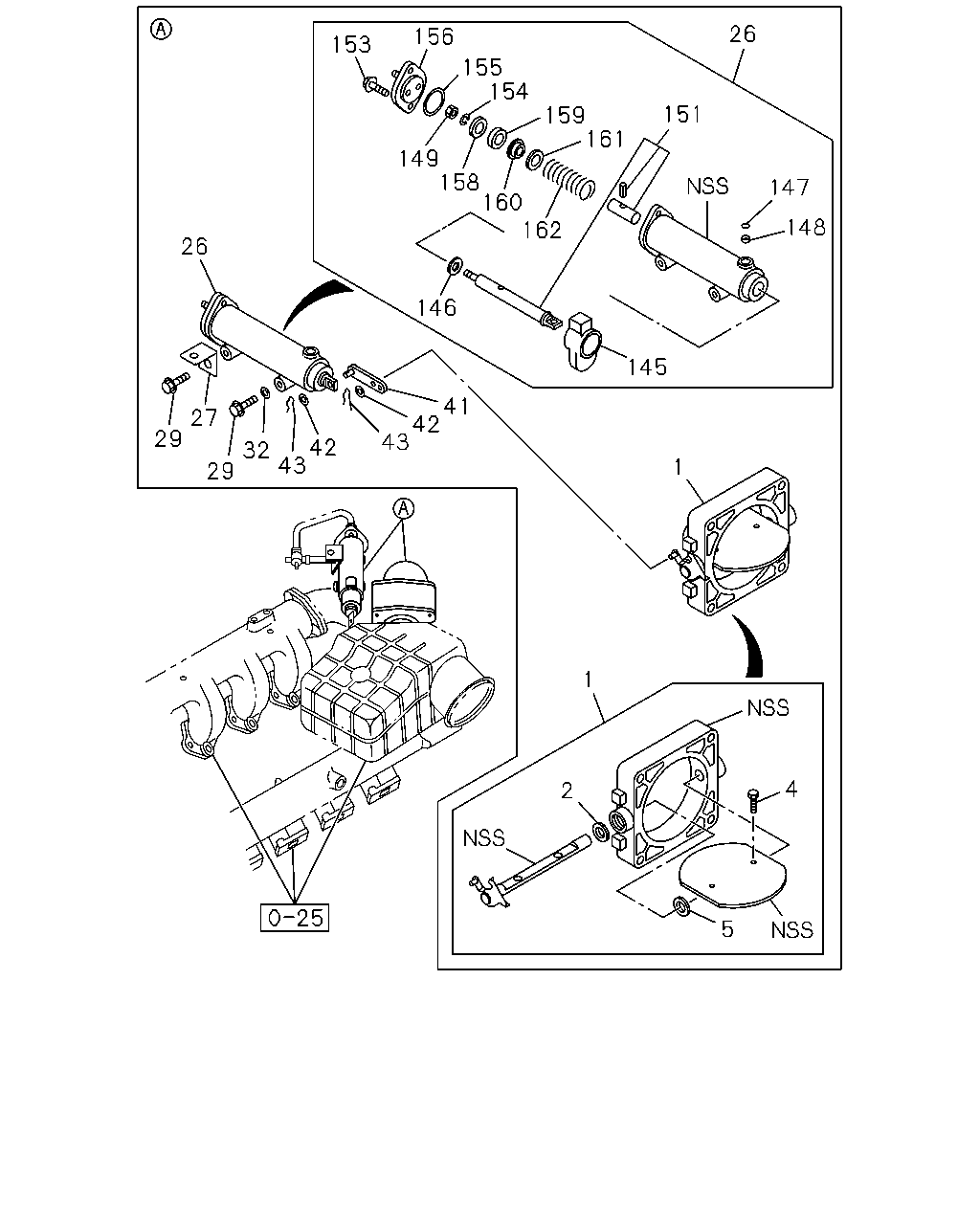

26 156 153 155 154 151 159 161 149 158 160 162 147 148 26 146 145 41 42 43 27 29 32 42 43 29 1 1 4 2 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHUTTER ASM; INT	1-14310-219-1	01	1	0106-
2	COVER; DUST,SHAFT	9-14319-316-0	01	1	0106-
4	SCREW; VLV FIX	9-92050-514-0	02	1	0106-
5	WASHER; THRUST,INT SHUTTER ID=12.5	9-09160-512-0	01	1	0106-
26	CYLINDER ASM; CONT	1-22190-527-1	01	1	0106-
27	BRACKET; WIRE CLIP	1-83129-087-0	01	1	0106-
29	BOLT; CONT CYL M10X55 FLANGE	8-94399-863-1	02	1	0106-
32	WASHER; LK,CONT CYL ID=10.5 OD=18	9-09160-510-0	01	1	0106-
41	LINK; INT SHUTTER	1-14319-133-0	01	1	0106-
42	WASHER; LK,ROD LOCK ID=6.4	9-09160-506-0	02	1	0106-
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	0106-
145	COVER; BREATHER	1-22199-008-0	01	1	0106-
146	SEAL; DUST,CONT	1-22189-016-0	01	1	0106-
147	RING; RET	9-88510-331-0	01	1	0106-
148	FILTER; CONT CYL	9-88510-330-0	01	1	0106-
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	0106-
151	SHAFT; CONT CYL	1-22196-256-0	01	1	0106-
153	BOLT; CONT CYL	1-33739-326-0	02	1	0106-
154	WASHER; LK,CYL ID=8.2	9-09150-508-0	01	1	0106-
155	GASKET; CONT CYL	9-88510-372-0	01	1	0106-
156	COVER; CONT CYL	1-22189-162-1	01	1	0106-
158	RETAINER; GASKET,CYL	9-88510-324-0	01	1	0106-
159	GASKET; CONT CYL	9-88510-373-0	01	1	0106-
160	PLATE	1-22199-020-0	01	1	0106-
161	RING; WEAR	1-22199-002-0	01	1	0106-
162	SPRING; CONT CYL	1-22199-018-0	01	1	0106-
