Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶

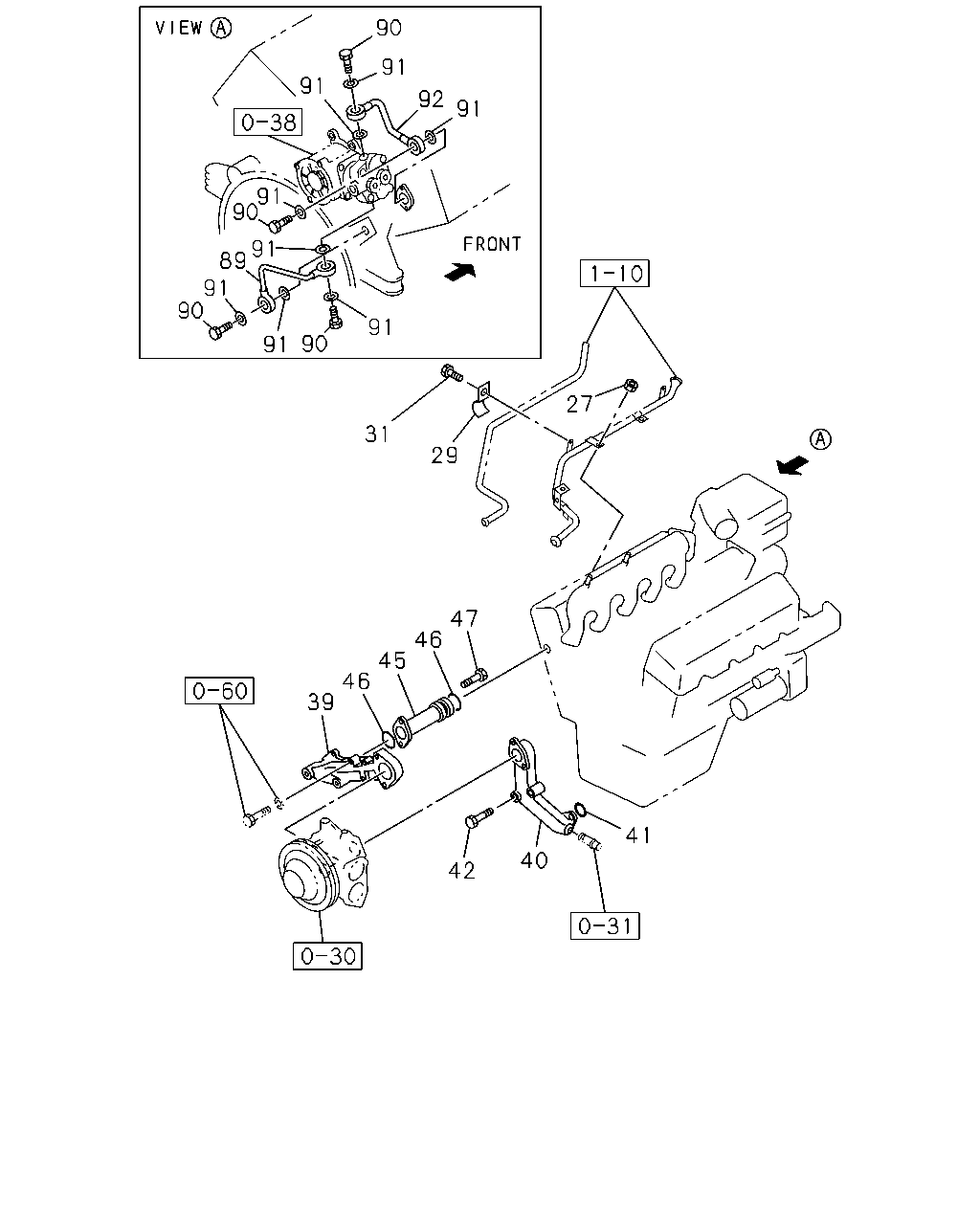

0-32 — WATER PIPING; ENGINE
(#28869) — 20 parça
90
91
91
92
91
91
90
91
89
91
90
91
90
91
27
31
29
47
46
45
46
39
41
40
42
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
27
NUT; PIPE FIX
M8 FLANGE
0-91150-108-0
02
1
0106-
29
CLIP; PIPE
ID=9.7 L=20
1-09700-878-1
04
1
0106-
31
BOLT; CLIP
M6X12 FLANGE
0-28080-612-0
04
1
0106-
39
DUCT ASM; WATER,PUMP OUT
1-13711-544-1
01
1
0106-
40
DUCT; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-13711-382-2
01
1
0106-0106
40
DUCT; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-13711-104-3
01
1
0107-
40
DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
1-13711-623-3
01
1
0106-0108
40
DUCT; WATER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
1-13711-074-3
01
1
0109-
41
GASKET; WATER DUCT,PUMP OUT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
01
1
0106-
42
BOLT; DUCT,PUMP OUT
M10X30 FLANGE
0-28181-030-0
04
1
0106-
45
DUCT; WATER,TO OIL COOLER
1-13711-334-1
01
1
0106-0108
45
DUCT; WATER,TO OIL COOLER
1-13711-084-1
01
1
0109-
46
GASKET; WATER DUCT,TO OIL COOLER
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
0106-
47
BOLT; DUCT,TO OIL COOLER
M10X25 FLANGE
0-28081-025-0
02
1
0106-
89
PIPE; WATER,AIR CMPR,IN
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)
1-13721-667-0
01
1
0106-
89
PIPE; WATER,AIR CMPR,IN
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
1-13721-223-0
01
1
0106-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
04
1
0106-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
1-09630-085-0
08
1
0106-
92
PIPE; WATER,AIR CMPR,OUT
AIR COMPRESSOR HEAVY DUTY(E1Q) EXC. ENGINE REAR PTO(SV1)
1-13721-668-0
01
1
0106-
92
PIPE; WATER,AIR CMPR,OUT
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q)
1-13721-345-1
01
1
0106-
