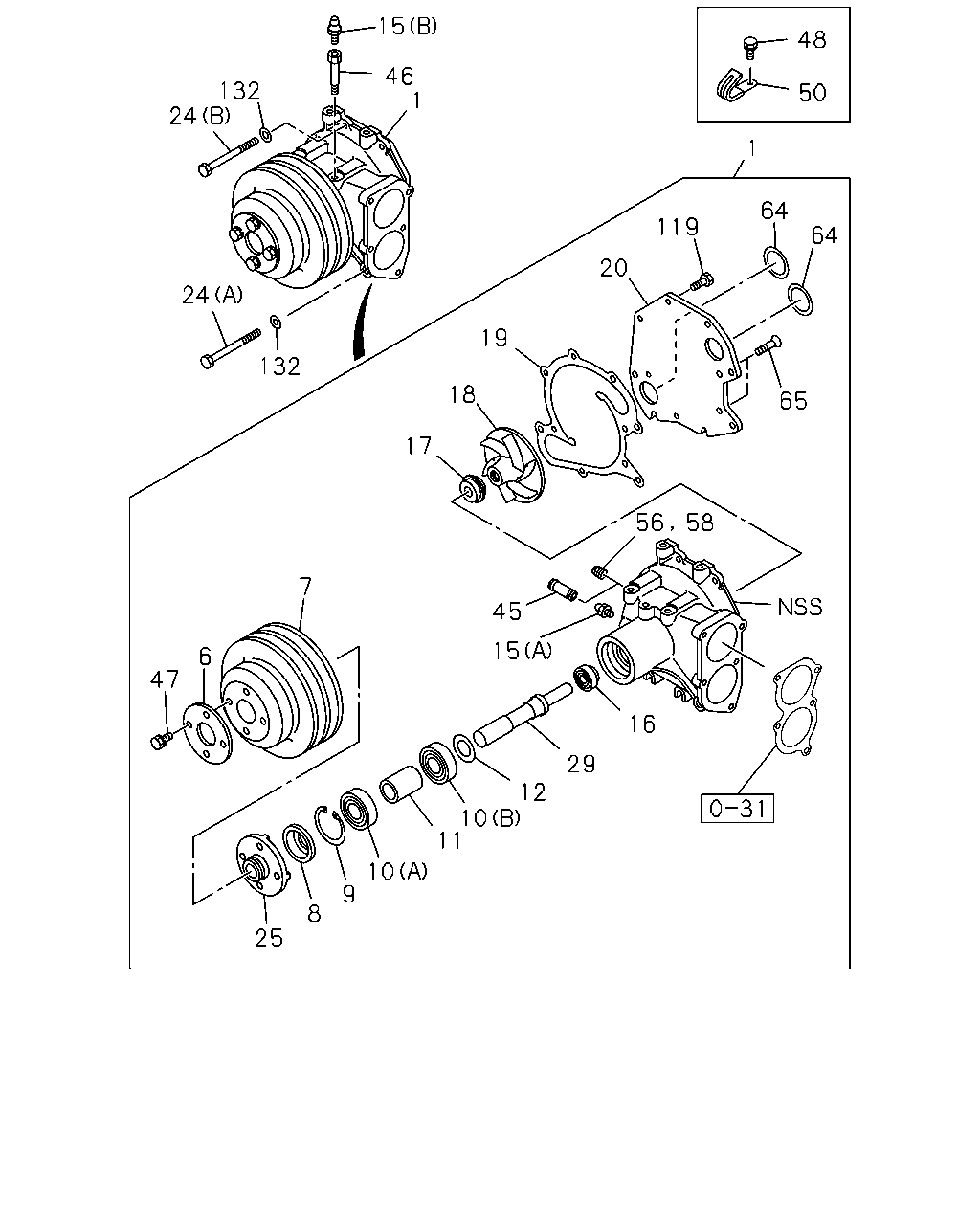

0-30 — WATER PUMP AND CORROSION RESISTOR
(#28867) — 53 parça
◀
[030A] COMPONENT (40 parça)
[030A] REPAIR KIT (13 parça)
▶
15
48
46
1
132
24
50
1
64
119
64
20
24
19
132
18
65
17
56
58
7
45
15
6
47
16
29
12
10
11
10
9
8
25
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PUMP ASM; WATER,W/GASKET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)
1-13650-140-0
01
1
0106-0206
1
PUMP ASM; WATER,W/GASKET
1-13650-140-2
01
1
0207-0307
1
PUMP ASM; WATER,W/GASKET
1-13650-179-1
01
1
0308-
1
PUMP ASM; WATER,W/GASKET
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60)
1-13650-141-0
01
1
0106-0206
6
WASHER; PL,PULLEY
1-13639-024-0
01
1
0106-0208
6
WASHER; PL,PULLEY
1-13639-024-0
01
1
0308-
7
PULLEY; WATER PUMP
2-GROOVE
1-13641-104-0
01
1
0106-
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
0106-0307
8
THROWER; DUST,WATER PUMP
1-13639-021-0
01
1
0308-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0106-
10
BEARING; WATER PUMP
(A)
1-09800-011-0
01
1
0106-
10
BEARING; WATER PUMP
(B)
1-09800-299-0
01
1
0106-
11
SPACER; BRG,WATER PUMP
1-13634-009-0
01
1
0106-
12
WASHER; BALL BRG
1-09503-024-0
01
1
0106-
15
NIPPLE; GREASE,WATER PUMP
(A) PT1/8 STRAIGHT
1-09380-002-0
01
1
0106-
15
NIPPLE; GREASE,WATER PUMP
(B) PT1/8 STRAIGHT
9-09031-010-0
01
1
0106-
16
SEAL; OIL,WATER PUMP
1-09625-437-0
01
1
0106-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0106-
18
IMPELLER; WATER PUMP
1-13621-022-0
01
1
0106-
19
GASKET; COVER TO BODY
1-13613-048-0
01
1
0106-0307
19
GASKET; COVER TO BODY
1-13613-051-0
01
1
0308-
20
COVER; WATER PUMP
1-13612-027-1
01
1
0106-
24
BOLT; WATER PUMP
(B) M10X110
1-09020-004-1
03
1
0106-
24
BOLT; WATER PUMP
(A) M10X170
1-09020-013-0
01
1
0106-
25
CENTER; WATER PUMP
1-13669-173-0
01
1
0106-0307
25
CENTER; WATER PUMP
1-13669-092-0
01
1
0308-
29
SHAFT; WATER PUMP
1-13631-060-1
01
1
0106-0307
29
SHAFT; WATER PUMP
1-13631-080-1
01
1
0308-
45
JOINT; HTR HOSE,WATER PUMP
PT3/8 & OD=18.3 L=47
9-09903-631-0
01
1
0106-0206
45
JOINT; HTR HOSE,WATER PUMP
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) PT3/8 & OD=18.3 L=47
9-09903-631-0
01
1
0207-
46
CONNECTOR; GREASE PIPE
1-09660-102-0
01
1
0106-
47
BOLT; PULLEY TO CENTER
M10X22 W/LK WASHER
0-50051-022-0
04
1
0106-
48
BOLT; CLIP
M10X16 W/LK WASHER
1-09033-012-0
01
1
0106-
50
CLIP; ENG HARNESS
L=36
8-94224-891-1
01
1
0106-
56
PLUG; TAPER SCREW
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT3/8
9-09204-517-0
01
1
0106-0206
58
PLUG; HTR
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) PT3/8
9-09204-517-0
01
1
0207-
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
0106-
65
SCREW; COVER,WATER PUMP
M8X16 CK-HEAD
9-03090-816-0
02
1
0106-
119
BOLT; PUMP COVER
M8X18 W/LK WASHER
0-50040-818-0
04
1
0106-
132
WASHER; PL,WATER PUMP
ID=10.5
9-09851-866-0
04
1
0106-
4
64
64
19
18
17
16
29
12
9
8
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
REPAIR KIT; WATER PUMP
1-87812-008-3
01
1
0106-
8
THROWER; DUST,WATER PUMP
8-94399-457-0
01
1
0106-0307
8
THROWER; DUST,WATER PUMP
1-13639-021-0
01
1
0308-
9
RING; SNAP,WATER PUMP
ID=57.9
9-09180-162-0
01
1
0106-
12
WASHER; BALL BRG
1-09503-024-0
01
1
0106-
16
SEAL; OIL,WATER PUMP
1-09625-437-0
01
1
0106-
17
SEAL UNIT; WATER PUMP
8-94392-090-0
01
1
0106-
18
IMPELLER; WATER PUMP
1-13621-022-0
01
1
0106-
19
GASKET; COVER TO BODY
1-13613-048-0
01
1
0106-0307
19
GASKET; COVER TO BODY
1-13613-051-0
01
1
0308-
29
SHAFT; WATER PUMP
1-13631-060-1
01
1
0106-0307
29
SHAFT; WATER PUMP
1-13631-080-1
01
1
0308-
64
GASKET; WATER PUMP TO DUCT
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-425-0
02
1
0106-
