Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

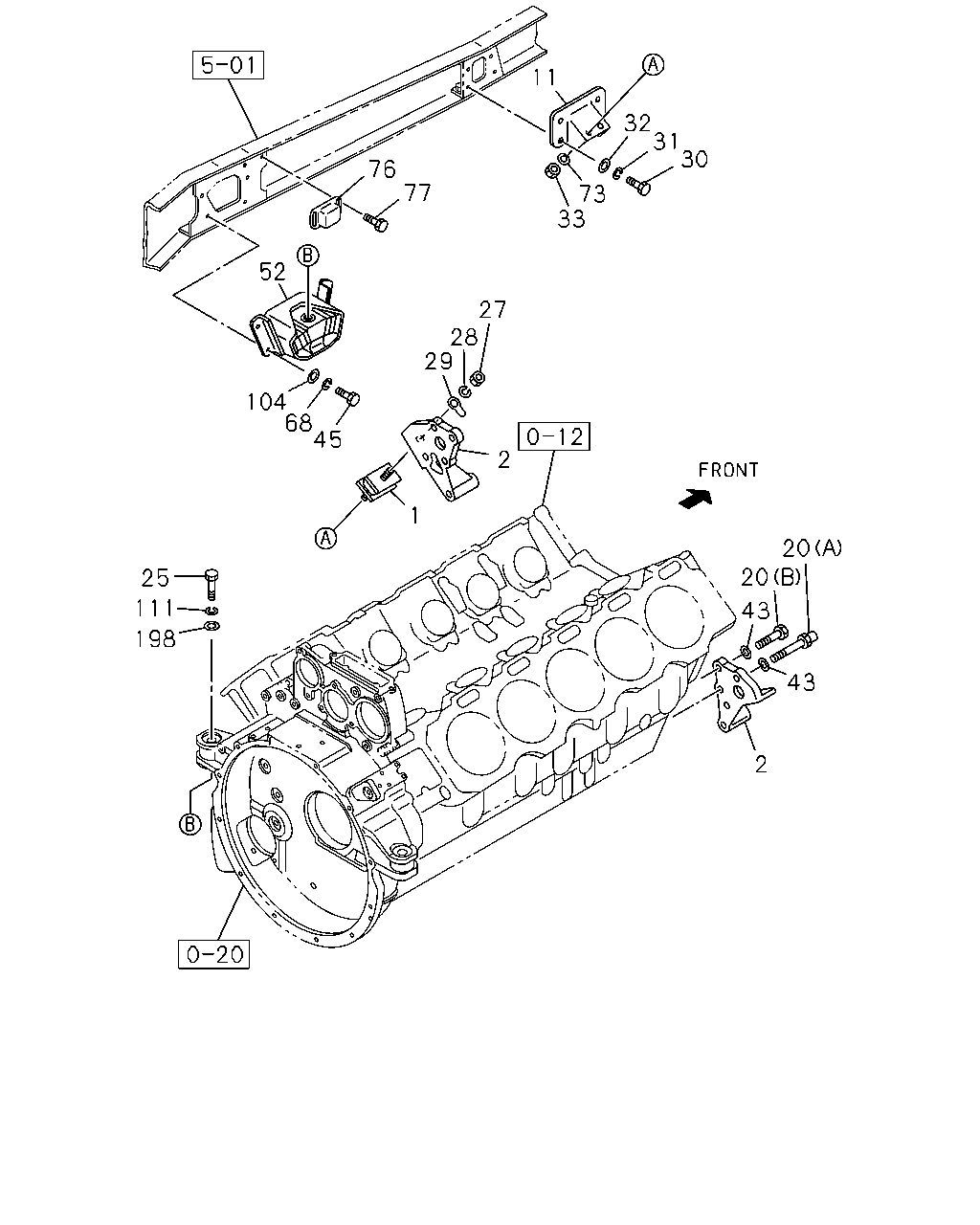

0-22 — ENGINE MOUNTING
(#28863) — 24 parça
11
32
31
30
76
77
73
33
52
27
28
29
104
68
45
2
1
20
20
25
111
43
198
43
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-132-2
02
1
0106-
2
FOOT; ENG
1-11771-218-1
01
1
0106-
2
FOOT; ENG
1-11771-217-1
01
1
0106-
11
BRACKET; CUSHION RUBBER,FRT
1-53211-222-0
02
1
0106-
20
BOLT; ENG FOOT
(A) M14X110
1-09020-007-0
02
1
0106-
20
BOLT; ENG FOOT
(B) M14X45
9-92361-445-0
04
1
0106-
25
BOLT; CUSHION RUBBER TO BRKT
M22X105
9-09804-230-1
02
1
0106-
27
NUT; CUSHION RUBBER TO ENG FOOT
M18
9-99110-518-0
02
1
0106-
28
WASHER; LK,SUPPORT BRKT
ID=18.2
9-09150-518-0
02
1
0106-
29
PLATE; LK,CUSHION RUBBER,FRT
1-53229-040-0
02
1
0106-
30
BOLT; BRKT TO FRAME
M14X35
9-92061-435-0
08
1
0106-
31
WASHER; LK,BRKT TO FRAME
ID=14.2
9-09150-814-0
08
1
0106-
32
WASHER; PL,BRKT TO FRAME
ID=15
9-09651-069-0
08
1
0106-
33
NUT; CUSHION RUBBER TO BRKT
M14
9-99110-414-0
04
1
0106-
43
WASHER; ENG FOOT
ID=14.2
1-09503-050-0
06
1
0106-
45
BOLT; CUSHION RUBBER TO FRAME
M14X40
9-92061-440-0
08
1
0106-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-236-3
02
1
0106-
68
WASHER; LK,CUSHION RUBBER
ID=14.2
9-09150-814-0
08
1
0106-
73
WASHER; LK,CUSHION RUBBER TO FRAME
ID=14.2
9-09150-514-0
04
1
0106-
76
STOPPER; ENG MTG RUBBER
1-53229-056-1
02
1
0106-
77
BOLT; STOPPER
M8X16 FLANGE
0-28080-816-0
04
1
0106-
104
WASHER; PL,CUSHION RUBBER
ID=15
9-09651-069-0
08
1
0106-
111
WASHER; LK,CUSHION RUBBER TO BRKT
ID=22.5
9-09150-622-0
02
1
0106-
198
WASHER; PL,CUSHION TO BRKT,RR
9-09164-622-0
02
1
0106-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
