Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

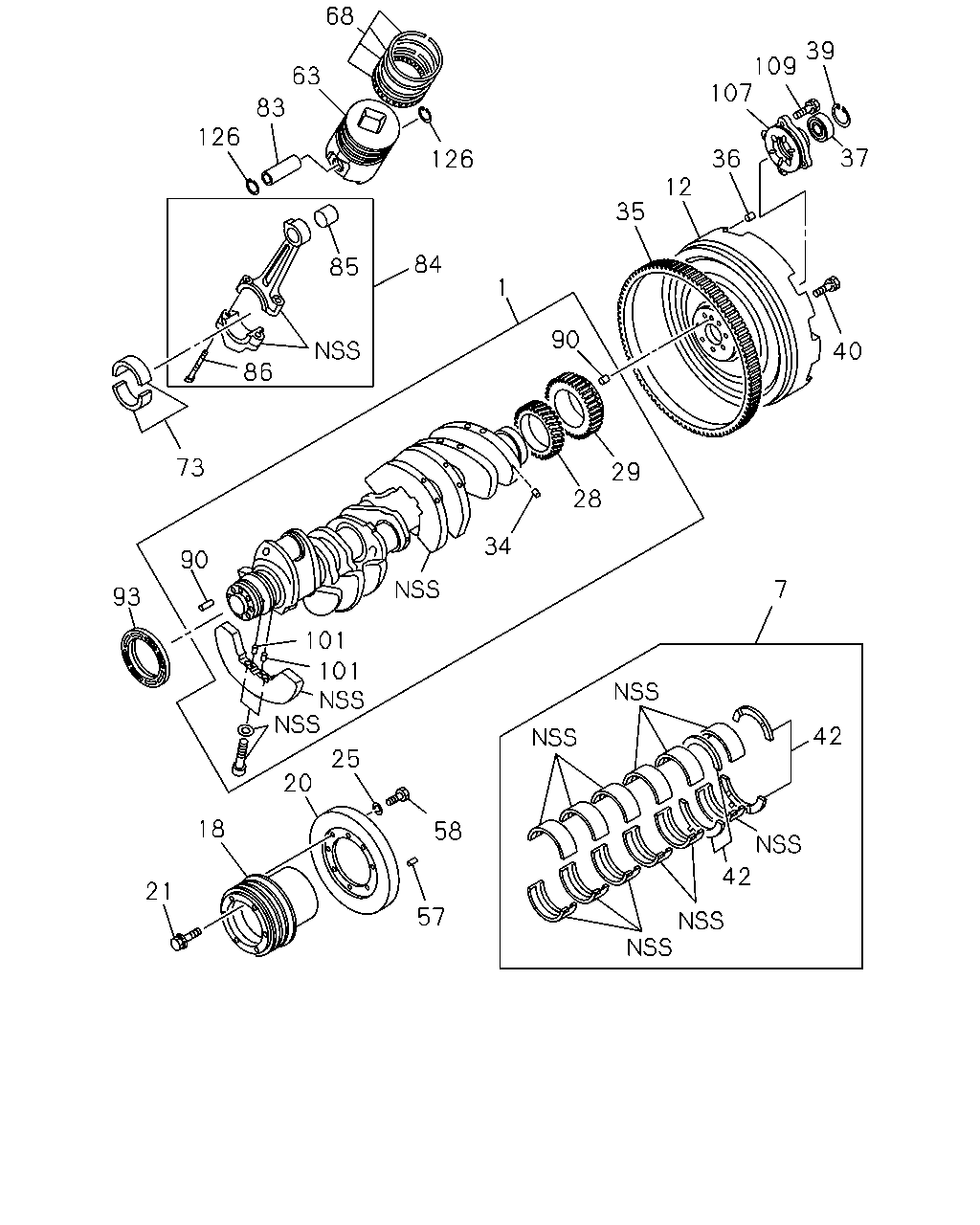

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#28861) — 32 parça
68
39
109
107
63
83
126
37
36
126
12
35
84
85
1
90
40
86
73
29
28
34
90
7
93
101
101
42
25
20
18
58
42
21
57
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
ENGINE REAR PTO(SV1)
1-12310-704-1
01
1
0106-
1
CRANKSHAFT
EXC. ENGINE REAR PTO(SV1)
1-12310-703-1
01
1
0106-
7
METAL KIT; CRANKSHAFT,STANDARD
1-11510-111-0
01
1
0106-
12
FLYWHEEL
1-12331-258-4
01
1
0106-
18
PULLEY; CR/SHF
3-GROOVE
1-12371-222-1
01
1
0106-
20
DAMPER; CR/SHF
1-12375-143-3
01
1
0106-
21
BOLT; PULLEY FIX
M18X42 W/WASHER
1-12334-016-2
08
1
0106-
25
WASHER; DAMPER
ID=12.5
9-09851-682-0
08
1
0106-
28
GEAR; CR/SHF
Z=48
1-12521-012-1
01
1
0106-
29
GEAR; CR/SHF,PTO
ENGINE REAR PTO(SV1) Z=34
1-38261-016-0
01
1
0106-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
0106-
35
GEAR; RING
Z=164
1-12333-024-0
01
1
0106-
36
PIN; FLYWHEEL
OD=10 L=22
9-08151-022-0
02
1
0106-
37
BEARING; PILOT,TOP GEAR SHAFT
1-09800-200-1
01
1
0106-
39
RING; SNAP,BRG
OD=76.5
9-09180-172-0
01
1
0106-
40
BOLT; FLYWHEEL
M18X60 W/PL WASHER
1-12334-012-3
08
1
0106-
42
WASHER; THRUST,CR/SHF
1-11515-041-0
02
1
0106-
57
PIN; PULLEY
OD=8 L=16
9-08150-816-0
01
1
0106-
58
BOLT; CR/SHF PULLEY
9-02361-220-0
08
1
0106-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
1-12111-813-0
10
1
0106-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
1-12121-129-1
10
1
0106-
73
METAL SET; CONN ROD,STANDARD
1-12271-076-0
10
1
0106-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
1-12211-036-4
10
1
0106-
84
ROD ASM; CONN
1-12230-194-0
10
1
0106-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
1-12251-045-0
10
1
0106-
86
BOLT; CONNROD
M13X66 FLANGE
1-12235-039-1
20
1
0106-
90
PIN; FLYWHEEL & PULLEY
OD=8 L=16
9-08150-816-0
02
1
0106-
93
THROWER; OIL,CR/SHF
1-12319-017-0
01
1
0106-
101
PIN; CR/SHF
OD=6 L=16
9-08160-616-0
16
1
0106-
107
RETAINER; BRG
1-12338-006-0
01
1
0106-
109
BOLT; RET
M10X20 FLANGE
0-28181-020-0
04
1
0106-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET.
1-09587-065-0
20
1
0106-
