◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ CXZ ▶ 10660 - CXZ RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-66 - HEAD LINING AND TRIM ▶
6-66 — HEAD LINING AND TRIM (#2886) — 15 parça

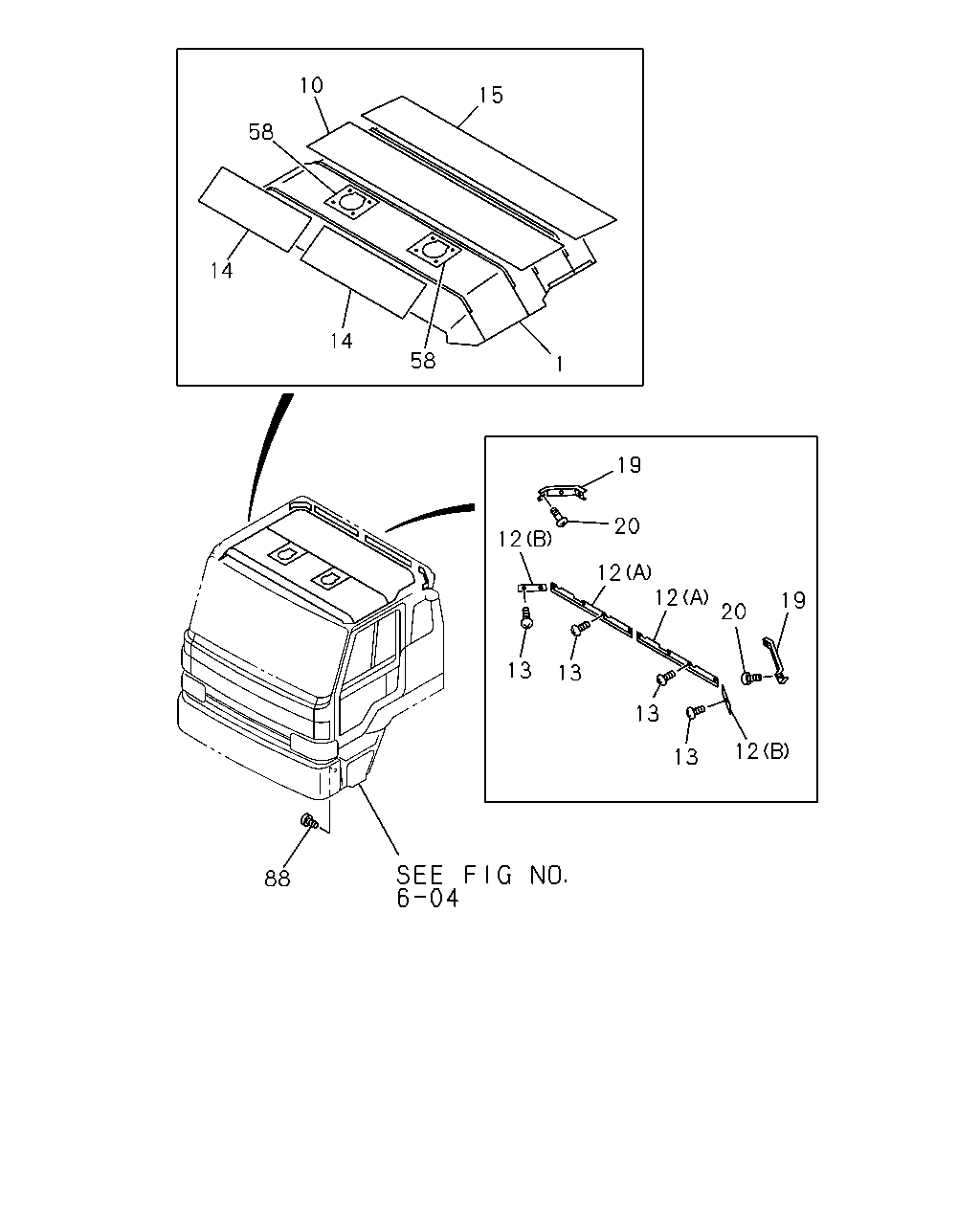

çizim 95245
13 12 19 20 12 13 13 13 12 20 19 12 88 1 58 14 14 58 10 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 LINING; HD 1-73317-266-3 01 1 9002-9306 ● ●
1 LINING; HD 1-73317-299-0 01 1 9307- ● ●
10 INSULATOR; NOISE,ROOF CENTER 1-73317-115-3 02 1 9002- ● ●
12 RETAINER; HD LINING BACK CORNER
(A) 		1-73317-123-0 02 1 9002- ● ●
12 RETAINER; HD LINING BACK CORNER
(B) 		1-73317-124-4 02 1 9002- ● ●
13 SCREW; RET
M4X16 TAPPING 		1-09981-474-0 04 1 9002- ● ●
14 INSULATOR; NOISE,ROOF FRT 1-73317-114-3 02 1 9002- ● ●
15 INSULATOR; NOISE,ROOF,RR 1-73317-116-3 02 1 9002- ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73317-237-0 01 1 9002-9306 ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73317-275-1 01 1 9307- ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73317-236-0 01 1 9002-9306 ● ●
19 FINISHER; BACK CORNER,HEADLINING 1-73317-274-1 01 1 9307- ● ●
20 SCREW; FINISHER,BACK CORNER,HEADLINING
M4X16 TAPPING 		1-09981-476-0 06 1 9002- ● ●
58 CUSHION ASM; ROOF VENT 1-73317-119-1 02 1 9002- ● ●
88 PLUG; UNDER FRAME
OD=15 L=14.5 		1-76378-157-0 02 1 9002- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
