Isuzu WW
▶
TRUCKS
▶
CXZ
▶
10880 - CXZ RHD 10PE1 TWIN VERTICAL
▶
0 - Engine, Emission, Engine Electrical
▶
0-13 - OIL PAN AND LEVEL GAUGE
▶
0-13 — OIL PAN AND LEVEL GAUGE
(#28859) — 47 parça
◀

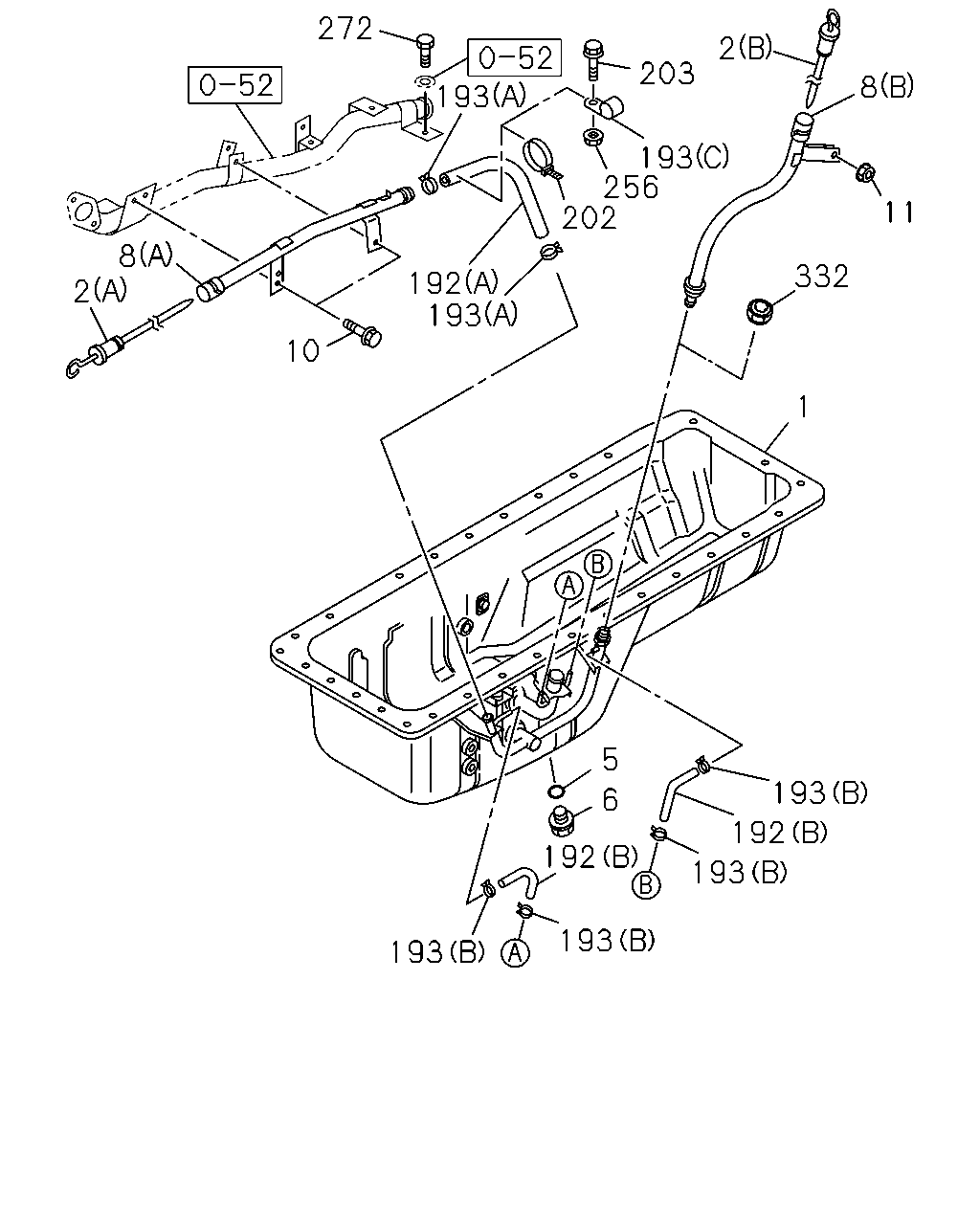

[013A] LEVEL GAUGE AND OTHER PARTS (23 parça)
[013A] OIL PAN AND OTHER PARTS (24 parça)
▶
272
2
203
8
193
193
256
202
11
8
332
192
193
2
10
1
5
193
6
192
192
193
193
193
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-848-1
01
1
0106-
2
GAUGE; OIL LEVEL
(B)
1-11760-394-1
01
1
0106-0304
2
GAUGE; OIL LEVEL
(A)
1-11760-398-0
01
1
0106-0110
2
GAUGE; OIL LEVEL
(A)
1-11760-439-1
01
1
0111-
5
GASKET; PLUG,OIL DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=26.8
1-09623-415-0
01
1
0106-
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-064-1
01
1
0106-0111
6
PLUG; OIL DRAIN
M24X17 FLANGE
1-09604-022-0
01
1
0112-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
1-11766-429-2
01
1
0106-0304
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-458-1
01
1
0106-0110
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
1-11766-599-0
01
1
0111-
10
BOLT; GUIDE TUBE
M8X20 FLANGE
0-28680-820-0
02
1
0106-
11
NUT; GUIDE,OIL LEVEL GAUGE
M8 FLANGE
0-91150-108-0
01
1
0106-0304
192
HOSE; GUIDE TUBE
(A) L=580 SERVICED BY L=3000
0-02365-300-0
01
1
0106-
192
HOSE; GUIDE TUBE
(B)
1-09360-297-0
02
1
0106-
193
CLIP; HOSE,GUIDE TUBE
(B) ID=11.6
1-09707-087-0
04
1
0106-
193
CLIP; HOSE,GUIDE TUBE
(A) ID=20.8
8-94125-862-1
02
1
0106-
193
CLIP; HOSE,GUIDE TUBE
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) ID=26 L=26
1-09701-236-0
01
1
0106-
202
CLIP; BAND,RUBBER COVER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) L=250
5-09707-030-1
01
1
0106-
203
BOLT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8X20 FLANGE
0-28680-820-0
01
1
0106-
256
NUT; CLIP
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) M8 FLANGE
0-91150-108-0
01
1
0106-
272
BOLT; STAY
M8X30
1-09009-020-1
01
1
0106-0208
272
BOLT; STAY
M8X26
1-09009-175-0
01
1
0209-
332
CAP; OIL LEVEL GAUGE GUIDE
1-11769-185-1
01
1
0305-
16
144
144
144
132
150
1
128
160
90
129
122
144
23
116
144
23
159
132
123
125
121
131
131
125
125
121
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
1-11360-848-1
01
1
0106-
16
GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE).
1-11367-105-0
01
1
0106-
23
BOLT; OIL PAN
(A) M8X18 W/LK&PL WASHER
1-09030-004-0
22
1
0106-
23
BOLT; OIL PAN
(B) M8X90 W/LK&PL WASHER
1-09030-078-0
10
1
0106-
90
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE).
1-09623-588-0
01
1
0106-
116
WASHER; LK,COVER
ID=6.1
9-09150-506-0
04
1
0106-
121
COVER; OIL PAN
(B)
1-19381-357-0
01
1
0106-
121
COVER; OIL PAN
(A)
1-19381-378-0
01
1
0106-
122
BRACKET; OIL PAN COVER
1-19389-171-0
01
1
0106-
123
RUBBER; SEAL OIL
1-19387-042-1
01
1
0106-
125
GROMMET; OIL PAN
(A) ID=34
1-09333-032-0
01
1
0106-
125
GROMMET; OIL PAN
(B) ID=18
1-09333-056-0
02
1
0106-
125
GROMMET; OIL PAN
(C) ID=60
1-09333-090-0
01
1
0106-
128
RUBBER; MTG,OIL PAN
1-09337-004-0
06
1
0106-
129
TUBE; DIST
M8X10
1-11369-081-0
03
1
0106-
131
BOLT; COVER NOISE SHIELD
(A) M8X50
0-10805-850-0
03
1
0106-
131
BOLT; COVER NOISE SHIELD
(B) M6X10 FLANGE
0-28080-610-0
06
1
0106-
132
WASHER; PL,OIL PAN COVER
ID=8.4 OD=26
9-09164-808-0
06
1
0106-
144
INSULATOR; OIL PAN
(B) 80X200
1-19389-192-0
07
1
0106-
144
INSULATOR; OIL PAN
(C) 80X300
1-19389-193-0
01
1
0106-
144
INSULATOR; OIL PAN
(A) 80X400
1-19389-194-0
02
1
0106-
150
CLIP; WATER,OIL DRAIN
9-11229-070-0
01
1
0106-
159
NUT; PLATE
M6
9-09110-406-0
04
1
0106-
160
ADAPTER
1-11369-126-0
01
1
0106-
