◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10879 - EXZ LHD FUEL TANK 400L ▶ 9 - Tools ▶ 9-01 - TOOLS ▶
9-01 — TOOLS (#28854) — 193 parça
çizim 138614
40 39 38 37 115 36 189 193 237 208 230
BalonParca AdiParca NoAdetTipApplied Date
36 WRENCH; 24 9-85111-377-0 01 1 0105-
37 WRENCH; 27 9-85111-375-0 01 1 0105-
38 WRENCH; 32 9-85111-358-0 01 1 0105-
39 WRENCH; 36 9-85111-374-0 01 1 0105-
40 WRENCH; 41 9-85111-356-0 01 1 0105-
115 PLIER 5-85171-001-0 01 1 0105-0212
115 PLIER 5-85171-002-0 01 1 0301-1410
115 PLIER 8-98282-845-0 01 1 1411-
189 TUBE; AIR BREATHER
L=460 		9-85291-414-0 01 1 0105-
193 JACK ASM
15TON 		1-85510-019-2 01 1 0105-
208 HANDLE; JACK
L=600 		1-85515-008-0 01 1 0105-0105
208 HANDLE; JACK
L=600 		1-85515-009-0 01 1 0106-1107
208 HANDLE; JACK
L=600 		8-98181-437-0 01 1 1108-
230 PUMP; GREASE 1-85556-007-5 01 1 0105-
237 BAG; TOOL 8-97130-902-1 01 1 0105-

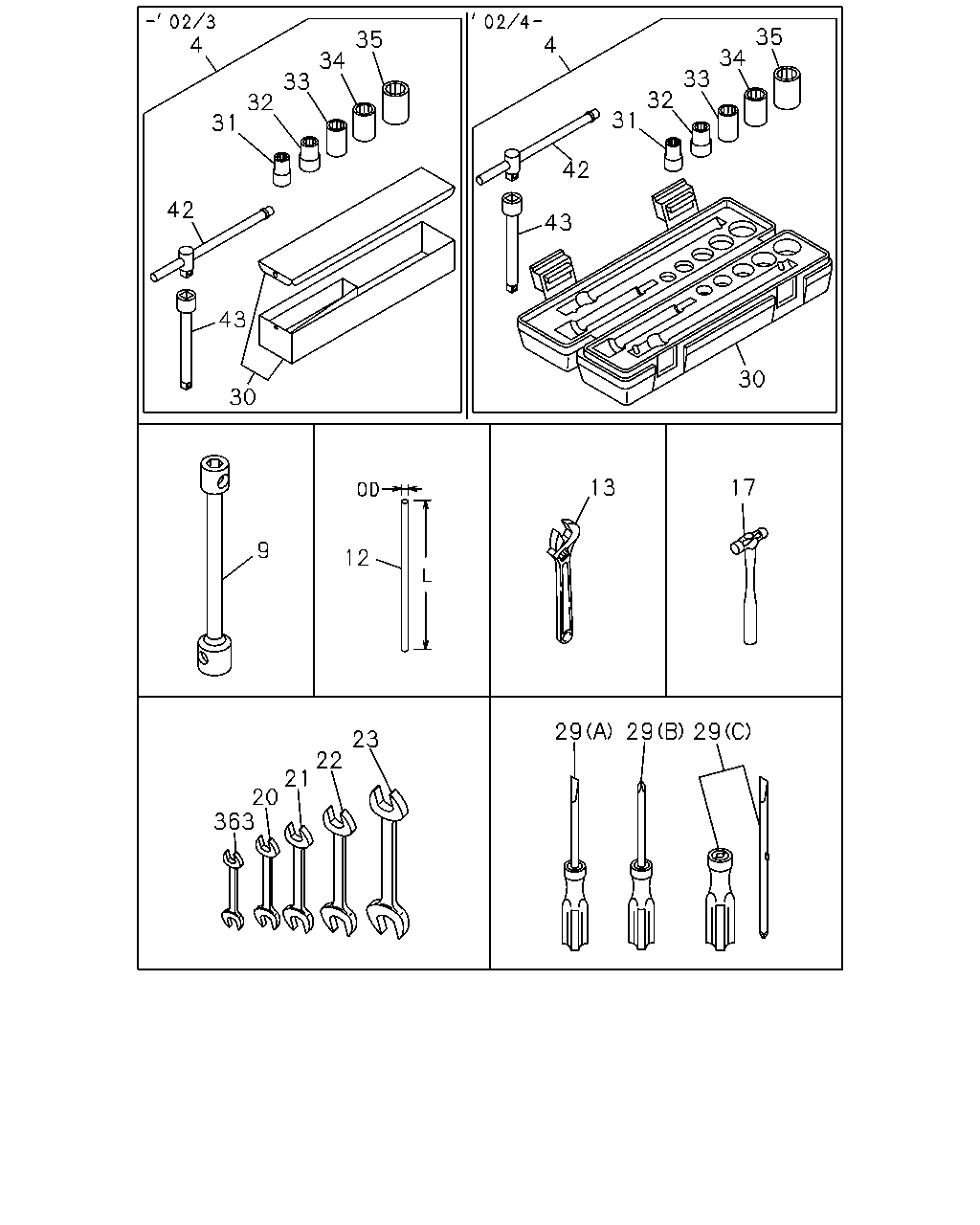

çizim 138616
4 35 34 33 32 35 34 33 32 4 31 31 42 42 43 43 30 30 13 17 9 12 29 23 22 21 20 363 29 29
BalonParca AdiParca NoAdetTipApplied Date
4 WRENCH KIT; SOCKET 9-85110-012-0 01 1 0105-0203
4 WRENCH KIT; SOCKET 1-85000-491-0 01 1 0204-
9 WRENCH; WHEEL PIN
B=33X30 L=450 		1-85111-033-1 01 1 0105-
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		1-85116-011-0 01 1 0105-1501
12 HANDLE; WRENCH,WHEEL PIN
OD=25 L=480 		8-98257-407-0 01 1 1502-
13 WRENCH; MONKEY
L=255 		1-85117-002-1 01 1 0105-0907
13 WRENCH; MONKEY
L=247 		1-85117-006-0 01 1 0908-1407
13 WRENCH; MONKEY
L=255 		8-98270-303-0 01 1 1408-
17 HAMMER 9-85121-406-0 01 1 0105-
20 WRENCH; 10X12
10X12 		9-09592-110-0 01 1 0105-0607
20 WRENCH; 10X12
10X12 		0-95902-510-0 01 1 0608-
21 WRENCH; 14X17
14X17 		9-09592-114-0 01 1 0105-0607
21 WRENCH; 14X17
14X17 		0-95902-514-0 01 1 0608-
22 WRENCH; 19X22
19X22 		9-99592-119-0 01 1 0105-0607
22 WRENCH; 19X22
19X22 		0-95902-519-0 01 1 0608-
23 WRENCH; 24X27
24X27 		9-09592-124-0 01 1 0105-0607
23 WRENCH; 24X27
24X27 		0-95902-524-0 01 1 0608-
29 DRIVER; SCREW
(A) <-> L=285 		1-85151-004-0 01 1 0105-
29 DRIVER; SCREW
(C) <+>,<-> L=160 		8-94242-798-1 01 1 0105-
29 DRIVER; SCREW
(B) <+> L=275 		9-09595-023-0 01 1 0105-
30 BOX; SOCKET WRENCH 9-85581-260-0 01 1 0105-0203
30 BOX; SOCKET WRENCH 1-85000-492-0 01 1 0204-
31 WRENCH; 12 9-09590-012-0 01 1 0105-0203
31 WRENCH; 12 1-85000-495-0 01 1 0204-
32 WRENCH; 14 9-09590-014-0 01 1 0105-0203
32 WRENCH; 14 1-85000-496-0 01 1 0204-
33 WRENCH; 17 9-09590-017-0 01 1 0105-0203
33 WRENCH; 17 1-85000-497-0 01 1 0204-
34 WRENCH; 19 9-09590-019-0 01 1 0105-0203
34 WRENCH; 19 1-85000-498-0 01 1 0204-
35 WRENCH; 22 9-09590-022-0 01 1 0105-0203
35 WRENCH; 22 1-85000-499-0 01 1 0204-
42 HANDLE; SLIDING 9-09590-512-0 01 1 0105-0203
42 HANDLE; SLIDING 1-85000-500-0 01 1 0204-
43 BAR; EXTENSION,SOCKET WRENCH 9-09590-812-0 01 1 0105-0203
43 BAR; EXTENSION,SOCKET WRENCH 1-85000-501-0 01 1 0204-
363 WRENCH; OPEN END 8X10
8X10 		9-99592-108-0 01 1 0105-0607
363 WRENCH; OPEN END 8X10
8X10 		0-95902-508-0 01 1 0608-
çizim 138932
125 127 1 124 128 129 130 135 141 146 143 144 152 153 146 151
BalonParca AdiParca NoAdetTipApplied Date
1 HANDLE; SPARE TIRE CARRIER 9-23110-018-0 01 1 0105-
124 PULLER ASM; BRG DIFF 9-85210-131-0 01 1 0105-
125 PULLER ASM; KING PIN
L=450 		1-85210-009-0 01 1 0105-
127 WRENCH ASM; HUB BRG NUT
REARWARD REAR L=400 B=105 		9-85113-509-0 01 1 0105-
127 WRENCH ASM; HUB BRG NUT
FORWARD REAR L=400 B=116 		9-85113-524-0 01 1 0105-0808
127 WRENCH ASM; HUB BRG NUT
FORWARD REAR L=400 B=116 		8-98119-000-1 01 1 0809-
128 PULLER ASM; STRG WHEEL 1-85210-078-0 01 1 0105-
129 PULLER ASM; PITMAN ARM 1-85210-011-0 01 1 0105-
130 WRENCH; BOX
B=63 		9-85111-368-0 01 1 0105-
135 COVER; ENG MTG,FRT 9-85595-016-0 02 1 0105-
141 HANDLE; WRENCH
OD=25 L=480 		1-85116-011-0 01 1 0105-1501
141 HANDLE; WRENCH
OD=25 L=480 		8-98257-407-0 01 1 1502-
141 HANDLE; WRENCH
OD=16 L=200 		9-85111-934-0 01 1 0105-
143 GUIDE; BOOT,TIE ROD END 1-85229-013-0 01 1 0105-
144 BASE; BOOT GUIDE,TIE ROD END 1-85229-009-0 01 1 0105-
146 REPLACER KIT; LEAF SPR
(B) 		1-85237-017-0 01 1 0105-
146 REPLACER KIT; LEAF SPR
(A) 		9-85231-556-0 01 1 0105-
151 REMOVER; OIL BRK,FRT RETURN SPR
ID=16 		1-85237-002-0 01 1 0105-
152 DRIVER; NEEDLE,KING PIN
L=220 		1-85238-001-0 01 1 0105-
153 DRIVER; WASHER,THRUST WASHER 1-85238-002-0 01 1 0105-
çizim 138933
75 120 163 123 121 121 75 163 163 166 167 408 408 75
BalonParca AdiParca NoAdetTipApplied Date
75 TOOL; SETTING,OIL SEAL
(D) 		1-85220-049-0 01 1 0105-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (C) 		1-85221-096-0 01 1 0107-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (A) 		1-85221-168-0 01 1 0107-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (B) 		1-85221-169-0 01 1 0107-
120 PULLER ASM; MAIN REAR BRG
ISUZU M/T<X9A> L=285 		9-85210-184-0 01 1 0107-
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> (B) 		1-85210-069-0 01 1 0107-
121 PULLER ASM; COUNTER REAR
ISUZU M/T<X9A> (A) OD=146 		1-85210-074-0 01 1 0107-
123 PULLER; SPEEDOMETER BUSHING
ISUZU M/T<X9A> 		9-85210-091-0 01 1 0107-
163 TOOL; SETTING
ISUZU M/T<X9A> (W) L=195 		1-85221-162-1 01 1 0107-
163 TOOL; SETTING
ISUZU M/T<X9A> (X) L=150 		1-85221-163-0 01 1 0107-
163 TOOL; SETTING
ISUZU M/T<X9A> (C) OD=150 		1-85221-167-0 01 1 0107-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (S) 		1-85221-242-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U) (S) 		1-85221-249-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) 		1-85221-193-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-85221-194-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-85221-229-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G) 		1-85221-230-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H) 		1-85221-231-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT 		1-85221-232-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) 		1-85221-233-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (K) 		1-85221-234-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (L) 		1-85221-235-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (M) 		1-85221-236-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (N) 		1-85221-237-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) MAIN SHAFT 		1-85221-238-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (P) 		1-85221-239-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (Q) 		1-85221-240-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (R) 		1-85221-241-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (T) 		1-85221-243-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (U) 		1-85221-244-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (V) 		1-85221-245-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (O) 		1-85221-246-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-85221-247-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-85221-248-0 01 1 0105-
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ISUZU M/T<X9A> L=550 H=60.4 		8-98169-696-0 01 1 1006-
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) L=550 H=57.5 		1-85253-015-0 01 1 0105-1005
166 ALIGNER; CLU RELEASE LEVER
CLUTCH 15.5" TWIN PLATE STRAP DRIVE(TBV) ZF M/T<X9E> L=550 H=57.5 		1-85253-015-0 01 1 1006-
167 ALIGNER; CLU PILOT
MJX16P M/T(Y3Z) L=300 OD=52.5 		1-85253-025-0 01 1 0301-
408 TOOL; SETTING,SHIFT ASSISTER
ISUZU M/T<X9A> (A) 		1-85221-268-0 01 1 0107-
408 TOOL; SETTING,SHIFT ASSISTER
ISUZU M/T<X9A> (B) 		1-85221-269-0 01 1 0107-

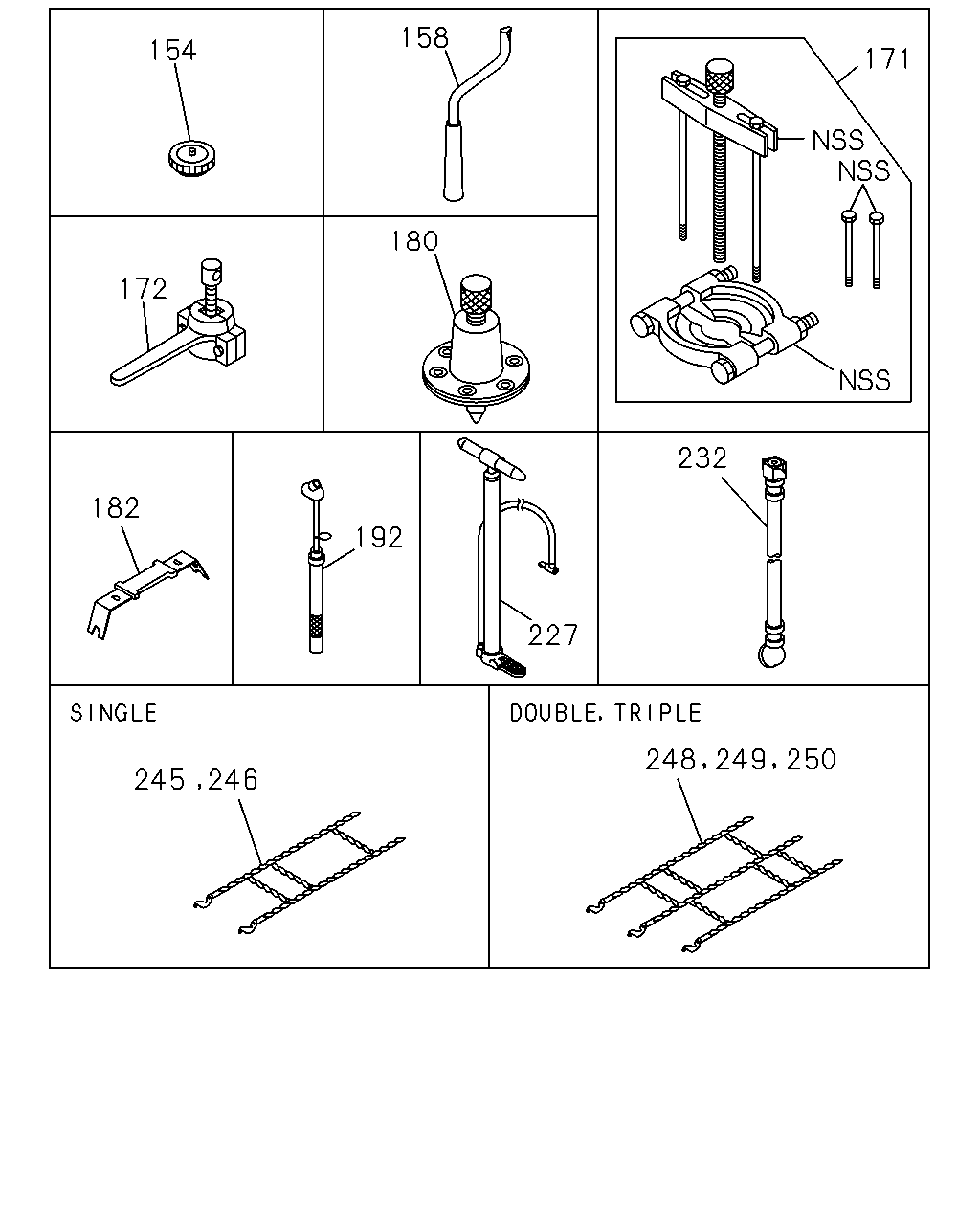

çizim 138941
158 154 171 180 172 232 182 192 227 245 246 248 249 250
BalonParca AdiParca NoAdetTipApplied Date
154 SLEEPER; KING PIN 1-85238-003-0 01 1 0105-
158 SETTING TOOL; RETURN SPR 9-85221-231-0 01 1 0105-
171 PULLER ASM; PINION BRG 9-85210-152-0 01 1 0105-
172 PULLER ASM; BRG DIFF PILOT 9-85210-182-0 01 1 0105-
180 PULLER; FRT & RR HUB 1-85210-002-0 01 1 0105-
182 REMOVER ASM 1-85239-008-0 01 1 0105-
192 GAUGE; TIRE PRESSURE 1-85315-002-0 01 1 0105-
192 GAUGE; TIRE PRESSURE
TIRE INFLATOR DEVICE<W47> 		1-85315-002-0 01 1 0105-
227 PUMP ASM; TIRE 9-85521-132-0 01 1 0105-
232 HOSE; AIR,AIR CHARGE
TIRE INFLATOR DEVICE<W47> 		1-09360-628-1 01 1 0105-
245 CHAIN; TIRE,SINGLE
9.00-20 SINGLE TYPE 		9-85591-254-0 AR 1 0105-
246 CHAIN; TIRE,1000-20,SINGLE
10.00-20 SINGLE TYPE 		9-85591-239-0 AR 1 0105-
246 CHAIN; TIRE,1000-20,SINGLE
11.00-20 SINGLE TYPE 		9-85591-259-0 AR 1 0105-
248 CHAIN; TIRE,1000-20,DOUBLE
10.00-20 DOUBLE TYPE 		9-85591-240-0 AR 1 0105-
249 CHAIN; TIRE,TRIPLE
9.00-20 TRIPLE TYPE 		9-85591-256-0 AR 1 0105-
250 CHAIN; TIRE,1000-20,TRIPLE
10.00-20 TRIPLE TYPE 		9-85591-241-0 AR 1 0105-
250 CHAIN; TIRE,1000-20,TRIPLE
11.00-20 TRIPLE TYPE 		9-85591-261-0 AR 1 0105-

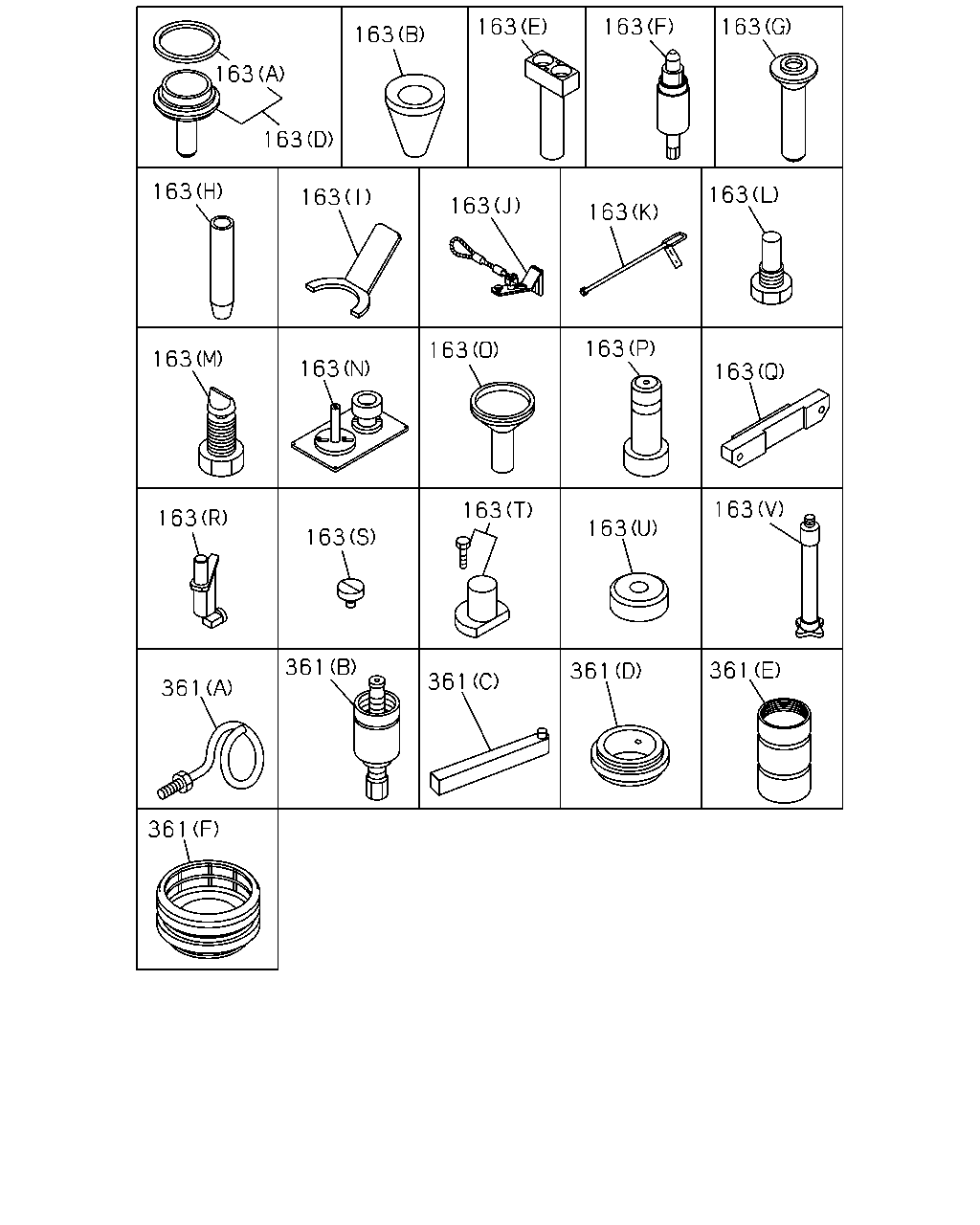

çizim 138942
163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 163 361 361 361 361 361 361
BalonParca AdiParca NoAdetTipApplied Date
163 TOOL; SETTING
ISUZU M/T<X9A> (W) L=195 		1-85221-162-1 01 1 0107-
163 TOOL; SETTING
ISUZU M/T<X9A> (X) L=150 		1-85221-163-0 01 1 0107-
163 TOOL; SETTING
ISUZU M/T<X9A> (C) OD=150 		1-85221-167-0 01 1 0107-
163 TOOL; SETTING
TRANSMISSION-ZF 16S151 OD(Y2N) (S) 		1-85221-242-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U) (S) 		1-85221-249-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) 		1-85221-193-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-85221-194-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) 		1-85221-229-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (G) 		1-85221-230-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (H) 		1-85221-231-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) TOP GEAR SHAFT 		1-85221-232-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (J) 		1-85221-233-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (K) 		1-85221-234-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (L) 		1-85221-235-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (M) 		1-85221-236-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (N) 		1-85221-237-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (I) MAIN SHAFT 		1-85221-238-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (P) 		1-85221-239-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (Q) 		1-85221-240-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (R) 		1-85221-241-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (T) 		1-85221-243-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (U) 		1-85221-244-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (V) 		1-85221-245-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (O) 		1-85221-246-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) 		1-85221-247-0 01 1 0105-
163 TOOL; SETTING
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-85221-248-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S151 OD(Y2N) (F) COUNTER BRG FRT 		1-85219-023-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U) (F) COUNTER BRG FRT 		1-85219-025-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M10 		1-85210-091-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (B) 		1-85219-015-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (C) 		1-85219-017-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (D) TOP BRG 		1-85219-018-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (E) 		1-85219-019-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (A) M12 		1-85219-020-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) COUNTER BRG RR 		1-85219-021-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) TOP BRG 		1-85219-022-0 01 1 0105-
361 PULLER; TRANS
TRANSMISSION-ZF 16S221 OD(Y1U),TRANSMISSION-ZF 16S151 OD(Y2N) (F) TOP BRG,MAIN SHAFT SIDE 		1-85219-024-0 01 1 0105-

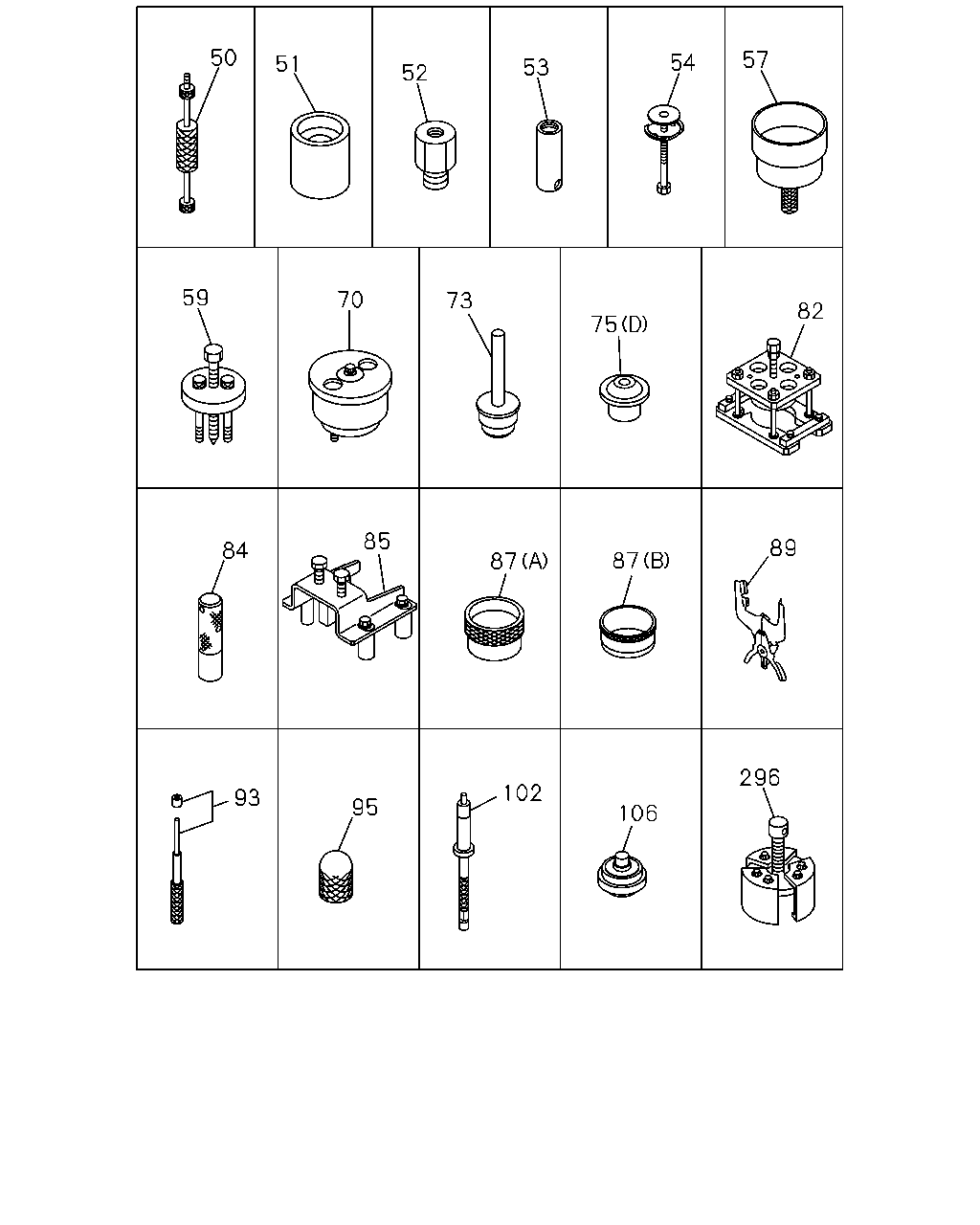

çizim 138986
50 57 54 51 53 52 59 70 73 82 75 85 89 84 87 87 296 102 93 95 106
BalonParca AdiParca NoAdetTipApplied Date
50 REPLACER; NOZZLE HOLDER
L=300 		1-85230-013-0 01 1 0105-
51 PULLER ASM; WATER PUMP 1-85220-047-0 01 1 0105-
52 REMOVER; WATER PUMP 1-85210-062-0 01 1 0105-
53 PULLER; TAPER BUSHING 1-85210-063-0 01 1 0105-
54 PULLER; THERMOSTAT SEAL 1-85210-067-0 01 1 0105-
57 TOOL; SETTING CRANK GEAR
OD=162 		1-85220-045-0 01 1 0105-
59 PULLER ASM; TIMING GEAR
6WA1 TC-C(55L) 		1-85210-065-0 01 1 0105-
70 TOOL; SETTING,OIL SEAL 1-85220-043-0 01 1 0105-1108
70 TOOL; SETTING,OIL SEAL 8-98194-608-0 AR 1 1109-
73 TOOL; SETTING,THERMOSTAT SEAL 1-85221-034-0 01 1 0105-
75 TOOL; SETTING,OIL SEAL
(D) 		1-85220-049-0 01 1 0105-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (C) 		1-85221-096-0 01 1 0107-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (A) 		1-85221-168-0 01 1 0107-
75 TOOL; SETTING,OIL SEAL
ISUZU M/T<X9A> (B) 		1-85221-169-0 01 1 0107-
82 PULLER ASM; CR/SHF GEAR 1-85210-064-0 01 1 0105-
84 REPLACER; VALVE SEAL
EXHAUST 		1-85221-184-0 01 1 0105-
84 REPLACER; VALVE SEAL
INLET 		1-85221-187-0 01 1 0105-
85 REPLACER ASM; VALVE SPR 1-85235-013-0 01 1 0105-
87 TOOL; PISTON
6WA1 TC-C(55L) (A) 		1-85220-046-0 01 1 0105-
87 TOOL; PISTON
6WG1 TC-N(71L),6WG1 TC-R(75L) (B) 		1-85220-059-0 01 1 0105-
89 TOOL; PISTON RING
6WG1 TC-N(71L),6WG1 TC-R(75L) 		1-85221-025-0 01 1 0105-
93 SETTING KIT; VALVE GUIDE
L=260 		9-85231-202-0 01 1 0105-
95 SETTING TOOL; BRIDGE GUIDE 9-85221-324-0 01 1 0105-
102 ADAPTER; COMP GAGE 1-85317-019-0 01 1 0105-
106 TOOL; SETTING PILOT BRG 1-85221-057-0 01 1 0105-
296 REPLACER; SLINGER 1-85210-027-0 01 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
